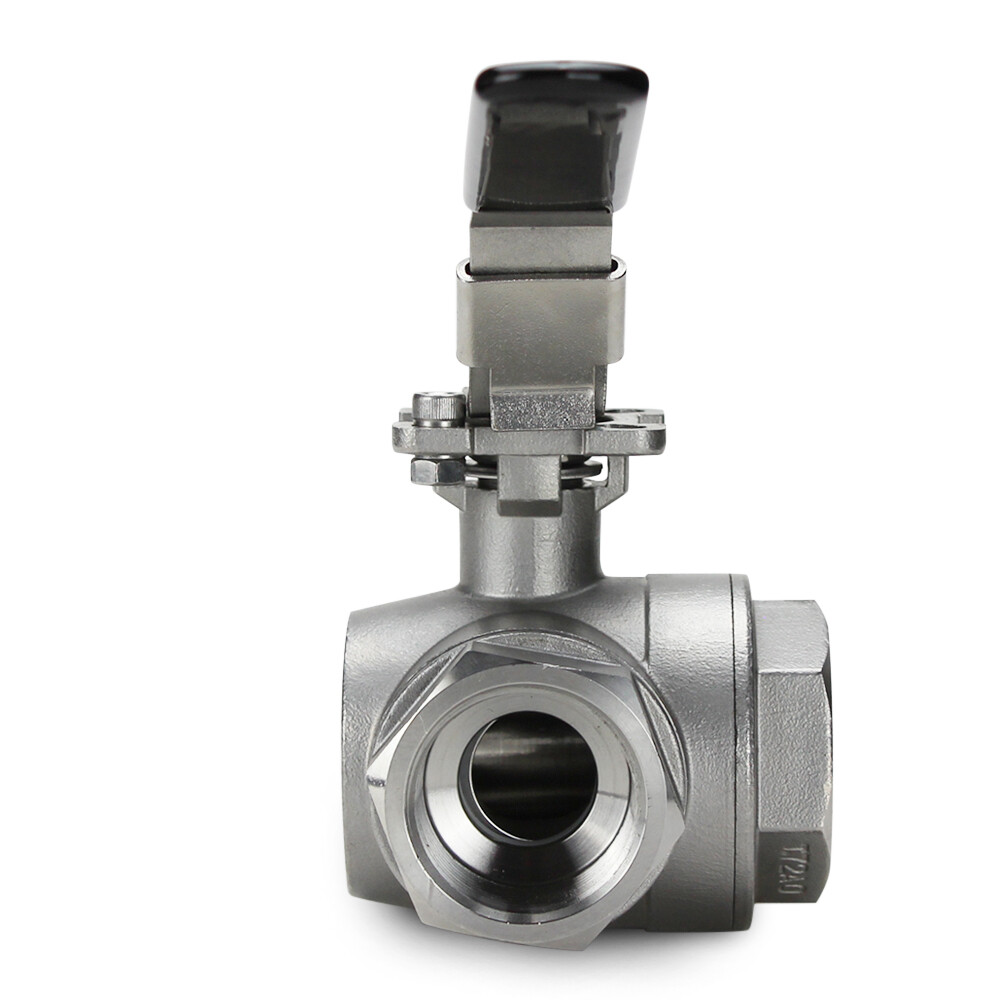

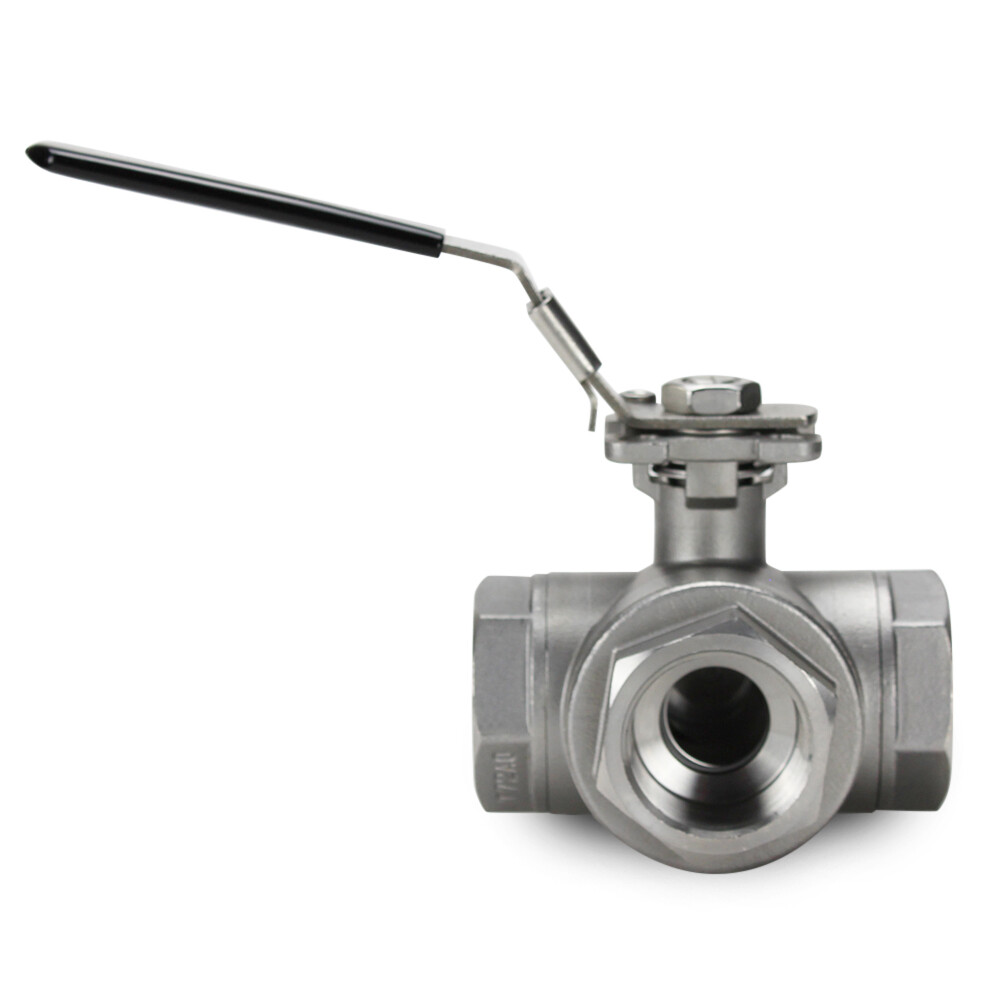

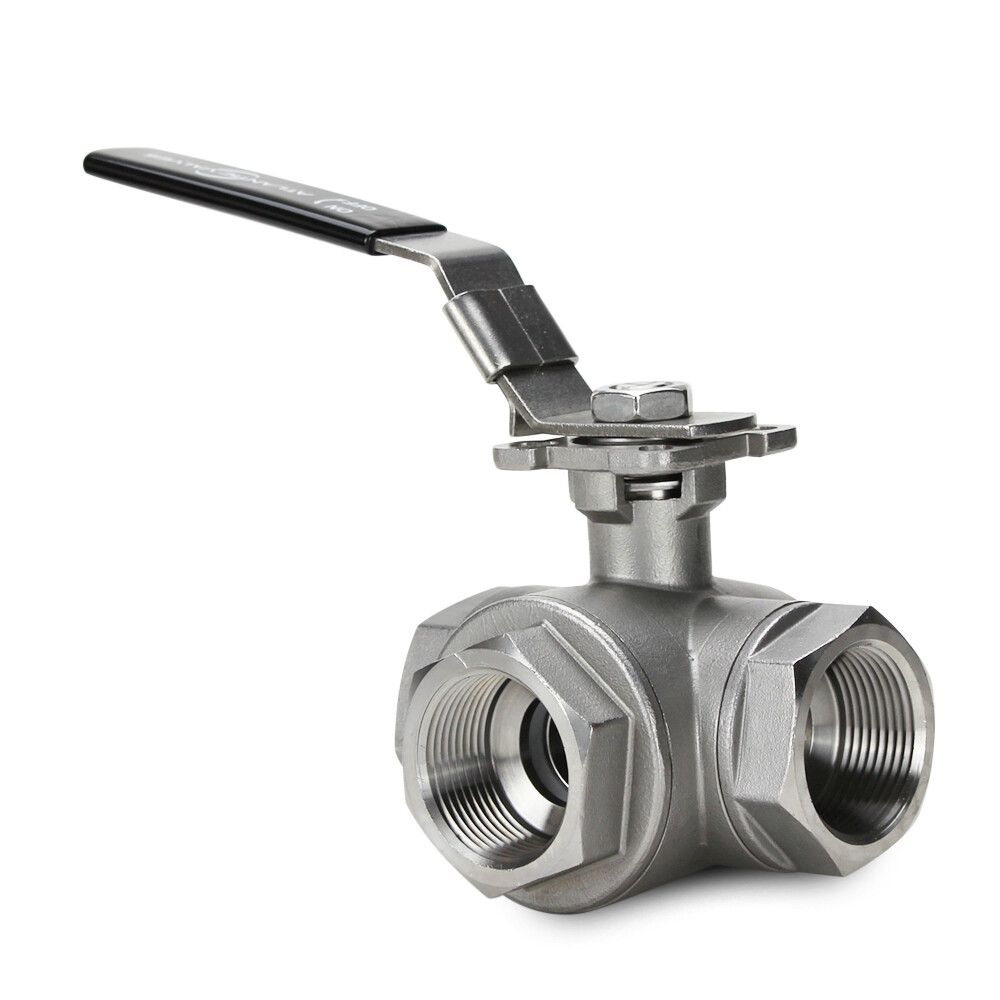

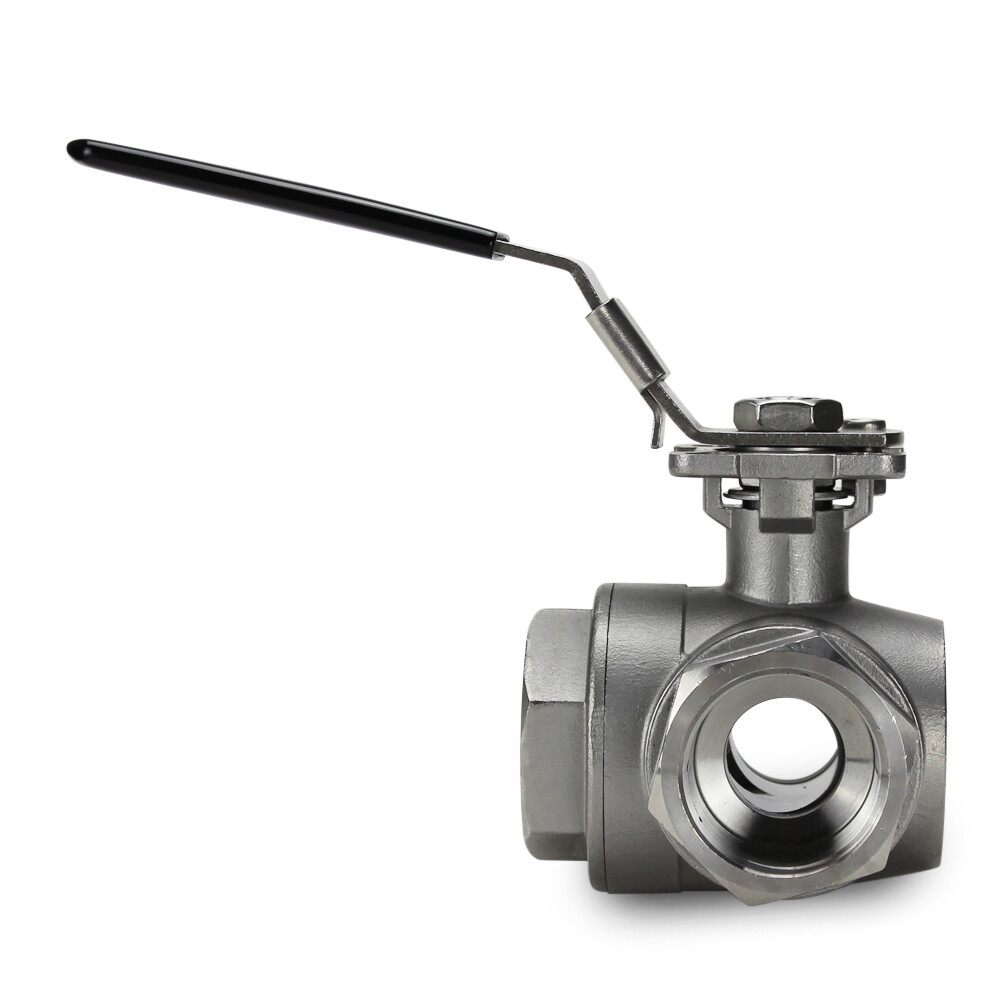

Check the listing for details. 1-1/4" 3-Way T-Port Ball Valve, Stainless Steel, NPT Threaded, 1000PSI. Condition: New. Listed at 126.16 USD. Untitled Document Stainless Steel Manual3-Way, "T" Type Ball Valve Temperature Range -4 to 356° F Pressure Rating 1000 PSI Operation Type Bi-Directional Handle Locking *Suitable Media Potable Water -*Etc Specifications Body MaterialStainless Steel Components Stainless Steel Seal Material PTFE Thrust Washer PTFE Stem Packing PTFE Orifice Size 1-1/4" Flow Bi-Directional Bore Type Standard Bore Weight 4.73 lbs Height 3.94" Length 4.37" Width 6.38" The BV-3WT032-S is a 1-¼” Stainless Steel 3-way, “T-Type” manual ball valve. These are also known as T-Port or Mixing Ball Valves. They are used to divert media flow in multiple directions at the same time. 3-way valves eliminate the need for multiple two-way valves to accomplish the same task. The ball cut out is shaped like the letter “T” allowing for many flow patterns. This ball valve is bi-directional and allows for any two or three ports to be connected, but it only allows for flow in one direction at a time, this means any of the ports can be either an outlet or an inlet. This valve cannot be closed. This 3-way valve is made from high-quality, lead-free stainless steel with PTFE seals. This allows the valve to operate under a wide range of temperatures (-25° F to 356° F ) and Pressures (max. 1000PSI). These valves are commonly used for homebrewing, and food-grade and potable water applications but due to the resistance to high-heat, and many different chemicals and gases the uses are nearly endless. A chemical compatibility expert should always be consulted to ensure any materials you are using are the correct choice. This valve is fit with a position indicator on its blow-out proof stem, a locking handle and a positional bolt that prevents the ball from being turned to unwanted positions. Each port has NPT threading for easy installation. Listing and template services provided by inkFrog
