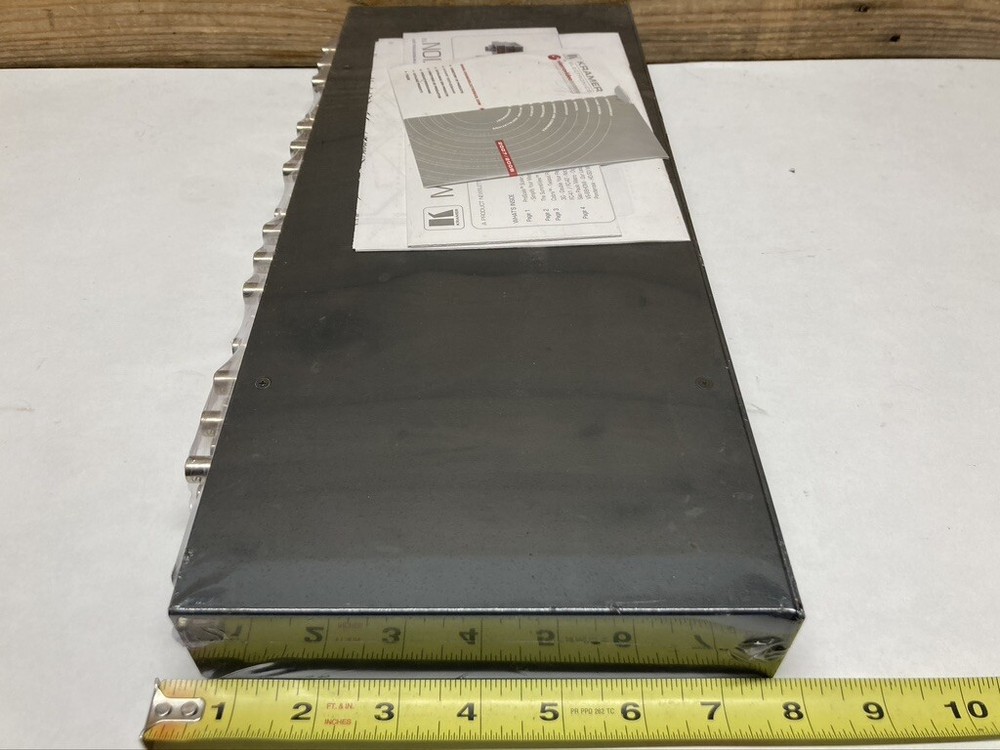

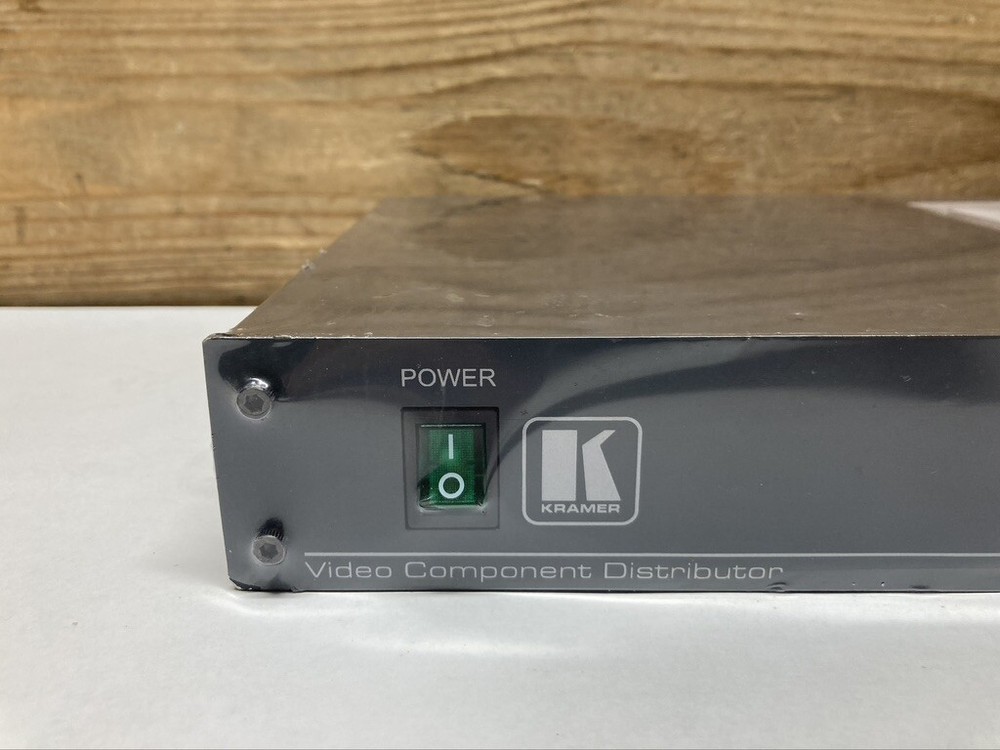

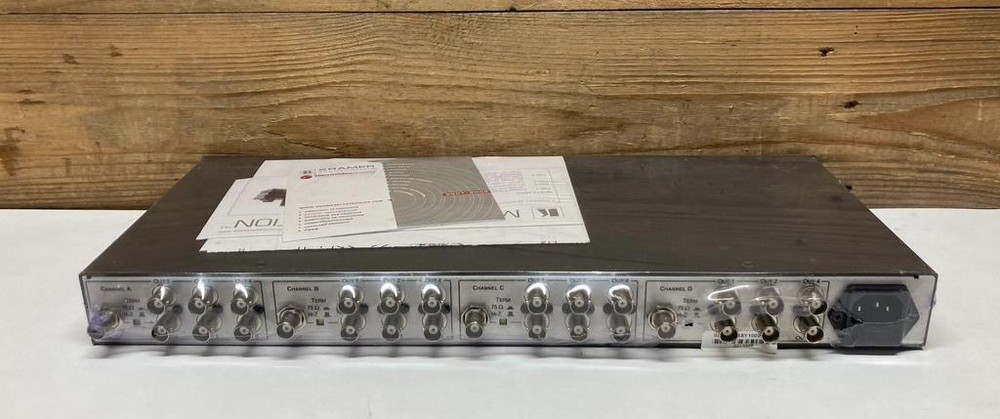

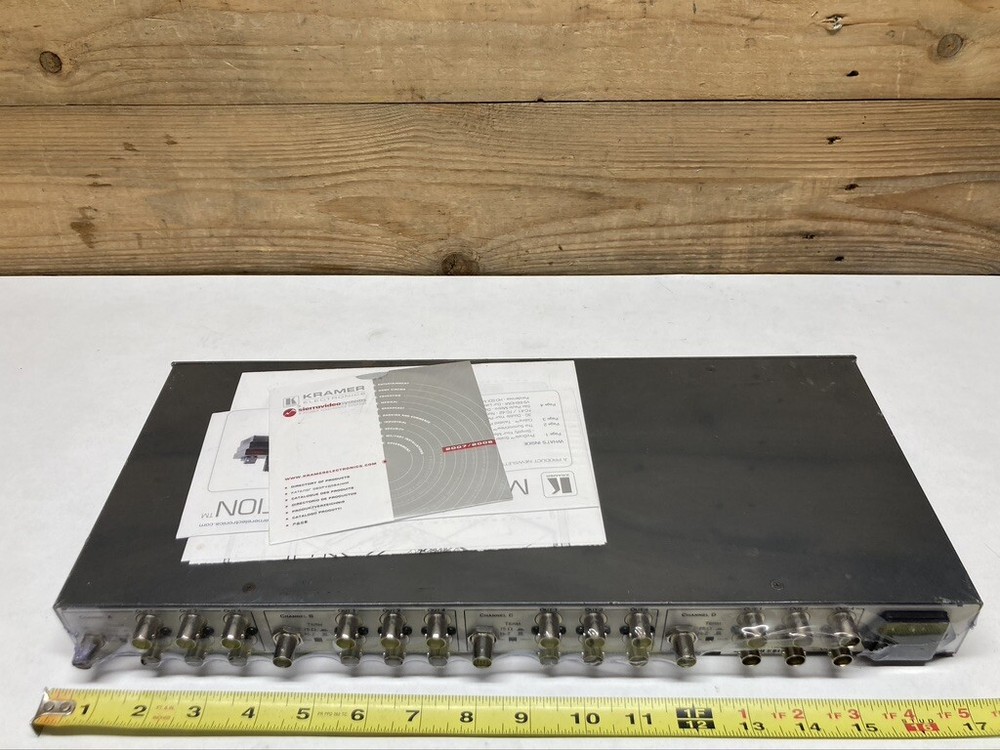

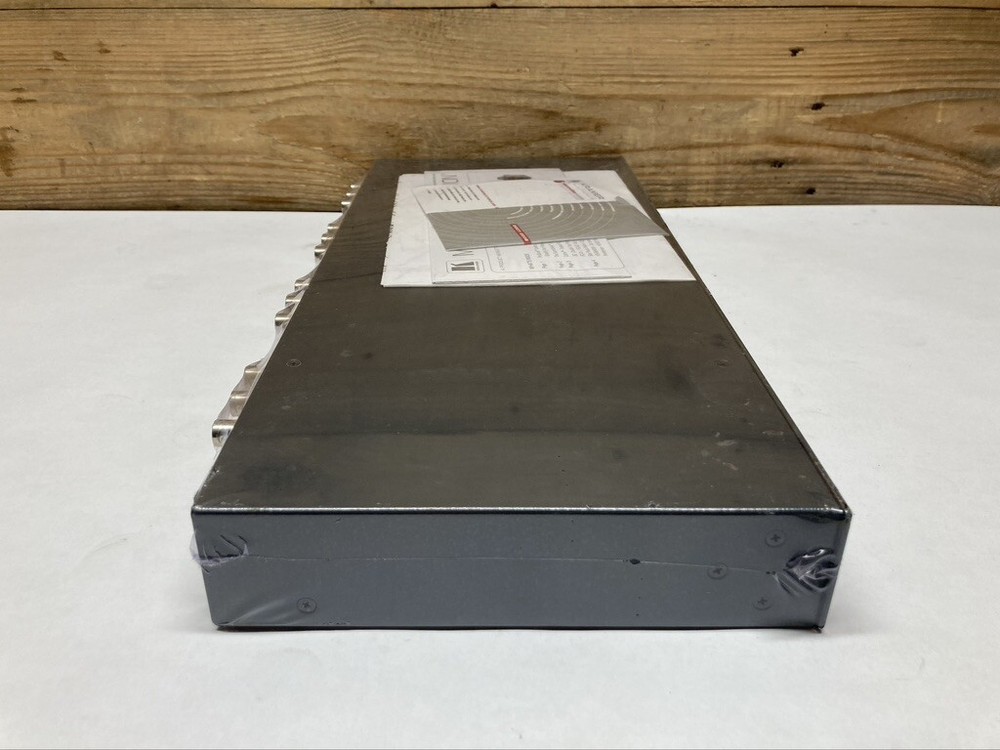

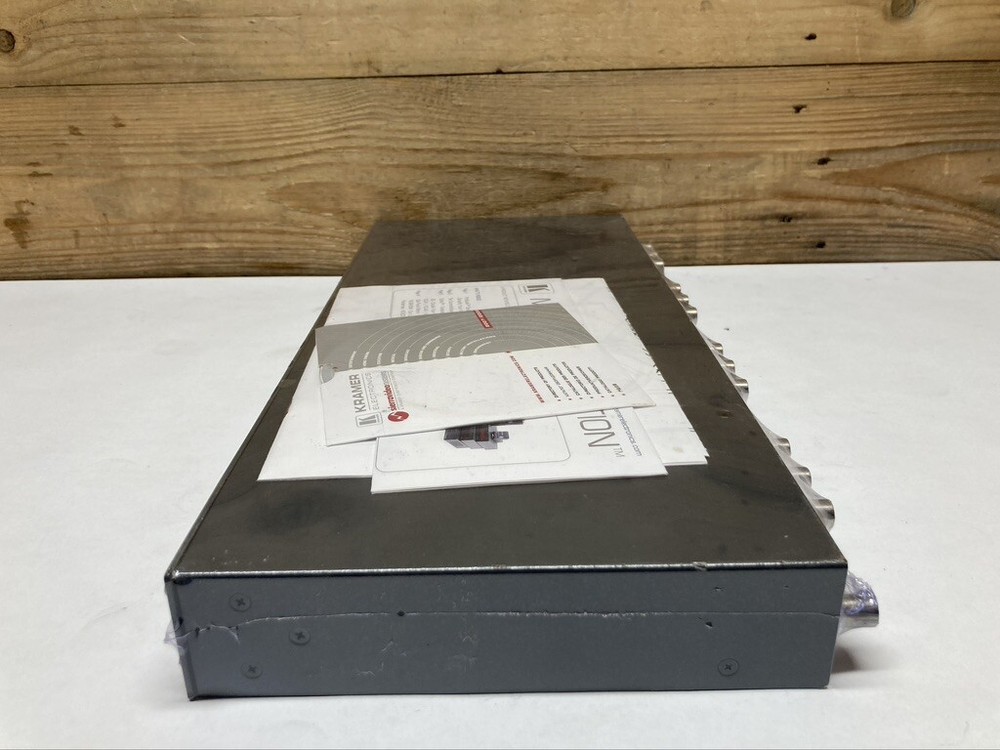

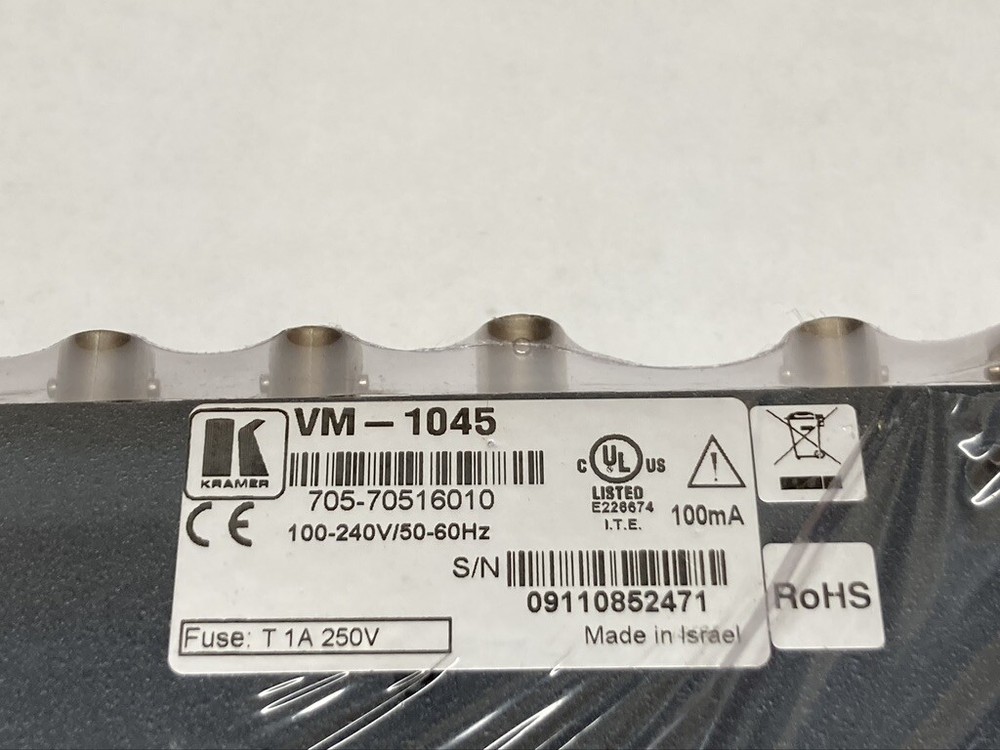

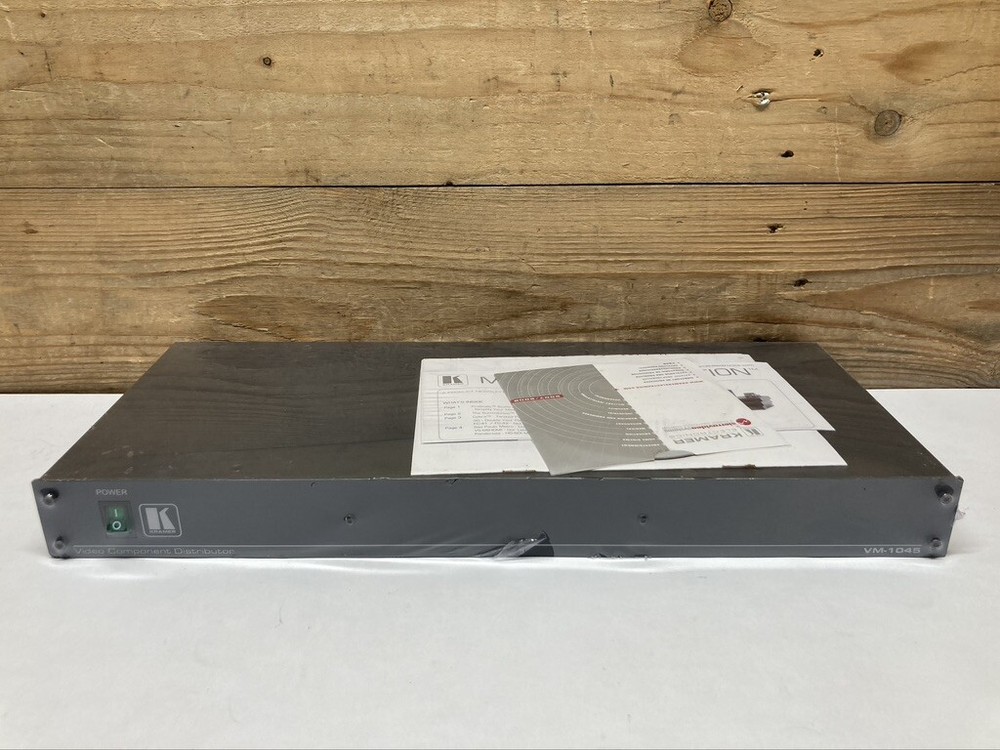

1:5 Component Video Distribution Amplifier VM-1045 Kramer

Name: 1:5 Component Video Distribution Amplifier VM-1045 Kramer
SKU: 395084766234
Price: 74.99 USD
Availability: InStock

$37.50

$74.99 -50%

Condition Open box

Item ID 395084766234

Return shipping will be paid by	Seller
All returns accepted	Returns Accepted
Item must be returned within	60 Days
Refund will be given as	Money back or replacement (buyer's choice)
Brand	Kramer
Type	Video Component Distributor
Model	VM-1045
MPN	VM-1045
Compatible Mount	Rack Mount
Country/Region of Manufacture	Israel
Manufacturer Warranty	None

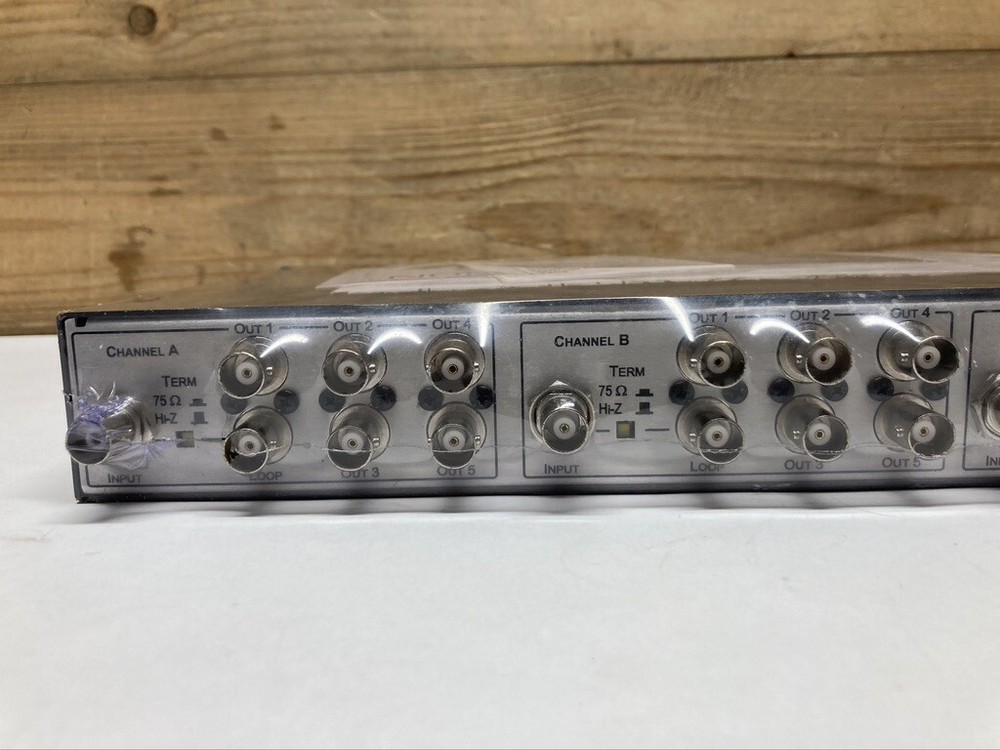

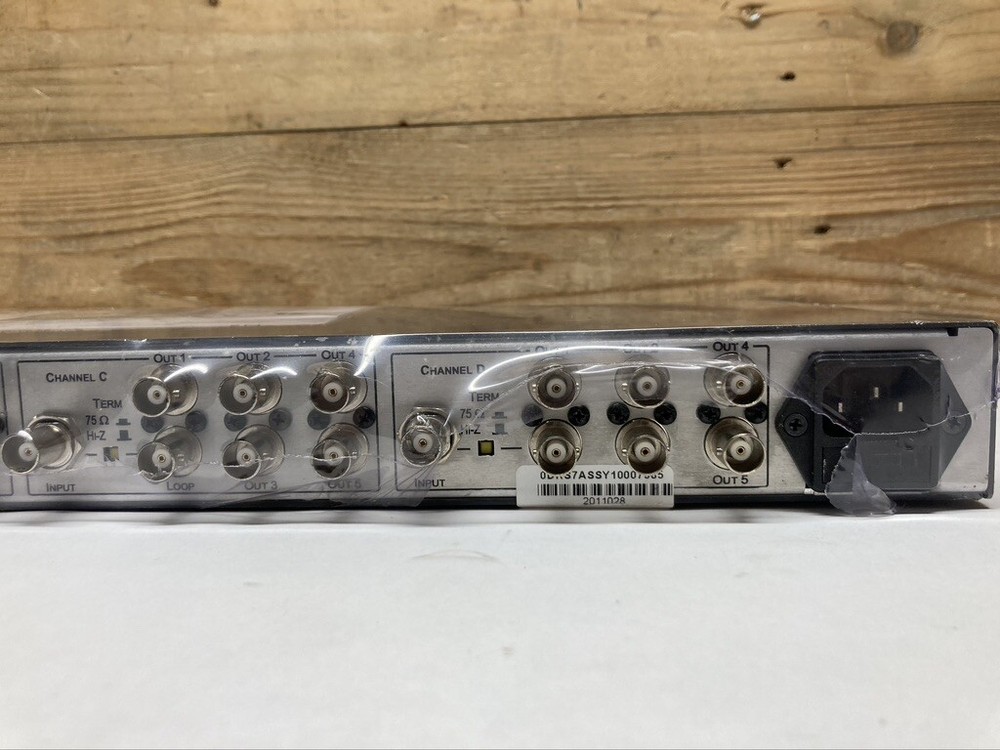

Inputs	4x1 video with loop, 1Vpp/75Ω on BNC connectors.
Outputs	4x5 video, 1Vpp/75Ω on BNC connectors.
Max. Output Level	2.7Vpp
Bandwidth (-3dB)	415MHz
Diff. Gain	0.03%
Diff. Phase	0.03Deg
K-Factor	<0.05%
S/N Ratio	73dB, 5MHz
Crosstalk (all hostile)	−58dB
Controls	Level: –2dB to +6.1dB; EQ.: 0dB to 9dB @50MHz
Coupling	DC
Power Consumption	100−240V AC, 50/60Hz, 2VA
Dimensions	19" x 7" x 1U W, D, H, rack mountable
Weight	2.6kg (5.7lbs) approx.

Check the listing for details. 1:5 Component Video Distribution Amplifier VM-1045 Kramer. Condition: Open box. Listed at 74.99 USD. Up for sale is a 1:5 Component Video Distribution Amplifier manufactured by Kramer. Item is in new old stock condition. Overview The VM−1045 is a high−performance distribution amplifier for component video signals. It can be configured as a four 1:5 composite video, two 1:5 s−Video (Y/C) or one 1:5 component (RGB/S) distribution amplifier. Features High Bandwidth - 415MHz (−3dB).HDTV Compatible.Looping Input - Each channel.Selectable Input Signal Termination - Each channel.Level (Gain) and EQ (Peaking) Controls - Each channel.Worldwide Power Supply - 100−240V AC. 5-1-6
