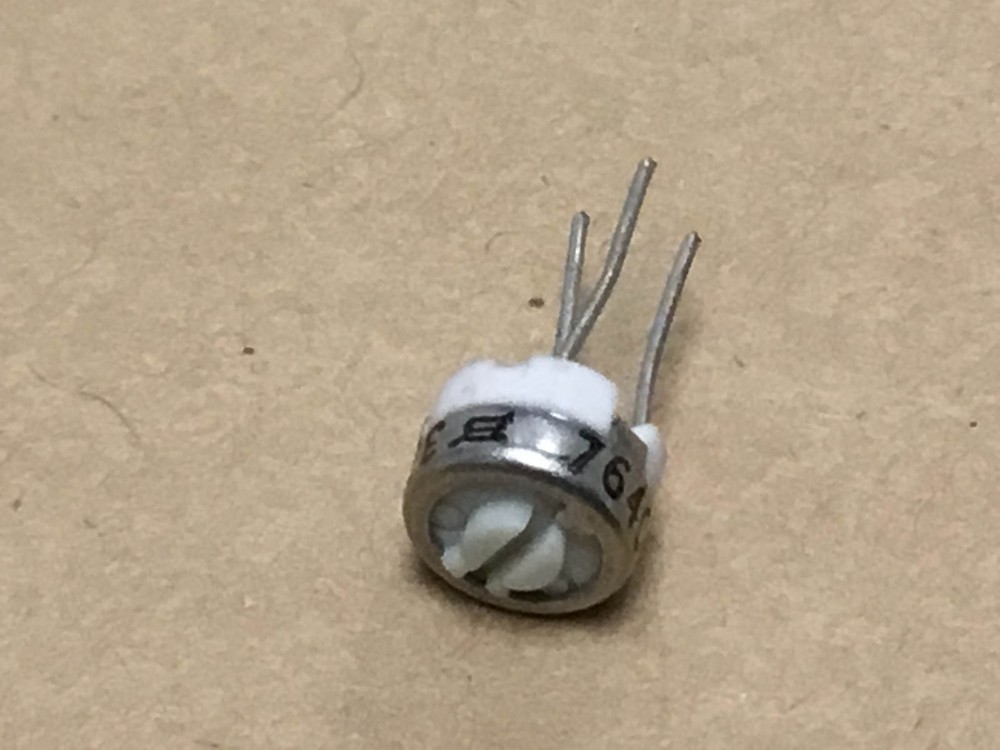

Check the listing for details. (1 PC) BOURNS 3329H1-501 NONWIRE WOUND VARIABLE RESISTOR. Condition: New – Open box. Listed at 9.95 USD. (1 PC) BOURNS 3329H1-501 NONWIRE WOUND VARIABLE RESISTOR NSN# 5905-00-401-7416 NEW OLD STOCK LOT 12082 CH23 Characteristic Specifications SECTION QUANTITY 1 ELECTRICAL RESISTANCE PER SECTION 500.0 OHMS SINGLE SECTION RESISTANCE TOLERANCE PER SECTION IN PERCENT -20.0 TO 20.0 SINGLE SECTION STANDARD TAPER CURVE PER SECTION A SINGLE SECTION MAXIMUM STARTING TORQUE 5.00 INCH-OUNCES MAXIMUM RUNNING TORQUE 5.00 INCH-OUNCES TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS -100.0 TO 100.0 SINGLE SECTION POWER DISSIPATION RATING PER SECTION IN WATTS 0.5 FREE AIR SINGLE SECTION AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER 85.0 SINGLE SECTION AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER 105.0 SINGLE SECTION BODY STYLE 37B CYLINDRICAL BODY DIAMETER 0.250 INCHES NOMINAL BODY LENGTH 0.155 INCHES NOMINAL ACTUATOR TYPE SINGLE SHAFT SHAFT STYLE 3C ROUND, SLOTTED SHAFT DIAMETER 0.110 INCHES NOMINAL SHAFT LENGTH 0.025 INCHES NOMINAL ROTARY ACTUATOR TRAVEL IN ANGULAR DEG 360.0 NOMINAL ACTUATOR TRAVEL CONTROL FEATURE STOPS EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION 240.0 NOMINAL MOUNTING METHOD TERMINAL FEATURES PROVIDED NONMETALLIC SHAFT TERMINAL TYPE AND QUANTITY 3 PIN CENTER TO CENTER DISTANCE BETWEEN TERMINALS 0.100 INCHES NOMINAL CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL 0.100 INCHES NOMINAL TERMINAL LENGTH 0.187 INCHES MINIMUM TERMINAL LOCATION REAR END RELIABILITY INDICATOR NOT ESTABLISHED III OVERALL LENGTH 0.367 INCHES NOMINAL III OVERALL DIAMETER 0.250 INCHES NOMINAL
