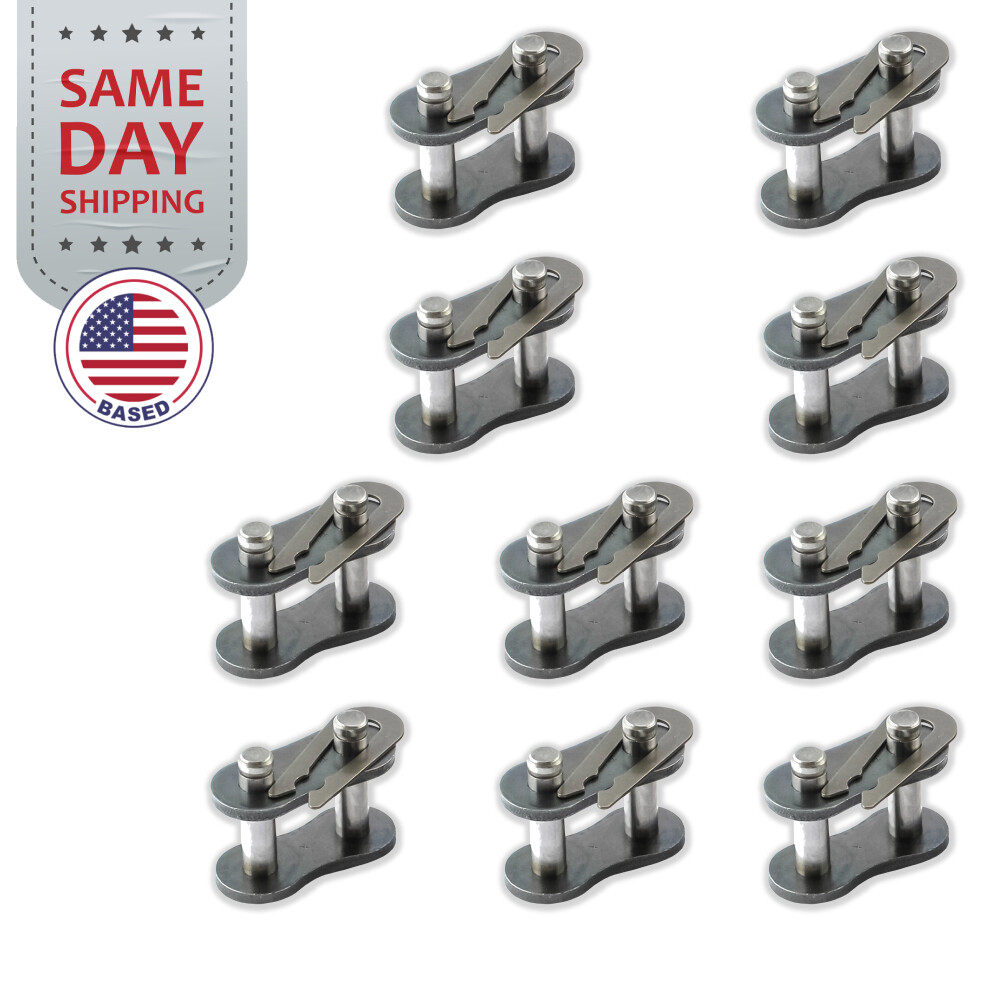

(10) #35 Roller Chain Connecting Links

Name: (10) #35 Roller Chain Connecting Links
SKU: 303209024404
Price: 8.95 USD
Availability: InStock

$7.16

$8.95 -20%

Condition New

Item ID 303209024404

Return shipping will be paid by	Seller
All returns accepted	Returns Accepted
Item must be returned within	30 Days
Refund will be given as	Money Back
MPN	RC-#35-CL/10
Brand	PGN Bearings
UPC	810104524148
Unit Quantity	10
Unit Type	Unit
Chain Size	#35
Chain Pitch	3/8 in
Chain Link Type	Connecting Link
Manufacturer Part Number	RC-#35-CL/10

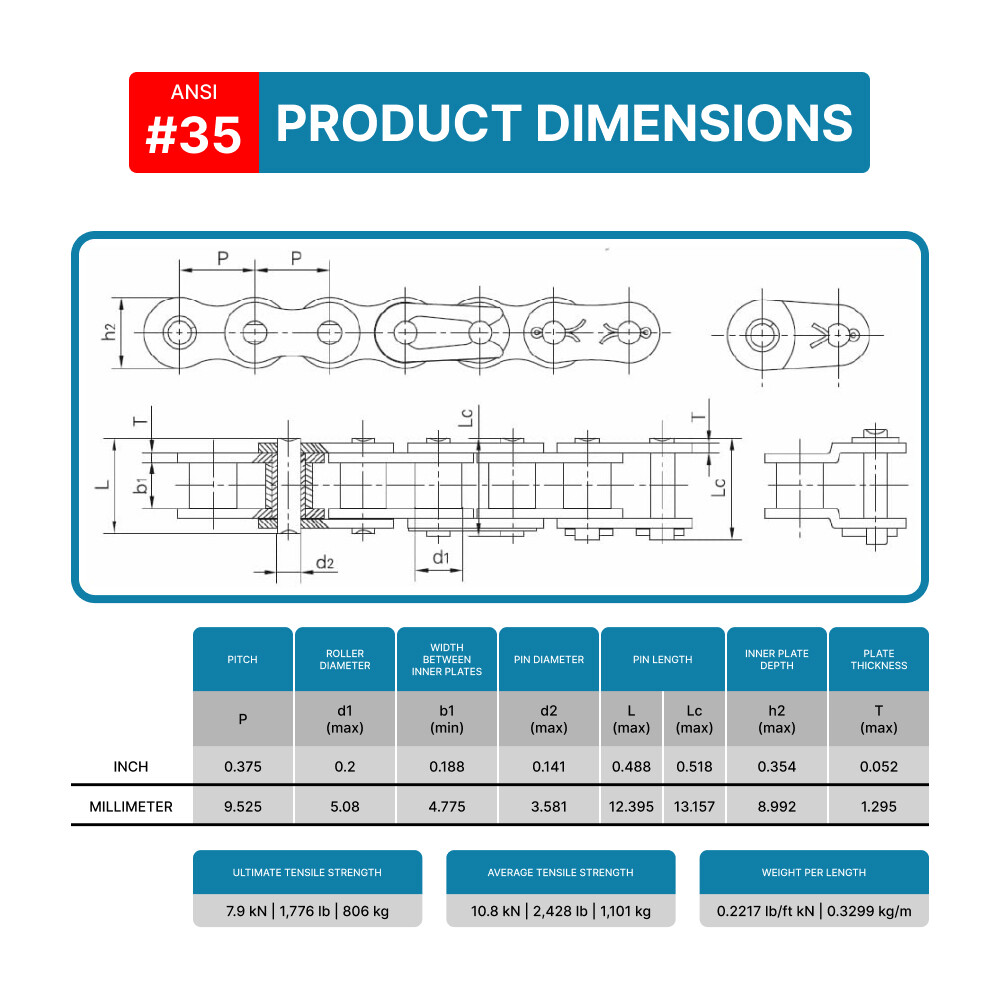

Check the listing for details. (10) #35 Roller Chain Connecting Links. Condition: New. Listed at 8.95 USD. #35 Roller Chain Connecting Links (Lot of 10) ANSI Chain No.: #35 Pitch (P): 0.375 inch (9.525 mm) Roller Diameter (d1 max): 0.2 inch (5.08 mm) Width Between Inner Plates (b1 min): 0.188 inch (4.77 mm) Pin Diameter (d2 max): 0.141 inch (3.58 mm) Pin Lenght (L max): 0.488 inch (12.40 mm) Pin Lenght (Lc max): 0.518 inch (13.17 mm) Inner Plate Depth (h2 max): 0.354 inch (9.0 mm) Plate Thickness (T max): 0.051 inch (1.30 mm) Ultimate Tensile Strenght (Q min): 7.90/1795 kN/LB Average Tensile Strenght (Qo): 10.8 kN Weight (q): 0.221749 lb/ft (0.33 kg/m)
