| Operation Mode | OFF-(ON) |
|---|---|
| Current Rating | 35 Amps |
| Operating Voltage | 35 Volts (DC) |
| Contact Type | Normally Open |
| Connector Type | Screw |
| Switch Type | Push Button |
| Terminal | Screw |
| Material | Plastic |
| Item dimensions L x W x H | 2 x 0.7 x 2 inches |
| Circuit Type | 2-way |
| Mounting Type | Panel Mount |
| Actuator Type | push button switch |
| Number of Positions | 2 |
| Upper Temperature Rating | 80 Degrees Celsius |
| Controller Type | Push Button |
| Control Method | Touch |
| Connectivity Protocol | X-10 |
| Wattage | 420 watts |
| Color | Gold |
| Item Dimensions | 2 x 0.7 x 2 inches |
| Unit Count | 1.0 Count |
| Number of Items | 1 |
| Material Type | Plastic |
| Contact Material | Brass |
| International Protection Rating | IP66 |
| Specification Met | UL |
| Model | 1001504 |
| Global Trade Identification Number | 00870216046075 |
| Manufacturer | Marinco Electrical Group |
| upc | 870216046075 |
| Item Type Name | 2 Position SPST Heavy-Duty Push Button Switch - Off/(On) |
| Included Components | Push Button Switches |
| Item Weight | 0.13 Pounds |
| Warranty Description | Warranty |
| Item Length | 1 |
| Item Height | 1 |
| Item Width | 1 |
| UPC | 870216046075 |

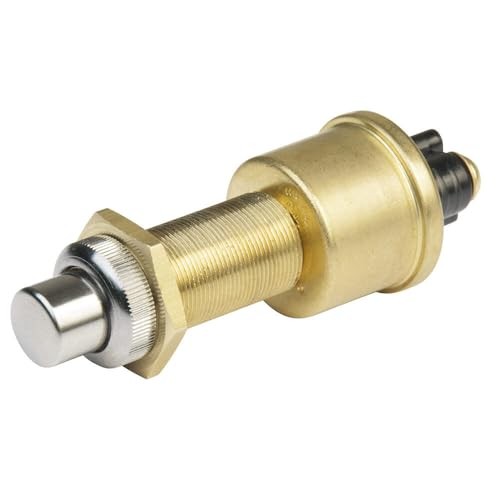

Check the listing for details. 1001504 SPST Heavy-Duty Push Button Switch, 2 Position - Off/(On). Color: Gold, Condition: New. Listed at 43.87 USD. Single pole, single Throw switch turns one circuit on and off. Rated for 35a at 12V DC. Rated for 35a at 12V DC. Replaces Cole hersee part number m-490.
