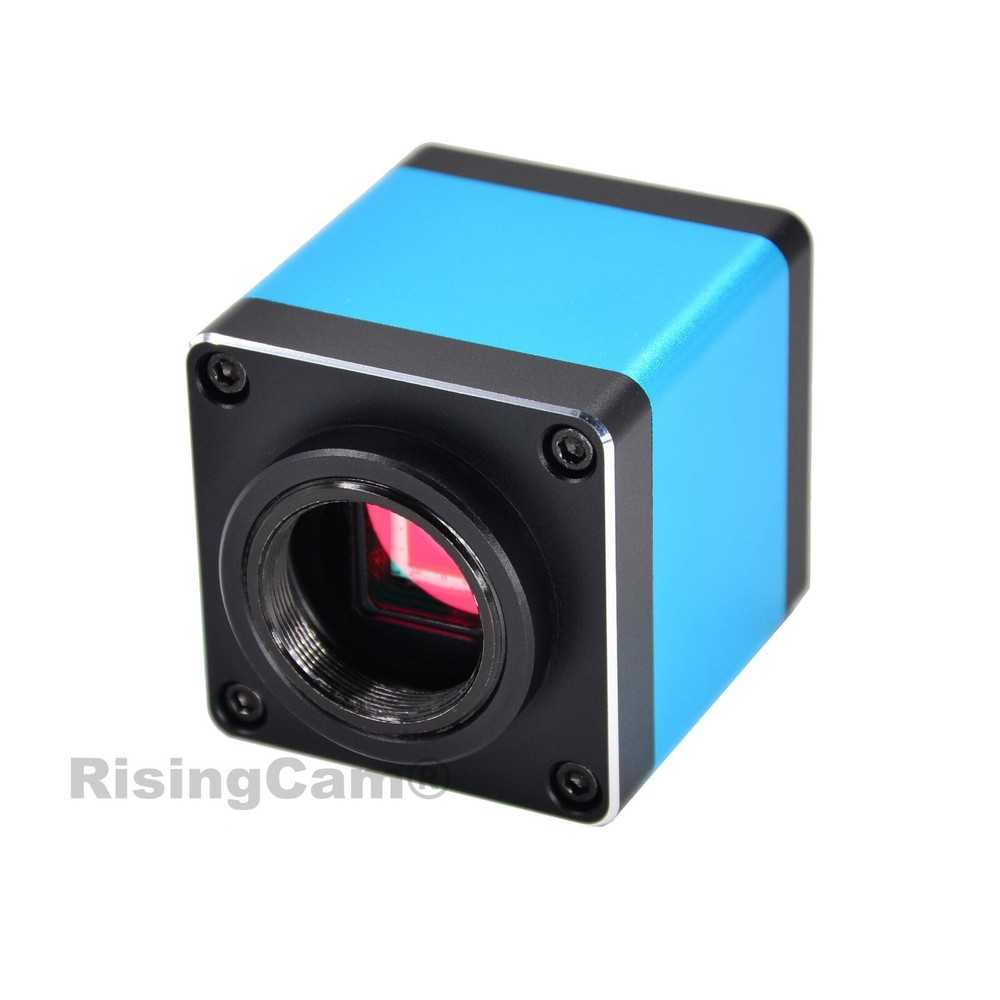

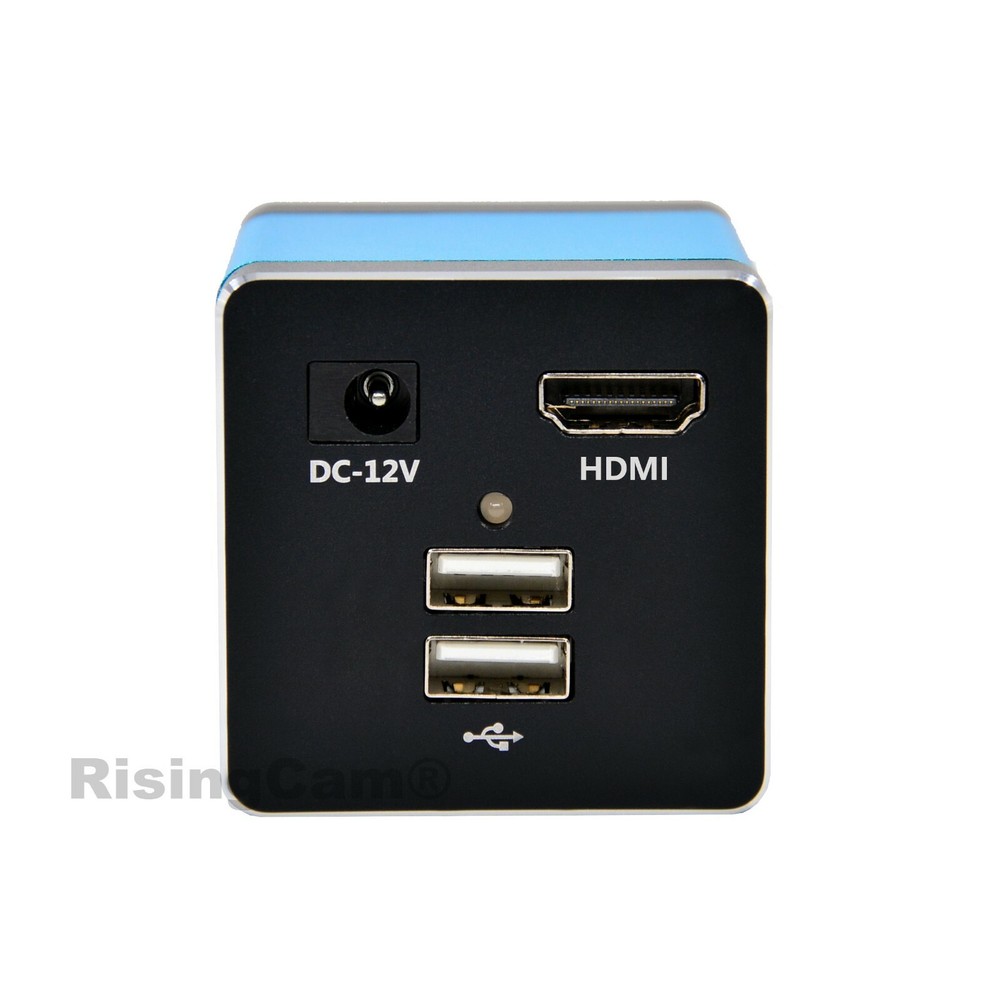

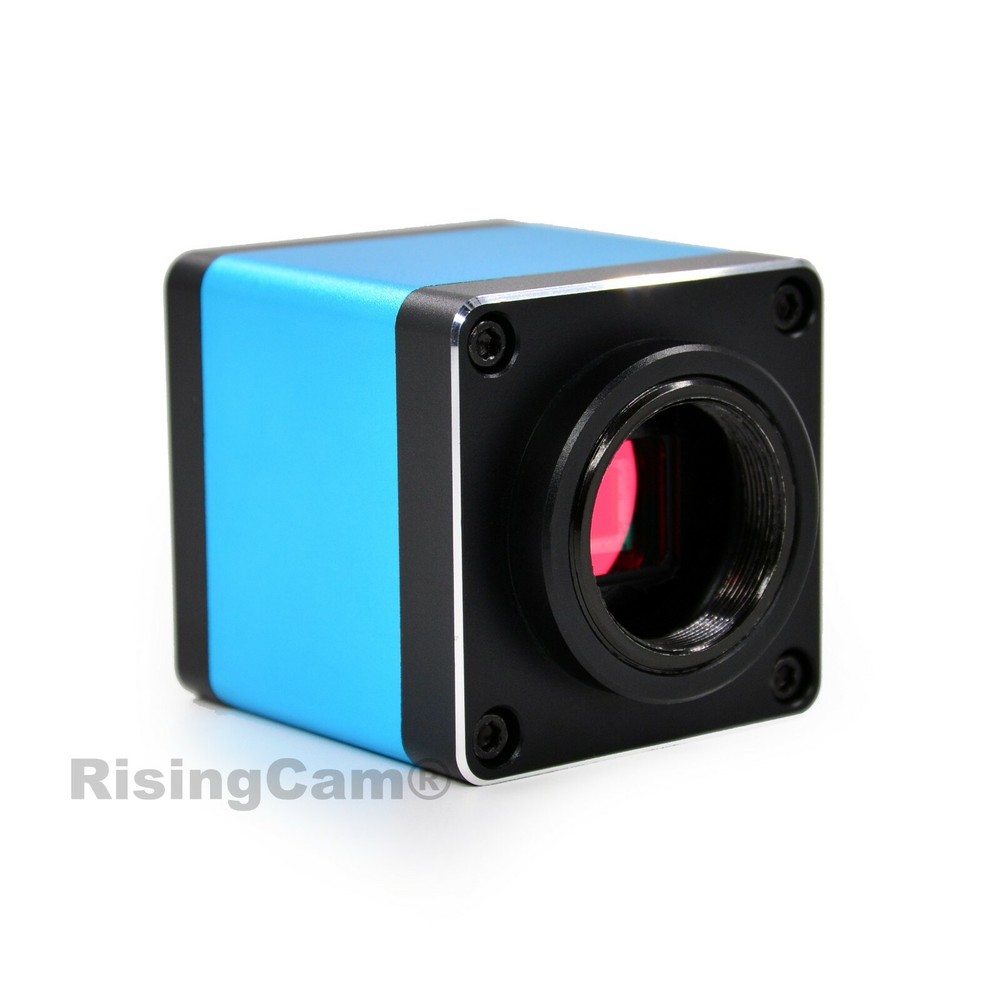

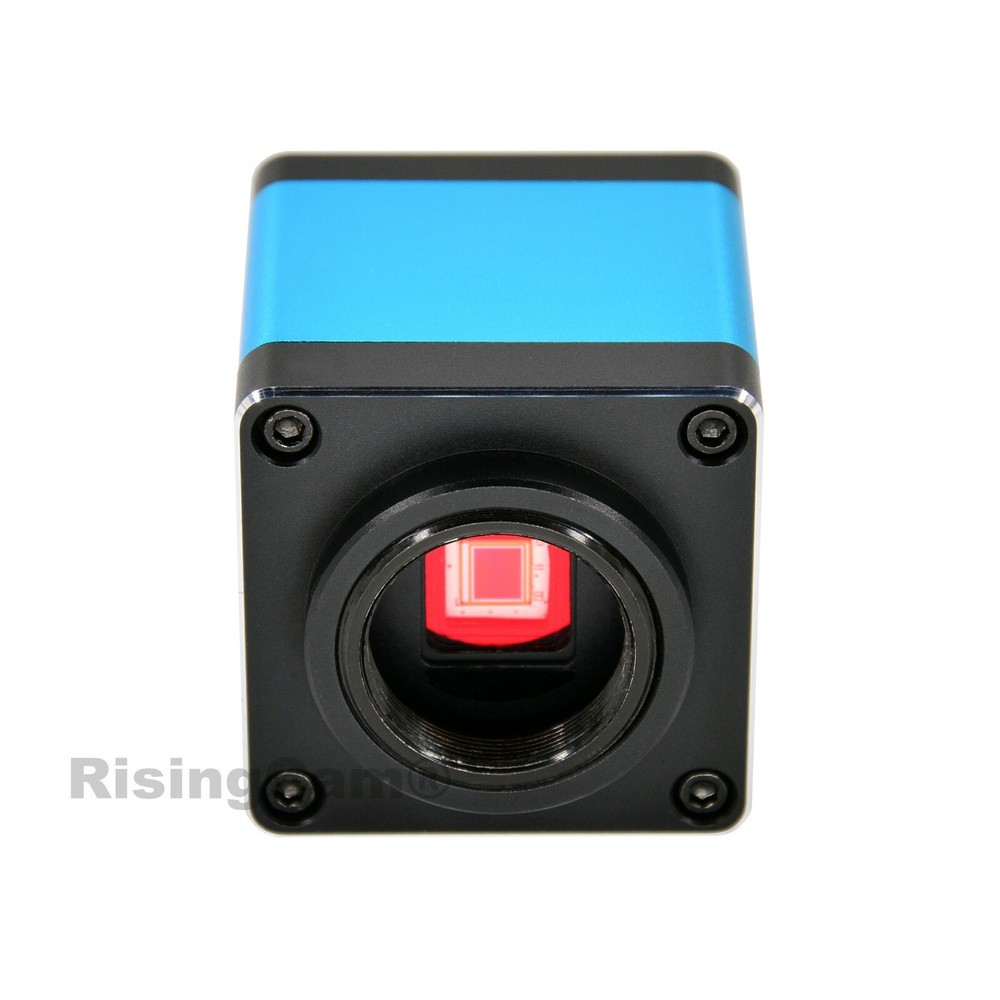

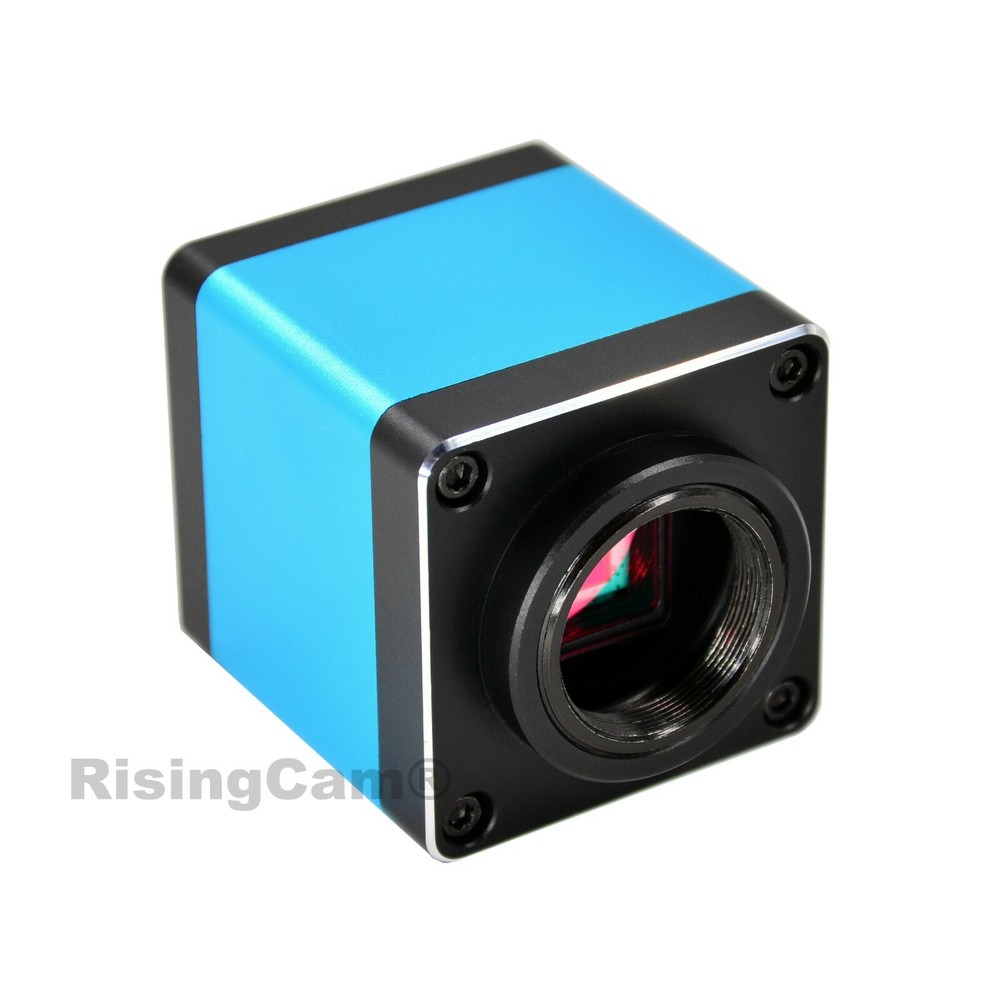

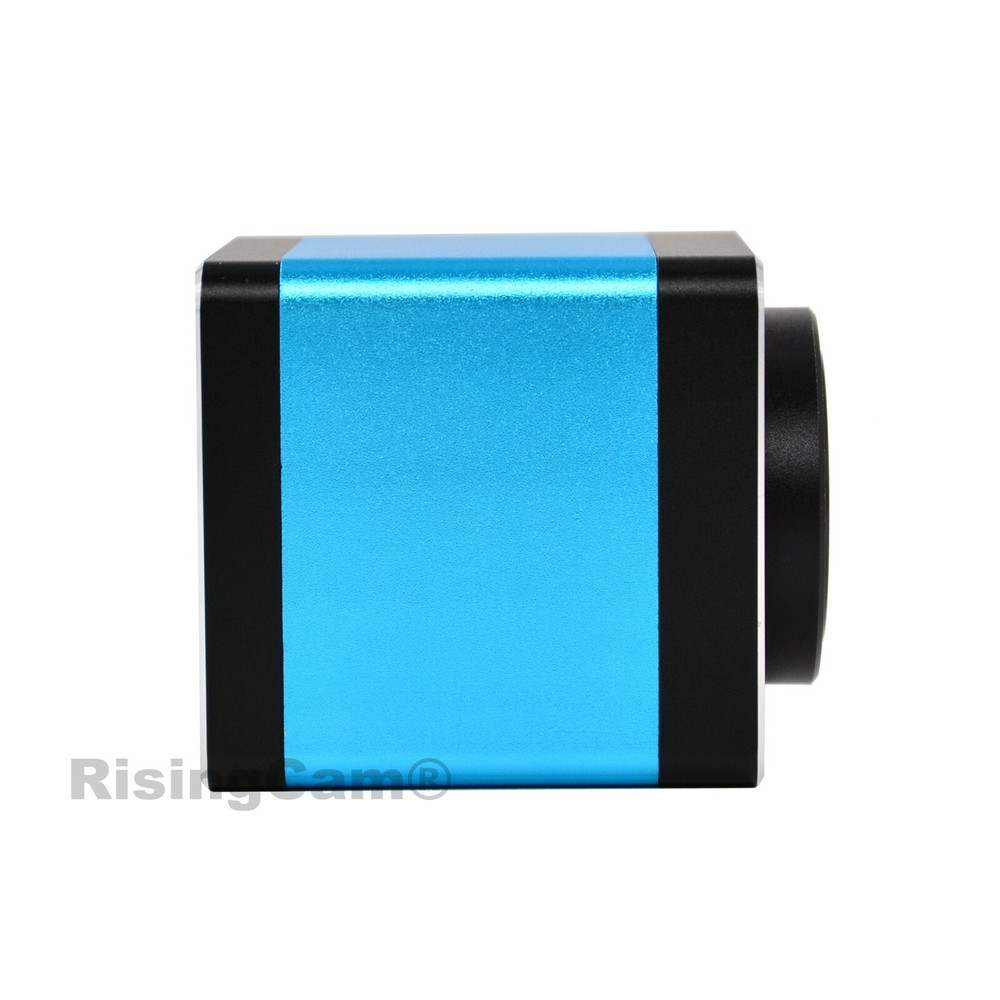

Check the listing for details. 1080p 60fps SONY imx335 Sensor USB flash saved HDMI digital microscope camera. Color: Blue, Condition: New. Listed at 195.00 USD. HD 1080p 60fps installed SONY imx335 Sensor USB flash storage digital microscope camera with HDMI-compatible output and measurementModel No RT5609proCamera FeatureSONY imx335 Sensor, senzor size:1/2.8"Video Resolution: 1080p (1920x1080)Snap picture resolution: 4mp (2592x1460)Max Preview frame rate： 60fpsMax recording frame rate: 30fpsMouse Control, Real time measurementHDMI-compatible OutputSupport Snap picture and recording videoSupport U drive storage and External SD card storagePicture and Video can be replay on the Monitor without computerCamera with Standard C mount Camera ApplicationScientific research, education (teaching, demonstration and academic exchanges)Digital laboratory, medical researchIndustrial visual (PCB examination, IC quality control)Medical treatment (pathological observation)Food (microbial colony observation and counting)Aerospace, military (high sophisticated weapons)Camera SpecificationModel No.RT5609ProName1080p industrial microscope cameraSensorSONY imx335Sensor size1/2.8"Pixel size2umx2umPhoto Resolution4.0mpVideo Resolution1080p 1920*1080@60FPSOutputHDMI-compatiblePower inDC-12V/1ACamera functionExposure, Gain, Contrast, Saturation, Brightness, Sharpness, White balance, Color temperature adjustableZoom in&out, image flip, Mono image, freeze, gridlines, image comparison, measurementImage and Video storageUSB drive or external SD cardDimensions50*50*58mmNet wight0.3kgCamera PicturesMore Detailed PicturesSONY imx335 Sensor, senzor size:1/2.8"Video Resolution: 1080p (1920x1080)Snap picture resolution: 4mp (2592x1460)Max Preview frame rate： 60fpsMax recording frame rate: 30fps Camera Working Pictures1.Connect camera to TV monitor with HDMI-compatible Cable2.Insert Mouse, USB drive or External SD card into USB port of camera3.Power in, Camera auto start, LED light blue, camera running, then Monitor display image4.Move Mouse to generate Camera control and setting menuCamera setting menu and Live Measurement MenuCamera setting menu include:Auto exposure:Auto gain:White balance:Anti-flicker:Contrast: Brightness: Sharpness: Noise reduction: Red: Green: Blue: Color temperature: Time: Storage: FormatLanguage: 7 languages for choice: Simplified Chinese, Traditional Chinese, English, German, French, Japanese, KoreanThis Camera support Realtime measurement - Measure tools include:Draw points: radius circle: two point circle: three point circle: measure two circle distance: concentric circle: line circle distance: polygon: cross line: rectangle: polyline: arc: curve: straight line: vertical line: parallel line: angle measurement : Text annotation: Mouse selected move: Selected delete: Delete all: Screenshot:Calibration editLive MeasuringUser click the measure tools button by mouse,then Drag the mouse to complete the measurementThe Measure result can be saved on Picture. The Font, Line size and color can be adjustableCamera Function menu include:Zoom in - Max 10XImage comparison2 image compare - one is Realtime image, other one is picture captured by camera.The picture on the left is a real-time picture, and the picture on the right is a picture taken by the camera. The mouse wheel can zoom in and out of the picture, and holding down the wheel can drag the picture to change the position.4 image compare -After clicking the four-picture comparison button, the screen is divided into four parts. Double-clicking on a part can freeze the current image. Up to 4 images can be frozen for comparison. The mouse wheel can zoom in and out of the picture, and you can drag the picture to change the positionGridlines -8 horizontal lines, 8 vertical lines, position, color, Line width adjustableSupport Snap picture and recording videoSupport USB storage and External SD card storagePicture and Video can be replay on the Monitor without computerDouble click the picture or video, camera will replay the picture or video on monitorVideo Preview frame rate 60fpsRecord Frame rate 30fps.Video Reply PictureCamera Working with 55inch TV monitorSample PicturesThis Camera can working with biological microscope too. follow picture is Plant rhizomeCamera SizeCNC Metal case with C mountCamera PackingThe standard packing include1. Camera2. HDMI-compatible cable3. Wireless Mouse4.Power Supplier (EU, US and UK for choice) Warranty period: 1 yearRisingTech always do our best provide excellent Service before/after sales for all buyers. RisingTech will provide our technical support if buyers have any questions of camera operation.If camera has any quality problem within warranty period and must be returned to workshop repair it, RisingTech will repair camera or replacement new camera for buyer, RisingTech will stand freight.If camera has quality problem out warranty period, RisingTech will repair camera for buyers too, buyer need stand freight.If the camera is man-made damaged, no matter within or out warranty period, buyers should stand repair charges and freight.
