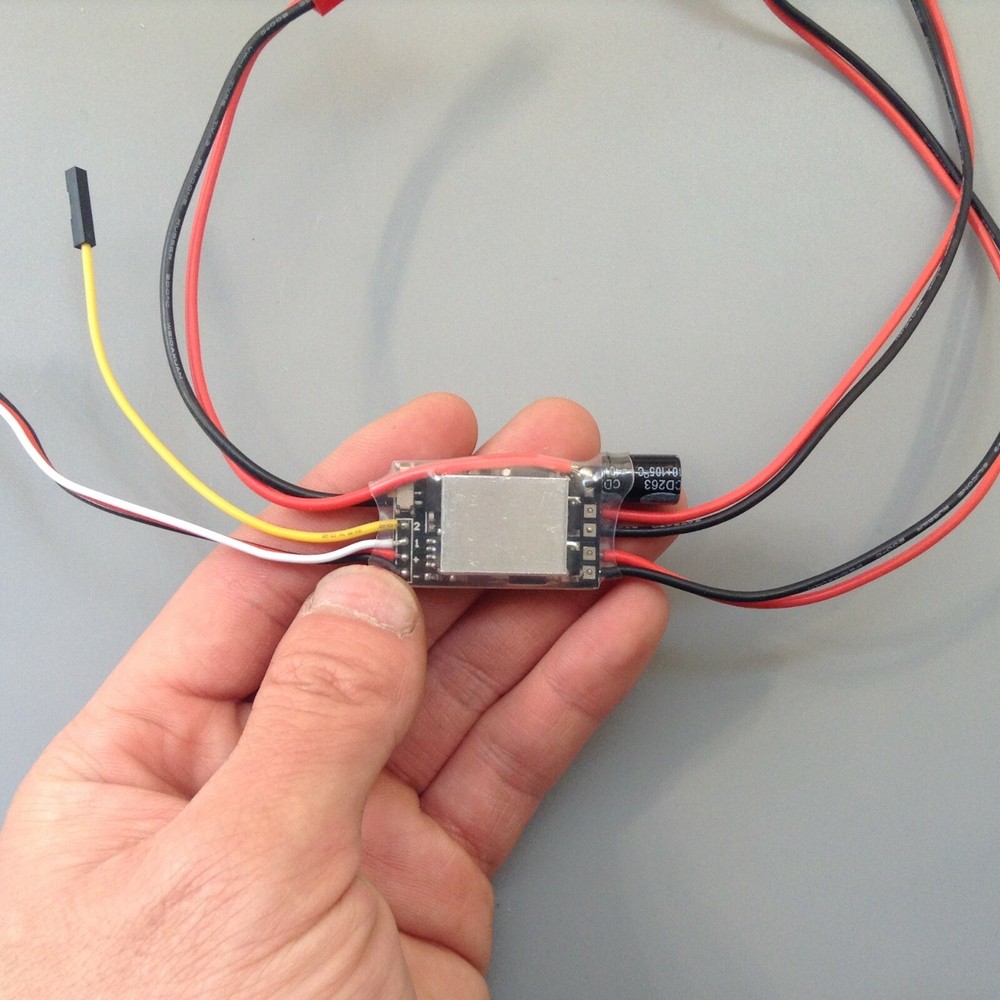

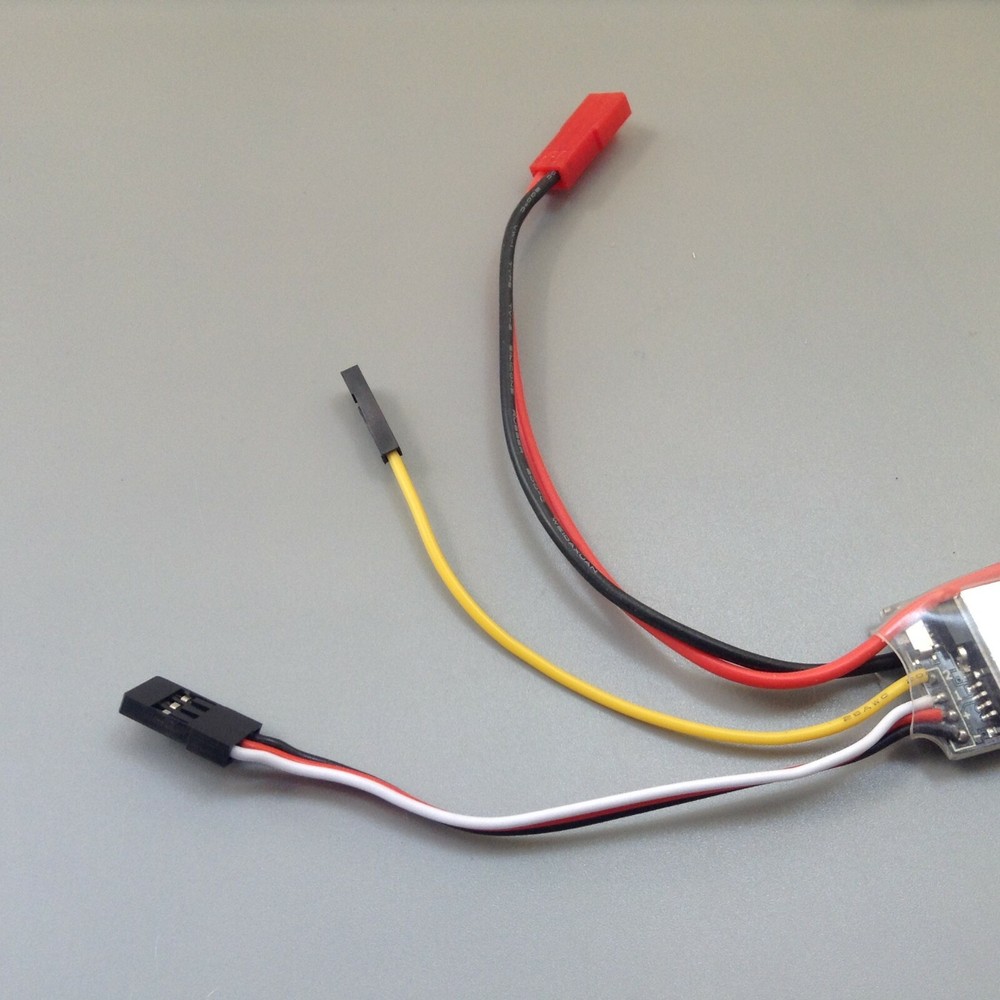

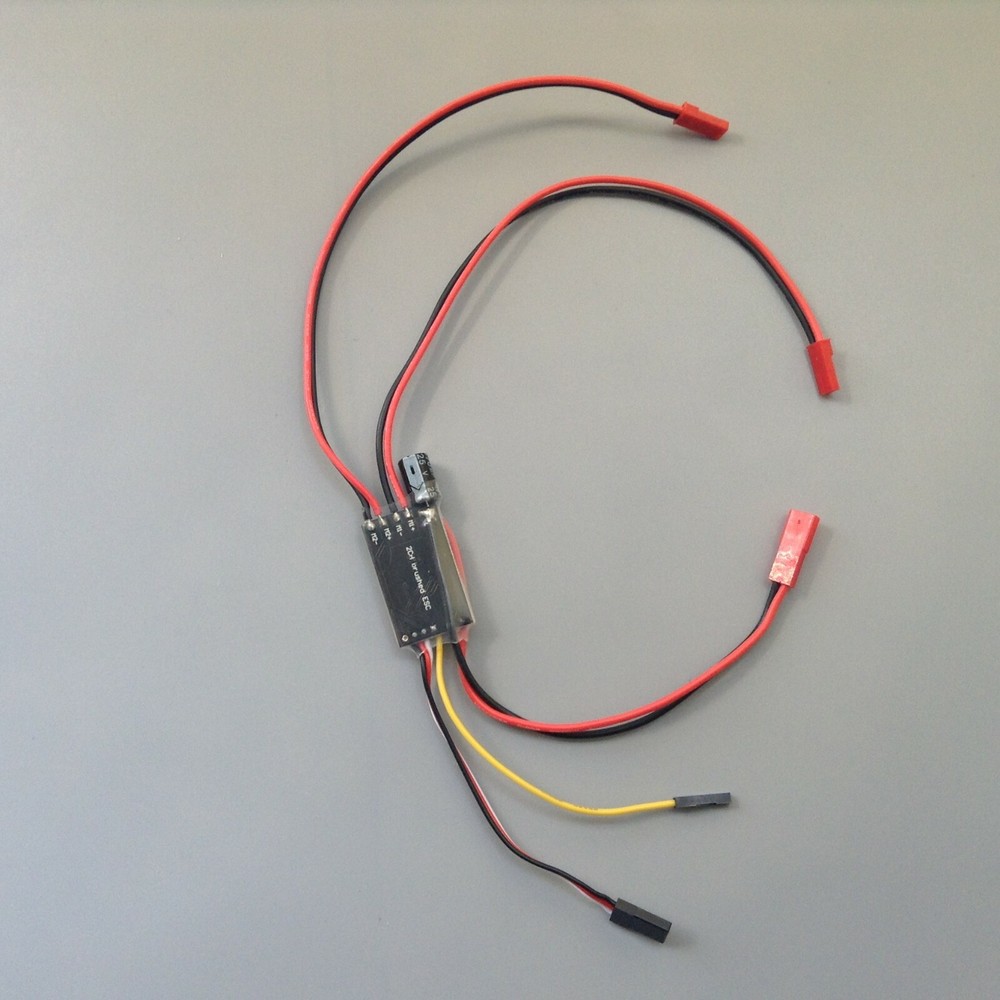

Check the listing for details. 10Ax2 Brushed ESC one-way mixed control Speed Controller RC Boat plane 2s 3s 4s. Color: Multi-Color, Condition: New. Listed at 10.44 USD. Payment Policy We only accept payments via PayPal. All payments must be prepaid,Description: 10Ax2 Brushed ESC Two-way one-way mixed control Speed Controller RC Boat plane 2s 3s 4s Electric current :10A Voltage :2s-3s-4s Size: 45x20mm weight :17g Features : mixed control , one-way ,Differential turning (The motor can't go back, it can only rotate in one direction.) This electric adjustment is suitable for speed difference speedboats and small airplanes. It is a good choice to change toys. Parameters: 6-16v can use 2-4s single-channel 10A (120A MOS transistor is electrically invoked, the peak value is far more than 10A) * remote control signal PWM (1000-2000) (1100-1900) run-length automatic adaptation * Low throttle start prevents the high throttle motor from running safely. (PWM 1150 start-up) (Note that some throttles are reversed, such as Leddy, and the throttle needs to be adjusted by 90% before unlocking.) * With starting prompt sound (prompt sound is caused by high frequency current vibration motor, because of the different motor, the sound size varies; small motor may be affected by the current slightly turn, no surprise) * With out-of-control protection (loss of signal (here is the break of the adjustable signal line), the motor is out of operation) Bec output 5V Max 1.5A Size: 45x 20mm Weight: 17g (Containing Line) There are two models 1) Two-way independence It's equivalent to two separate tuners. 3-port signal to control the motor near the battery line Signal from 1 wire port to control another motor 2) Mixed Control Mode of Velocity Difference Mixed control = throttle X 100% +direction X 100% (this ratio is determined by repeated tests and model friend feedback) If you turn 50% throttle and then turn left to the left, the left motor will be reduced by 50% and the right motor will increase by 50%. The result is that the left motor will stop (that is, the throttle is 50%-the direction is 50%=0) and the right motor will turn full (that is, the throttle is 50%+the direction is 50%=0). If you turn 100% throttle, then the left motor will be reduced by 50%, and the right motor will be increased by 50%. As a result, the left motor will turn 50%(i.e. throttle 100%-direction 50%=50%) and the right side will turn 100%(throttle 100+direction 50%=150%, but the maximum output of the motor will be 100%). Dual Channel Synchronization (Special Case of Mixed Control Mode) The output of the two motors is identical, which is suitable for the rudder aircraft with double thrust. Setting method: Connect the three-wire to the throttle, and then connect the single yellow wire to any negative pole of the receiver. The recommendations are as follows: 1) Aircraft (a) If the velocity difference mode is used, a large upside-down (the wing is V-shaped) is needed, and the plane can keep flying flat, so that the velocity difference can be effective. B) If the steering gear is used, it is suggested that the two-way synchronization mode be used to provide sufficient power. Note: Although the speed difference aircraft is simple and cheap, it needs some experience to make it. Our shop does not provide technical support for novices except for the teaching videos, novices please do a good job of small aircraft with rudder first. This electric regulation is one-way and can't be retreated. We also have two-way and two-way electric regulation. 3) Vessel is very suitable for the speed difference mode of electric regulation. It can drive 180 260 motors and 370 culvert motors. Modification of toys/modelsrefundIf there is any problem when you receive your parcel, please contact us without hesitate in 3 days. If you are not 100% satisfied with your purchase, simply return the unworn item within 30 days of the item ship date and we will gladly exchange, replace， or refund it inclusive of delivery charges.(All refund should be sent back by our paypal account)Shipping Time & Method: United States : item transport to the U.S.We use accelerate transportation express.usually 7 to 15 working days.Remote areas will delay the transportation time 20 Working days.Each item have tracking number. worldwide : Item will be shipped within 3 days after payment is cleared.Goods will be sent via airmail . Delivery takes about 25-30 business day (without holiday). All products have been checked and packaged in good condition before dispatch. Tracking number : Your purchase amount more than $18,Then you will get a free items tracking number.( If you shopping amount not reached $18. You can also buy tracking number ,Cost $3 ) Address : Please make sure your address in Ebay is matched with your shipping address before pay. If you would like to change the address, please contact us IMMEDIATELY after your payment. About Us Your satisfaction is our first priority. Defective product will be offered exchange or refund. 100% Money back Guarantee. We appreciate your positive feedback. Our system will leave feedback automatically after you pay it. Please leave us positive feedback upon satisfaction of the item. Please email us before leaving negative and neutral feedback. We will try our best to solve the issue. We will be glad to answer any question you may have, please feel free to contact us at: we do try respond as quickly as possible. Due to time zone difference, please allow 12~24 hours to get your mail replied.
