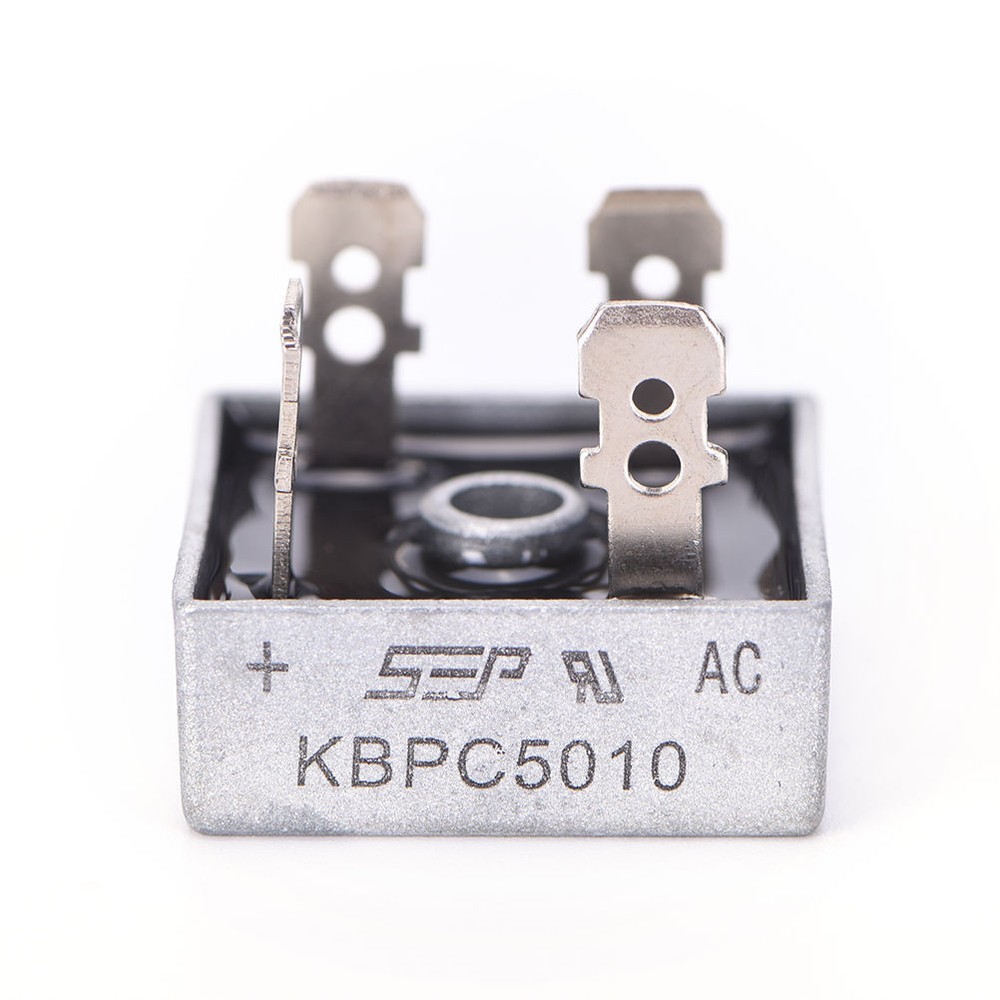

Check the listing for details. 10Pcs 1000V 50A Metal Case Single Phase Diode Bridge Rectifier KBPC5010 10X. Condition: New. Listed at 15.49 USD. 10 Pieces KBPC5010 50A 1000V Metal Case Single Phase Silicon Bridge Rectifier This KBPC5010 50A 1000V silicon bridge rectifier features an electrically-isolated metal case for maximum heat dissipation, surge overload rating of 400A, and low voltage drop. KBPC5010 Features:UL listed under the Recognized Component Index, file number E142814The plastic material used carries Underwriters Laboratory flammability recognition 94V-0Surge overload ratings to 400 amperesElectrically isolated metal case for maximum heat dissipationCase to terminal isolation voltage 2500VElectrical Specifications:Maximum repetitive peak reverse voltage (VRRM): 1000VMaximum RMS bridge input voltage (VRMS): 700VMaximum DC blocking voltage (VDC): 1000VMaximum average forward rectified output current at TA=40 C (IF(AV)): 50APeak forward surge current single sine-wave superimposed on rated load (JEDEC Method) (IFSM): 400ATypical thermal resistance per element (ReJA): 2.5 degrees C/WOperating junction and storage temperature range: -55 to +150 CMaximum instantaneous forward voltage drop per leg at 25A (VF): 1.0VMaximum DC reverse current at rated TA=25 C (IR): 10uADC blocking voltage per element TA=125 C (IR): 500uAMechanical Data:Case: Metal caseTerminals: Plated .25"(6.35mm) FastonMounting Position: Bolt down with silicone thermal compound between bridge and mounting surface for maximum heat transfer efficiencyUniversal 4-way terminals, snap-on, wrap-around, solder or P.C. Board mountingMounting Torque: 20 in-lb max.Weight: 1.12 Ounces / 32 grams (approx)Package includes:10x (10 pieces) KBPC5010 50A 1000V Metal Case Single Phase Diode Bridge RectifierLink to online manufacturer's datasheet and wiring diagram Contact us for quantity/OEM pricing. Get it faster! Stocks and ships from our Colorado US office for quick delivery! We provide FREE USPS First Class Shipping with Tracking - Not Economy Shipping
