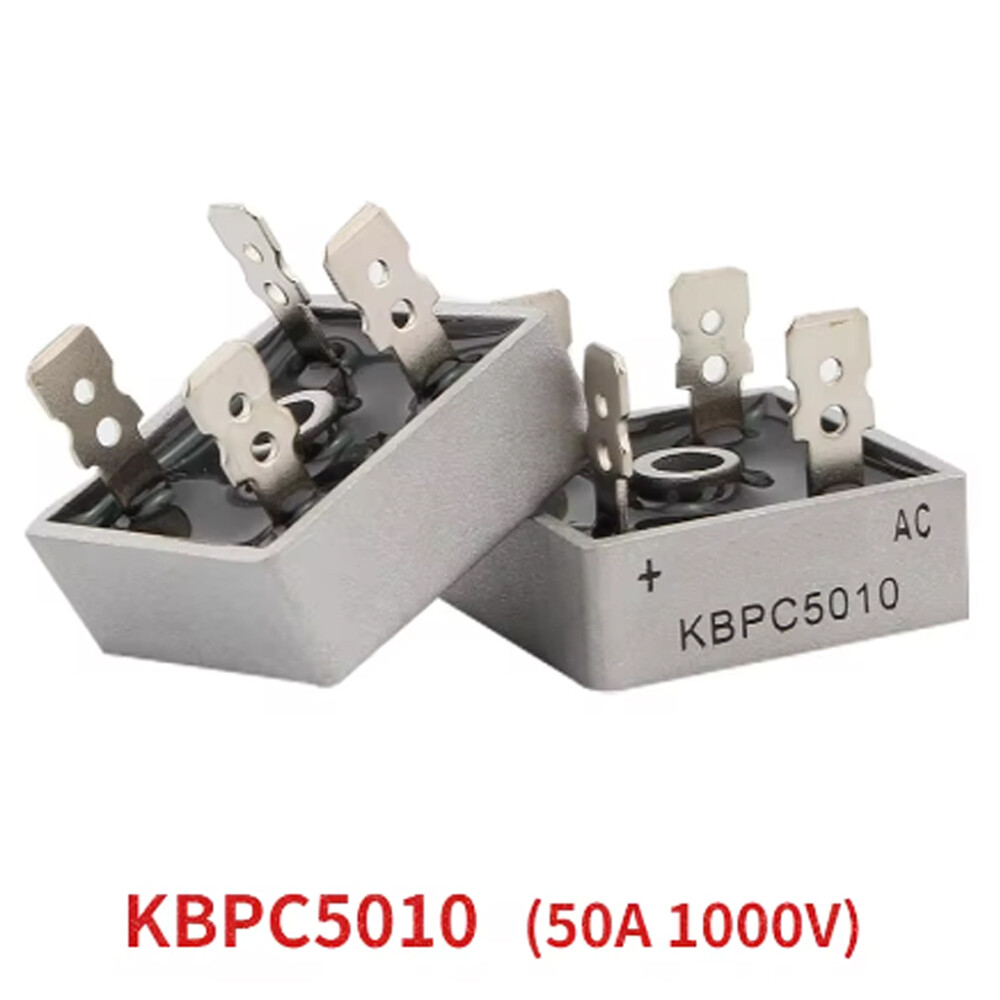

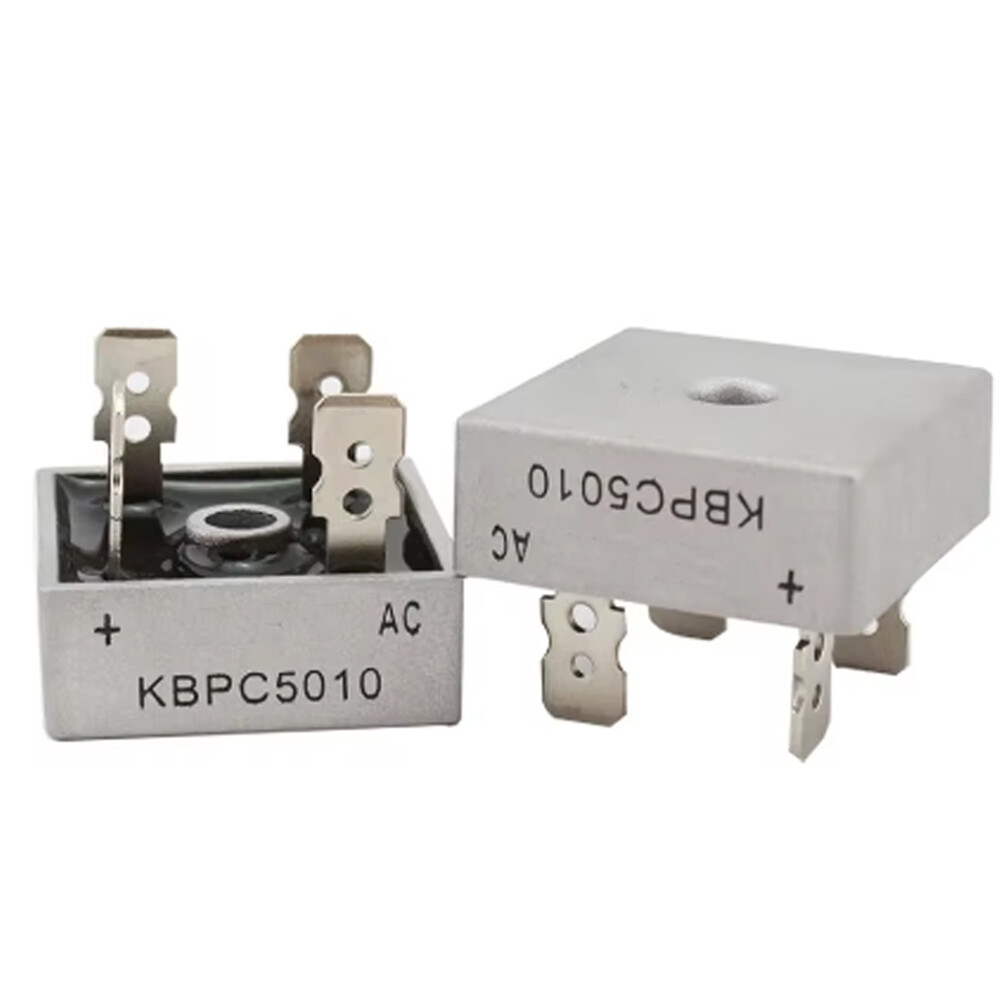

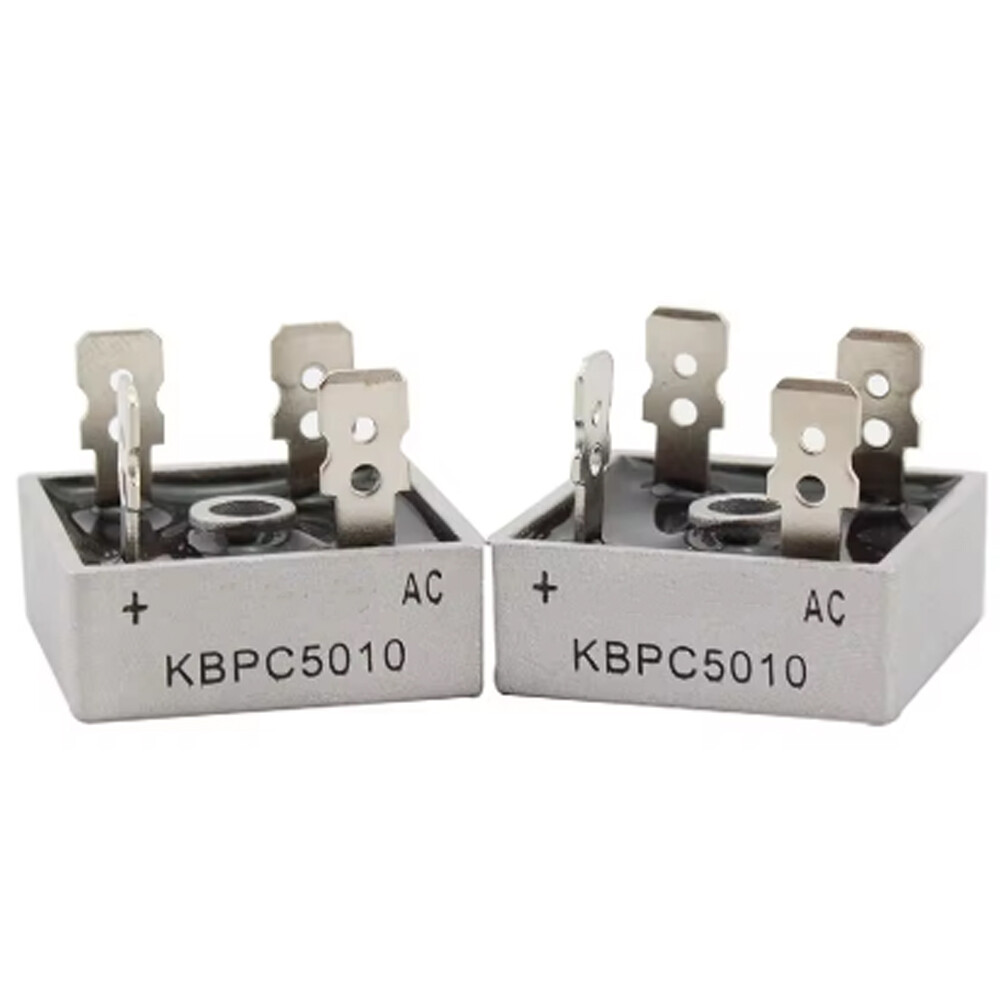

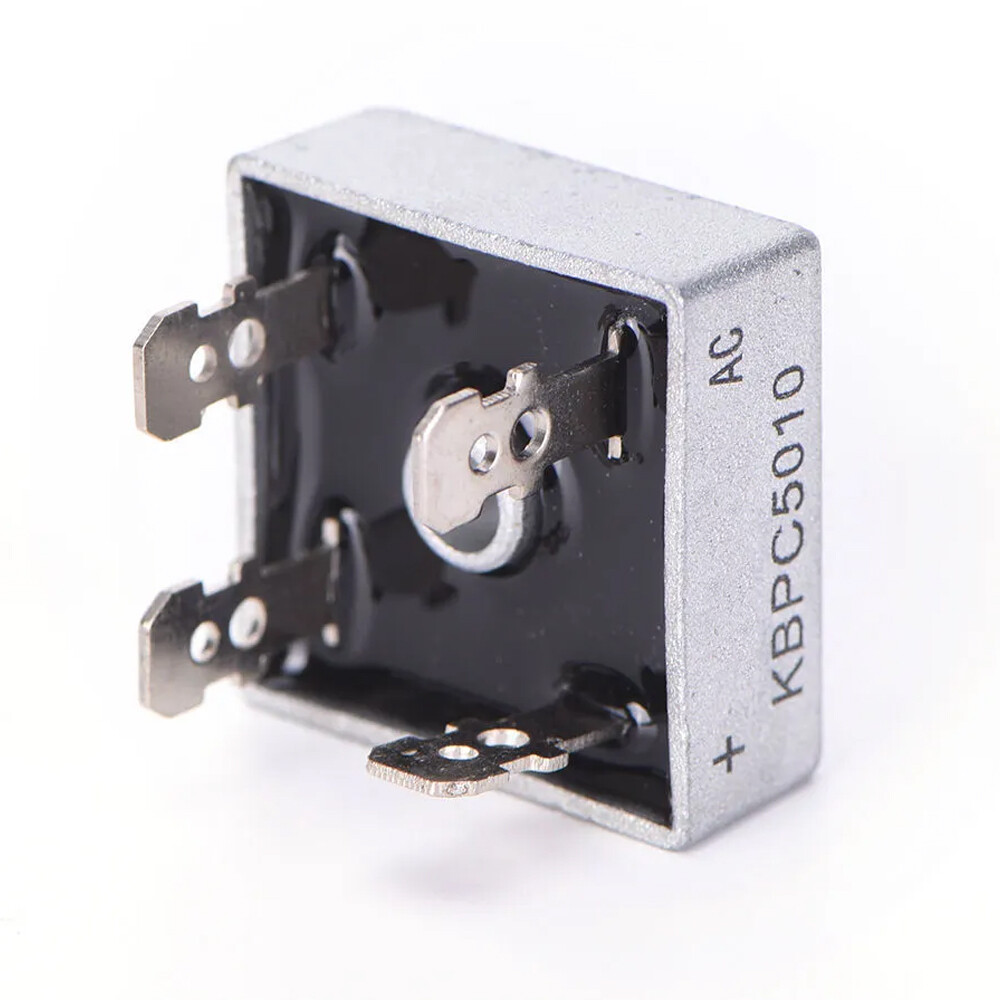

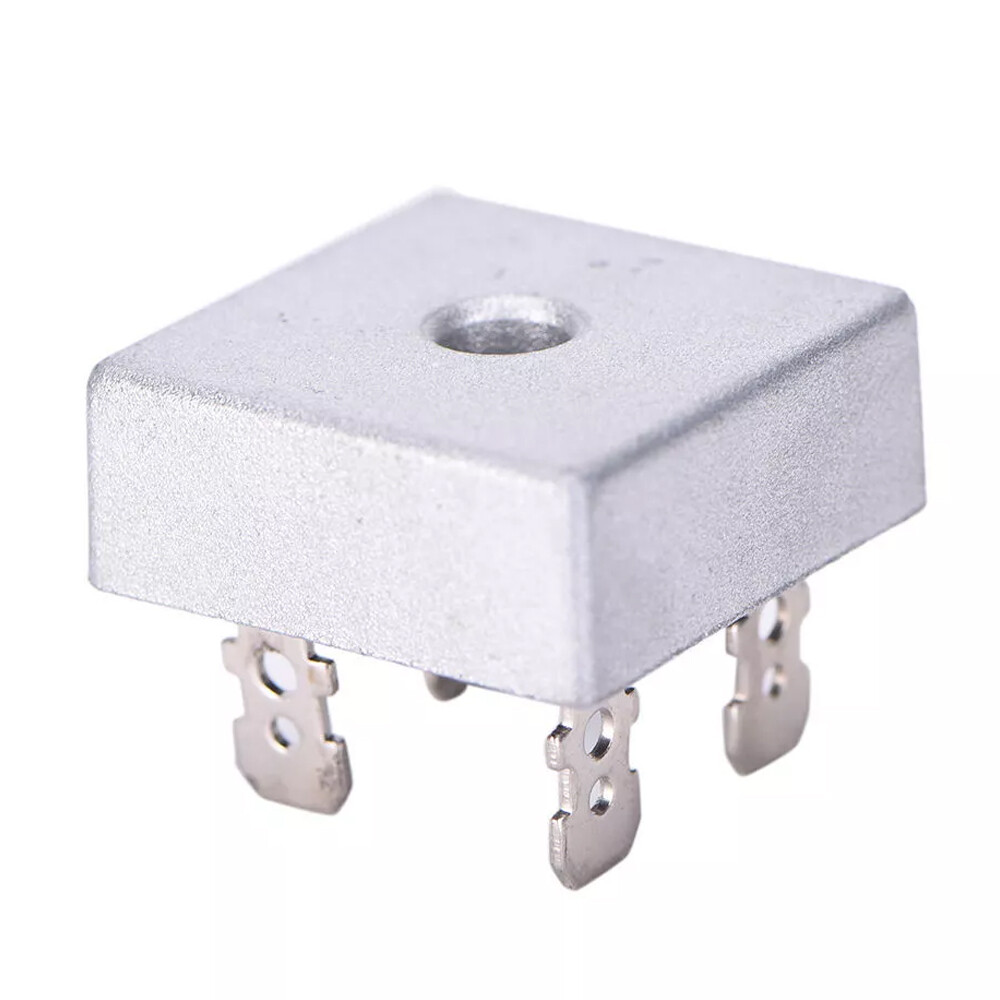

Check the listing for details. 10PCS 1000V 50A Metal Case Single Phase Diode Bridge Rectifier KBPC5010. Condition: New. Listed at 12.55 USD. KBPC5010 Features: Surge overload ratings to 400 amperes Electrically isolated metal case for maximum heat dissipation Case to terminal isolation voltage 2500V Electrical Specifications: Maximum repetitive peak reverse voltage (VRRM): 1000V Maximum RMS bridge input voltage (VRMS): 700V Maximum DC blocking voltage (VDC): 1000V Maximum average forward rectified output current at TA=40 C (IF(AV)): 50A Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) (IFSM): 400A Typical thermal resistance per element (ReJA): 2.5 degrees C/W Operating junction and storage temperature range: -55 to +150 C Maximum instantaneous forward voltage drop per leg at 25A (VF): 1.0V Maximum DC reverse current at rated TA=25 C (IR): 10uA DC blocking voltage per element TA=125 C (IR): 500uA Mechanical Data: Case: Metal case Terminals: Plated .25"(6.35mm) Mounting Position: Bolt down with silicone thermal compound between bridge and mounting surface for maximum heat transfer efficiency Universal 4-way terminals, snap-on, wrap-around, solder or P.C. Board mounting Mounting Torque: 20 in-lb max. Package includes: 10x (10 pieces) KBPC5010 50A 1000V Metal Case Single Phase Diode Bridge Rectifier On Jul 24, 2024 at 10:37:46 PDT, seller added the following information:
