| Country of Origin | China |
|---|---|
| Highlights | Compact Design,Unique Appearance，high reliability |
| Type | Single Cylinder Engine |
| Machine Type | Single Cylinder Engine |
| Number of Cylinders | 1 |
| Number of Valves | 2 |
| Fuel Type | Electric |
| Manufacturer Warranty | 2 Year |
| Brand | TBvechi |
| Color | Silver |
| Replacement OEM Number | 308-999003 |

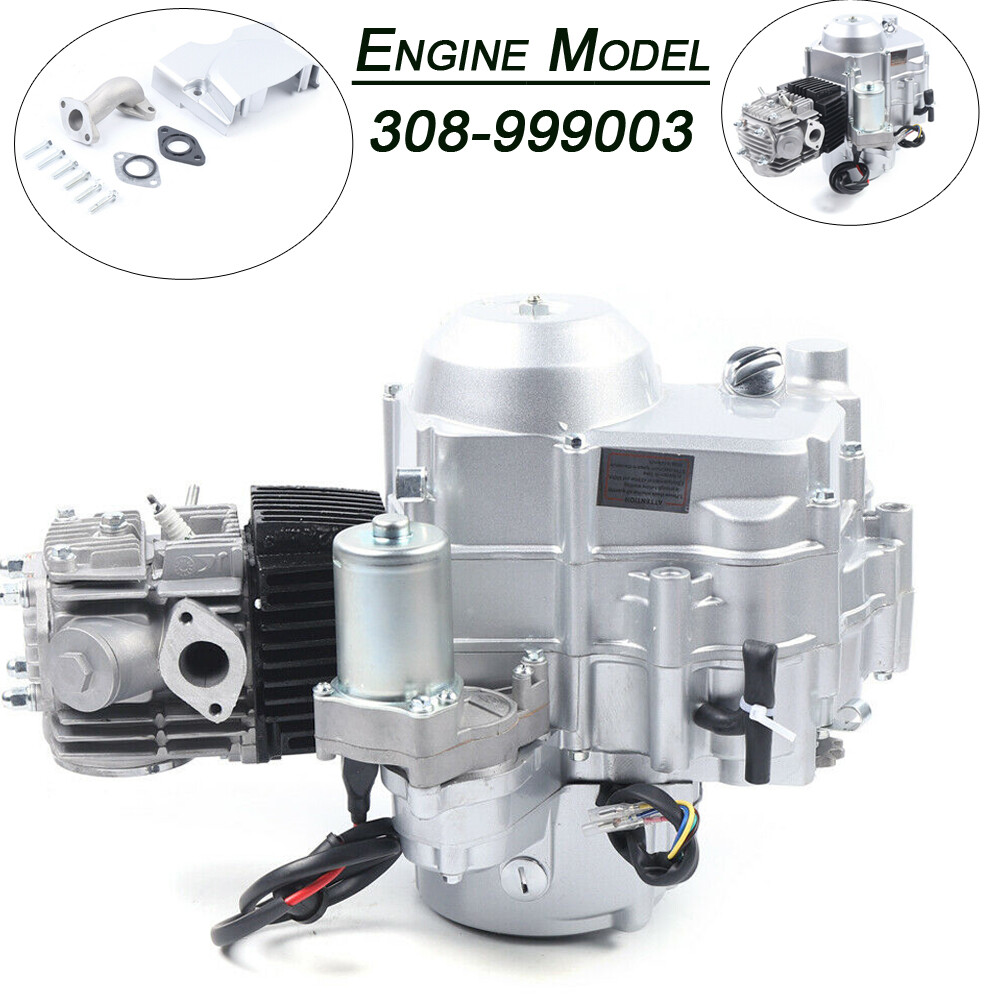

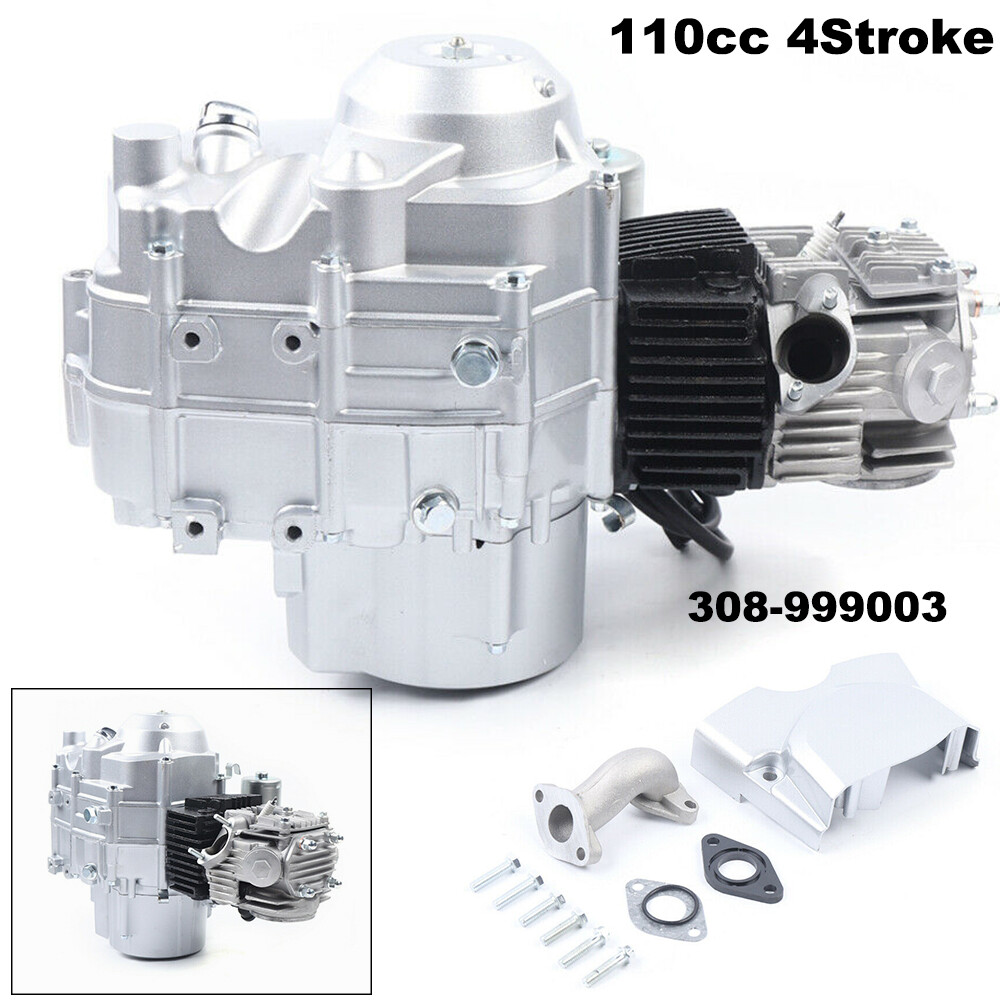

| Engine Model | 308-999003 |
| Engine Type | Single Cylinder, 4-Stroke, 2-Valve |
| Cooling System | Air Cooled |
| Horsepower | 6.71HP/8000Rpm (5.0KW/8000Rpm) |
| Max. Torque | 6.9N.m/6500rpm |
| Min. Stable Idle Speed | 1500±150r/min |
| Min. Fuel Consumption | 9.65oz/HP.h (367g/Kw.h) |
| Carburetor Model | PZ19 |
| Carburetor Type | Plunger type carburetor |
| Spark Plug Model | A7TC |
| Fuel No. | >= 87# |
| Lubrication Model | SF15W/40-SE |
| Lubrication Capacity | 0.20 Gallon (900ml) |
| Ignition Method | CDI |
| Lubrication | Pressure/splash |
| Fuel Supply | Carburetor Atomization |
| Starter | Electric Starter |
| Transmission | Auto Transmission |
| Clutch | Automatic Multi-plate Wet Clutch |
| Cylinder Diameter | 2.06" (52.4mm) |
| Piston Stroke | 1.95" (49.5mm) |
| Bore & Stroke | 2.06" x 1.95" (52.4mm x 49.5mm) |
| Cylinder Working Volume | 0.02 Gallon (107ml) |
| Compression Ratio | 9.0:1 |
| Ignition Type | CFW |
| Applicable Regions | fit for most China made 50cc, 70cc ,90cc ,110cc ATVs and Go Karts |
| Placement on Vehicle | Front |
| Compatible Model 1 | For Alpha sports, BMS, BMX, Cool Sports, Baja, JCL |
| Compatible Model 2 | For Taotao, Peace, JM Star, Jonway, Kazuma, KMD |
| Compatible Model 3 | For NST, Redcat, Roketa, Tank, X-Treme, Yamati |
| Compatible Model 4 | Coolster, Terminator, Lynx etc |
| Notice | shift shaft is not included |

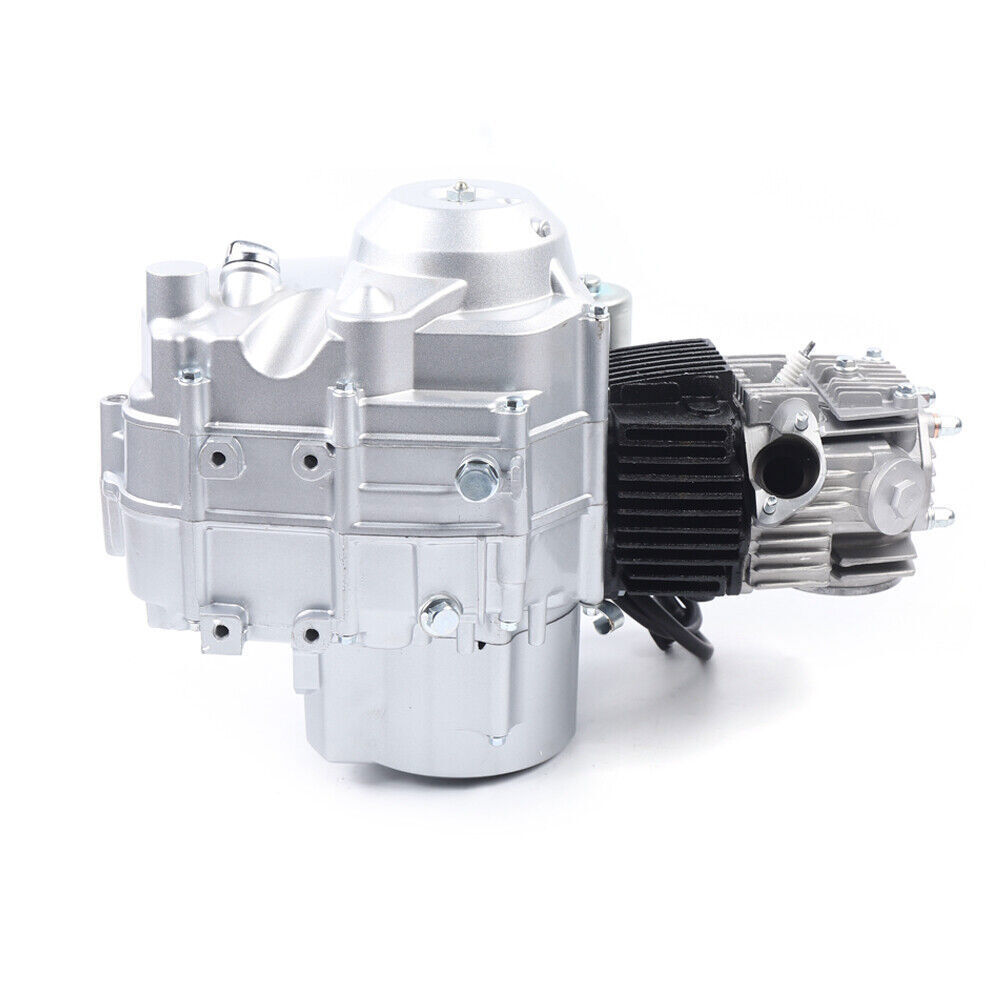

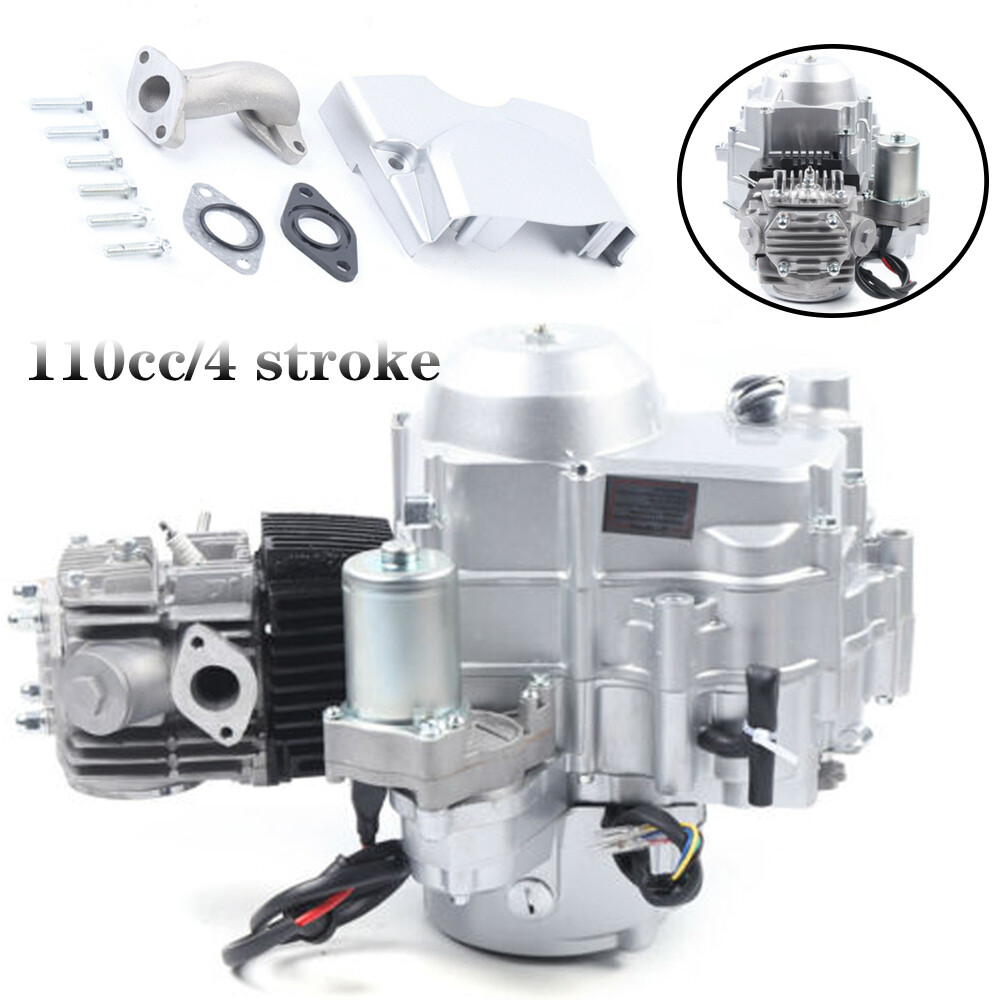

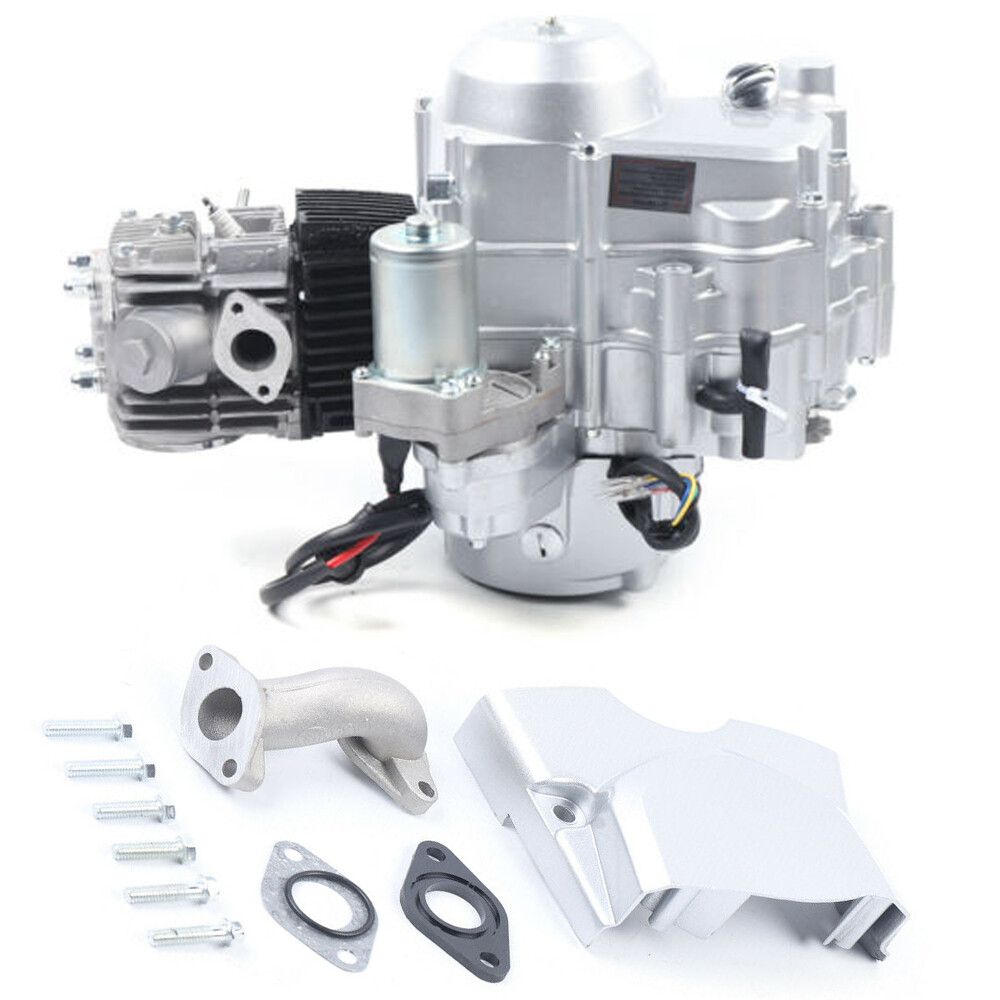

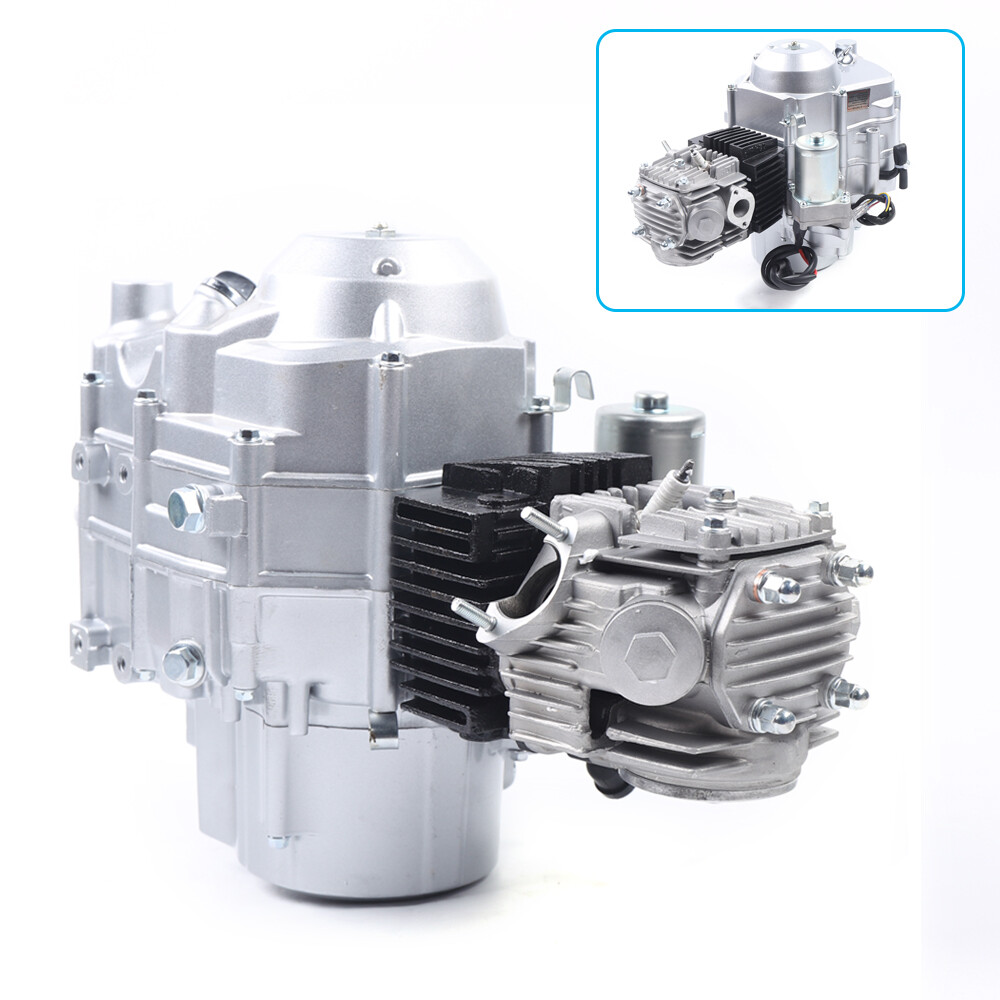

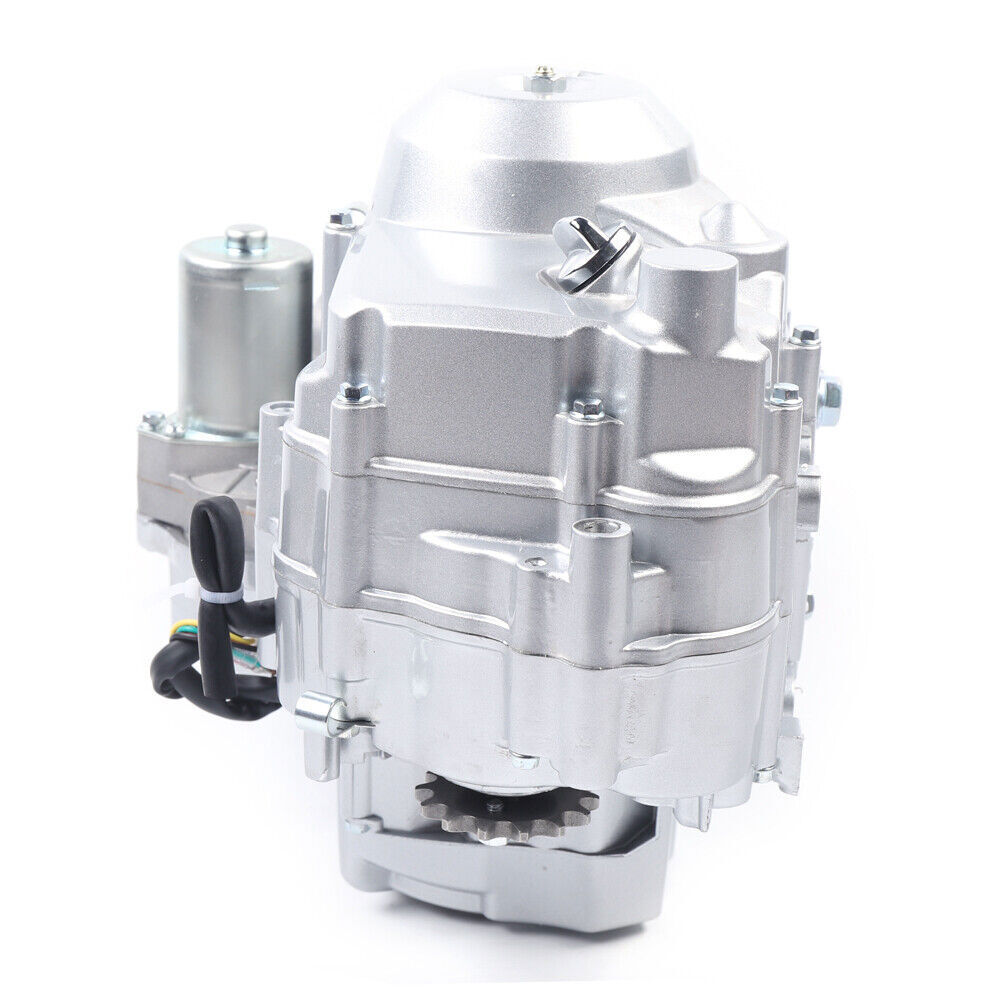

Check the listing for details. 110cc 4-Stroke Engine Automatic Transmission For ATVs GO Karts Electric Starter. Color: Silver, Condition: New, Made in China. Listed at 207.16 USD.
