| Punching dies | 3/8"/5/8"/1/2"/3/4" |
|---|---|
| Tank capacity of hydraulic pump | 2.11gal(8L) |
| Cutting max(Width*Thickness) | 5.90"*0.39"(150mm*10mm) |
| MPN | m056276 |
| Output cutting force | 20ton |
| Punching max(Thickness) | 0.39"(10mm) |
| Brand | Maisutseb® |
| Bending max(Width*Thickness) | 7.87"*0.47"(200mm*12mm) |
| Hydraulic pump pressure max | 700bar(10152psi) |
| Throat depth of punching | 2.75"(70mm) |
| Output bending force | 16ton |
| Voltage | 110 V |
| Model | HHM-150H |
| Flow rate of hydraulic pump | 0.7L/min-5L/min |
| Power | 1.2HP(900W) |
| Output punching force | 31ton |
| UPC | 198462470766 |

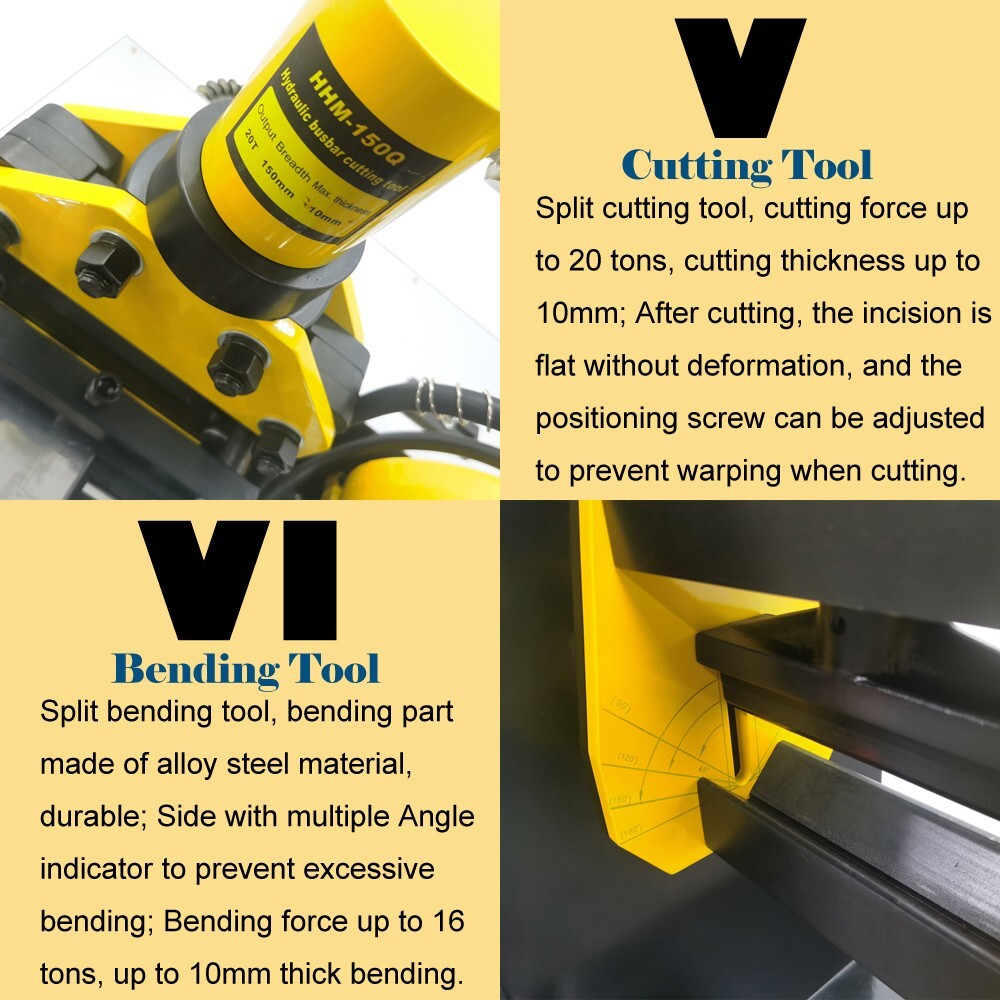

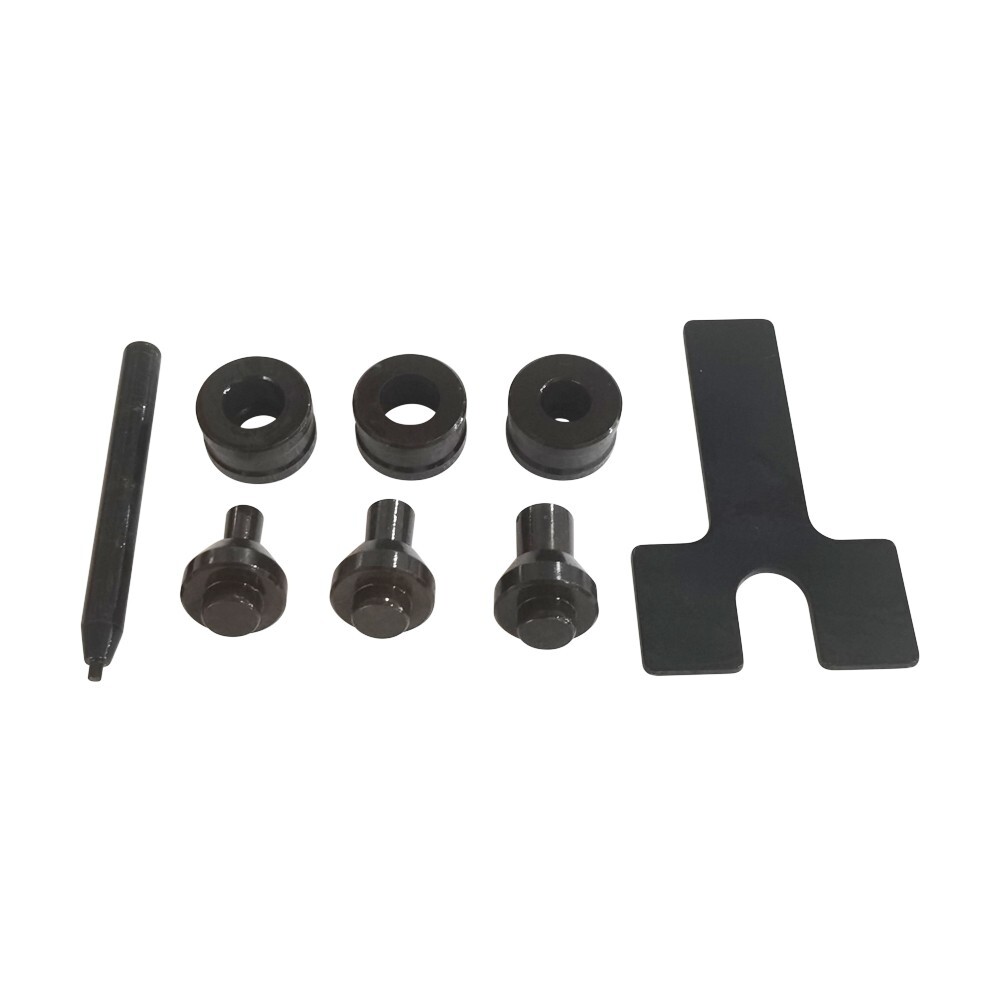

Check the listing for details. 110V 150 Type 3-in-1 Busbar Processing Machine Cutter/Bender/Hole Puncher 1.2HP. Condition: New. Listed at 2204.10 USD. Busbar Processor 1 Punching Dies 6(Three sets) Dowel 1. Throat depth of punching: 2.75"(70mm). Bus processing machine has shearing, punching, bending three processing units, the main function for processing different specifications of copper, aluminum bus, just use the corresponding processing unit, can be convenient, fast to copper, aluminum row shear, punching, bending and other different processing.
