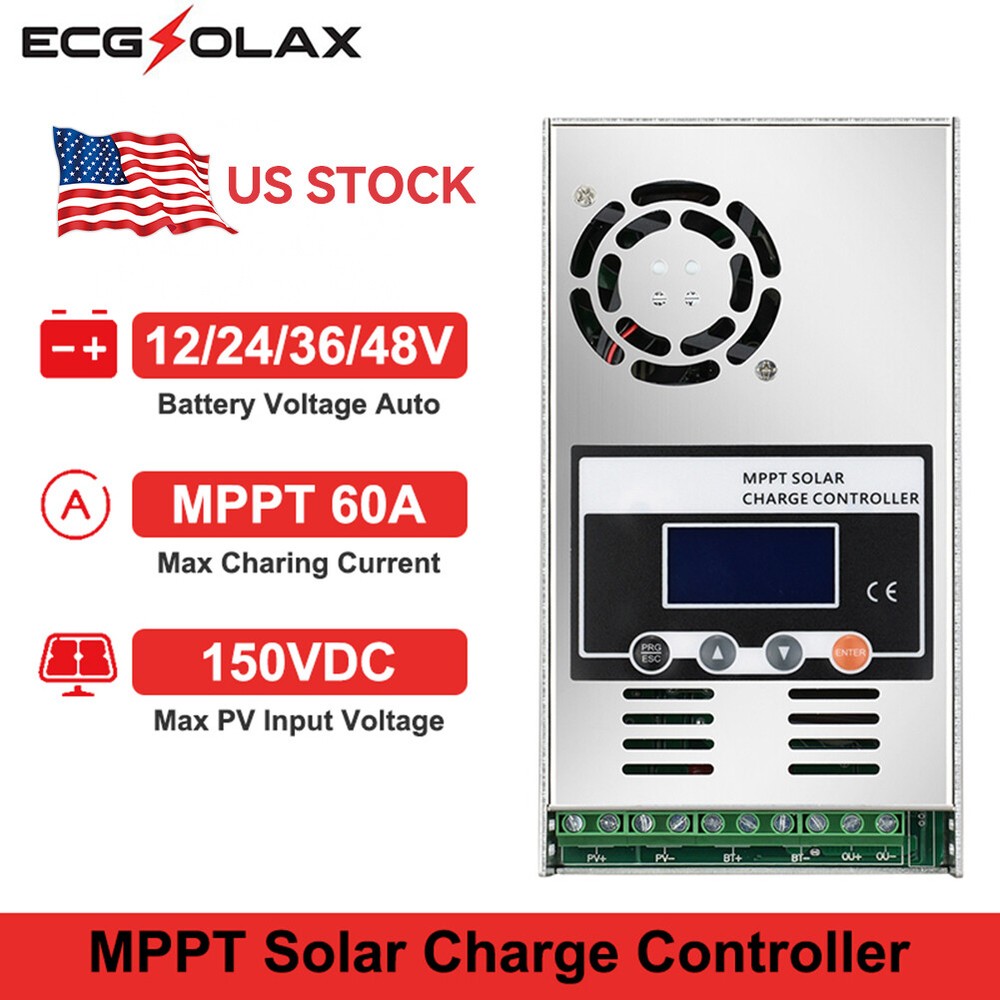

ECGSOLAX 60A MPPT Solar Panel Battery Charge Controller 12V/24/36/48V Regulator

Name: ECGSOLAX 60A MPPT Solar Panel Battery Charge Controller 12V/24/36/48V Regulator
SKU: 397004486491
Price: 69.98 USD
Availability: InStock

$34.99

$69.98 -50%

Brand ECGSOLAX

Condition New

Item ID 397004486491

Package Included

Quantity

Package Included	1PCS 60A MPPT Solar Controller
Current Output	60A
Output voltage ripple-peak	100mV
controller	controller
Charging	3-stage：constant current(MPPT), constant voltage(A
System Configuration	Hybrid
System voltage automatic recognition	12V system (DC9V-DC15V)/24V system (DC18V-DC29V)
Power Source	Solar
Selectable battery type(default is Seale	Vented/ Sealed / Gel / NiCd / Lithium battery(defi
The maximum PV input voltage (Voc)	DC190V
MPN	MPPT60A
System voltage automatic recognition-2	36V system (DC30V-DC39V) 48V system (DC40V~DC60V)
Brand	ECGSOLAX
Type	MPPT Charge Controller
Current Type	AC/DC
Automatic temperature compensation	14.2V-（Max temperature-25 centi-degree）*0.3
Voltage Input	48V System: Dc72v~Dc160v
Voltage	48 V
Model	MPPT-60A
Recommended Environment	Mppt Charge Controller
System type	DC12V/24V/36V/48V Recognition automatically
Charging Mode	Mppt Maximum Power Point Tracking Automatically
Overcharging protection voltage	12V system (15V)24V system (30V)36V system (45V)48
Resistance Properties	Dustproof
Features	Automatic Voltage Detection
Application	Home/Garden, Agriculture/Farming
Current Rating	60A
Power	2800W

Check the listing for details. ECGSOLAX 60A MPPT Solar Panel Battery Charge Controller 12V/24/36/48V Regulator. Condition: New. Listed at 69.98 USD. DC12V/24V/36V/48V Recognition automatically. 48V system (DC40V~DC60V). Always connect the battery first! The order of dismantling contradicts the order of wiring. 48V system (60V). 48V system (DC72V~DC160V).
