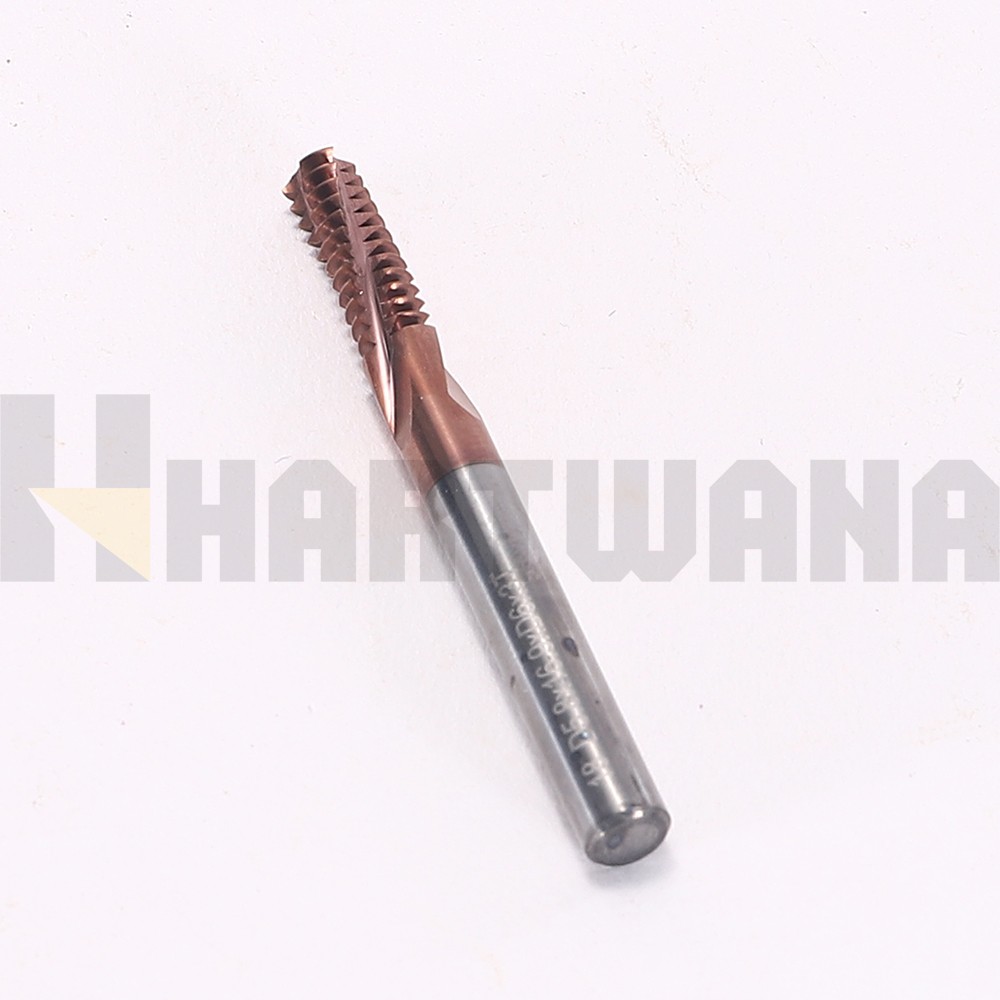

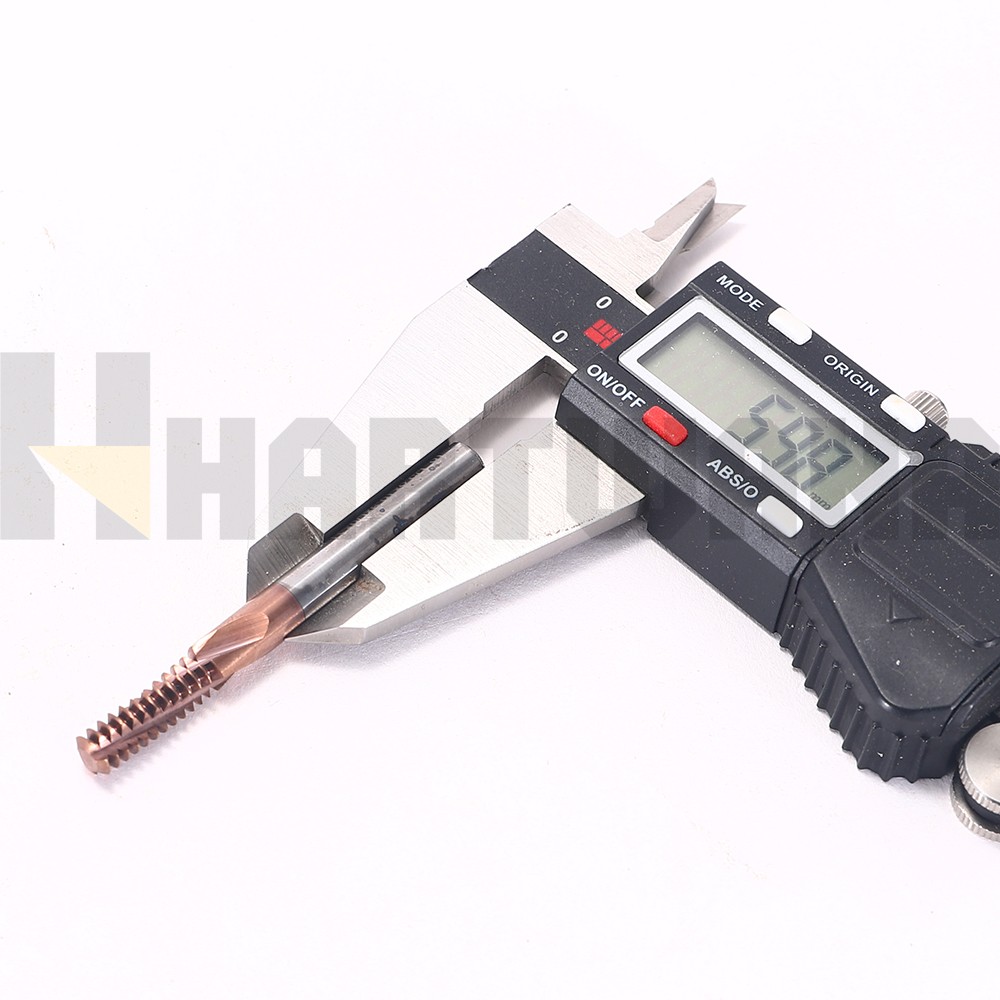

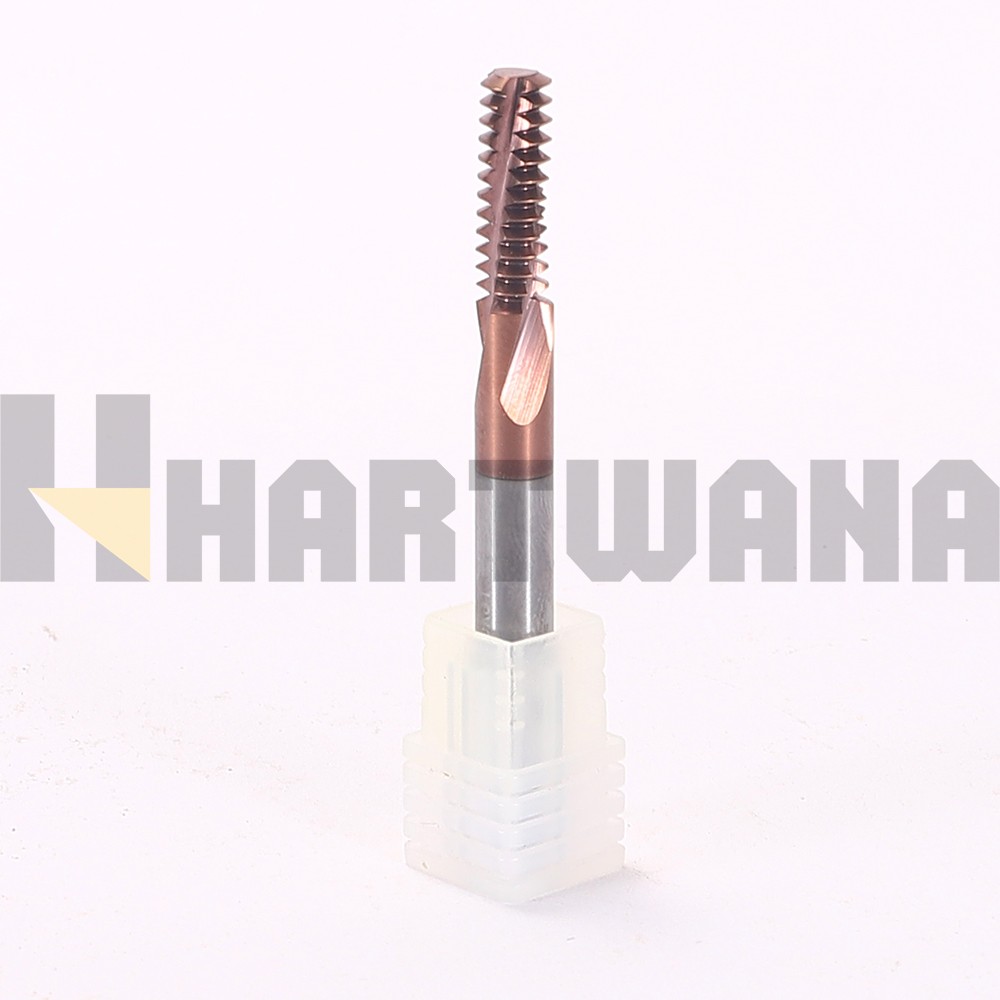

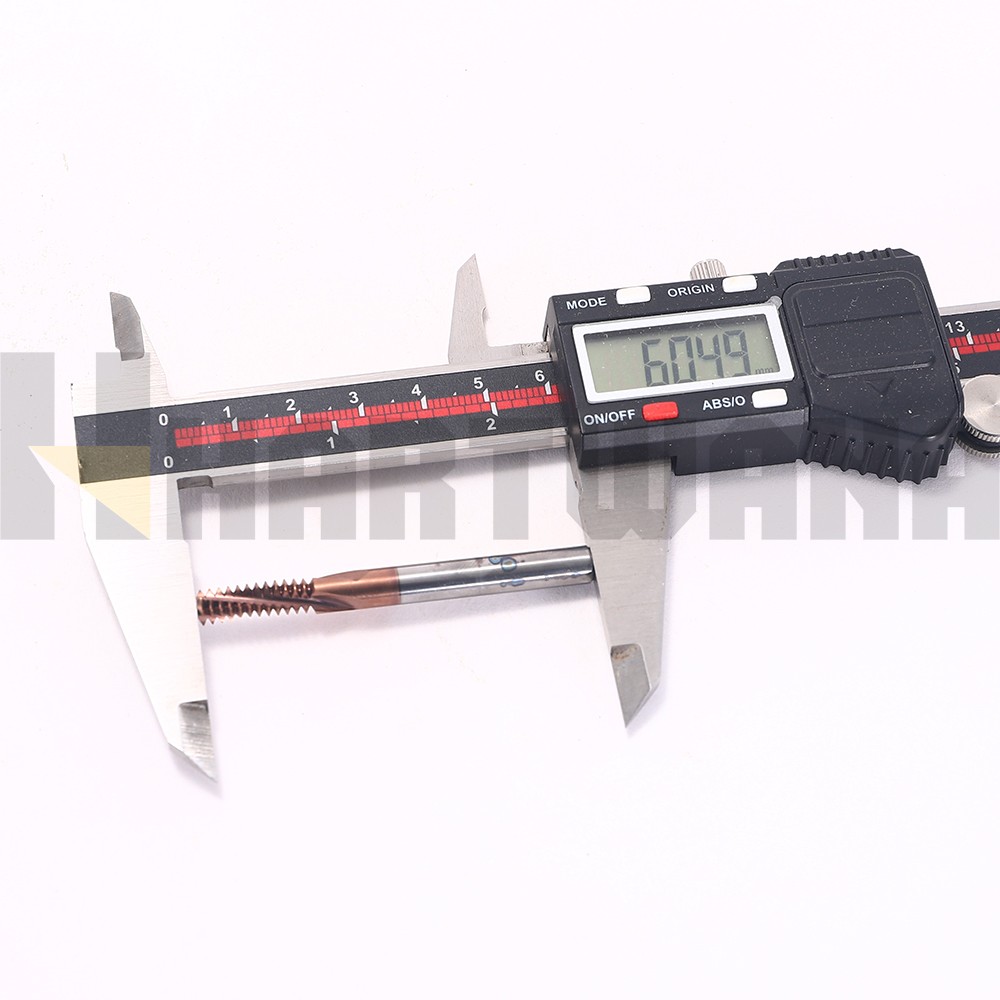

18UN Thread Mill Helical Flute Solid Carbide 3 Flute TiALN COATED
Brand HARTWANA
Thread angle 60 Degrees
Model Year 18UN D5.8x16.9xD6x60x3T
Material Cemented Carbide
Thread processing For internal threads
Threads Per Inch 18
Thread Mills Type Helical Flute Thread Mill
Unit Quantity 1

Check the listing for details. 18UN Thread Mill Helical Flute Solid Carbide 3 Flute TiALN COATED. Condition: New. Listed at 43.21 USD. 18UN Thread Mill Helical Flute Solid Carbide 3Flute TiALN COATED This professional-grade solid carbide thread mill is engineered for precise internal threading of NPT1/16-27 threads. Features a full-profile spiral flute design for smooth cutting and excellent chip removal. Specifications: Thread Standard: 18UN Flute Type: Full-tooth spiral Cutting Diameter: 5.9mm Cutting Length: 16.9mm Shank Diameter: 6mm Overall Length: 60mm Material: High-performance solid carbide Precision: Walter 5-axis CNC grinding Coating: Titanium Aluminum Nitride (TiAlN) advanced surface coating Application Materials: Suitable for machining carbon steel, stainless steel, cast iron, heat-treated steel, and alloy steel.

You may also like

$18 (5 PCS) KENNAMETAL K6 CNG 633 CARBIDE INSERTS
(5 PCS) KENNAMETAL K6 CNG 633 CARBIDE INSERTS
$65.05 Solid Carbide Thread Mill M2.5x0.45 Single Tooth CNC Cutter for Hardened Steel
Solid Carbide Thread Mill M2.5x0.45 Single Tooth CNC Cutter for Hardened Steel
$95 Solid Carbide Thread Mill For Steel M8*P0.5*d5.9*16*6D*60L HRC65 NEW 1 pcs.
Solid Carbide Thread Mill For Steel M8*P0.5*d5.9*16*6D*60L HRC65 NEW 1 pcs.
$129.65 M6 X 1 3 Flute 15Deg Helical Carbide Thread Mill for 60Deg Threads TiALN
M6 X 1 3 Flute 15Deg Helical Carbide Thread Mill for 60Deg Threads TiALN
$89.8 Solid Carbide Thread Mill UNC 7/16-14 HRC68 Carbide Thread Mill 7/16-14 Full T
Solid Carbide Thread Mill UNC 7/16-14 HRC68 Carbide Thread Mill 7/16-14 Full T
$159.99 XACTFORM 70318 SOLID CARBIDE STRAIGHT FLUTE THREAD MILL 1/4x.240 27NPSM K20C
XACTFORM 70318 SOLID CARBIDE STRAIGHT FLUTE THREAD MILL 1/4x.240 27NPSM K20C
$24.8 Solid Carbide Thread Mill M2.5 P0.45 HRC68 Carbide Full Teeth Thread Mills m2.5
Solid Carbide Thread Mill M2.5 P0.45 HRC68 Carbide Full Teeth Thread Mills m2.5
$15.8 Solid Carbide Thread Mill UNC 6-32 HRC65 Carbide Thread Mill 6-32 1pcs USA
Solid Carbide Thread Mill UNC 6-32 HRC65 Carbide Thread Mill 6-32 1pcs USA

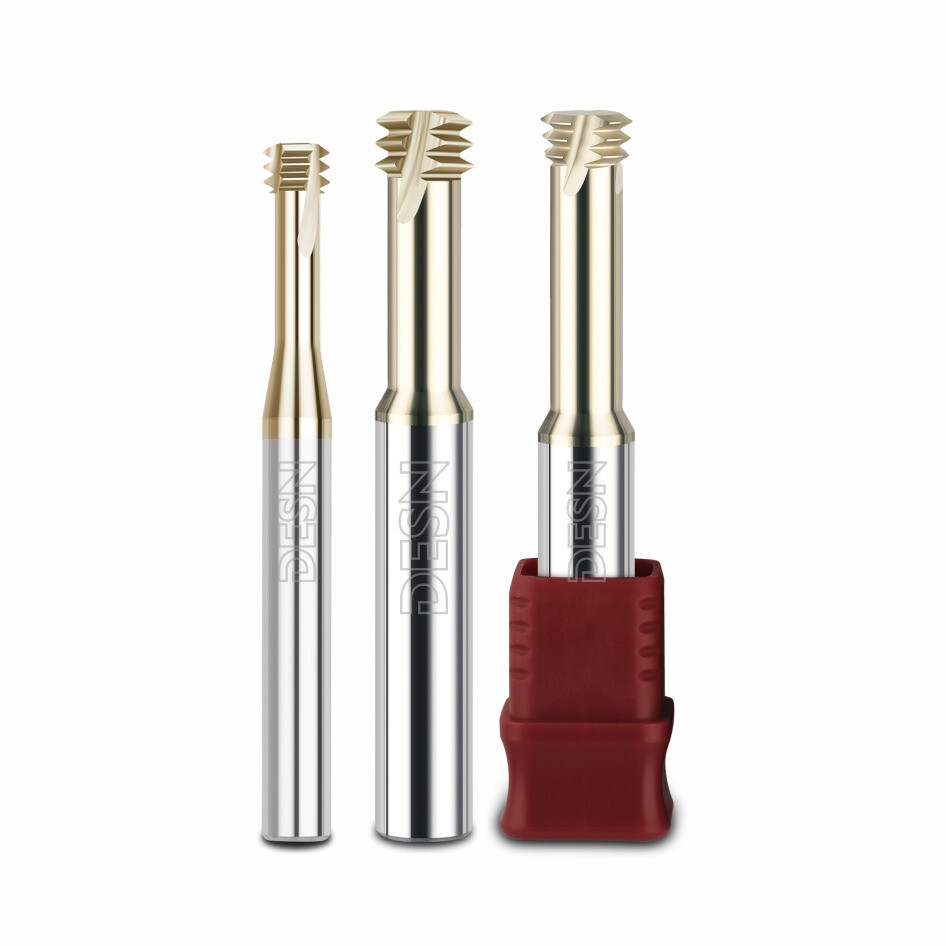

$16.9 Solid Carbide Thread Mill UNC 6-32 HRC65 For Titanium Alloy Thread mill 3T NTS
