| Restocking Fee | No |
|---|---|
| Return shipping will be paid by | Buyer |
| All returns accepted | Returns Accepted |
| Item must be returned within | 30 Days |
| Refund will be given as | Money Back |
| Model | DRO + Linear Scale |
| Country/Region of Manufacture | China |
| MPN | Does Not Apply |
| Brand | ToAuto |
| Axis | 2Axis / 3Axis |
| Scale | Optical |
| Supply Voltage range : | AC 80V~260V; 50~60Hz |
| Power consumption: | 15VA |
| Length resolution: | 100 ~ 1500mm |
| Type | Linear Scale |

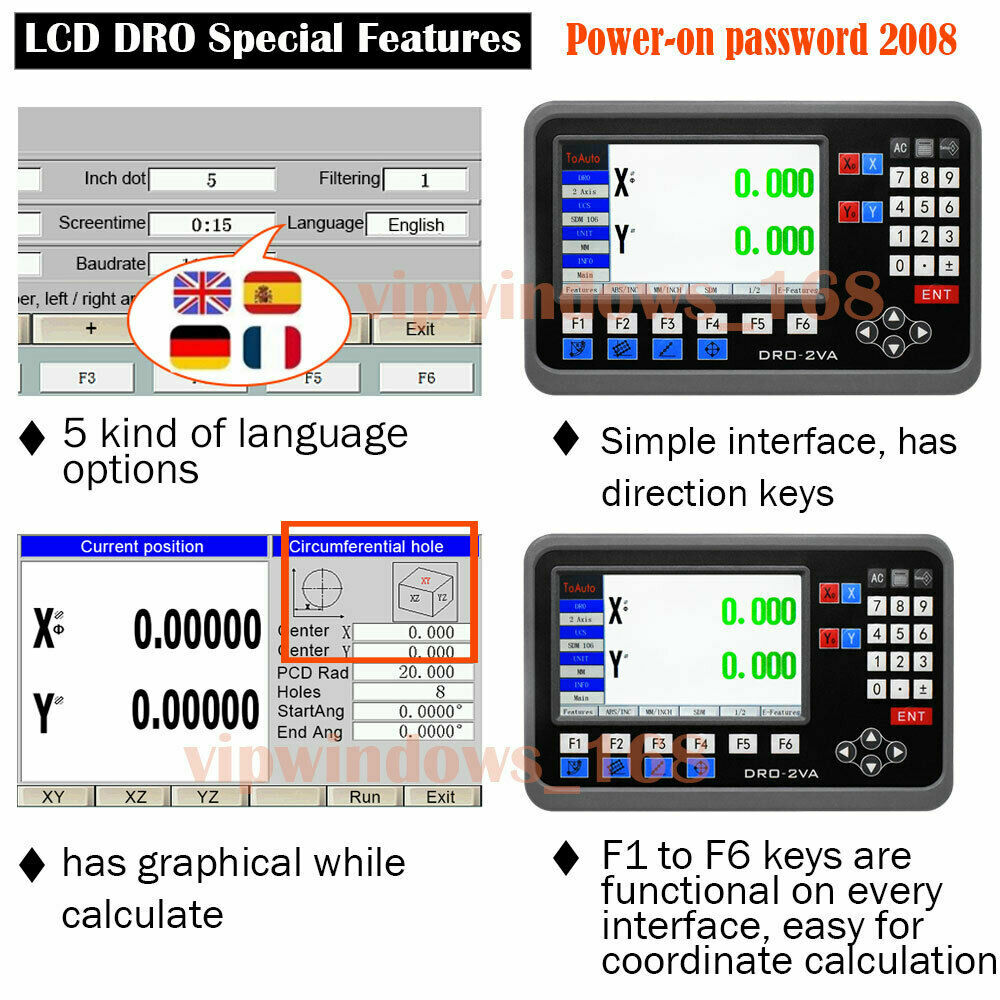

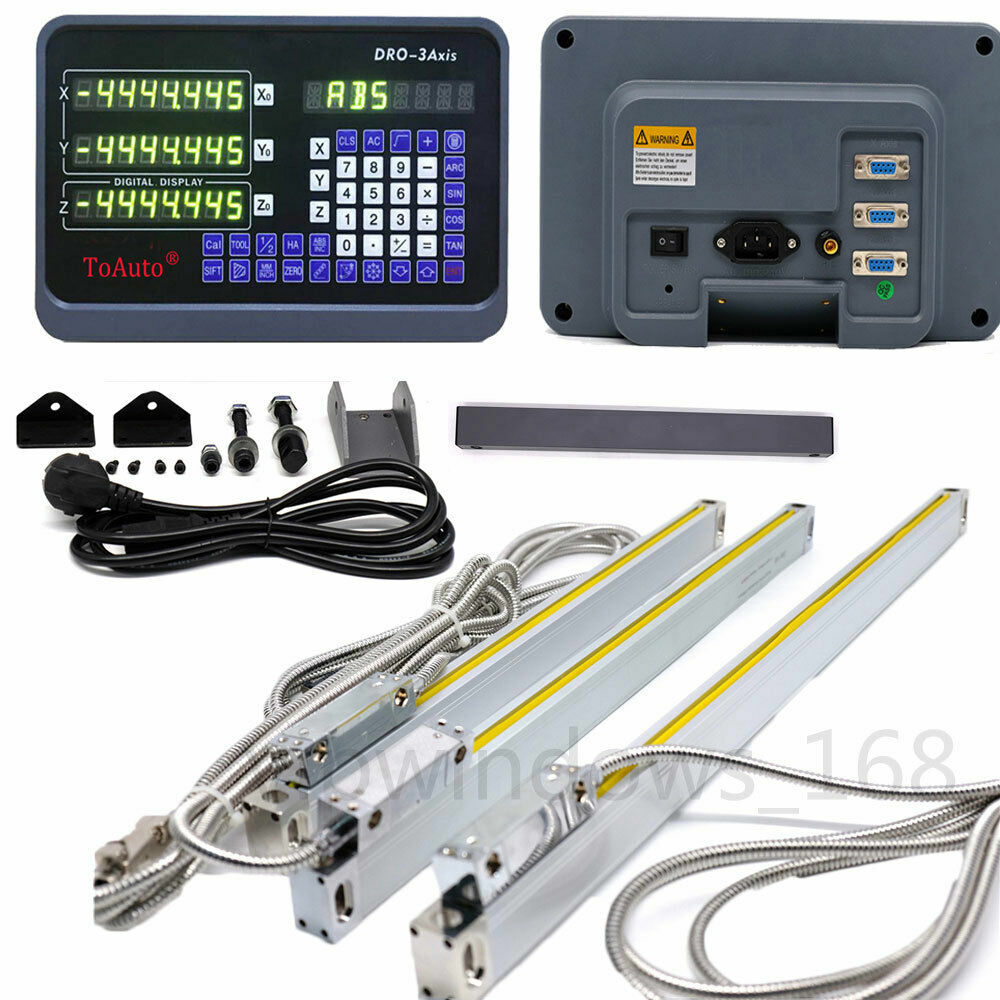

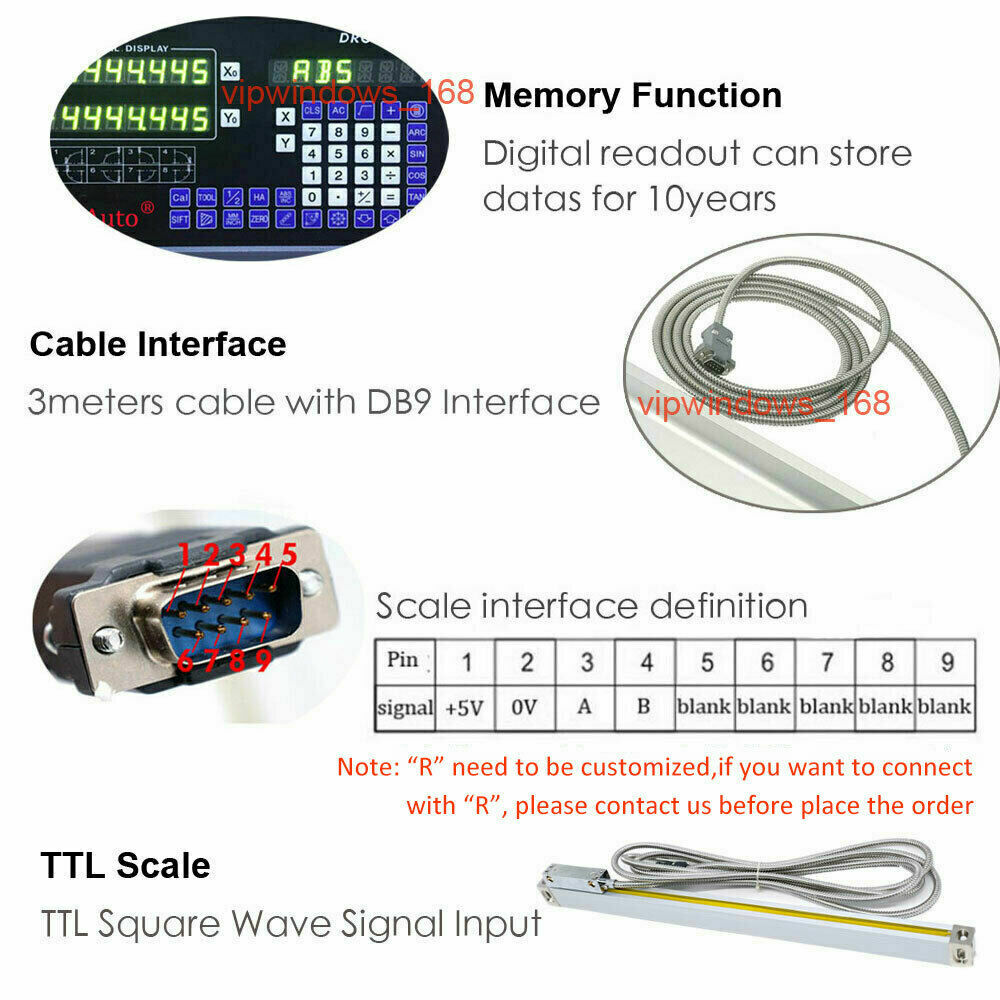

Check the listing for details. 2/3/4/5Axis Digital Readout DRO TTL 5um Glass Linear Scale Encoder CNC Mill Lath. Condition: New. Listed at 59.99 USD. Supply Voltage range : AC 80V~260V; 50~60Hz，UK, US ,EU Plug available Power consumption: 15VA Operating temperature: 0~45 degree centigrade Storage temperature: -30~70 degree centigrade Relative humidity: Less than 90% Readout allowable input signal: TTL square wave Allowable input signal frequebcy: Less than 5M Hz Max resolution of digital display length: 5µm (0.005mm/0.0002") Min resolution of digital display angle :0.0001/pulse Digital Readout Dimensions:295*170*65mm (11.6"*6.7"*2.56") Linear Scale Interface: DB9(RS232) Display Advantage: Having a good capacity of resisting disturbance,durable keyboard,easy to change SDM 200 sets memory, power-off memory for 10years , circumference drilling, oblique line drilling, 1/2 centering PCD function R function Smooth R function
