| Travel Length | 100&250mm |
|---|---|
| Scale | Optical |
| Supply Voltage range : | AC 80V~260V; 50~60Hz |
| Power consumption: | 15VA |
| Scale Length | 100-1000mm |
| Operating temperature | 0~45 degree centigrade |
| Model | 2 Axis DRO+Scales |
| Storage temperature | -30~70 degree centigrade |
| Relative humidity | Less than 90% |
| Readout allowable input signal | TTL square wave |
| Resolution | 5µm |
| Min resolution of digital display angle | 0.0001/pulse |
| Cable length | 3M |
| Type | Meter ruler |
| Digital display dimension | 283*178*70mm (11.2"*7"*2.8") |
| Linear Scale communicate | DB9(RS232) |
| Display language | English |
| Applications | For CNC Milling Grinding Lathe Machine |
| Brand | FASTTOBUY |
| Axis | 2Axis |

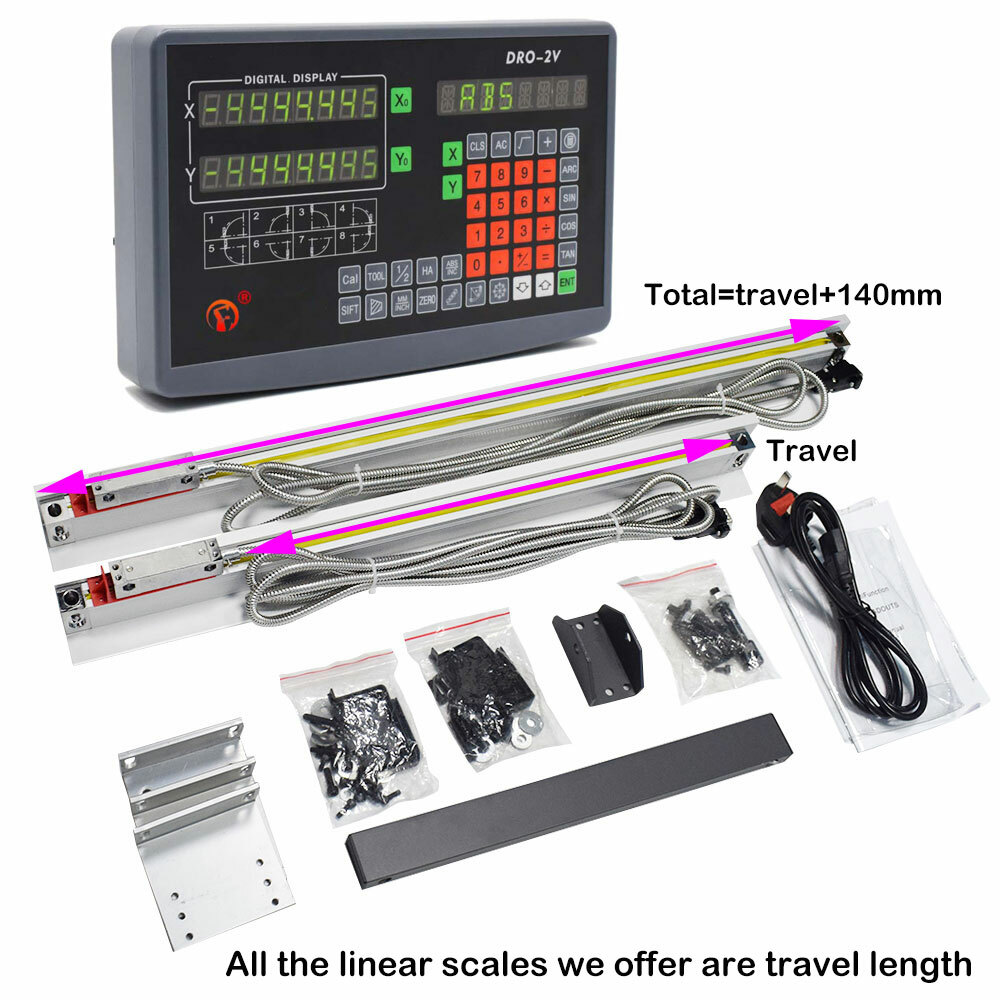

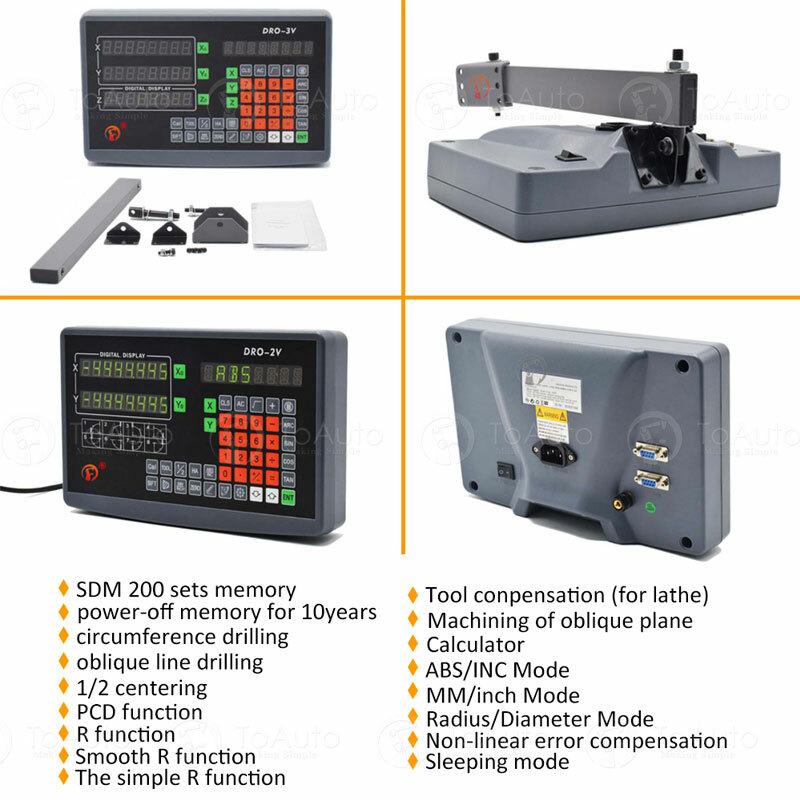

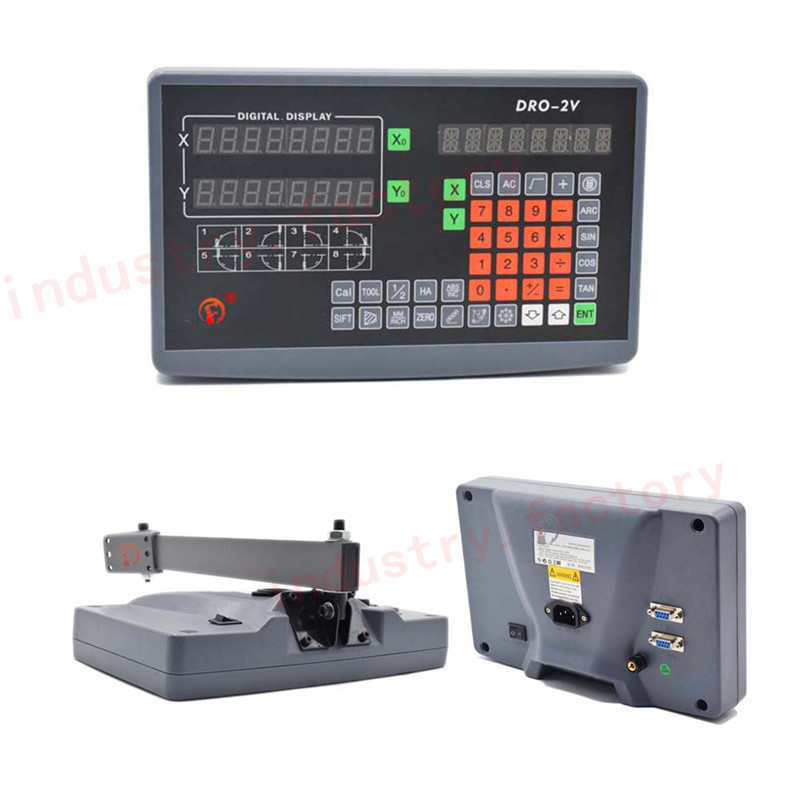

Check the listing for details. 2 Axis Digital Readout+ 2pc Linear Scales Glass Sensor LED DRO Display Kit Lathe. Condition: New. Listed at 201.49 USD. 2Axis Digital Readout Kit DRO Display 5µm Linear Scale Sensor Mill Lathe. Digital Readout& Linear Scale. (4) Digital readout kit can avoid wasting weeks to check machine precision. (6) 1pc digital readout(2Axis/3Axis/4Axis/5Axis) with scales(upon your options) ,5μm (0.005mm/0.0002") resolution (at 45ºC).
