| Brand | TOAUTO |
|---|---|
| Machine Type | Milling Machine |
| Y-Axis Travel Bed | 950mm (38") |
| X-Axis Travel Bed | 200mm (8") |
| Type | Mixed Lot |

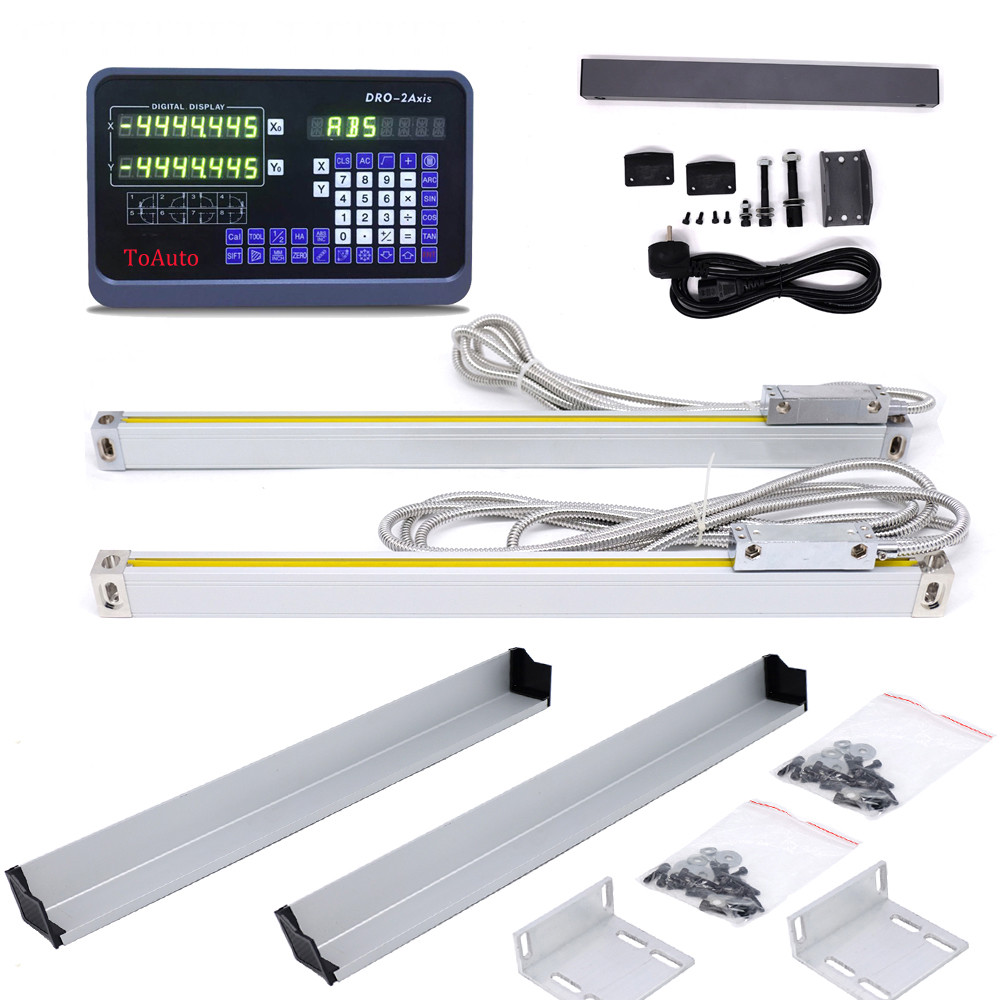

| Model | 1PC 2Axis DRO + 2PCS Linear Scales |
| Voltage | 5V DC |
| Current | 0.5A |
| Grating Pitch | 0.02mm (50LP/min) |
| Resolution | 5μm (0.005mm) 0.0002" |
| Accuracy | ±0.005 mm or 0.0002" (at 20 deg C) |
| Response Speed: | 60m/min or 40ins/sec |
| Cable Length | 3M |

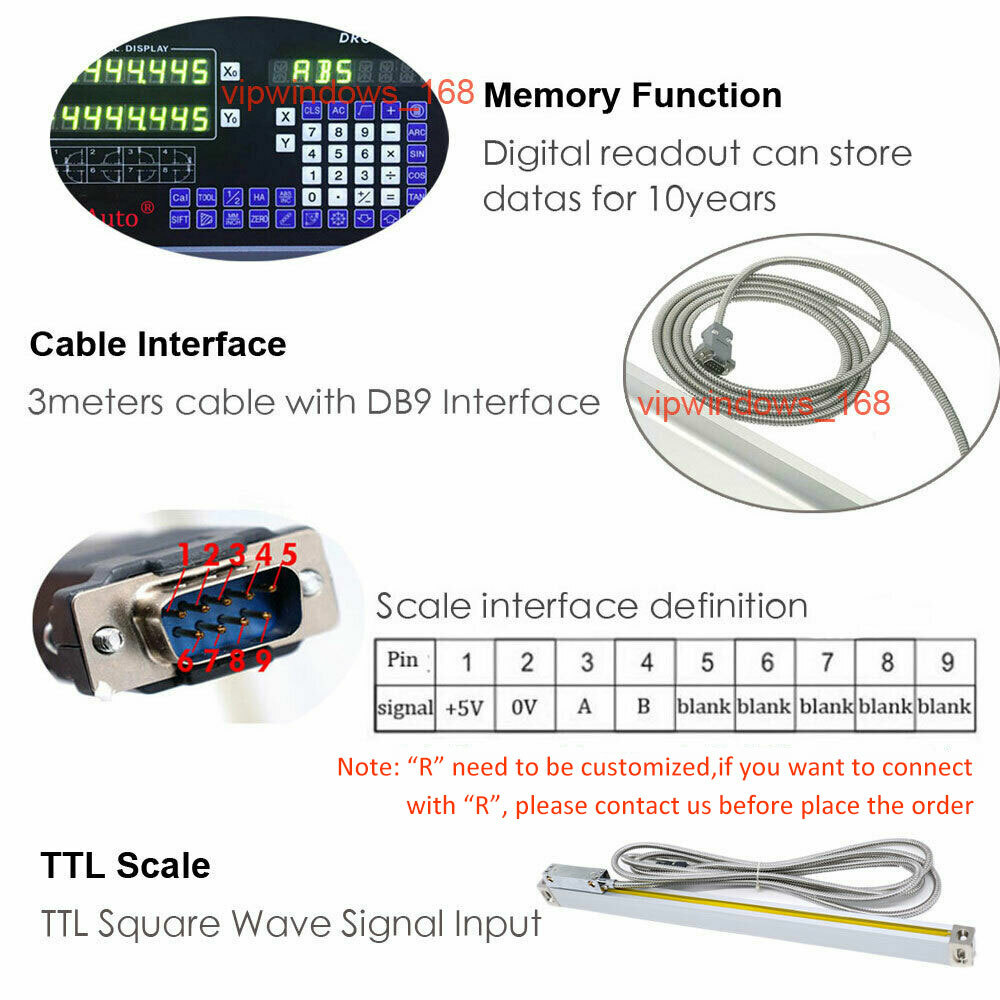

| Connector | 9-Pin connector |
| Pin-1234 | 1 to +5V/2 to 0V/3 to A/4 to B |
| Allowable Input Signal | TTL square wave |
| Power consumption | 15VA |

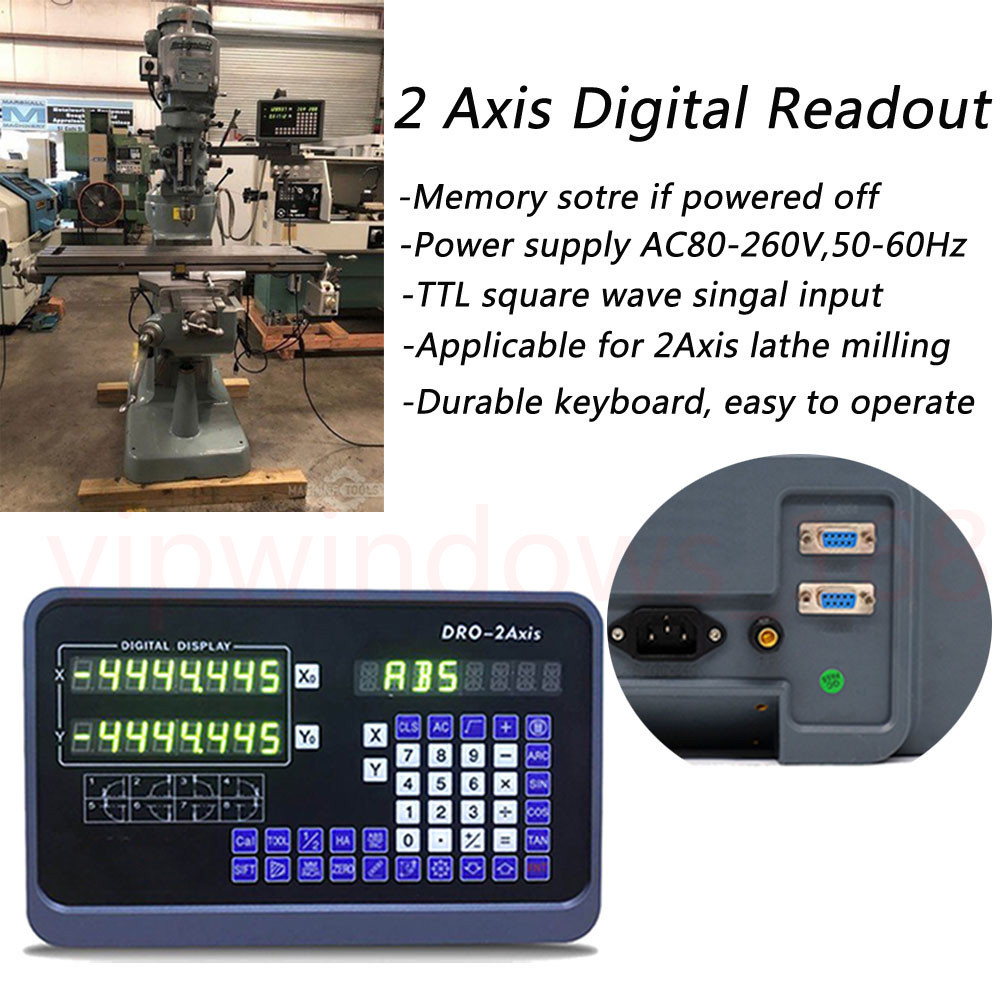

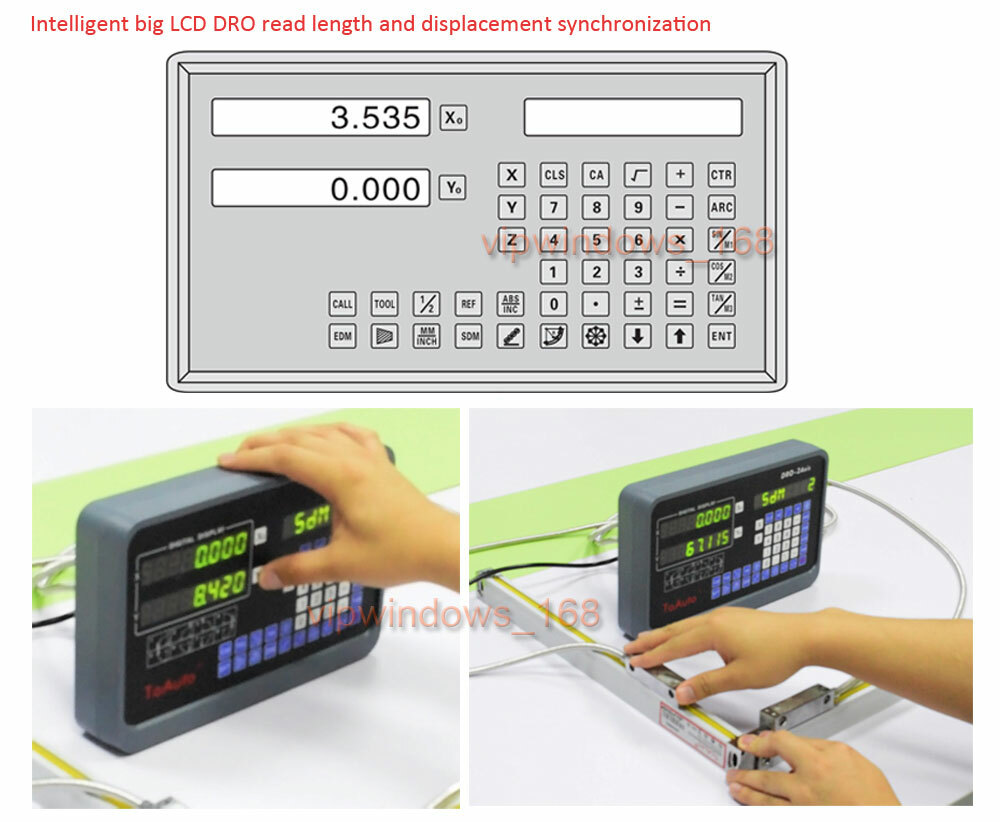

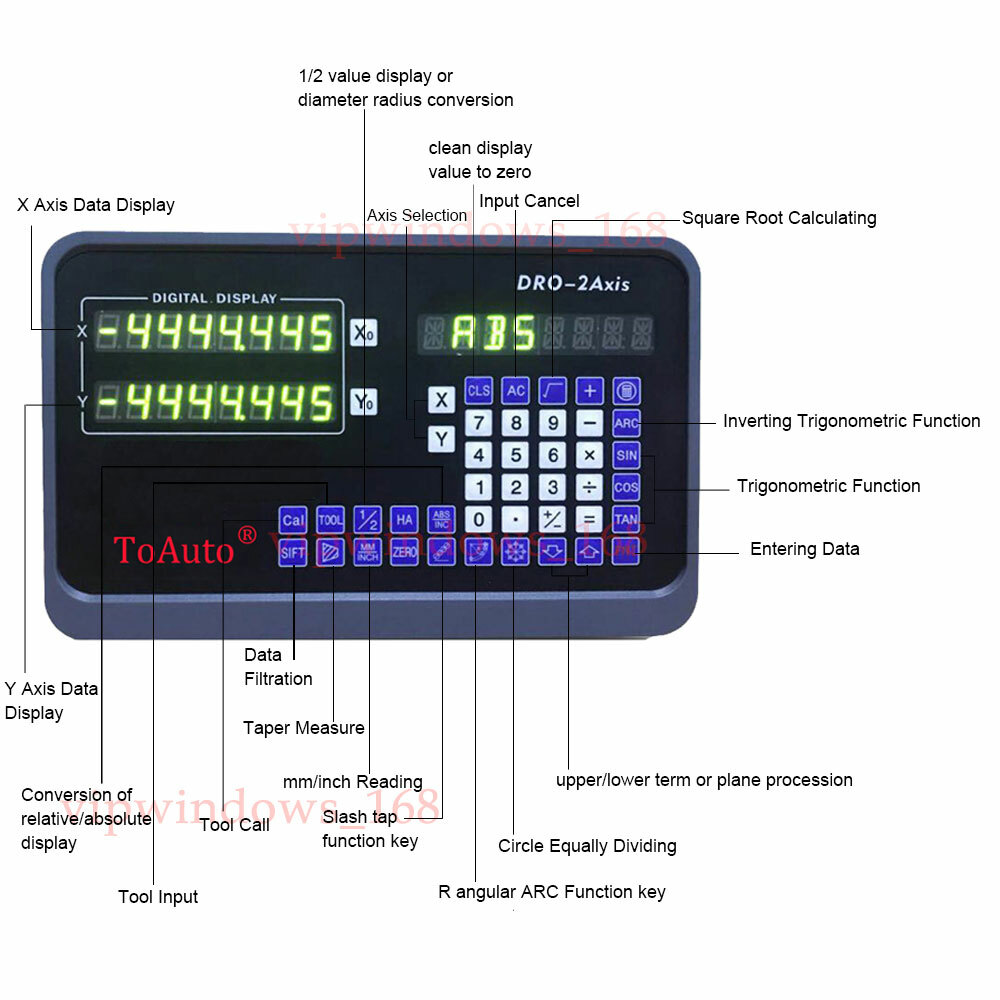

Check the listing for details. 2 Axis Digital Readout DRO Display 8" 38" 5um Linear Scale Encoder CNC, US STOCK. Condition: New. Listed at 199.98 USD. Benefit : (1)Digital display to eliminate backlash and improve precision (2)Advanced trigonometric calculation so to accomplish a perfect project (3)11.6”wide display to offer excellent long-distance viewing (4)DRO providing a two axis display with pitch circle calculator, diameter/radius conversion, absolute and incremental toggle, and inch metric toggle (5)Digital readout kit can avoid wasting weeks to check machine precision (6)Lifetime free technical support, 2Years warranty, 30-day return Application : This DRO kit is commonly fitted to machines , especially for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools — to allow the operator to work faster and with greater accuracy.
