| Model | Atlas Copco Pit Viper PV-271 |

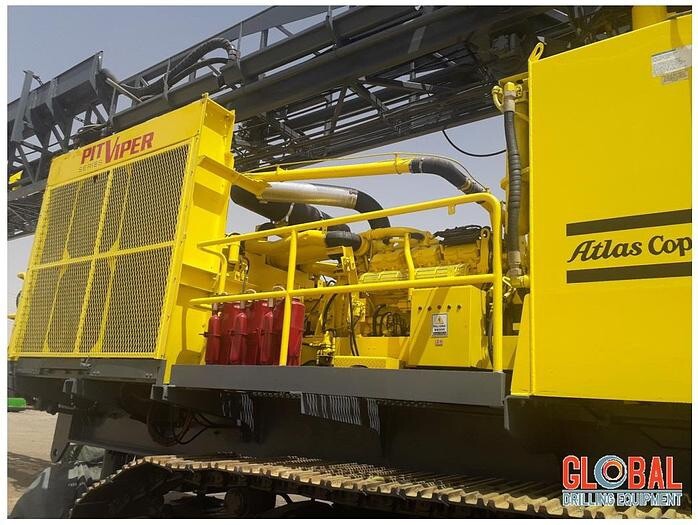

Check the listing for details. 2006 Atlas Copco Pit Viper PV-271 Crawler Drill Rig. Condition: Used. Listed at 750000.00 USD. 2006 Atlas Copco Pit Viper PV-271 Crawler Drill Rig Item No.: 0932 Model: PV-271 Manufacturer: Atlas Copco Year: 2006 Condition: Used I. GENERAL DATA : - 2006 Atlas Copco Pit Viper PV-271 Crawler Drill Rig - S/N : 4399 II. TECHNICAL DATA : - Drilling Method : Rotary and DTH – Single Pass - Hole Diameter : 6-3/4” – 10-5/8” (171mm – 270mm) - Hydraulic Pulldown : 70,000 lbf (311 kNm) - Weight on Bit : 75,000lb (34,000 kg) - Hydraulic Pullback : 35,000 lbf / 156 kN - Single pass depth : 55Ft / 16.8m - Maximum hole depth : 105 ft / 32 m - Feed speed : 127 ft/min / 0.6 m/s - Rotary head, torque : 8,700 lgft*ft / 11.8 kNm - Estimated Weight : 185,000 lb / 84 tonnes III. POWER PACK : - Deck Engine : CAT 3412, S/N : BDT05239 IV. COMPRESSOR / AIR SYSTEM : - Ingersoll-Rand IR285GD – 1957.9 CFM / 150 PSI ; V. MOUNTED ON : - Crawler Located in our Dubai office Pickup location will be in Dubai
