| Brand | Unbranded |
|---|---|
| Type | Load cell |
| Measuring Technology | Electric |
| Material | Alloysteel |

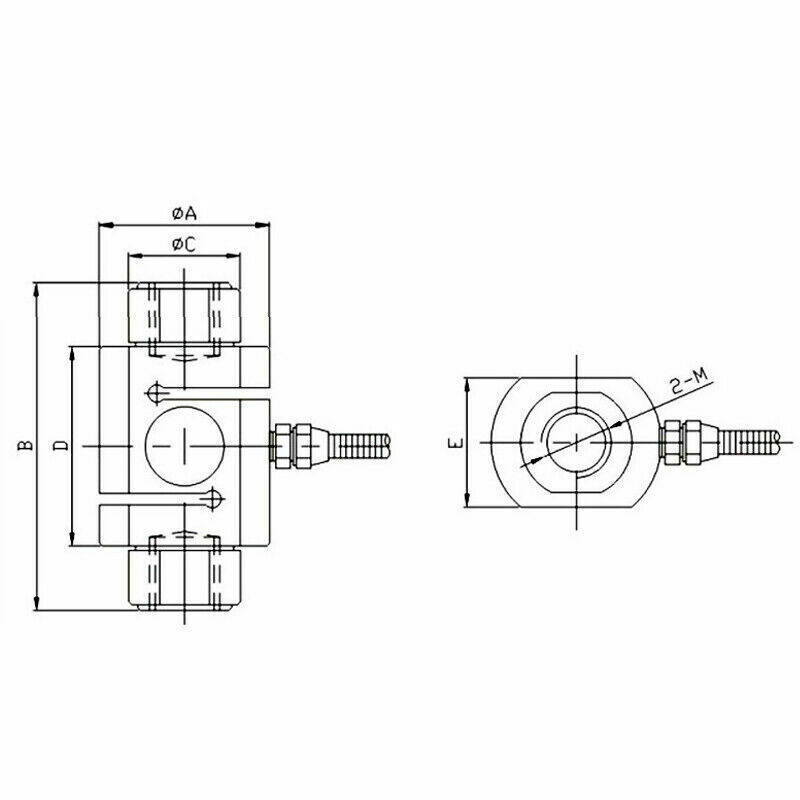

| Size | 88*44*26mm |
| Capacity | 0-200kg |
| Operating temperature range | -20-80°C |
| Rated Output | 2.0mV/V |
| Impedance | 350Ω |
| Zero balance | ±1%F.S. |
| Insulation | ≥5000MΩ/100VDC |
| Non-linearity | 0.05%F.S |
| Recommended Excitation | 5-15V |
| Hysteresis | 0.05%F.S |
| Repeatability | 0.03%F.S. |
| Safe load limit | 150% |
| Creep(30min) | 0.05%F.S. |
| Ultimate load limit | 200% |
| Temp Effect on output | 0.05%F.S./10℃ |
| Cable size | 0.2-2T ψ5x2M |
| Wire connection | EX + Red |

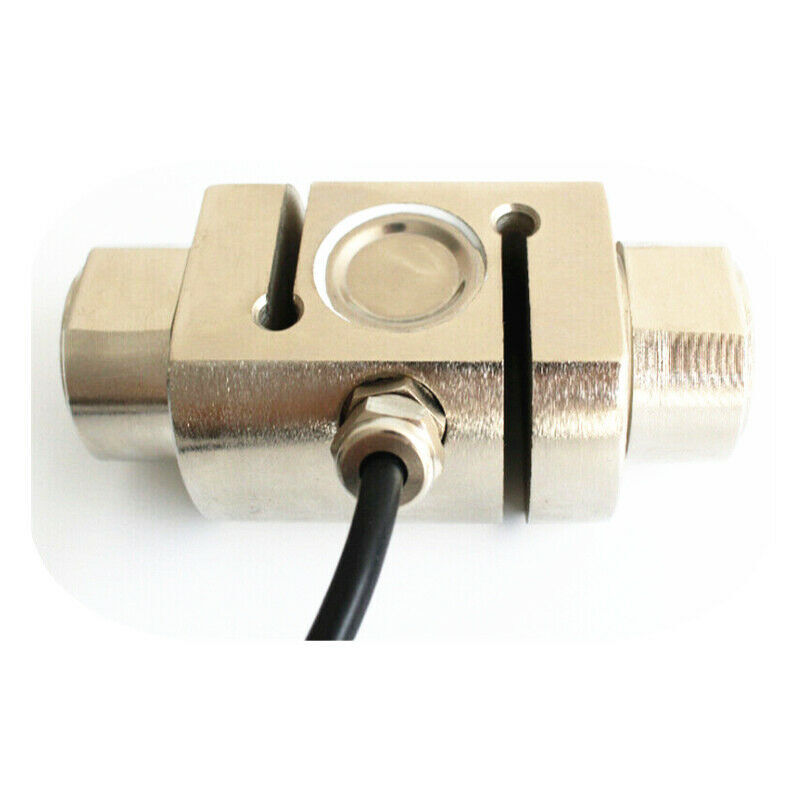

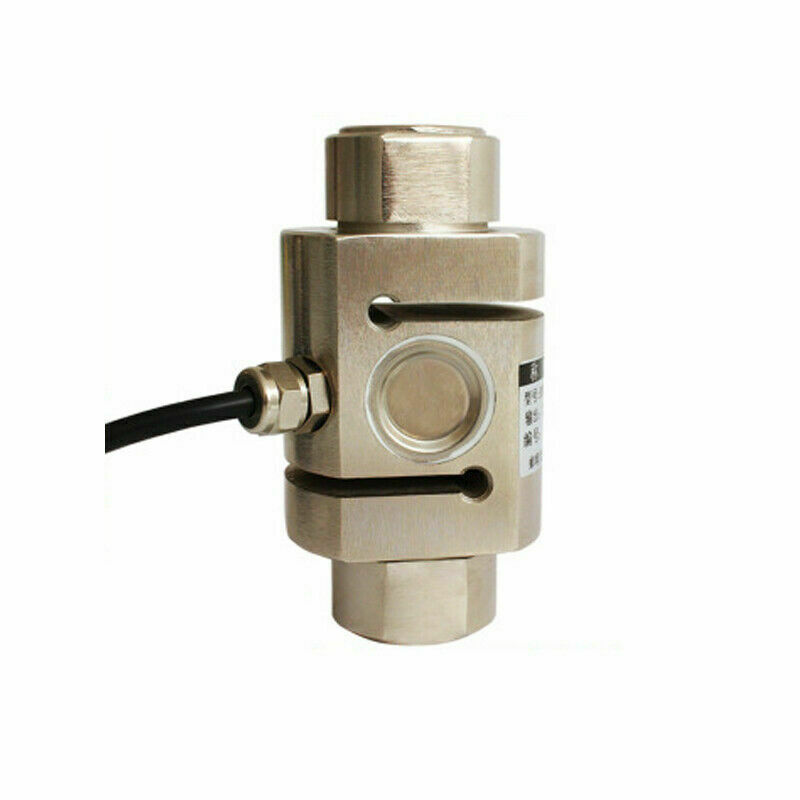

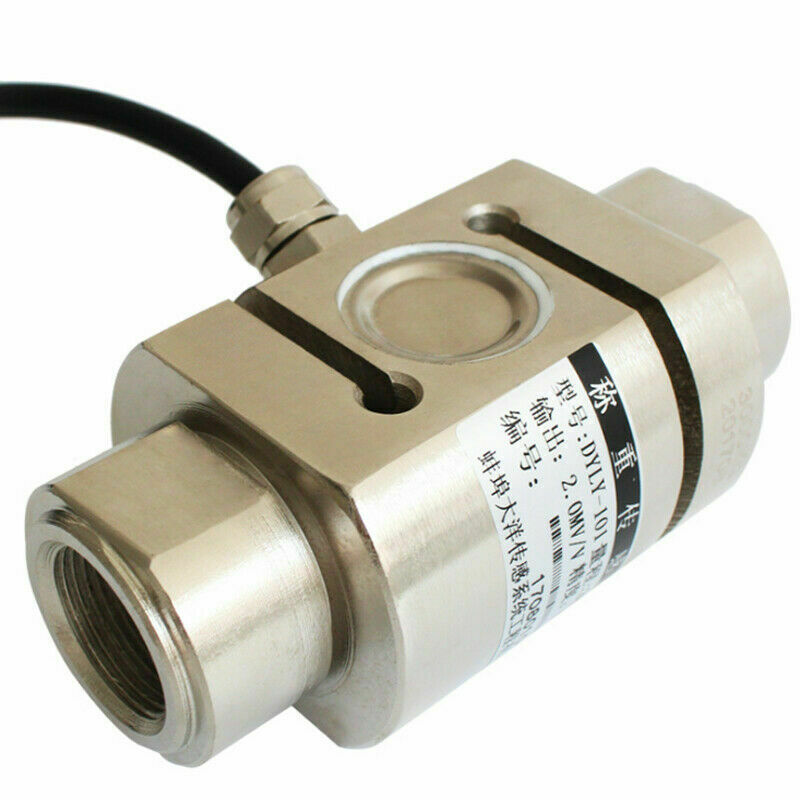

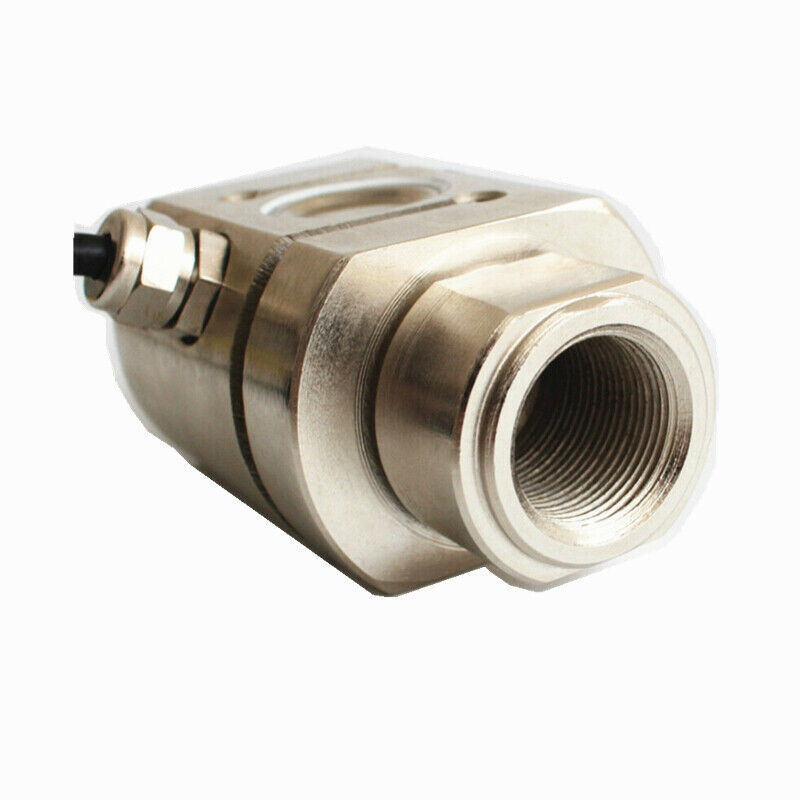

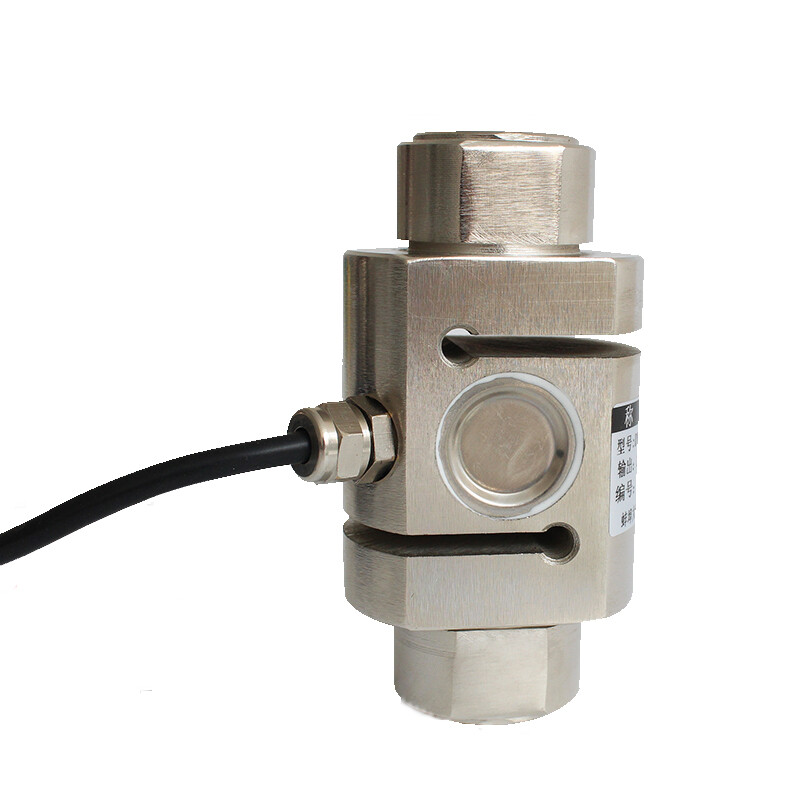

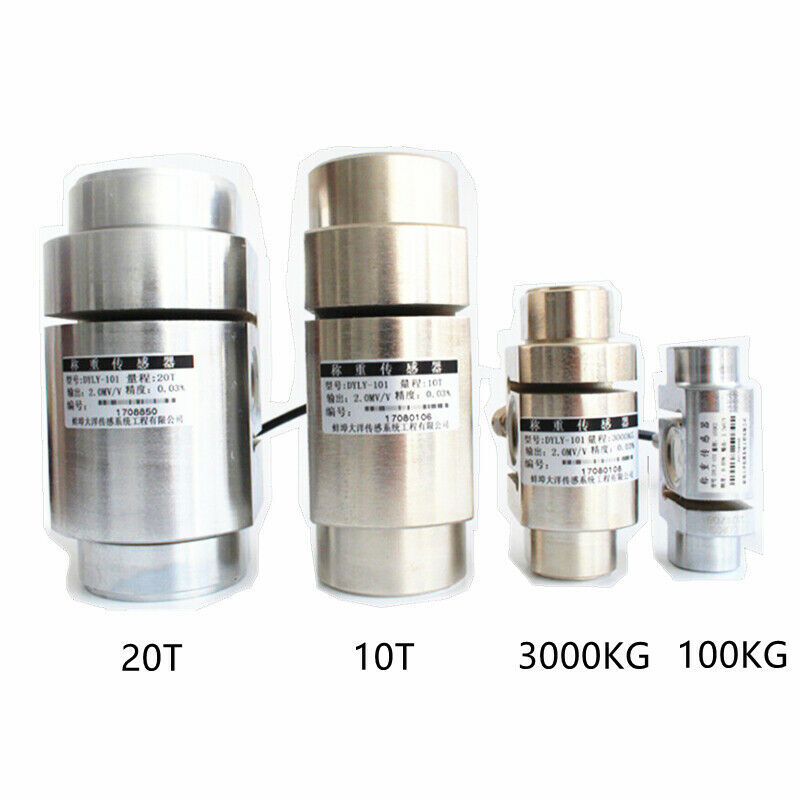

Check the listing for details. 200Kg S-Type Load Cell Tension Sensor Pull Pressure Load Cell Weighing Sensor. Condition: New. Listed at 69.00 USD.
