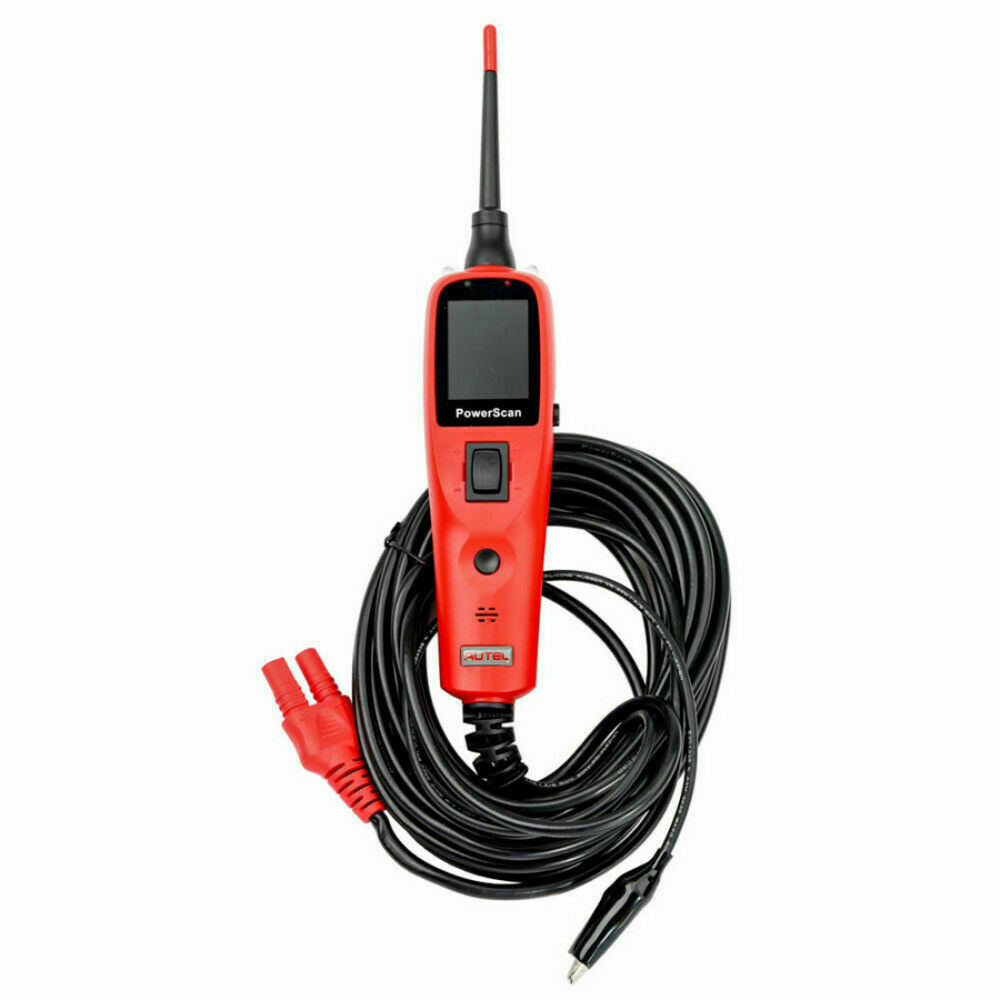

Check the listing for details. 2024 Autel PowerScan PS100 Electrical Diagnostic 12V/24V AVOmeter Circuit Tester. Condition: New. Listed at 85.00 USD. 2024 Autel PowerScan PS100 Electrical Diagnostic 12V/24V AVOmeter Circuit TesterWe are authorized seller of Autel. We promise 100% genuine and original!! if not We double compensation!!Autel PowerScan PS100 Electrical System DiagnosticsAutel PowerScan PS100 Generation Description:Autel PowerScan PS100 is the best electrical tester for reducing diagnostic time in all 6- to 30-volt vehicle electrical systems. After a simple hook-up of the tool to the vehicle's battery, you can: 1.Determine at a glance if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another. 2.Test for continuity with its built-in auxiliary ground lead. 3.By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires. 4.Test for poor ground contacts instantly without performing voltage drop tests. The tool is also short-circuit protected; its internal circuit breaker will trip if it becomes overloaded. 5.Follow and locate short circuits without wasting fuses. The tool's long cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds.Autel PowerScan PS100 Features:Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc. Simultaneously uses the hot lead and the ground lead to activate components right in your hand Instantly identifies positive, negative and open circuits Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fusesCircuit breaker protected Built-in Flashlight enables you to work in the dark Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment 20ft (extendable) cable provides excellent accessibility to test along the vehicle Extremely easy to use and highly reliableAutel PowerScan PS100 Work Mode:There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through each one.DC VoltageWhile the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volt.AC VoltageWhile the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. voltage, the Min. voltage, frequency and duty cycle.ResistanceWhile the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.Tone On/OffWhile the tool in this mode, just do a quick press of the mode button to toggle the tone on or off. While quickly pressing (a quick press and release) the mode button, if a short high beep is heard, this means the audio tone is turned on. If a short low beep is heard, the audio tone is turned off.This function is invaluable when working in bright areas where LED illumination alone is not sufficient. The audio feature may be disengaged when desired, such as for applications where the tool will be connected to circuits for long periods of time and the audio could become annoying.Autel PowerScan PS100 Specifications:Display: TFT color display (160 x 128 dpi) Operating Temperature: 0 to 60°C (32 to 140°F) External Power: 12.0 or 24.0 V power provided via vehicle battery Length\Width\Height: 126mm(4.96")\46.5mm(1.83")\35mm(1.38") NW: 0.105kg (0.23lb),GW: 0.726 kg(1.6lb)Autel PS100 FAQ:1.Is the PowerScan Probe Tester computer and air bag safe? The tool LED and LCD pull no more than 1 milliamp of current,therefore when using it as a test light or multimeter it is computer and airbag safe. However, pressing the power switch is a different story. When you press the switch forward, you are conducting full battery current to the tip of the probe. There is a nice safety feature built into the tool. Simply connect the extra ground lead to the tool and press the power switch forward until it trips the circuit breaker.This will prevent power from going to the tip but still allow you to use the tool as a multimeter. When you are away from computer components, simple press the reset button and you are ready to power up again. 2.Why do I have no power at the tip when I am pressing the power switch forward but the red LED is on? The power switch goes through a lot. It is one of the few things that go wrong with the tool. The switch is a consumable that needs to be replaced on occasion. We have made it real simple to not only change it but also buy a new switch. The switch can be snapped out and replaced in seconds. You can buy switches from your Autel authorized tool supplier. The tool with the Rocker Switch slots makes it easy to replace a worn switch in the field without having to send it in for repair.Autel PowerScan PS100 Package including:1 × PowerScan PS100 1 × Rugged blow molded case 1 × 20ft. extension cable1 × Probe tip 1 × Battery hookup clips 1 × Cigarette lighter adapter 1 × User's ManualPaymentDelivery detailsTerms of salesAbout usContact usPaymentWe accept all common forms of payment such as Credit cards、Debit card、Google Pay ect. Please contact us if you need to use another method to pay.Payment should be made within 7 days after bidding ends.Otherwise a Unpaid Item case will be opened to you.We are not responsible for buyers’ local taxes.Please include your special requests in eBay note if there is any.Delivery detailsShipping:Most orders placed by 1PM eastern time, Monday thru Friday will be shipped within 1 business day after payment confirmed. All orders placed over the weekend will be shipped on Monday.We have warehouse in USA, UK, HongKong, Australia, Russian, Germany and China warehouse. Notice:For USA Buyer, we have warehouse located in Kentucky,Los Angeles &New Jersey, parcel will be shipped from the nearest warehouse according to buyers' eBay address in the paid ORDER. 1. From our US/DE/UK/AU warehouse via UPS / DHL or other eCommerce shipping. Delivery time varies from 2 to 6 business days. 2. From our Hong Kong warehouse via UPS / DHL / FedEx Ground etc. Delivery time varies from 3 to 7 business days. 3. From our China warehouse For US buyers, we use e-Packet (Delivery time is 5-12 business days) or express delivery(Delivery time is 3-7 business days) . For other countries' buyers, we use China Post or Hong Kong Post(Delivery time varies from 10 to 25 business days) or Express delivery(Delivery time is 3-7 business days).We will ship according to buyers' eBay address in the paid ORDER. Please make sure it is correct and including phone number for delivery.If you do not receive your order in the estimated time, please contact us, we would do our best to serve you solve the problem.Please include your special requests in eBay note if there is any.Terms of sales We are authorized distributor, our all items are 100% original and all our products have warranty, 12 months free repair for the main devices. 3 months for the accessories. Please contact us firstly when you need warranty service. In case an item arrives faulty, please contact us in 30 days and keep it unused. We will instruct you on how to return and get refund or replacement. If after 30 days, or the item has been used, we have the rights to decline your claim. Items should be returned on buyers’ cost for repair or replacement. About usWho We Are?We are specialized dealer of On-Board Diagnostic tools and automotive electronics for more than 10 years. We are authorized first class distributor of Topdon. What Do We Have? We have office and warehouse in USA, UK, HongKong, Australia, Russian, Germany and China to ensure fast shipment and after-sale service. We have more than 100 employees devoting to customer satisfaction.Terms of tax: We are not responsible for buyer's local taxes, please consult your local customs for tax details. Contact usOur customer-oriented service strives for buyers' 100% satisfaction.Please feel free to contact us via eBay message once you have any question before leaving neutral / negative feedback or open case. We will reply in 24 business hours.Business time: GMT8 (9:00-18:00) from Monday to Friday. Please leave us Positive Feedback and 5-stars★★★★★ selling ratings if you receive the product and are satisfied with it. as you know, every seller works hard for the positive feedback. We will do the same as soon as we can too.
