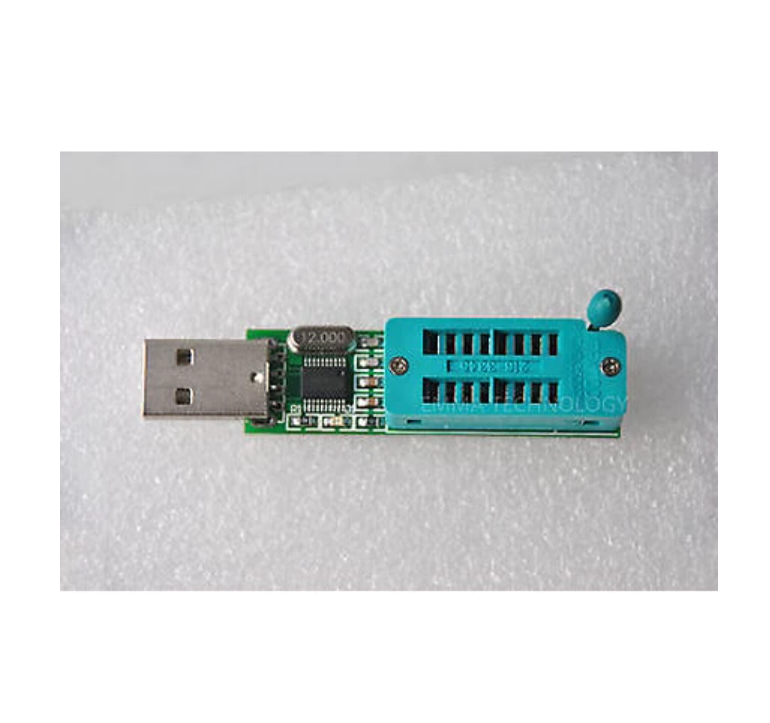

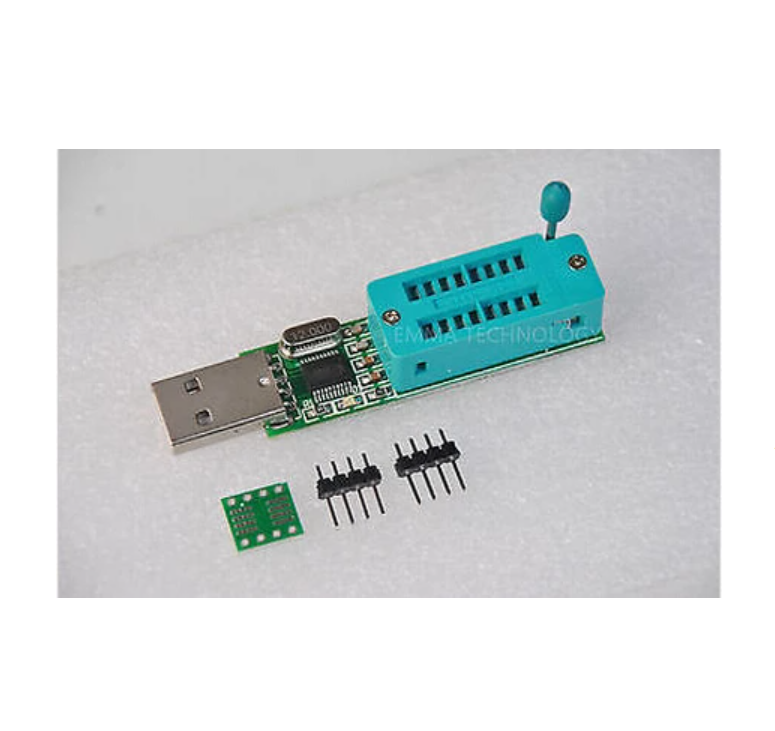

Check the listing for details. 24CXX 24LCXX Programmer EEPROM Reader Writer+24C02 + SOP to DIP Block USB Port. Condition: New. Listed at 12.88 USD. 24CXX 24LCXX Programmer EEPROM Reader Writer+24C02 + SOP to DIP Block USB Port Product Description1. PCB using high-quality glass plate, thickness 1.6mm. Dimensions: 20mm X 55mm.2. using the USB interface, can be directly plugged into the USB port on a computer chip can be programmed and read thecomplete work.3. programmer support hot-swapping, that is the case of uninterruptible power programmer can be removed orplaced on the chip.4. can program the chip directly to the back of the package.Programmer supports the chip24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C128, 24C256, 24C512, 24C1024Package1pc EEPROM Programmer1pc SSOP to DIP Block1pc 24C02 ChipInstruction of USB24 series1)installation of the driver:1.Unzip the document, and open ‘ USB driver’ document. Duel-click setup2.Click ‘install’3.Till success.4.Install the usb 24 series item.5.Choose ‘ auto installation’ till finished.6.After the installation of the driver, please find: my computer-click right key-specification-hardware-device manager-USB-IO2)24 series chips direction:pin of the IC base:The red pin is not exist.3)application of read and write :Copy software of usb 24 series’ to your hardware and click it to use it.The following describes the function of each part of the application software:chips selection:Choose the type of the chip you want to operate, select the storage chip and the chip on the IC base.Status Indication : at the left bottom of the text used to display whether the current programmer has inserted , but doesnot detect whether the chip inserted .Code editing area : the white rectangle in the middle area is used for displaying contents of the file opened or thecontents of the data read out from the memory chip , it is hexadecimal codeOpen button: Open the memory data files and displayed in the middle of the editing area , ready to write the chip .Generally it is BIN extension , there maybe exceptionsSave button : save the contents in the edit area to a file for later use . Most saved after read out of the data in the chip .Read button : read out the contents of the chip and editor for editing or save a file , pay attention to the actual chipinterface correspond to the chipWrite button : write the contents of the edit area into the chip , pay attention to the actual chip interface correspondto the chip. The write completed there will be prompted . If the length of the content in the editing area is less than theselected chip, only to write the length of the content of the editing area , the chip began to write from 0 addressempty button: check if it is blank , inspection completed there will be prompted to display test resultsClear button : Empty chip data , the chip is blank.Proofreading button : compareing data in the chip with data in editing area , show the result . If the length of the contentin the editing area is less than the selected chip , only to compare the length of the content of the editing area , the chipstart from 0 address.4)other ROM data
