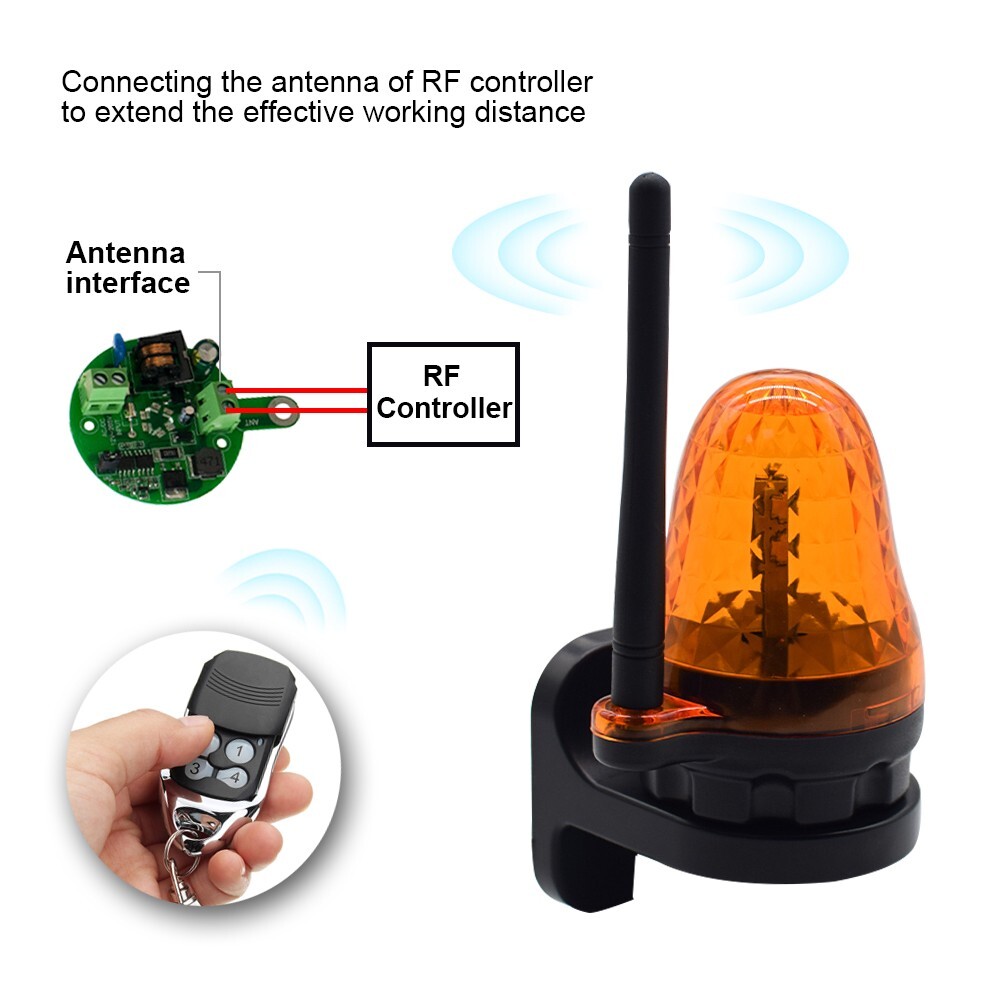

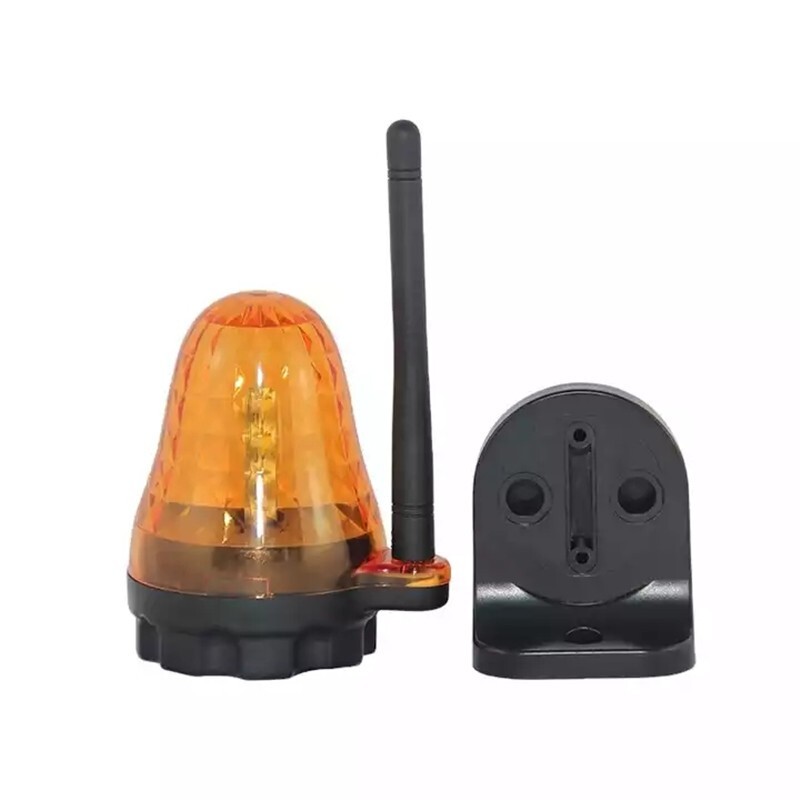

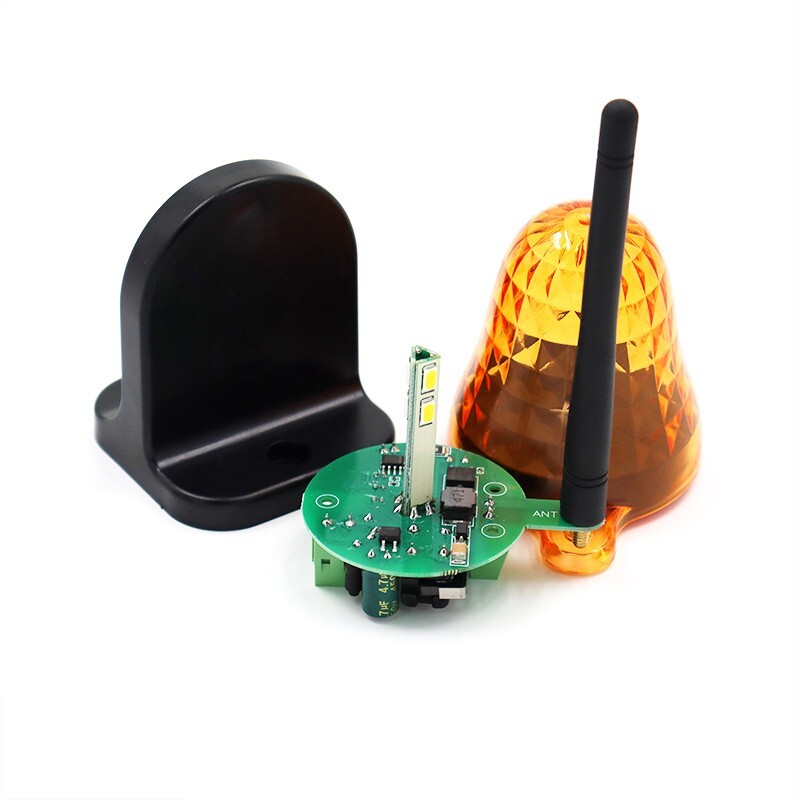

Check the listing for details. 24V-265V AC DC Automatic Gate Opener Strobe Flash Lamp Alarm Wall Mount. Condition: New. Listed at 15.19 USD. Safety Instruction1.For security, please read the user manual carefully before initial operation;2.Please be sure the power is off before connecting, the product is produced without fuse;3.This system must not endanger life or property during the running failure or its security riskshave been eliminated.SpecificationWorking voltage: 12-265V AC/DCLoading capacity: 1.5WWeight: 156gFlashing frequency: 1HzInstallation method: Vertical/horizontalWorking temperature: -20°C~+60°CProtection level: IP54Size: 60*85mmMutiple Voltage Flash LampAntenna This is used to extend the effective distance of controller Waterproof and dustproof It is made of plastic material IP 54 .wide range of uses:Garage doors, Electronic gates, Barrier gates, sliding doors, automatic doors, rolling doors, shuttersElectrical appliances/Home automation i.e. lights, Alarm system, access control systemNotice：1,Terminal 1 is for connectino thepower input; working voltage is 12-265VAC/DC.2,Terminal 2 is for connecting the antenna of RF controller to extend the effective working distanceInstruction:After power the lamp on, LED will start fashing in 1HZ(default setting).sW1 is the switch for selecting flashing or on mode of the lamp.CAP short connectsthe 2 pins; the lamp is in flashing mode. Remove the CAP from 2 pins, the lamp is inon mode.Be Careful, the whole board includes the components are with high voltage. Alwaysmake sure power is off before you open the coverInstallationOpen the package; take out the products and all the accessories. Removing the antenna by rotatinganticlockwise.Mark 2 holes on the wall by using the fixing hole of bracket.Drilling two 6mm diameter holes and one 10mm diameter hole. Then put the expansion plug intothe 6mm diameter holes. Put the wires through 10mm diameter hole.Put the power wire and antenna through the cable holes in the holder. And fix the holder to thewall by provided 4mm*30mm self-taping screws.Connect the wire and antenna to the correct terminals.Put the cover back and make sure the cover is fastened with the bottom base without any gap.Then screw the antenna up and turn clockwise to make it tight.Always install the holder and lamp upright to the ground. Horizontally installation may cause therain go inside the lam and damage the board.
