| Country of Origin | Germany |
|---|---|
| Adjustment Range | 25-55°C |
| Type | Pump assembly with Mixer |
| Product type | Pump group with mixer 25-55°C |
| Wheelbase | 125mm |
| Consumer connections (top) | 1" IT |
| Width | Dimensions: 400 x 250 x 240 mm |
| Connections system (bottom) | 1 1/2" AG |
| MPN | Siehe Beschreibung |
| Search term 1 | Heating Circuit Set |
| Search term 2 | Heating Circle Station |
| Amperage | 1,050 l/h |
| Product Compatibility | Roof Heating, Roof Air Conditioner, Underfloor Heating |
| Selected Search Filter | Pump assembly with Mixer |
| Mixer | 3 way mixer |
| Package | No |
| Brand Compatibility | For Universal |
| Particle Board Nung | 230V |
| Material | Brass |
| Length | Dimensions: 400 x 250 x 240 mm |
| Nominal Size | DN25 |
| Weight | 13.2lbs |
| Name | Pump Assembly |
| Search Term | Heating Circuit |
| Brand | Environ |
| Color | Black |
| Model | ProfiMix EN004 |
| Model Compatibility | Universally applicable |
| Power Source | Warm Water |
| Pump Type | Environ EcoStar II 25/6 180mm high efficiency pump |
| Year Of Manufacture | unknown artist |

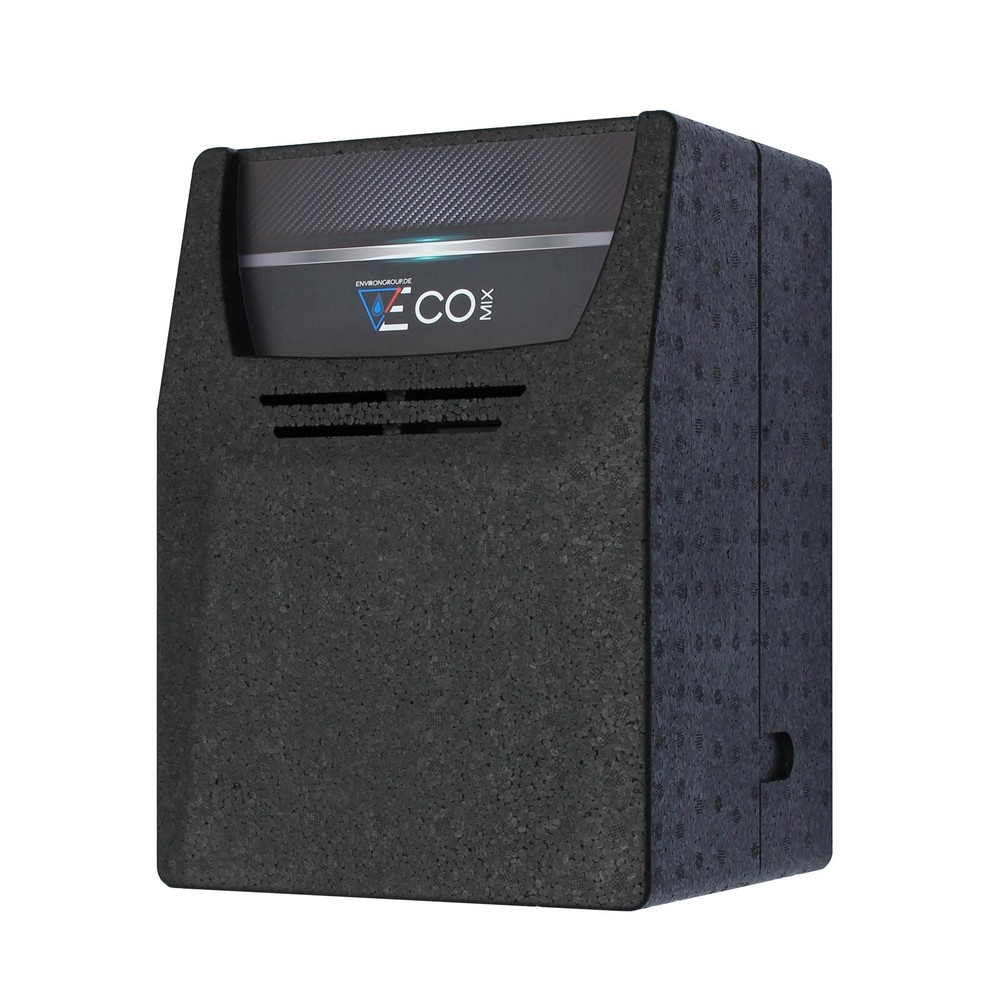

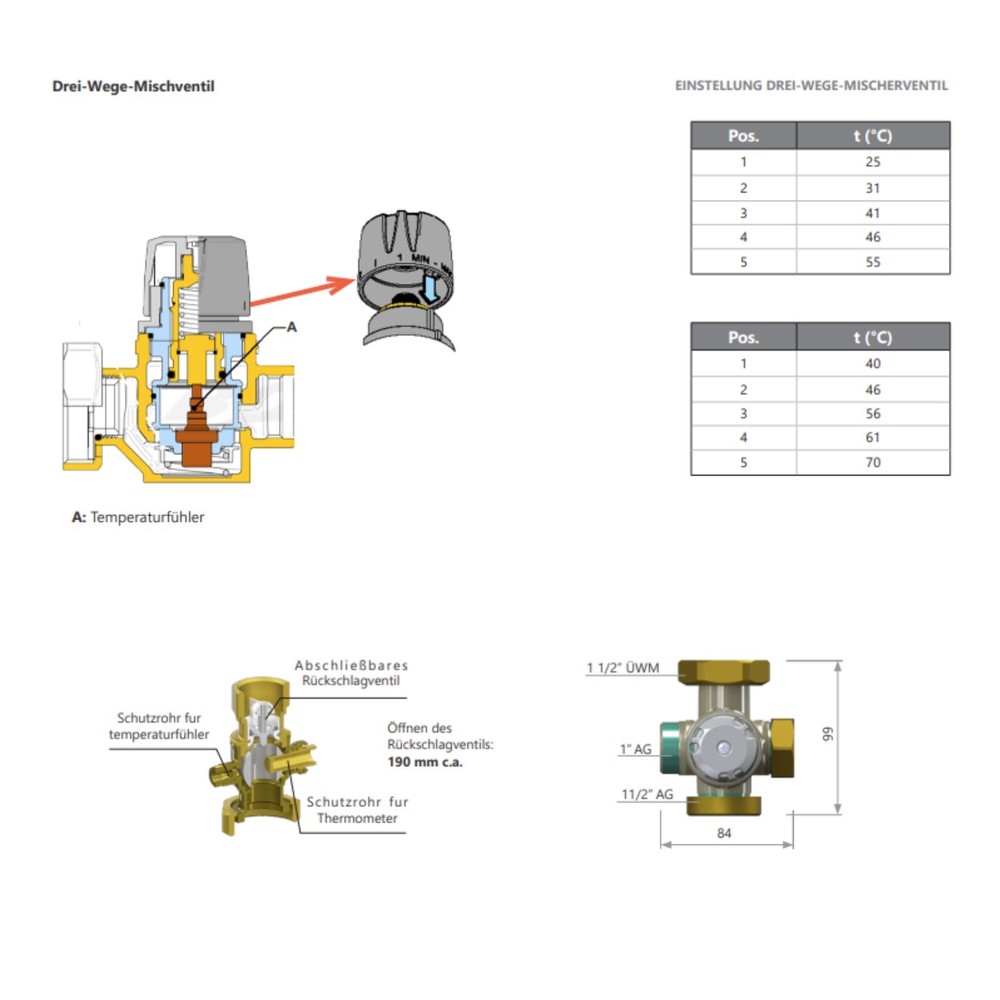

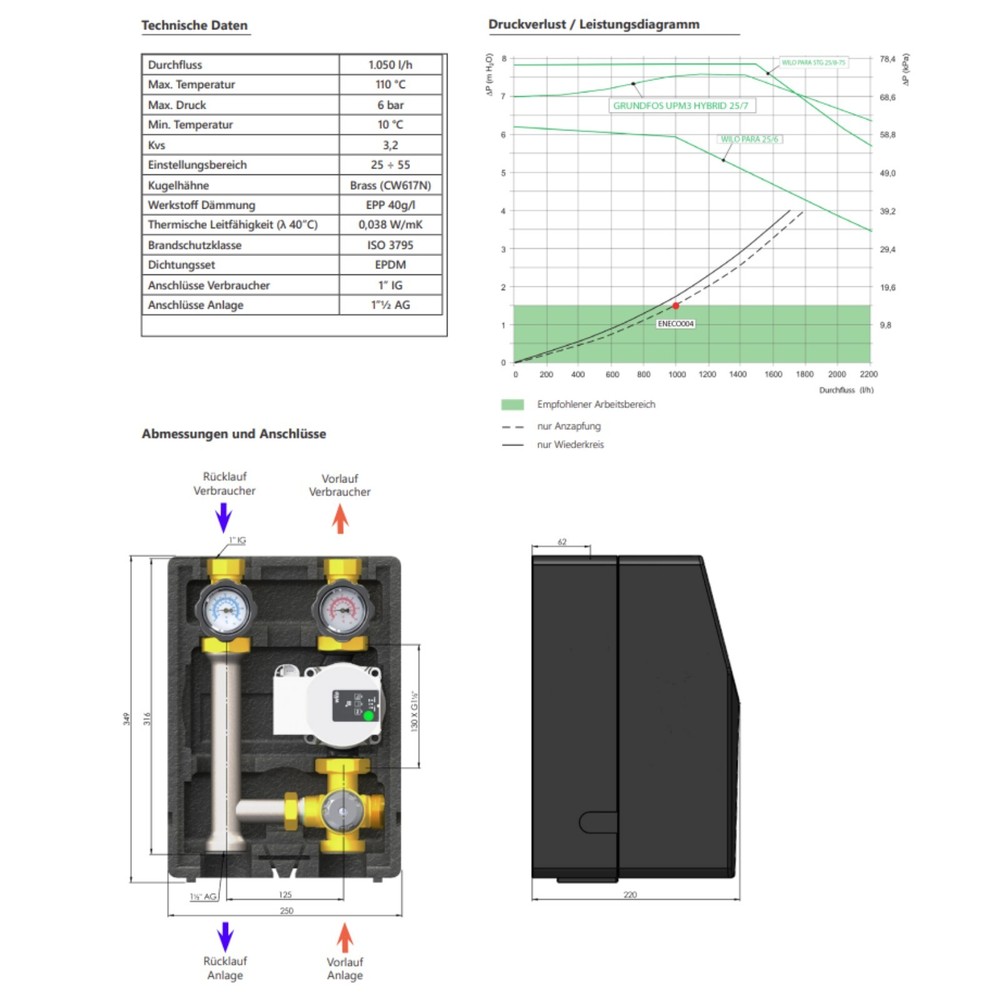

Check the listing for details. 2x Fixed Value 25-55°C Pump Group DN25 for Underfloor Heating Wilo. Color: Black, Width: Dimensions: 400 x 250 x 240 mm, Condition: New, Made in Germany. Listed at 814.58 USD. The ECOMIX EN004 pump group is a ready -to -install, professional pump group for heating circuits such as underfloor heating, wall heating, radiators, etc. With built-in three-way mixer made of brass and a heart capillary thermostat head 25-55 ° C. An Environ Ecostar 25/6 130mm high efficiency pump is installed. In the upper area of the pump group there are flat-sealing shut-off valves (1" IT) with built-in thermometers (0-160°C). If the pump group is installed individually, a wall bracket can be screwed to the shut-off valves (not included in delivery). The well-thought-out thermal insulation made of EPP, with a vapor barrier system, ensures an optimal climate inside the insulation so that no heat build-up occurs.
