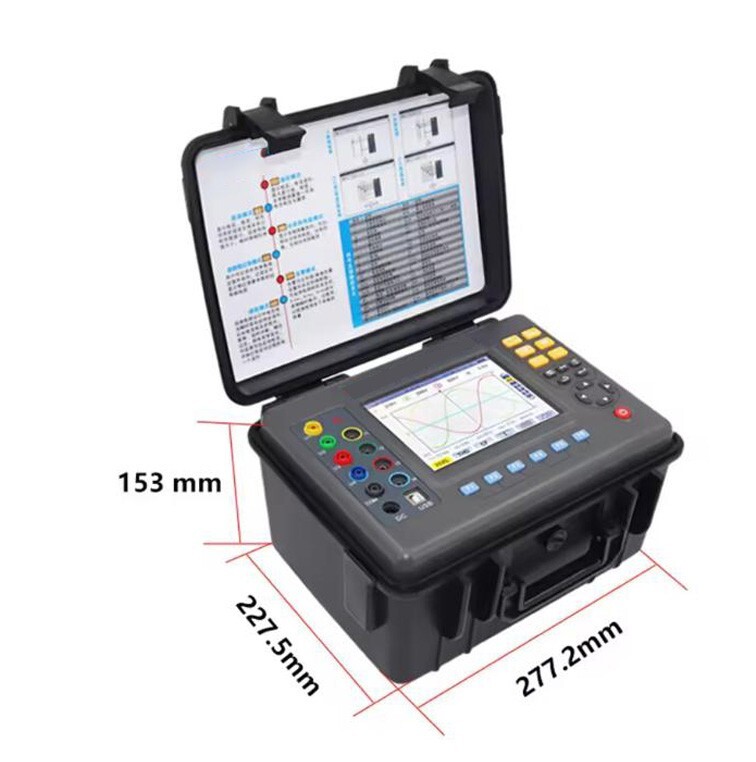

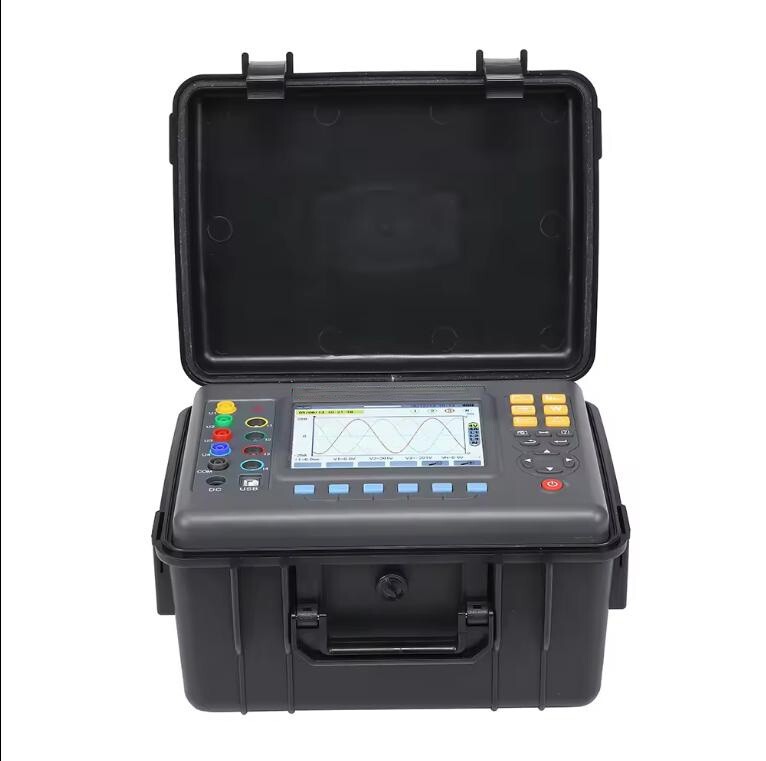

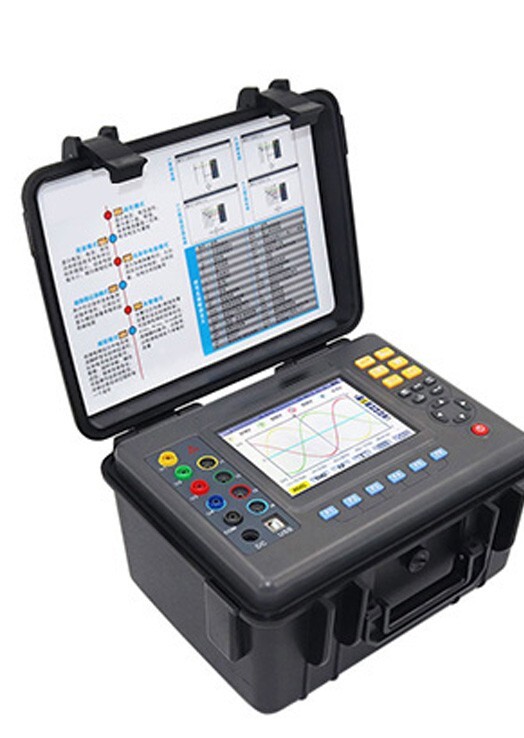

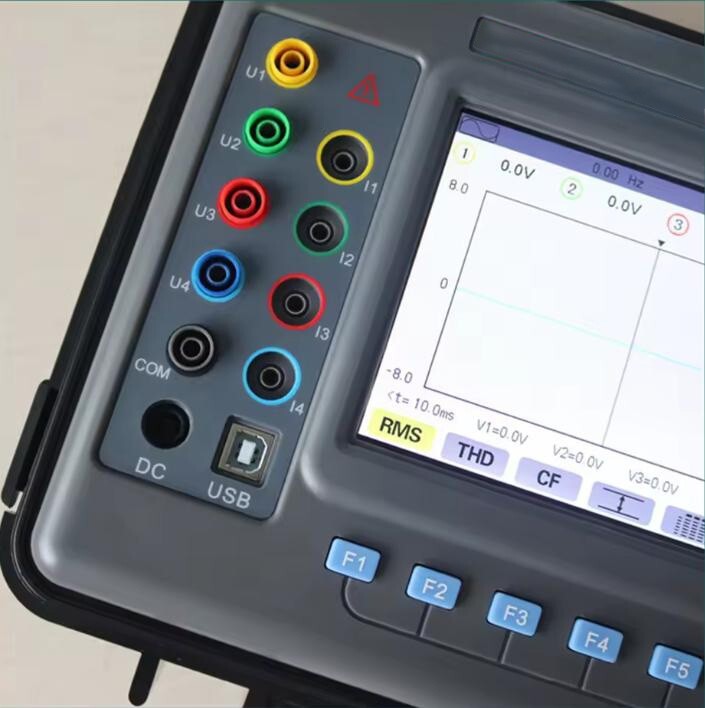

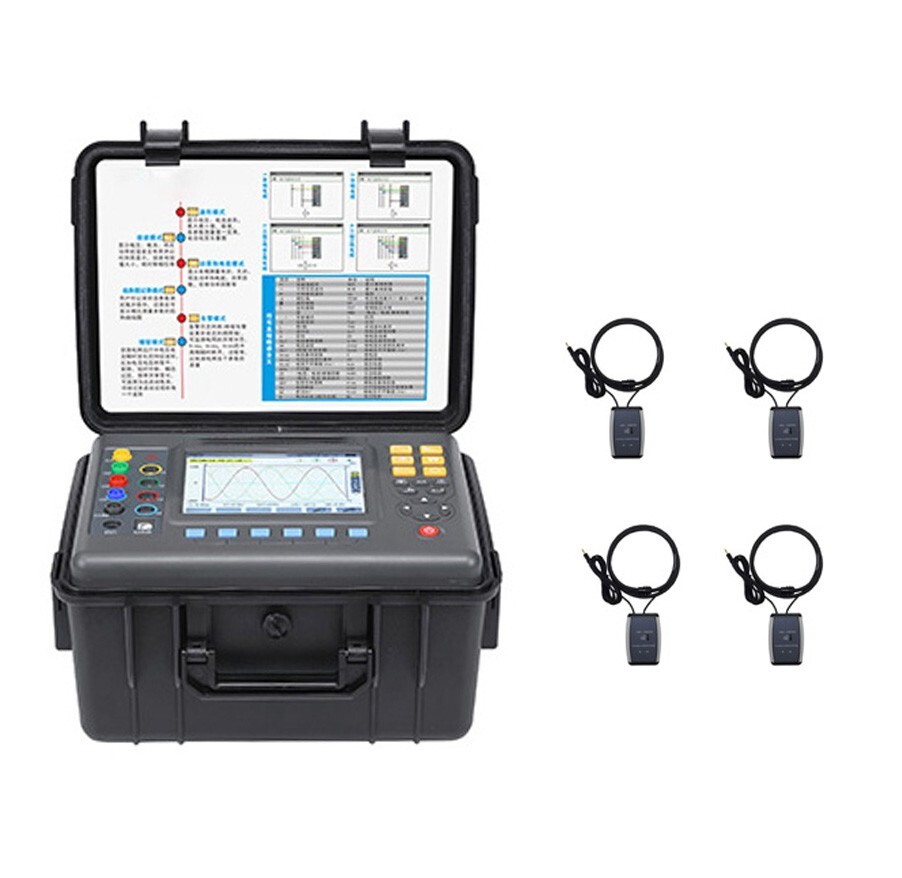

Check the listing for details. 3 Phase Energy Quality Meter Analyzer With Flexible Coil Current Sensor Ф300mm. Condition: New. Listed at 2640.00 USD. 3 Phase Energy Quality Meter Analyzer With Flexible Coil Current Sensor Ф300mm Introduction: Power quality analyzer is a three-phase, multi-functional, intelligent, man-machine operation simple and comprehensive test instrument designed for field testing. With easy to use, large LCD color screen display, high resolution, Chinese and English bilingual interface, box-type structure shell and other characteristics. Technical Specifications: Technical DataPower supplyRechargeable lithium-ion battery packs 9.6V, backup charger.Battery indicatorBattery symbol shows dump energy. When the voltage is too low, automatic shutdown after the 1 minute.Power consumptionCurrent consumption of normal test 490 mA, continuous working for 10 hours.Display modeLCD color screen, 640dots×480dots, 5.6 inches, display domain: 116mm×88mm.Size of clamp Flexible Coil Current Sensor (with Integrator) : Ф300mm;Instrument dimensionsL×W×H: 277.2mm × 227.5mm × 153mm.Number of channels4U/4I.Phase-to phase voltage1.0V~2000V.Phase-to-neutral voltage1.0V~1000V.Current Flexible Coil Current Sensor (with Integrator) : 10A ~ 6000A;Phase-to-neutral voltage1.0V~1000V.Parameters of electricityW, VA, Var, PF, DPF, cosφ, tanφ.Energy parametersWh, Varh, Vah.HarmonicOrder 0~50.Total harmonic distortionOrder 0~50, each phase.Expert modeYes.Number of Transient records150 sets.Voltage flickerYes.Starting current modeYes, 100 seconds.3 Phases unbalanceYes.Record300 days(simultaneous recording 20 parameters, record one point every 5 seconds).Min/Max recorded valueMeasurement of maximum and minimum values over a period of time.Alarm40 different types of parameter selections, 12,800 sets alarm logs.PeakYes.Phasor diagram displayAutomatically.Capacity of snapshots60.Menu languageEnglish/Chinese.CommunicationUSB.Automatic switching offWhen an alarm campaign is initiated or a search for transients, an inrush current capture, or a trend recording is pending or in progress, the device is not automatic switching off.In other test mode, 15 minutes without keystrokes, automatic shutdown after prompt 1 minute.Backlight functionYes, suitable for use at night and dark place.WeightHost: 1.6kg (with battery). Flexible Coil Current Sensor (with Integrator) : 280g×4;Length of voltage test wire3m.Length of current sensor wire2m.Working temperature and humidity-10°C~40°C; below 80%Rh.Storage temperature and humidity-10°C~60°C; below 70%Rh.Input impedanceInput impedance of test voltage: 1MΩ.Withstand voltageWithstand 3700V/50Hz sinusoidal AC voltage for 1 minute between instrument wiring and shell.InsulationBetween instrument wiring and shell ≥10MΩ.StructureDouble insulation, with insulation vibration-proof sheath.Safely rulesIEC 61010 1000V Cat III / 600V CAT IV, IEC61010-031, IEC61326, Pollution degree: 2.
