| Maximum Peak Transient Voltage | See description |
|---|---|
| Voltage Flicker | Yes |
| Energy parameters | Wh, Varh, Vah. |
| Custom Bundle | No |
| Working Current | about 590mA, continuous working 8hours. |
| Current Measurement Range | See description |
| MPN | 2022 |
| Communication Interface | USB. |
| Voltage Measurement Range | See description |
| Backlight Function | Yes, suitable for dark places and nighttime use |
| Phase Configuration | 3-Phase |
| Bandwidth | See description |
| Working Temperature | -10°C~40°C; below 80%Rh. |
| Current Clamp Wire Length | 2M |
| Peak | Yes. |
| Line Voltage | 1.0V~2000V. |
| Structure | Double insulation, with insulation shock-proof she |
| Number of channels | 4 voltages, 4 currents |
| Phasor Diagram Display | Automatic |
| Storage Temperature | -10°C~60°C; below 70%Rh. |
| Expert Mode | Yes. |
| Insulation | Between instrument line and shell ≥10MΩ. |
| Voltage Test Wire Length | 3M |
| Start Current Mode | Yes, 100 seconds |
| Electricity Energy Parameter | W, VA, Var, PF, DPF, cosφ, tanφ. |
| Phase Voltage | 1.0V~1000V. |
| Menu language | English/Chinese. |
| Modified Item | No |
| Brand | VTSYIQI |
| Harmonic Wave | Yes, 0 - 50 times |
| Total harmonic distortion | Yes, 0 - 50 times, each phase |
| Input Impedance | Test voltage input impedance: 1MΩ |
| Transient Record Groups | 150 groups |
| Screenshot Capacity | 60PCS |
| Frequency | 40Hz~70Hz. |
| Country/Region of Manufacture | China |
| Three-phases Unbalance | Yes |
| Instrument Size | 240mm×170mm×68 mm. |
| UPC | 635407162961 |

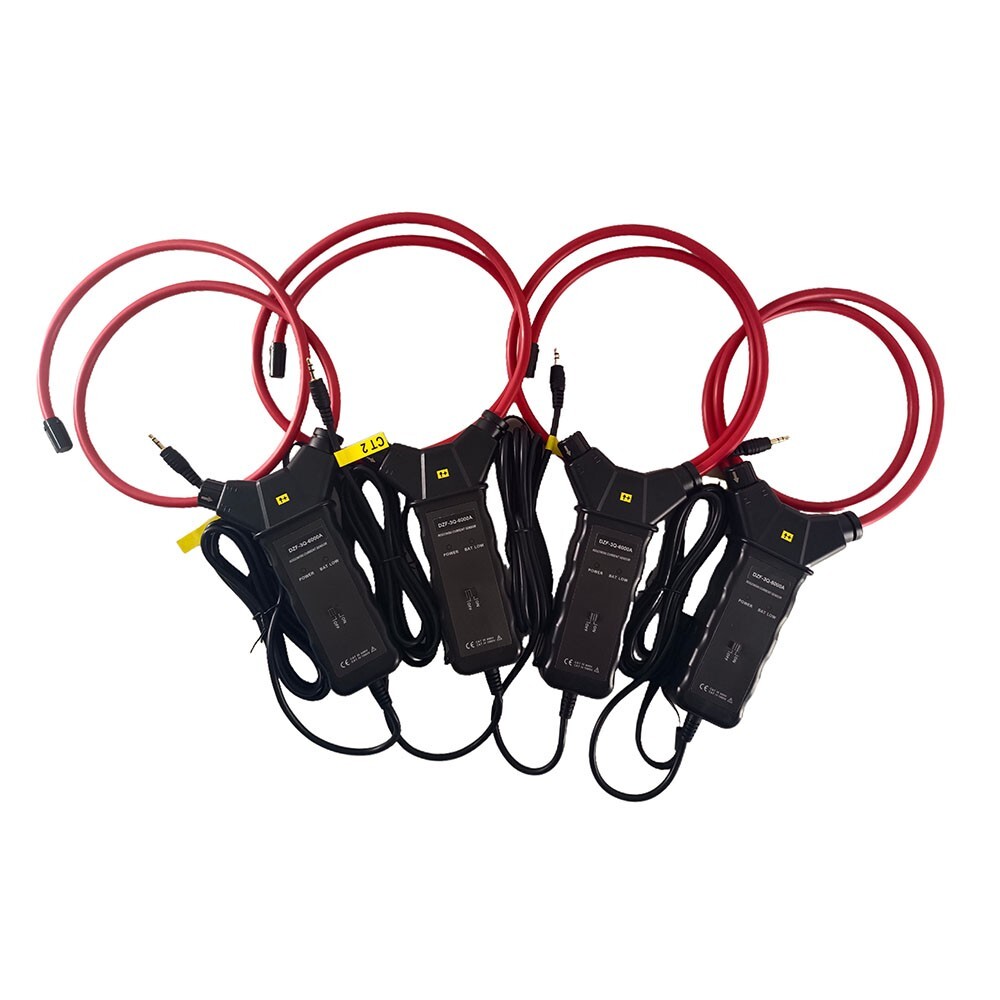

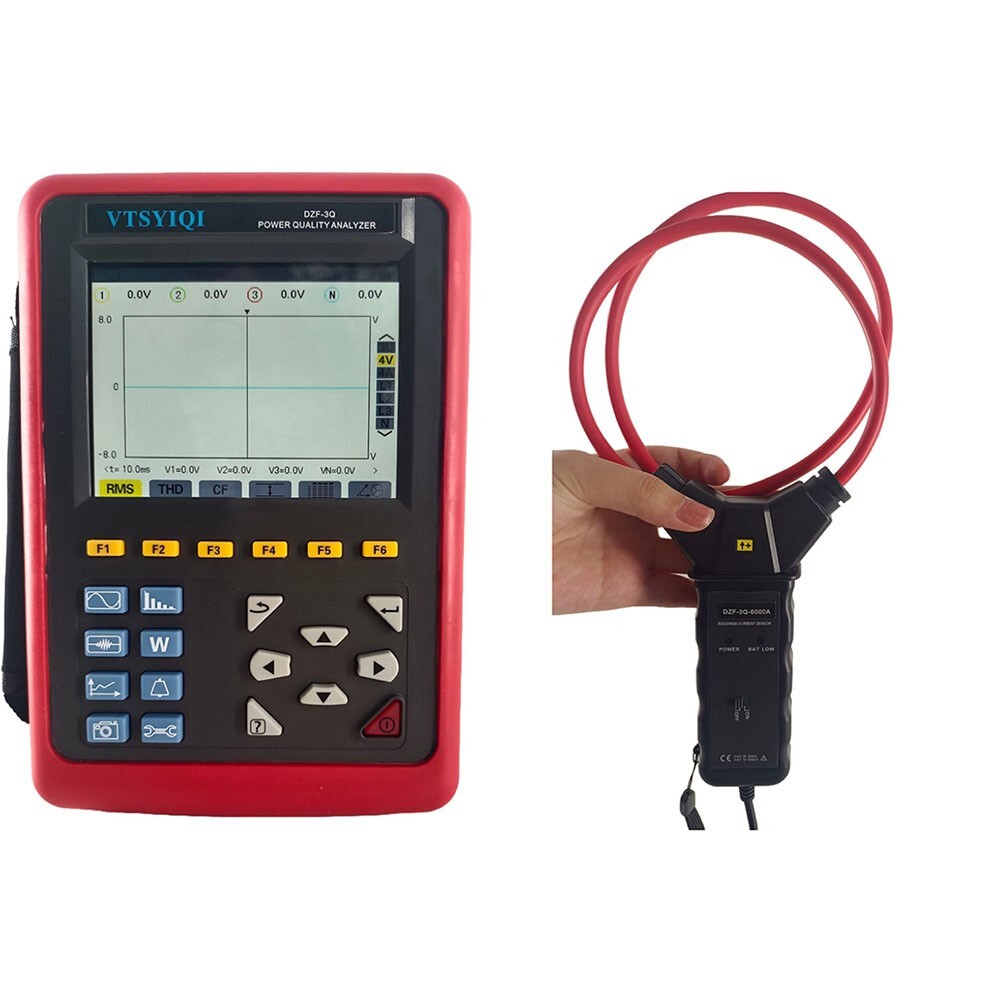

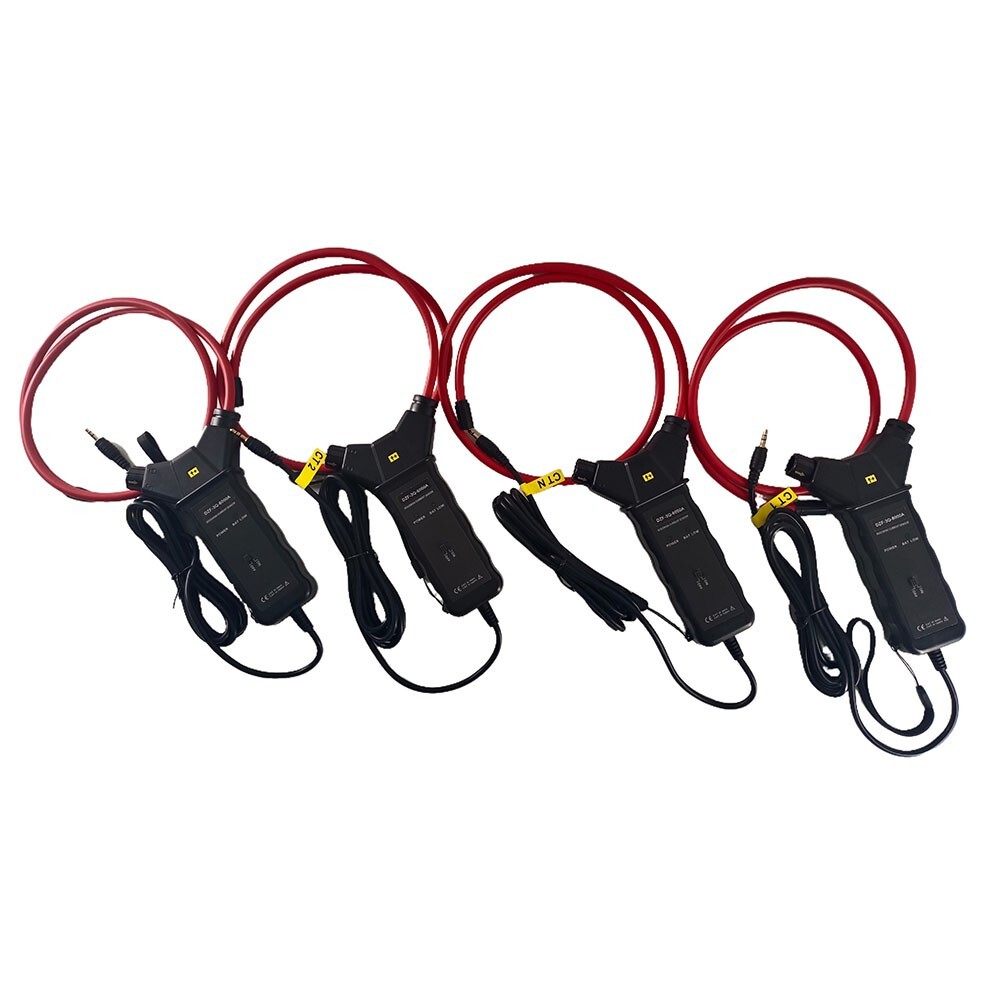

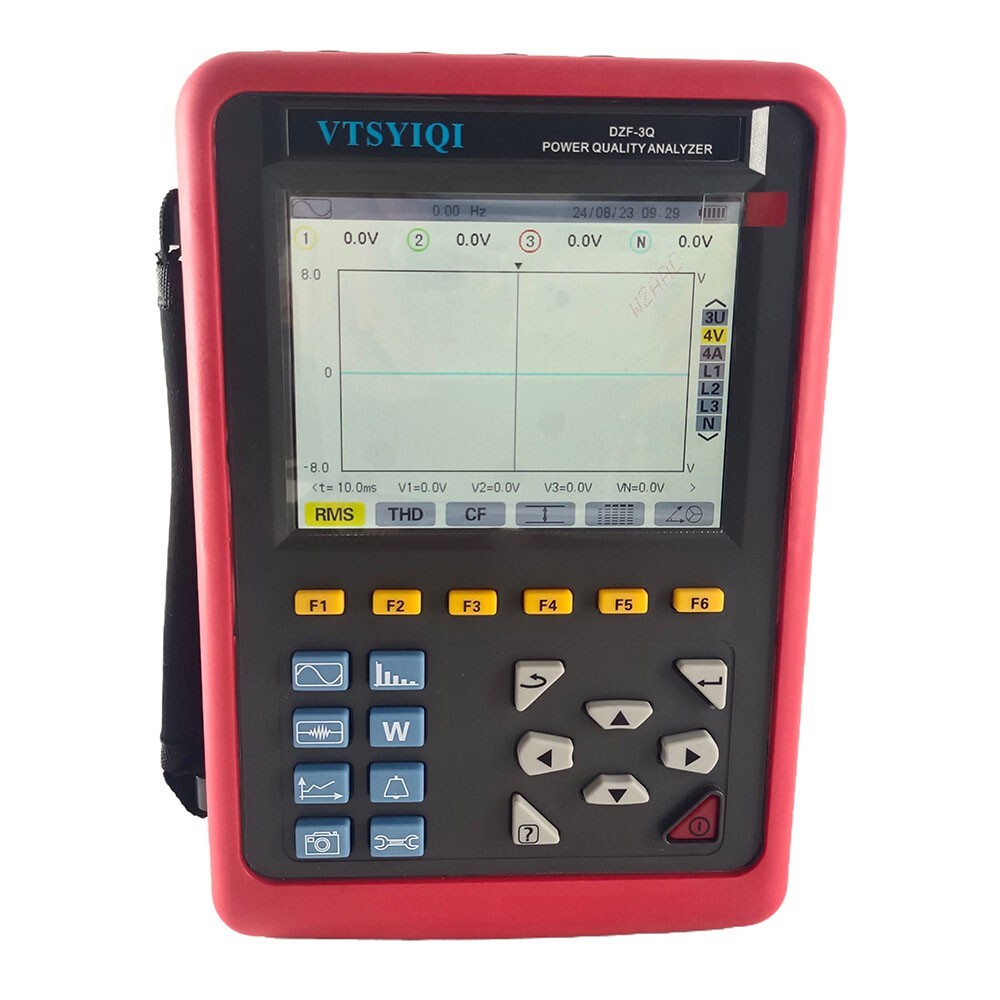

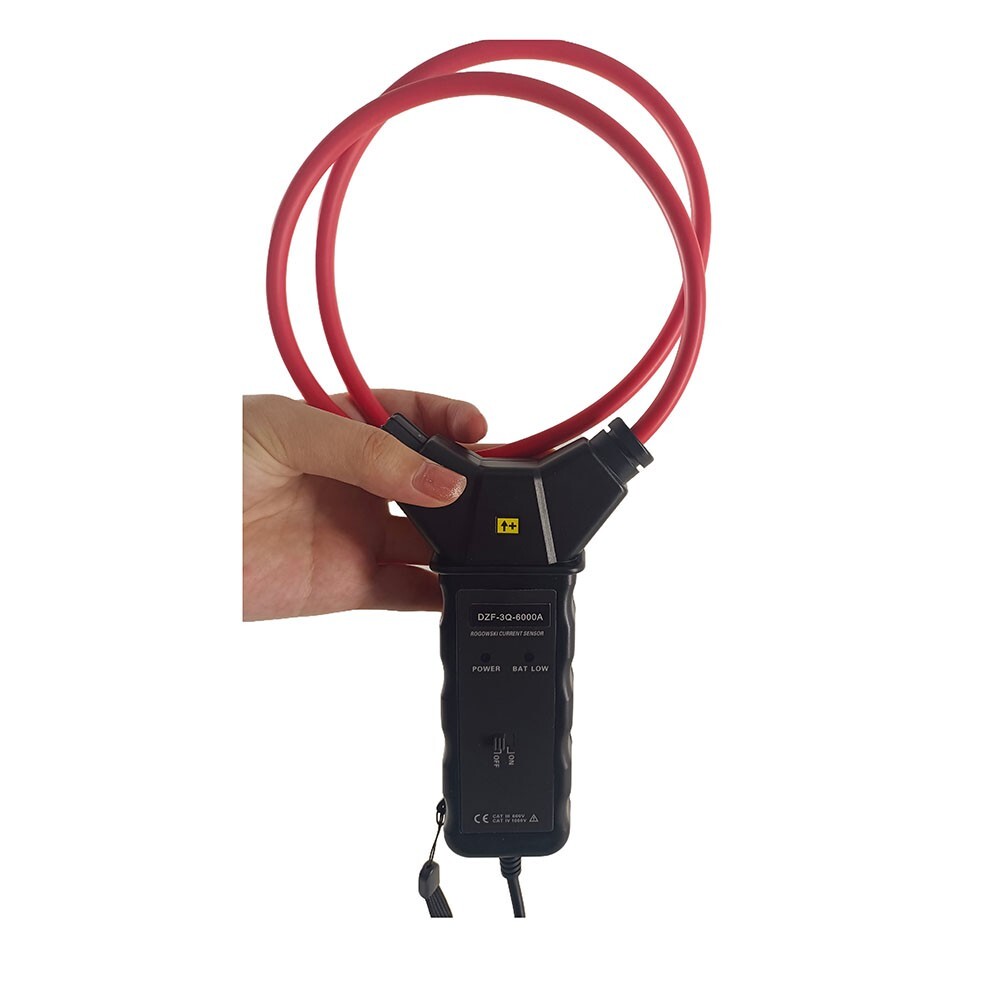

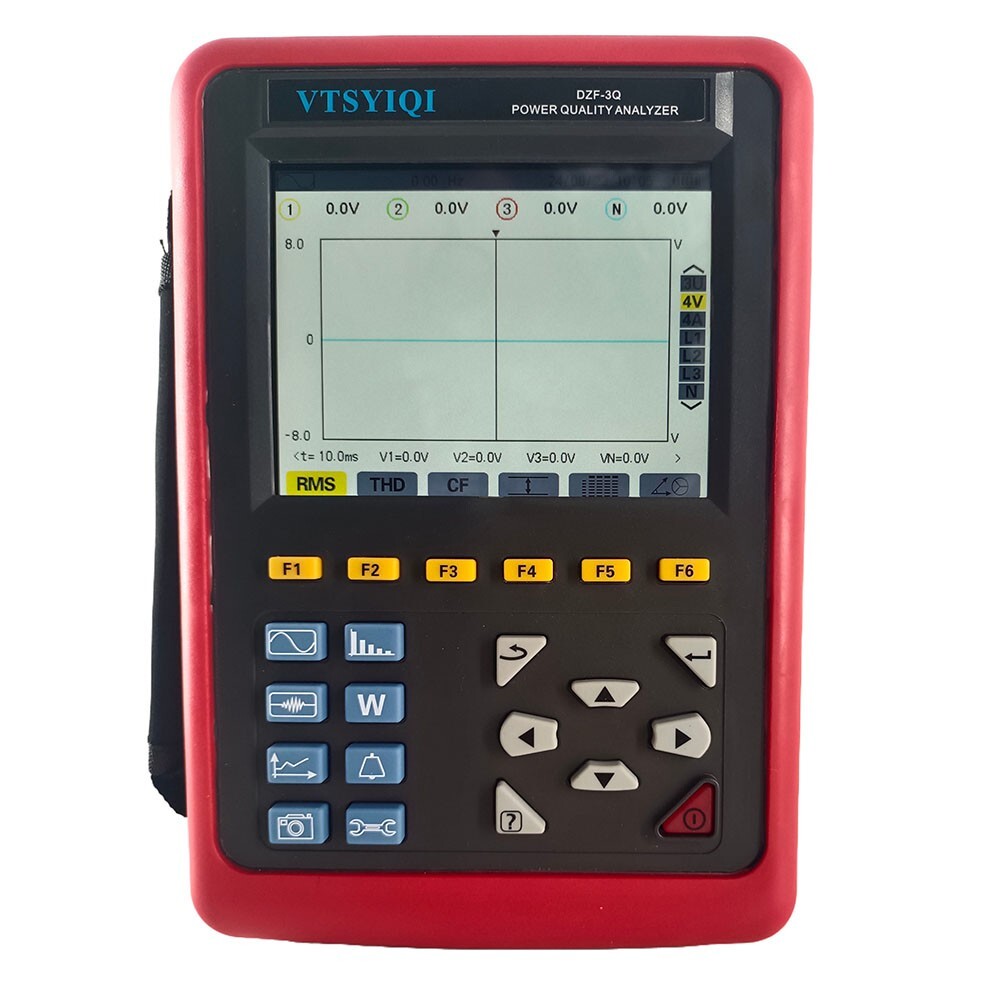

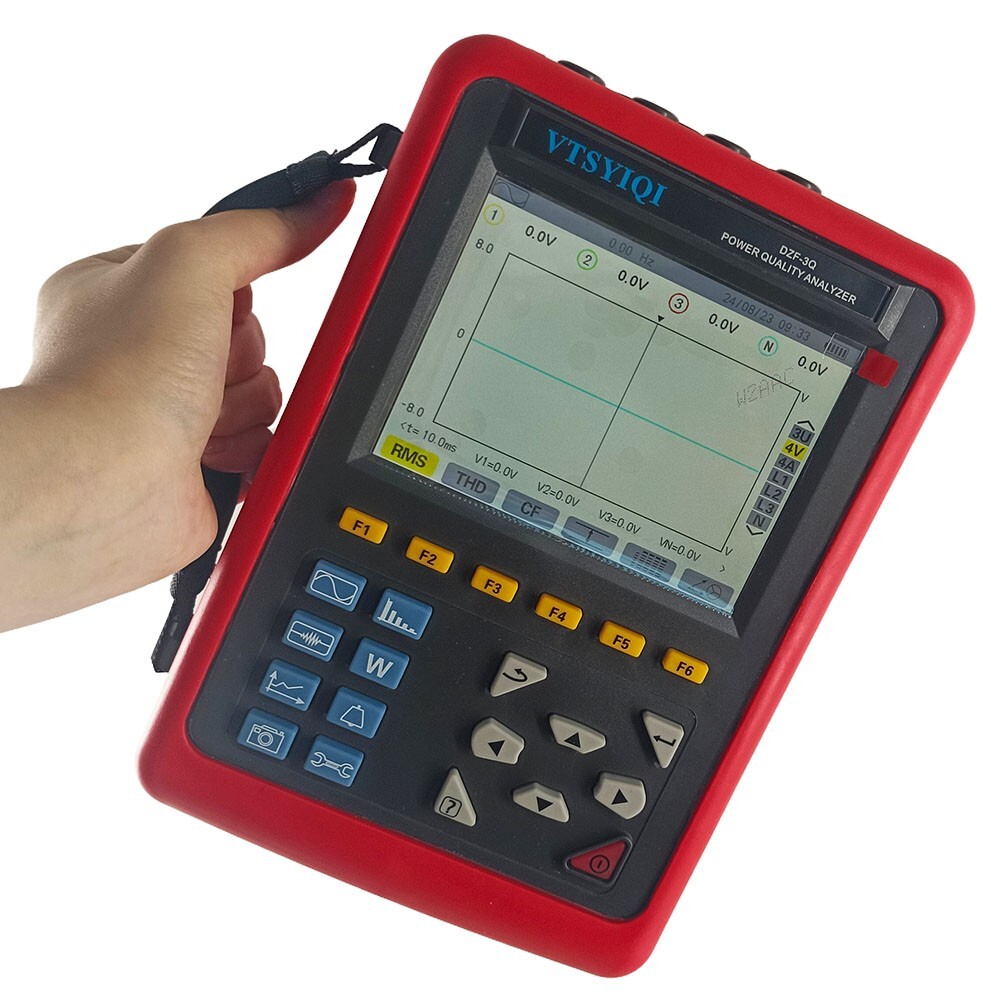

Check the listing for details. 3 Phase Power Quality Analyzer Energy Quality Analyzer Meter 4pcs Current Clamps. Condition: New. Listed at 2608.00 USD. Flexible Coil Current Sensor (with Integrator) : Ф300mm. Flexible Coil Current Sensor (with Integrator) : 10A ~ 6000A. It is easy to use, large LCD screen display, high resolution, interface in both Chinese and English, shock-proof shell structure and so on.
You may also like
$1907.97
Power Quality Analyser Meter Monitor Current Clamp 10mA~10A CT Size 17*18mm
$2003.93
Power Quality Recorder Three-Phase Power Quality Logger with Current Clamp 100A
$2326.15
Power Quality Meter with Current Clamp 1.0A~1000A USB Communication Function
$1903.23
Power Quality Meter with 4pcs Current Clamps Range 0.1A~100A Jaw size Φ40mm
$2164.65
Power Quality Meter 3 Phase Energy Quality Meter Current Range 1.0A~1000A
$2650

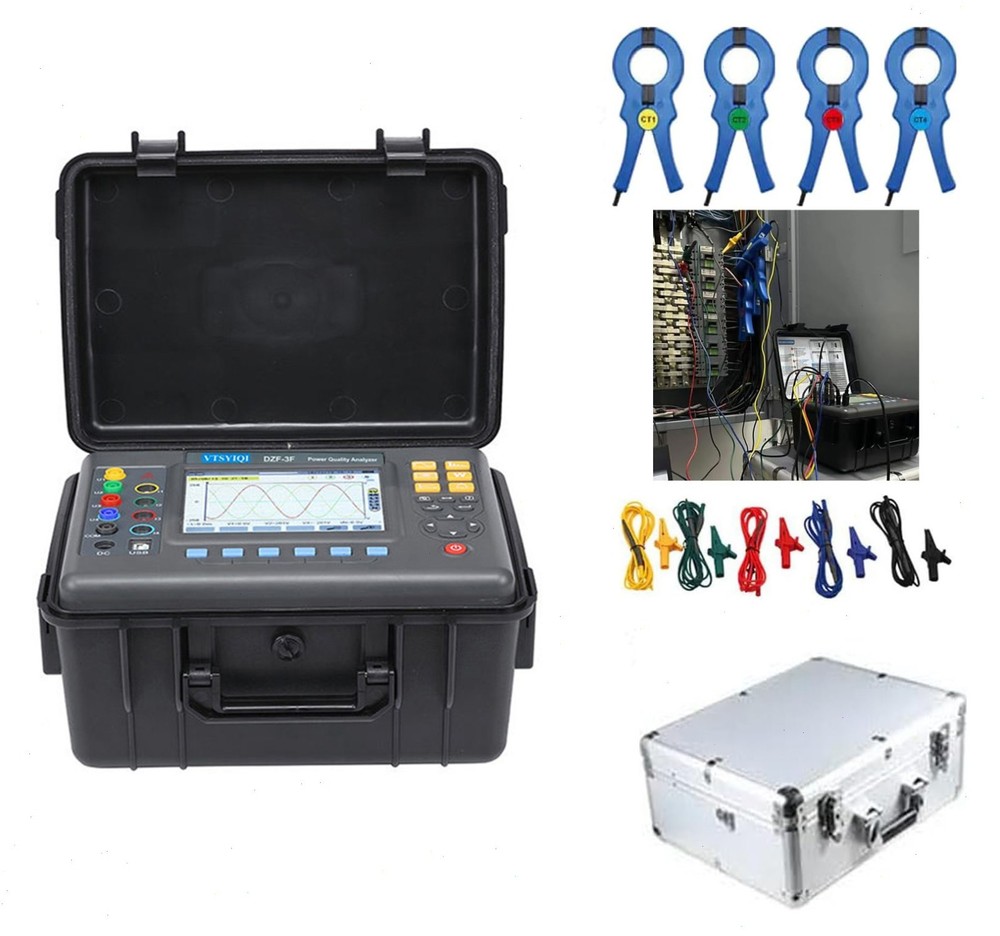

Power Quality Meter Analyzer with AC Current True RMS 1.0A~1000A USB Interface
$6069
Sonel PQM-750 LTE PRO Power Quality Analyzer v. DC1-R1-CT1
$2081.46
3 Phase Power Energy Meter Power Quality Analyzer with Range 10mA to 10.0A
$1907.97
Power Quality Analyzer 10A Measurement Channels 4 Channels Jaw size 17X18mm
$2218.01
Three Phase Power Quality Analyzer Tester Meter with Clamp Current Sensor
$1993.46
3 Phase Power Quality Meter Portable Power Quality Analyzers 5.6 Inch Display
$2044.2

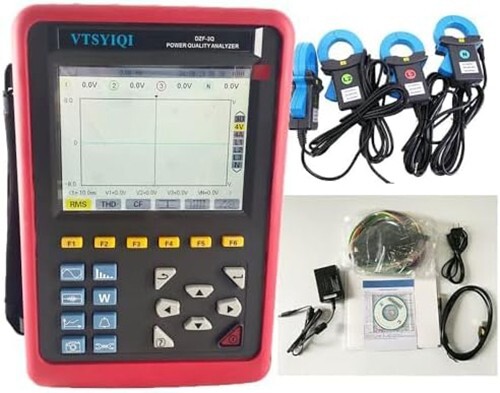

3 Phase Power Quality Analyzer Loggers with Current Clamp Size φ40mm 100A
