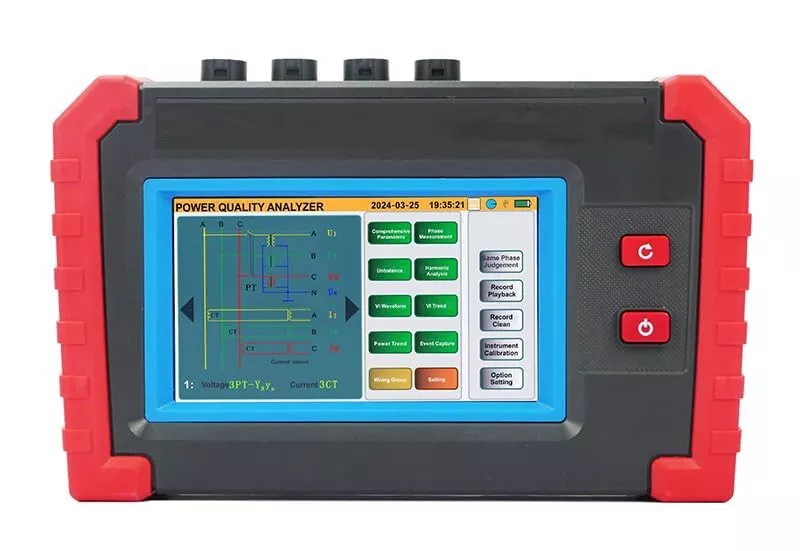

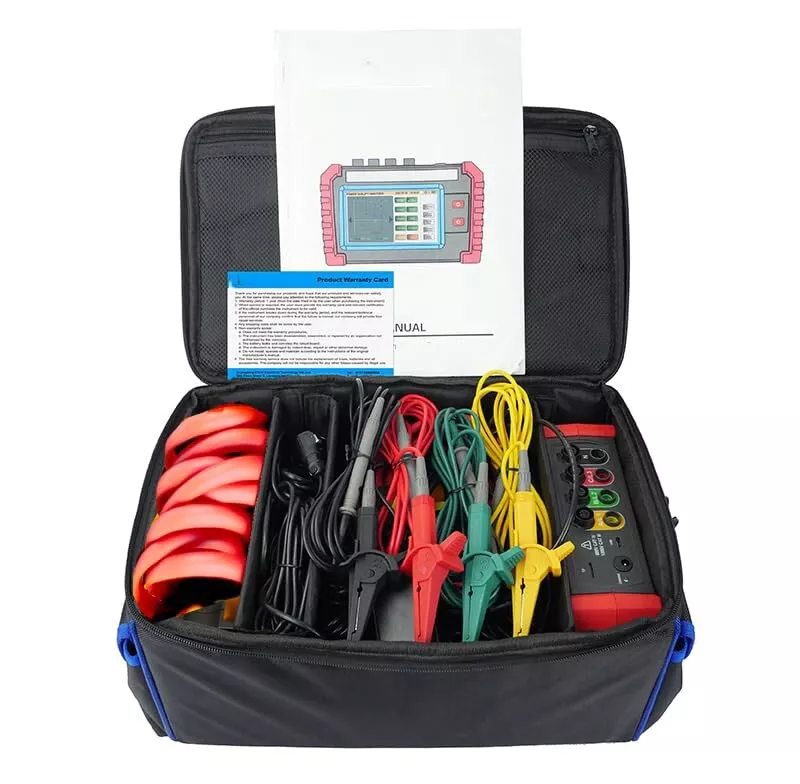

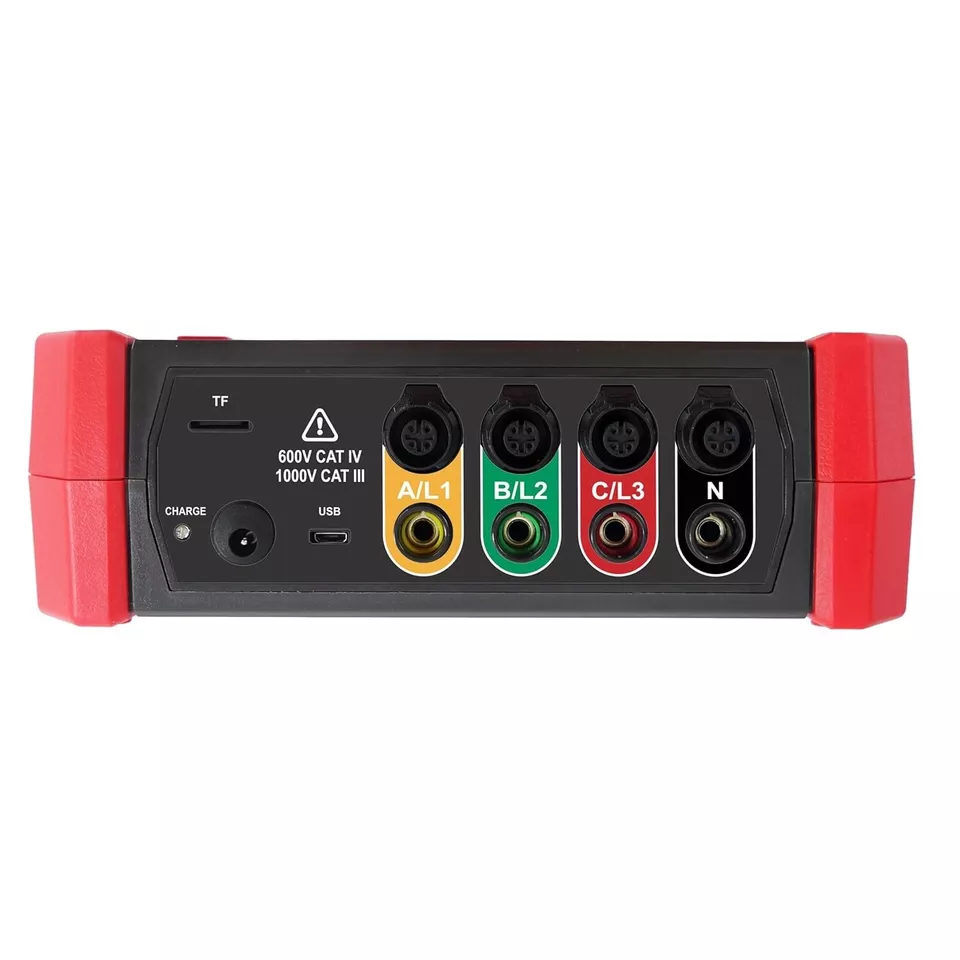

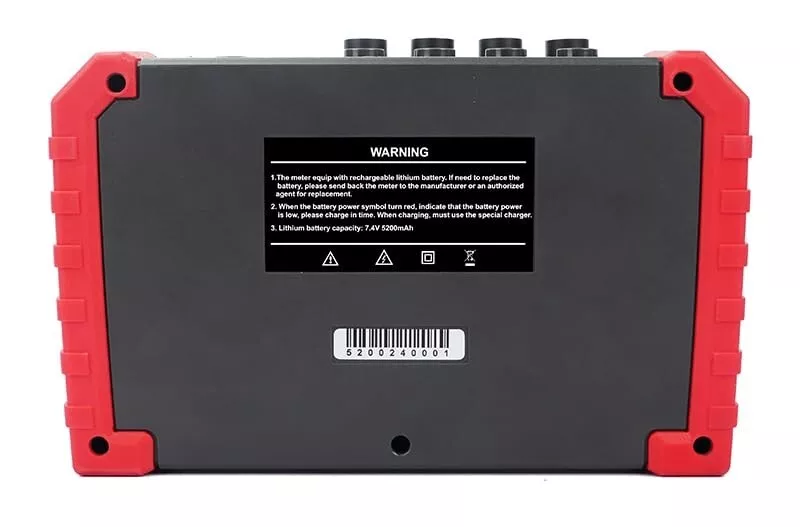

Check the listing for details. 3 Phase Power Quality Analyzer Meter with Current Clamp 10A~6000A CT Size Φ300mm. Condition: New. Listed at 2120.00 USD. 3 Phase Power Quality Analyzer Meter with Current Clamp 10A~6000A CT Size Φ300mm Introduction:VTSYIQI Three Phase Power Quality Analyzer, also known as power quality analyzer, power parameter tester and harmonic analyzer, which is a high-precision comprehensive testing instrument designed specifically for on-site testing of three-phase power quality. The instrument has the characteristics of intelligence, comprehensive function, simple human-machine operation and bilingual operation interface in Chinese and English. The instrument adopt with 5-inch true-color touch screen, which is small in size, lightweight, and convenient to carry. Multiple current clamps can be optionally equipped. The instrument can simultaneously measure 4 channels current (ABC three-phase and neutral line currents), 3 channels voltage, three-phase imbalance, active power, reactive power, apparent power, harmonic ratio, total harmonic distortion, etc.Display real-time waveform and phasor diagram of current and voltage; dynamic capture of instantaneous changes in voltage and current, monitoring of starting current, monitoring of various power parameters and generating alarm lists, long-term recording of test data and generation of trend curves, and other functions. Suitable for power, petrochemical, metallurgical, railway, industrial and mining enterprises, scientific research institutions, metrology departments, etc.VTSYIQI Three Phase Power Quality Analyzer adopt with 5 inch true-color touch screen to display, which uses different colors to distinguish the parameter, waveform, phasor, and harmonic ratio of each phase, allowing user to more efficiently and intuitively understand the status of power grid parameter. Upload stored data to the computer through USB communication interface and upper computer software to continue data analysis.Main Function:Real time waveform display (3 channels voltage/4 channels current).True effective value of voltage and current.Phasor diagram display.Measurement of harmonics in each phase, up to 50 harmonics.The bar chart displays the harmonic content of each phase's current and voltage.Total harmonic distortion (THD).The active/reactive/apparent power value and total value of each phase.Voltage, current and power trend chart.The active/reactive/apparent power value and total value of each phase.Measurement of three-phase imbalance (voltage and current).Record waveform and parameter.Screenshot save.Touch screen operation.Short term voltage flicker.Starting current and surge current monitoring.USB communication interface and computer upper communication.The wiring method of the instrument and the type of power grid can be set.Different current clamp and voltage test ratio can be set.Features:Conduct a comprehensive analysis and diagnosis of all electrical parameters such as voltage, current, power, electrical energy, harmonics, phase, etc.4 current clamps are available for selection, suitable for various site.4 channels current and voltage measurement, while capturing and recording electrical parameter and waveform.Large LCD color screen display with high resolution.Bilingual operation interface in Chinese and English.TF memory card: 8G.USB communication interface.Specifications: Power SupplyRechargeable lithium battery 7.4V, external chargerBattery IndicatorBattery symbol shows power energy. When the voltage is too low, automatic shutdownWorking CurrentAbout 490 mAInstrument Dimension240mmX170mmX68 mmDisplay Mode5inch touch colorful screenCurrentFlexible coil current sensor: 10A ~ 6000AClamp Current Sensor CT SizeФ300mmFrequency40Hz~70Hz.HarmonicYes, 2~51 ordersTotal Harmonic DistortionYes, 2~51orders, each phaseThree-phases UnbalanceYes.Communication InterfaceUSBLanguageSwitch between Chinese and EnglishAutomatic ShutdownIn recording mode, the instrument will not automatic shutdownWhen not in recording mode, can set the automatic shoutdown time after 15minutes,30minutes,60minutes according to requestAutomatic ShutdownIn the alarm mode/trend chart record mode/transient capture mode (waiting or in progressing), the instrument will not automatic shutdownIn other test mode, within 15 minutes without keystrokes operation, automatic shutdown after prompt 1 minute.WeightHost: 900g (with battery).Clamp current sensor: 157gX4Test lines: 400g;Total weight: about 8kg (with all accessories).Memory Card4G(expandable up to 32G)Voltage Test Line Length3mCurrent Sensor Line Length2mWorking Temperature-10°C~40°C; below 80%Rh.Storage Temperature-10°C~60°C; below 70%Rh.Input ImpedanceInput impedance of test voltage: 1MΩ.Withstand VoltageWithstand 3700V/50Hz sinusoidal AC voltage for 1 minute between instrument wiring and housing.InsulationBetween instrument wiring and shell ≥10MΩ.StructureDouble insulation, with insulation vibration-proof sheath.Suitable Safe StandardIEC 61010 Cat III 1000V /CAT IV 600V , IEC61010-031, IEC61326, Pollution degree 2 MeasurementRangeDisplay ResolutionThe Max Error In Reference RangeFrequency40Hz~ 70Hz0.001Hz±(0.01)HzPhase Voltage True RMS2V~ 600VMin resolution 0.001V±(0.5%rdg)Current True RMS10mA~ 6000AMin resolution 0.001A±(0.5%rgt)Active Power0.0000W~ 3600kWMin resolution 0.001W±(1%+3dgt)Cosφ≥0.8±(1.5%+10dgt)0.2≤CosφIrange/100)0.0%~99.9%0.001%(2～20orders) ±(1%rdg+5dgt)(21～30orders) ±(1%rdg+10dgt)(31～51orders) ±(1rdg%+15dgt)Current Harmonic Angle(Arms>Irange/100)-179°~180°0.001°±(3°) harmonics for 2 - 25 orders±(10°) harmonics for 26 - 51 ordersTotal Harmonic Ratio(THD or THD-F)≤500.0%~ 99.9%0.001%±(1%rdg+10dgt)Distortion Factor(DF or THD-R)≤500.0%~ 99.9%0.001%±(1%rdg+10dgt)Three-phases Unbalance0.0%~ 100%0.01%±(1%)Accessories:ItemAccessoriesQty1Host1PCS2Clamp Current Sensor4PCS3Pen Probe Test line(Each 1PCS of yellow,green, red and black, length 3m)4PCS4Alligator Clip4PCS5Power Adaptor（DC 12V）1PCS6USB Data Cable1PCS74G Memory Card1PCS8Manual, Warranty Card, Qualification Card1SET
