| Maximum Peak Transient Voltage | See description |
|---|---|
| Voltage Flicker | Yes |
| Energy parameters | Wh, Varh, Vah. |
| Custom Bundle | No |
| Working Current | about 590mA, continuous working 8hours. |
| Current Measurement Range | See description |
| MPN | 2022 |
| Communication Interface | USB. |
| Voltage Measurement Range | See description |
| Backlight Function | Yes, suitable for dark places and nighttime use |
| Phase Configuration | 3-Phase |
| Bandwidth | See description |
| Working Temperature | -10°C~40°C; below 80%Rh. |
| Current Clamp Wire Length | 2M |
| Peak | Yes. |
| Line Voltage | 1.0V~2000V. |
| Structure | Double insulation, with insulation shock-proof she |
| Number of channels | 4 voltages, 4 currents |
| Phasor Diagram Display | Automatic |
| Storage Temperature | -10°C~60°C; below 70%Rh. |
| Expert Mode | Yes. |
| Insulation | Between instrument line and shell ≥10MΩ. |
| Voltage Test Wire Length | 3M |
| Start Current Mode | Yes, 100 seconds |
| Electricity Energy Parameter | W, VA, Var, PF, DPF, cosφ, tanφ. |
| Phase Voltage | 1.0V~1000V. |
| Menu language | English/Chinese. |
| Modified Item | No |
| Brand | VTSYIQI |
| Harmonic Wave | Yes, 0 - 50 times |
| Total harmonic distortion | Yes, 0 - 50 times, each phase |
| Input Impedance | Test voltage input impedance: 1MΩ |
| Transient Record Groups | 150 groups |
| Screenshot Capacity | 60PCS |
| Frequency | 40Hz~70Hz. |
| Country/Region of Manufacture | China |
| Three-phases Unbalance | Yes |
| Instrument Size | 240mm×170mm×68 mm. |
| UPC | 635407162985 |

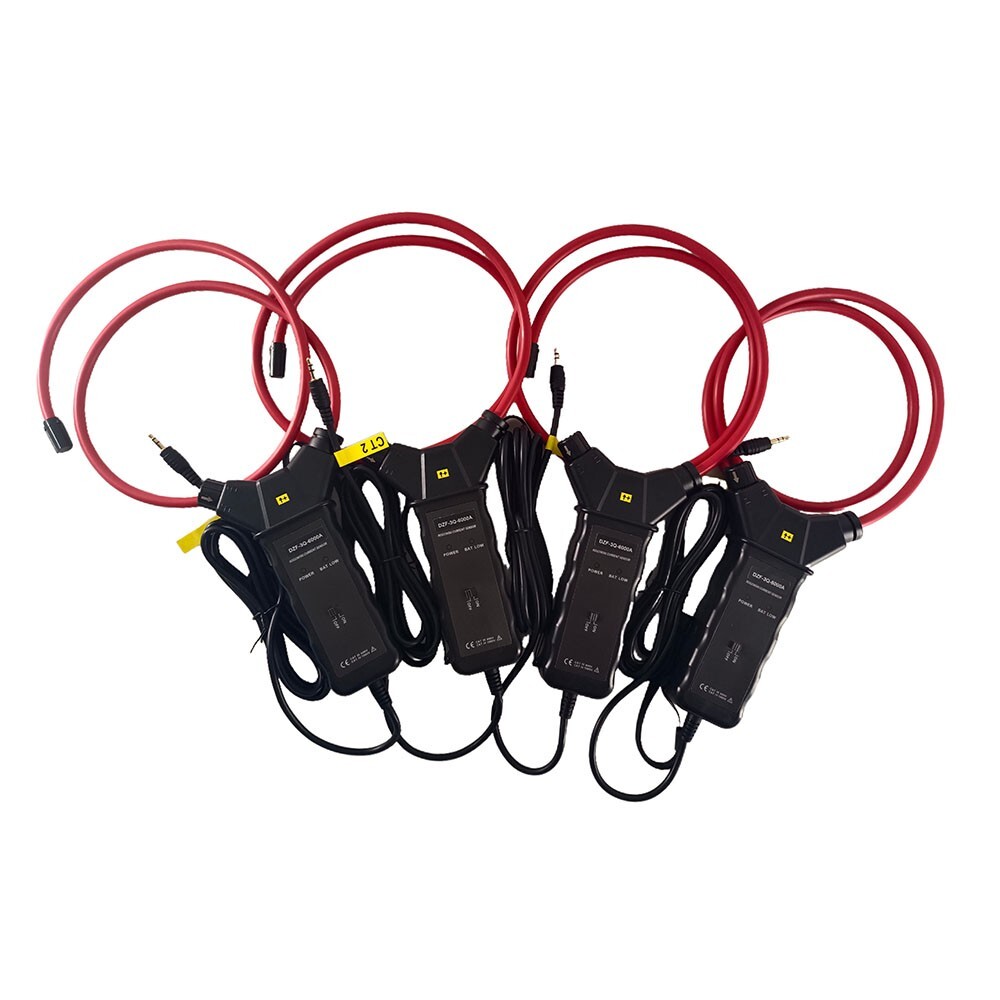

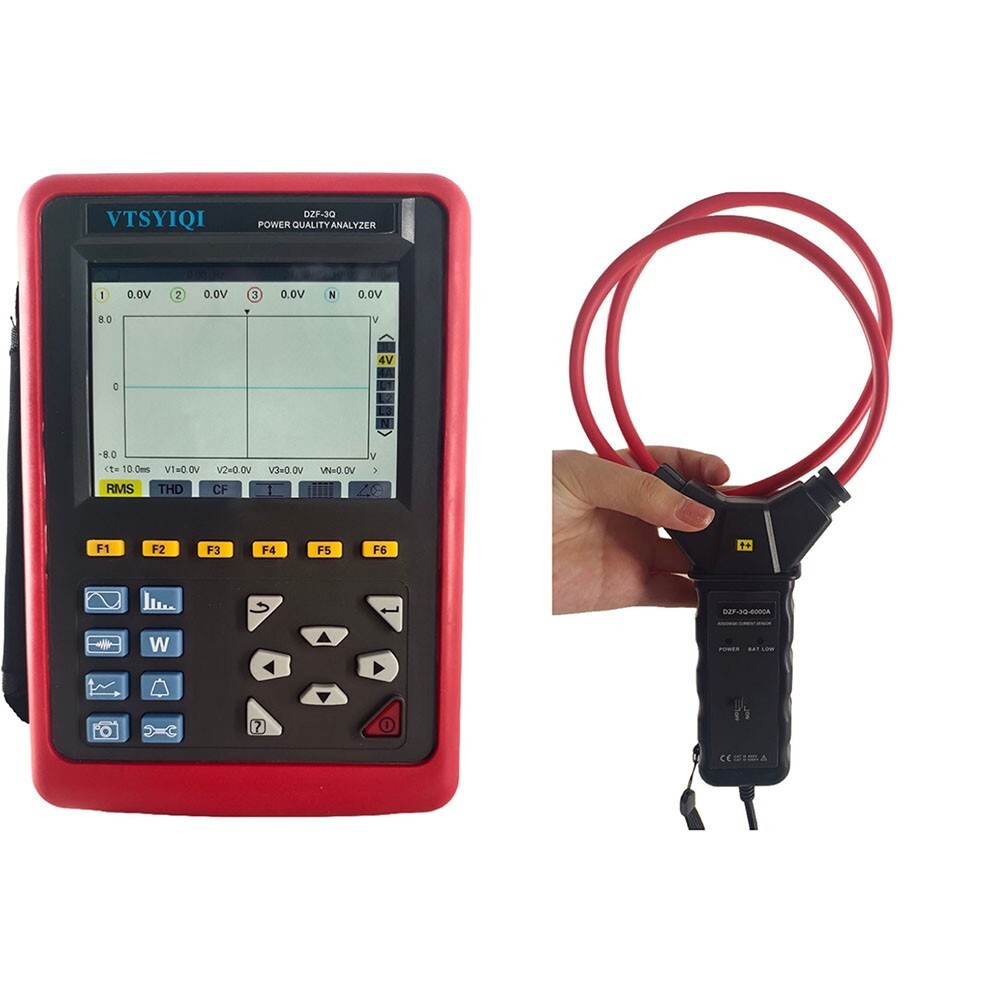

Check the listing for details. 3 Phase Power Quality Meter Analyzer Power Quality Measurement with 1.0V~2000V. Condition: New. Listed at 2608.00 USD. 1.0V~2000V. Flexible Coil Current Sensor (with Integrator) : Ф300mm. Resolution for AD7655 is 16 bit and it is 4 channel synchronous sampling. Flexible Coil Current Sensor (with Integrator) : 10A ~ 6000A.
