| Please Note | Delivery from the nearest warehouse in USA |
|---|---|
| Brand | Unbranded |
| Voltage | 36 V |
| Number of Items | 1 |
| Color | Silver, Black |
| Compatible Bike Type | E-Mini Bike |

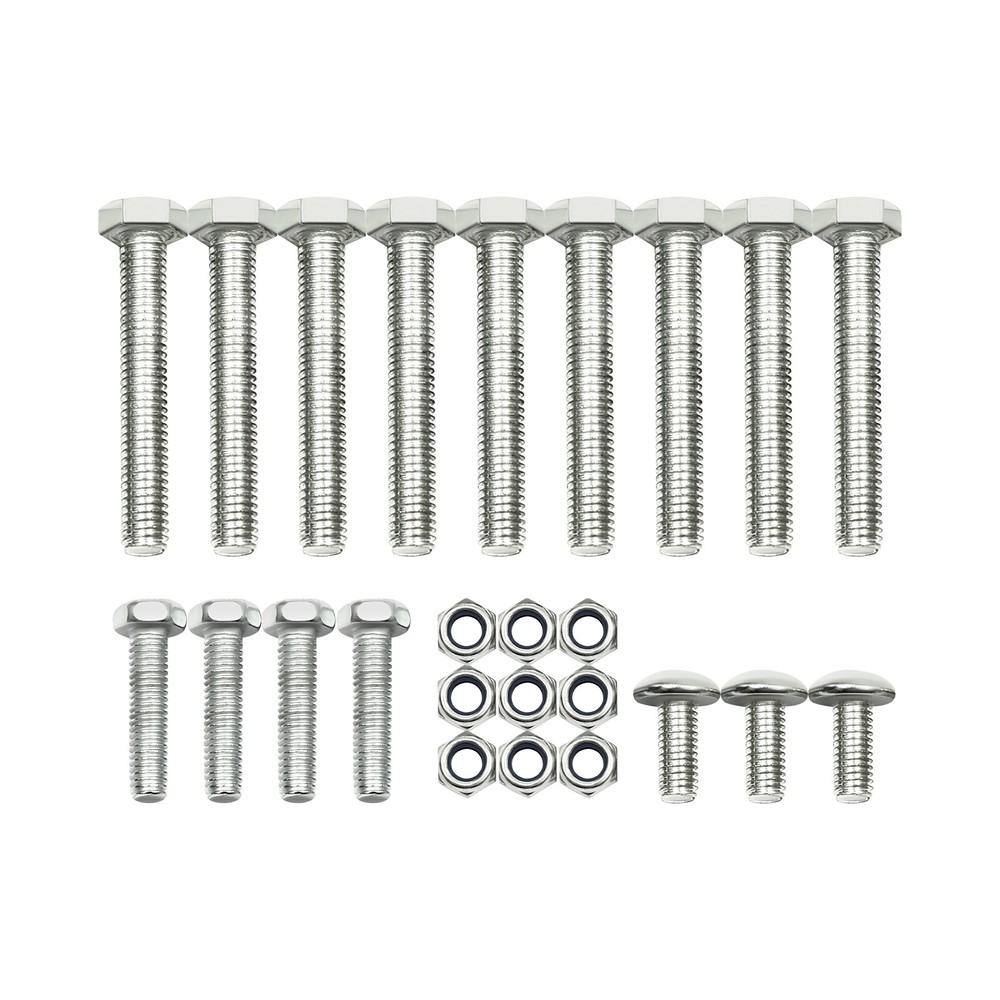

| Set Includes | All Accessories For Assembly |
| Material | Aluminum, Copper, Rare Earth Magnet Steel |
| Speed Gears | Three(80%,100%,110%) |
| Motor Efficiency | ≥78% |
| Model | MY1016Z3 |
| Suspension Type | Rear |
| Torque | About 10.85N·m |
| Unload Current | ≤2A |
| Unloaded Speed | 3850Rpm |
| Rated Current | 12.5A |
| Rated Speed(Before Speed Reduction) | 3000RPM |
| Rated Speed(After Speed Reduction) | 330RPM |
| Gear Ratio | 9.78:1 |
| Protect Grade | IP33 |
| Motor Controller Voltage | 1.1-4.2V |
| Motor Controller Max Current | 16A |
| Motor Controller Power | 350W |
| Under Voltage | 20V |
| Brake | Low Level |
| Suitable Bike Type | Spoke Wheel Bike |
| Suitable Bike Wheel Diameter | ＜68.58cm/27inch |
| Suitable Bicycle Hub Diameter | ＜35mm/1.3inch |
| Assembly Required | Yes |
| Chainwheel Outer Diameter | 134mm/5.27inch |
| Chainwheel Inner Diameter | 35mm/1.38inch |
| Chainwheel Teeth Space | 12.7mm/0.5inch |
| Packaging Size | 26*15*18cm/10.23*5.9*7inch |
| Gross Weight | 4.7kg/10.36lbs |
| Part Type | Motor |
| UPC | Dose not apply |
Check the listing for details. 350W 36V Electric Bicycle Brushless Motor E-Bike Conversion Kit Adjustable Speed. Color: Silver, Black, Condition: New. Listed at 117.47 USD. Specifications Color: Silver, Black Material: Aluminum, Copper, Rare Earth Magnet Steel Speed Gears: Three(80%,100%,110%) Motor Efficiency: ≥78% Rated Voltage: 36V DC Power: 350W Temperature Resistance: 120℃/248℉ Model: MY1016Z3 Suspension Type: Rear Special Feature: Electric Torque: About 10.85N·m Unload Current: ≤2A Unloaded Speed: 3850Rpm Rated Current: 12.5A Rated Speed(Before Speed Reduction):3000RPM Rated Speed(After Speed Reduction): 330RPM Gear Ratio: 9.78:1 Insulation Class: F Protect Grade: IP33 Motor Controller Voltage: 24/36VDC Motor Controller Max Current: 16A Motor Controller Power: 350W Motor Controller Voltage: 1.1-4.2V Under Voltage: 20V Brake: Low Level Suitable Bike Type: Spoke Wheel Bike Suitable Bike Wheel Diameter: ＜68.58cm/27inch.
