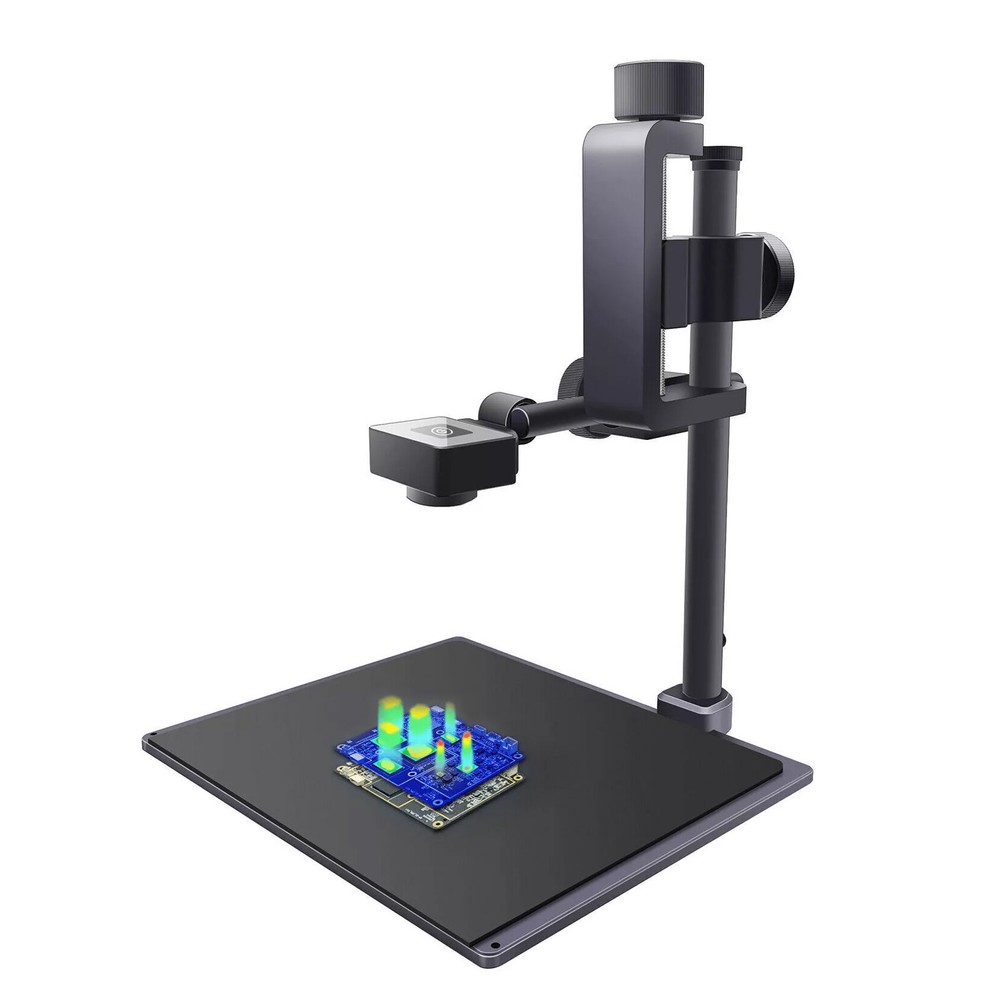

Check the listing for details. 3D Infrared Thermal Imager Analyzer Camera for PCB Leakage Short Circuit Check. Condition: New. Listed at 291.26 USD. The PCBA infrared thermal imaging analysis system is a system that can operate on the computer system for analyzing issues of the circuit board, the software can collect on-line detection data, and then, it can judge short-circuit point, leakage element of the circuit board, and judge whether the circuit board's structure is reasonable, so that the equipment can be assessed. Features: Fast Current Leakage Inspection, Short Circuit Identification, Complex Bugs Rule Out: Quickly locate high-temperature areas, abnormally high-temperature components color palette and adjustment stability range, short circuit positioning. Intuitive 3D Imaging: Supports viewing circuit boards in 3D mode, which is more intuitive for small current changes. The three-dimensional thermal field distribution intuitively displays temperature changes, suitable for industry, electronics and other industries. Rectangular Analysis Mode: Supports detailed comparison and detailed inspection of image color changes in different areas, and can display the temperature curve to facilitate viewing of temperature history data. Double-board Comparison Mode: Supports comparison of good and bad boards, places items that need to be observed and compared on both sides of the dividing line, and performs comparison and analysis under the same conditions to quickly locate faulty circuit boards. Adjustable Stand: High-quality metal stand with high-temperature resistant workbench, easy to install, flexibly adjustable and rotating, and the measuring distance can be fine-tuned. Specifications: Infrared Resolution: 256 * 192 pixel Refresh Rate: 25Hz FOV: 56° x 42° Temperature: 95% relative humidity Measurement Distance: 30mm-150mm Interface: USB Type-C Input Voltage: DC 5V Storage Format of the Pictures: JPG Storage Format of the Video: MP4 Measurement Range: -20℃~150℃ / -4℉~302℉ Storage Temperature: -20℃~60℃ Working Temperature: 0℃~50℃ The Humidity: 95% relative humidity Package List: 1 * Infrared Thermal Imager Analyzer 1 * Bracket 1 * Data Cable 1 * User Manual (English)On Jul 23, 2024 at 01:24:03 PDT, seller added the following information:
