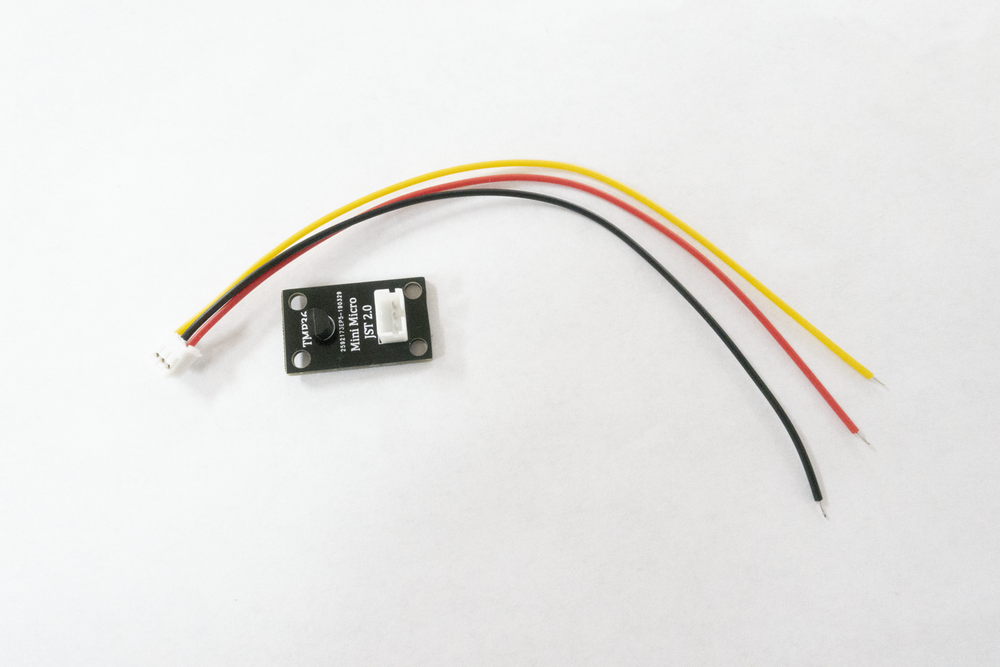

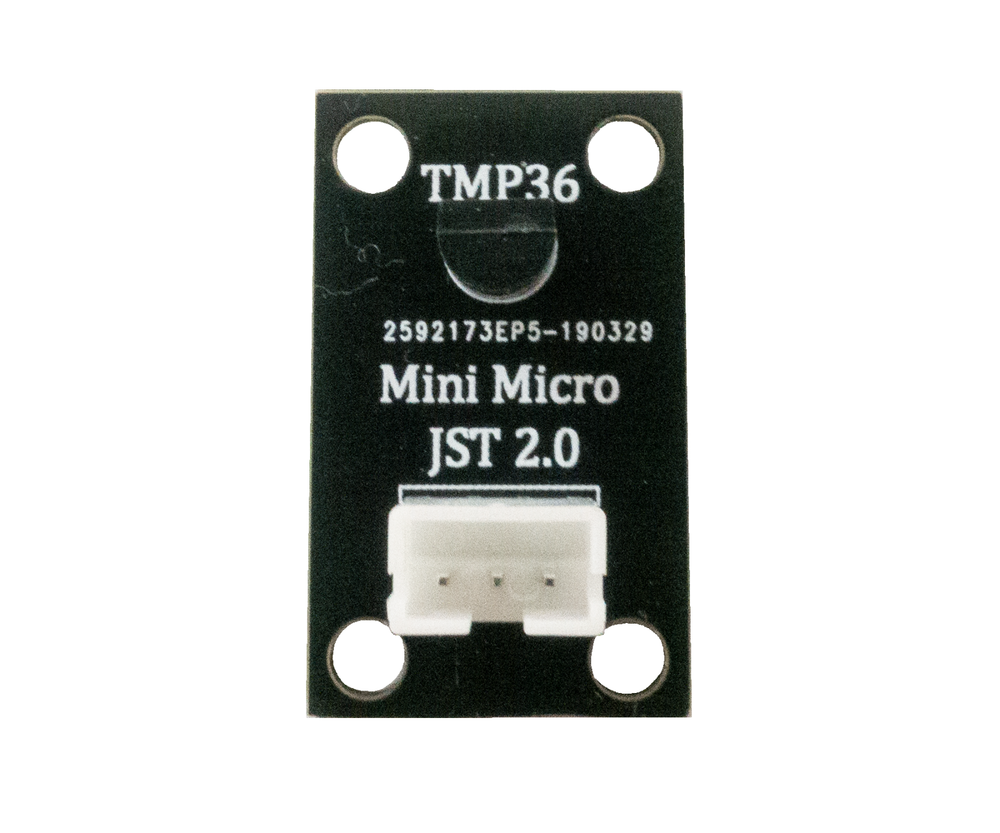

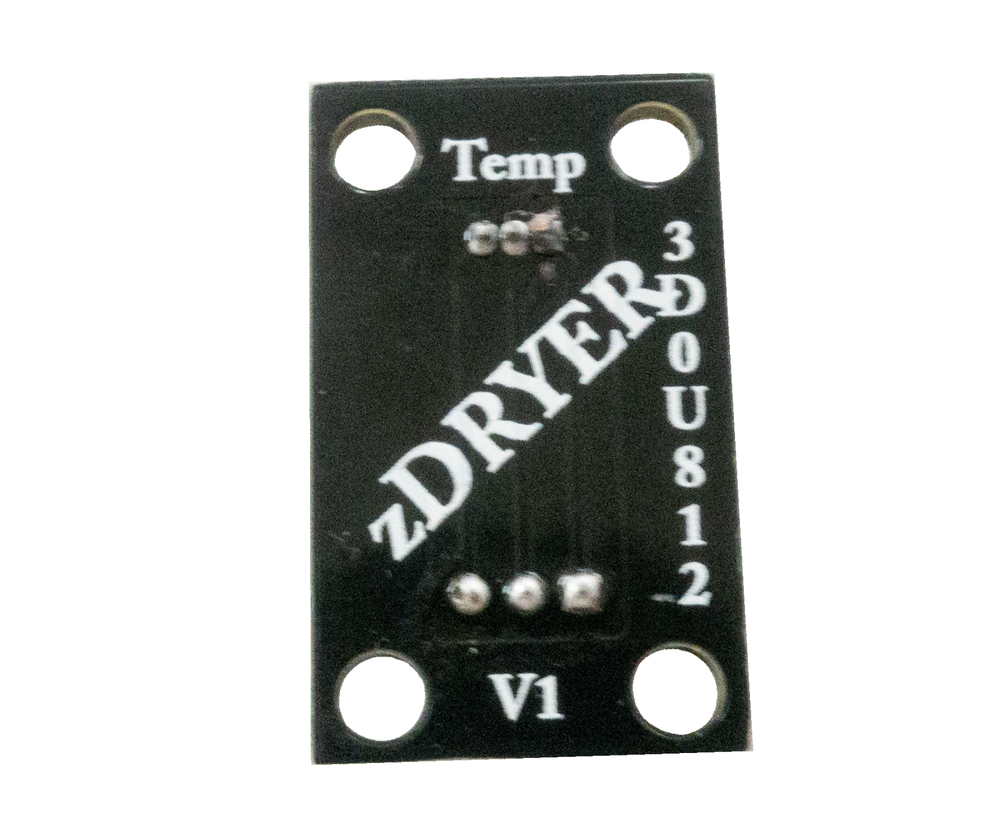

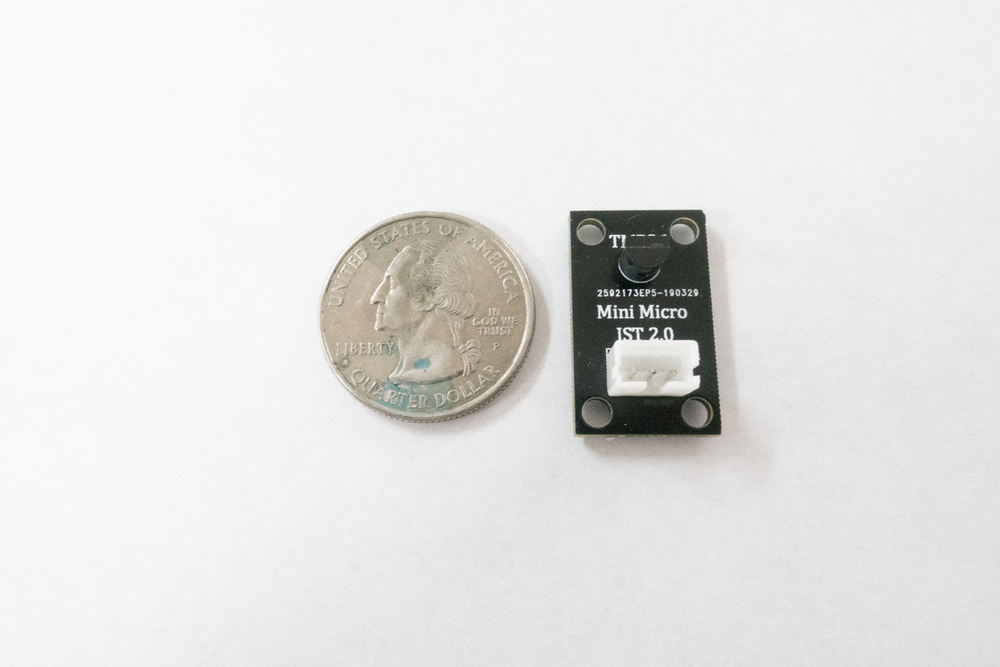

Check the listing for details. 3D0U812 UNIVERSAL Temperature Sensor TMP36. Condition: New. Listed at 7.09 USD. This temperature sensor uses a TMP36 sensor on a breakout board. It has an easy connection port using a 3 pin plug. The sensor also includes the 3 pin connection cable. The PCB was designed and assembled in the USA. WIRING INSTRUCTIONS Yellow Wire = 2.7V to 5.5V input Black Wire = Vout Red wire = Ground FEATURES Low voltage operation (2.7 V to 5.5 V) Calibrated directly in °C 10 mV/°C scale factor ±2°C accuracy over temperature (typ) ±0.5°C linearity (typ) Stable with large capacitive loads Specified −40°C to +125°C, operation to +150°C Less than 50 µA quiescent current Shutdown current 0.5 µA max Low self-heating GENERAL DESCRIPTION The TMP36 are low voltage, precision centigrade temperature sensors. They provide a voltage output that is linearly proportional to the Celsius (centigrade) temperature. The TMP36 do not require any external calibration to provide typical accuracies of ±1°C at +25°C and ±2°C over the −40°C to +125°C temperature range. The low output impedance of the TMP36 and its linear output and precise calibration simplify interfacing to temperature control circuitry and ADCs. All three devices are intended for single-supply operation from 2.7 V to 5.5 V maximum. The supply current runs well below 50 µA, providing very low self-heating—less than 0.1°C in still air. In addition, a shutdown function is provided to cut the supply current to less than 0.5 µA. The TMP36 is specified from −40°C to +125°C, provides a 750 mV output at 25°C, and operates to 125°C from a single 2.7 V supply. TMP36 have an output scale factor of 10 mV/°C. Universal sensors that work with many different types of applications. Automotive Aerospace Marine Digital Printing 3D Printing Automation Environmental control systems Thermal protection Industrial process control Fire alarms Power system monitors CPU thermal management Arduino Raspberry pi
