| Country of Origin | Unknown |
|---|---|
| Feature 1 | Stable characteristic, high reliability |
| * Feature * | 🔥high performance🔥reliable quality🔥good stability |
| Feature | Fast shipping |
| Manual language | Chinese |
| Brand | Unbranded |
| Model | 168F |

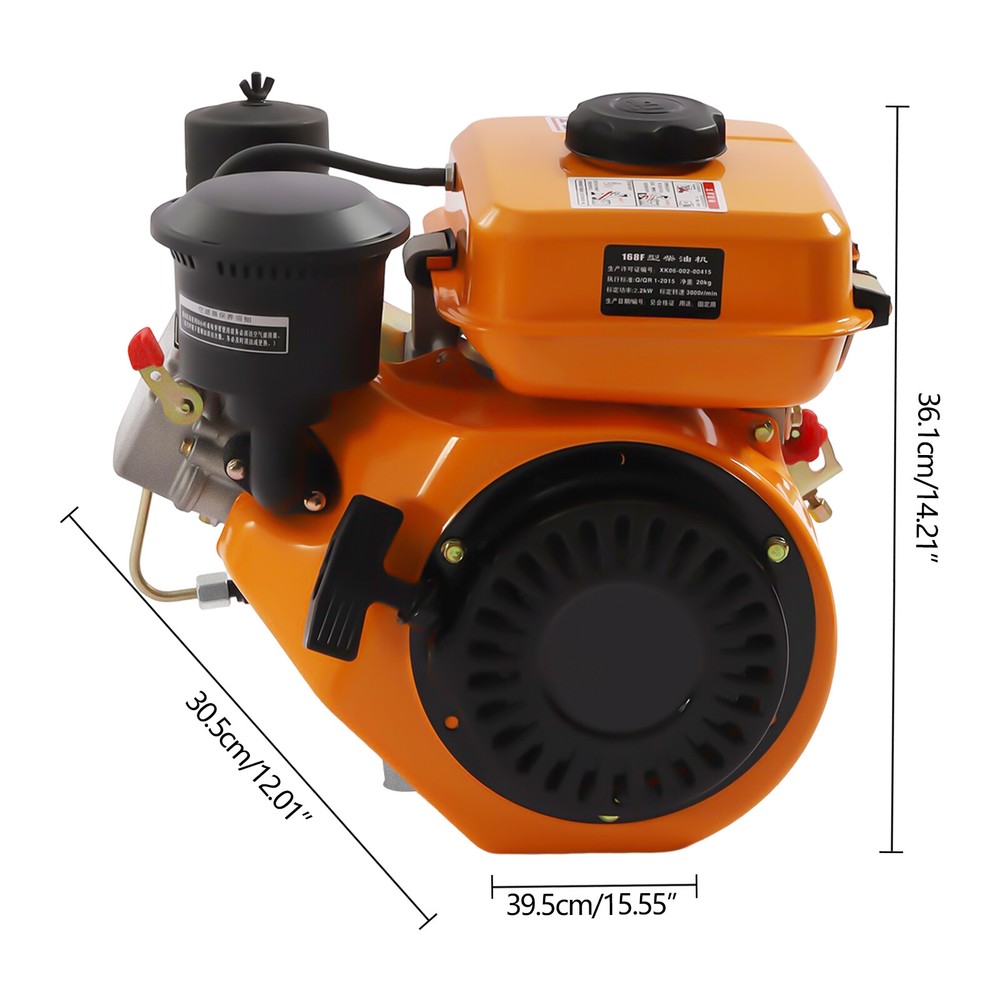

| Dimensions | 395*305*361mm (15.55*12.01*14.21 inches) |
| Shell material | aluminum |
| Ignition method | compression ignition |
| Displacement (cc) | 196cc |
| Speed (rpm) | 3000 rpm |
| Maximum output (kw) | 2.2KW |
| Start method | manual start |
| Fuel tank capacity | 3L |
| Engine oil capacity | 0.7L |
| Net torque | 8N.M/2880rpm |
| Number of cylinders | single cylinder |
| Compression ratio | 22:1 |
| Bore size (mm) | 68*54mm (2.68*2.13 inches) |
| Fuel consumption rate (g / kw.h) | 310g / kw.h |
| Shaft diameter | 2.0cm (0.787 inch) |
| Keyway | 5mm (0.197 inch) |
| Shaft length | 20*53mm (0.787*2.09 inches) |
| Shaft inner diameter thread size | M8*1.25mm (0.049 inch) |
| Oil system | splash |
| Engine cooling method | air cooling |
| Crankshaft Direction | Horizontal |
| Maximum Power | 2.2KW |
| Application | Vehicles,irrigation drainage machines, |
| Engine Size | 196CC |
| Tank Capacity | 3L |
| Power Source | Gasoline |
| Features | Manual start |
| Color | Orange |
| Material | Aluminum |
| Item Weight | 20kg (44.09 pounds) |
| Power Rating | 2.2 kW |
| Fuel Type | Diesel |
| Engine Type | 4-Stroke |
| Indoor/Outdoor | Indoor & Outdoor |
Check the listing for details. 3HP 4 Stroke Diesel Engine OHV Motor Air-cooled Single Cylinder Pull Start 196cc. Color: Orange, Condition: New, Made in Unknown. Listed at 238.90 USD. Diesel Engine Single Cylinder For Small Agricultural Machinery Light Specification: Model: 168F Type: Singer-Cylinder, 4-stroke Diesel Engine，Oblique horizontal Engine Dimensions: 395*305*361mm (15.55*12.01*14.21 inches) Product weight: 20kg (44.09 pounds) Shell material: aluminum Ignition method: compression ignition Displacement (cc): 196cc Speed (rpm): 3000 rpm Maximum output (kw): 2.2KW Start method: manual start Fuel tank capacity (L): 3L Engine oil capacity: 0.7L Net torque: 8N.M/2880rpm Number of cylinders: single cylinder Compression ratio: 22:1 Bore size (mm): 68*54mm (2.68*2.13 inches) Fuel: 0# diesel Fuel consumption rate (g / kw.h): 310g / kw.h Starting system: hand recoil Shaft type: flat key Shaft diameter: 2.0cm (0.787 inch) Keyway: 5mm (0.197 inch) Shaft length:.
