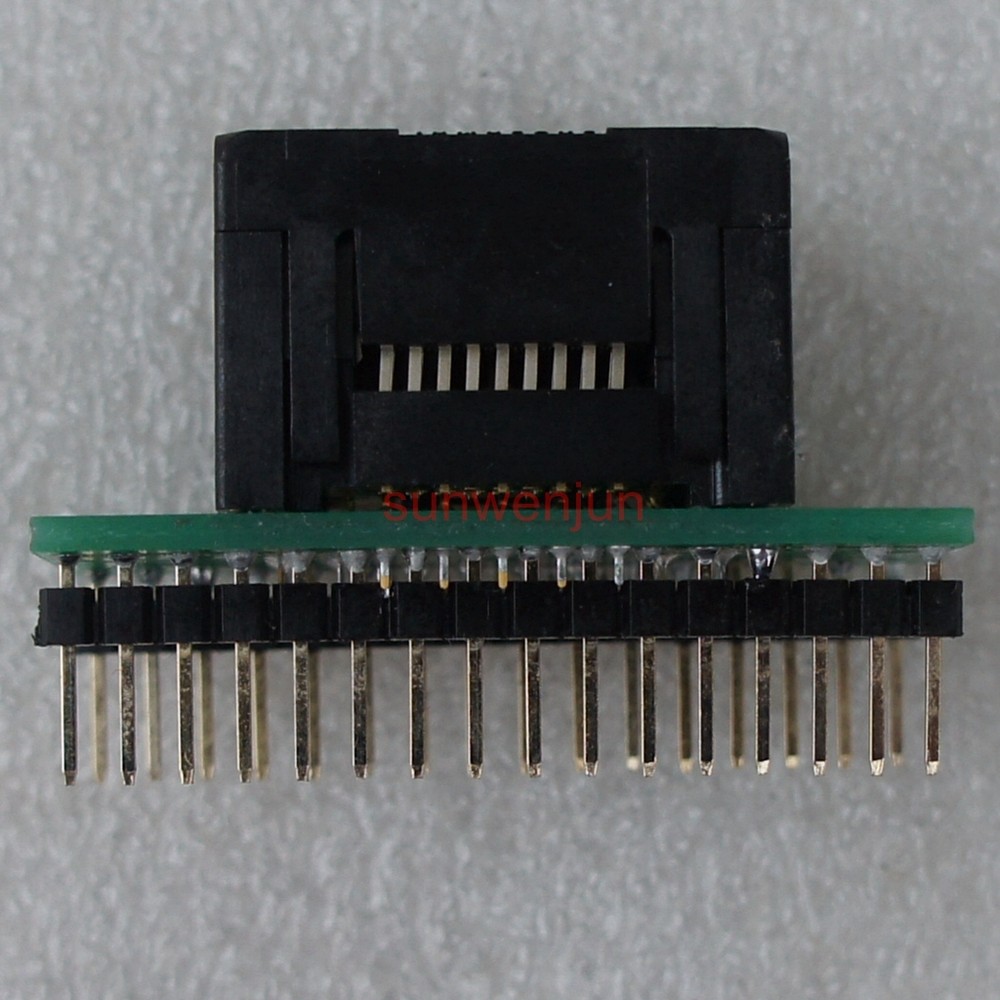

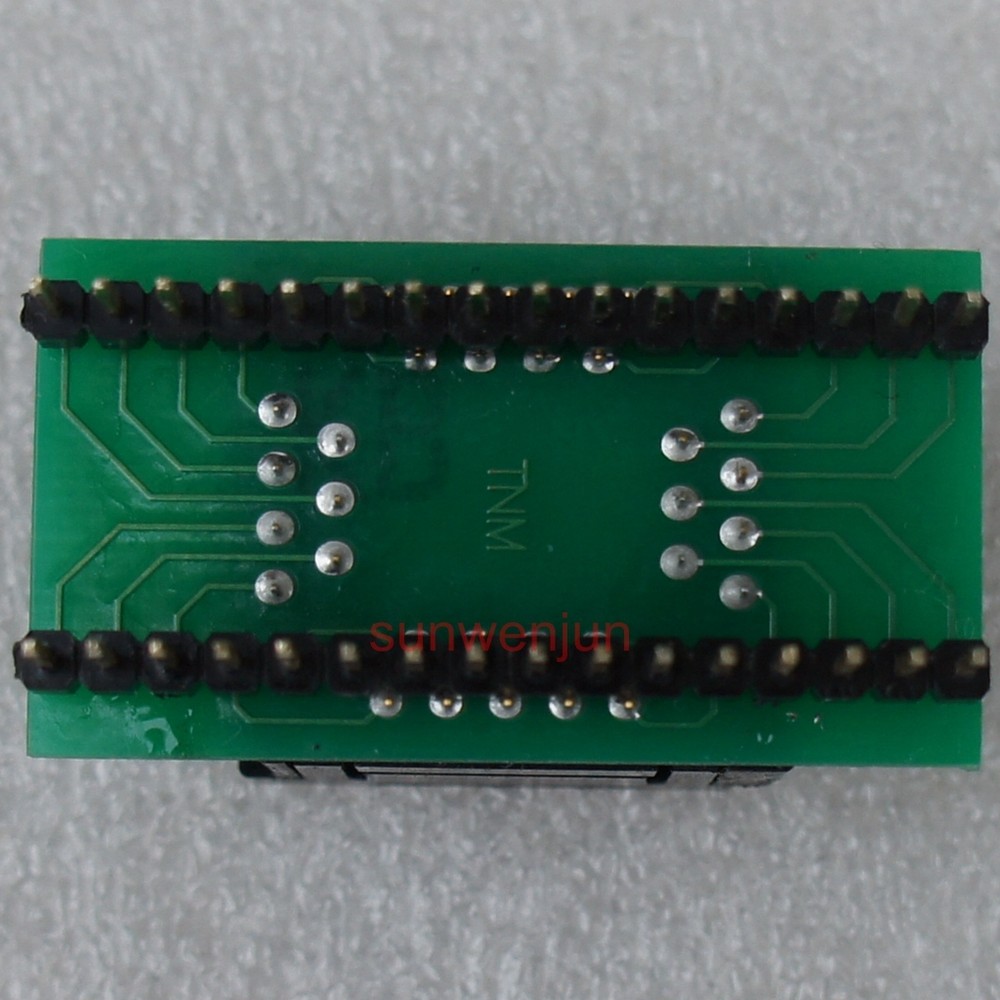

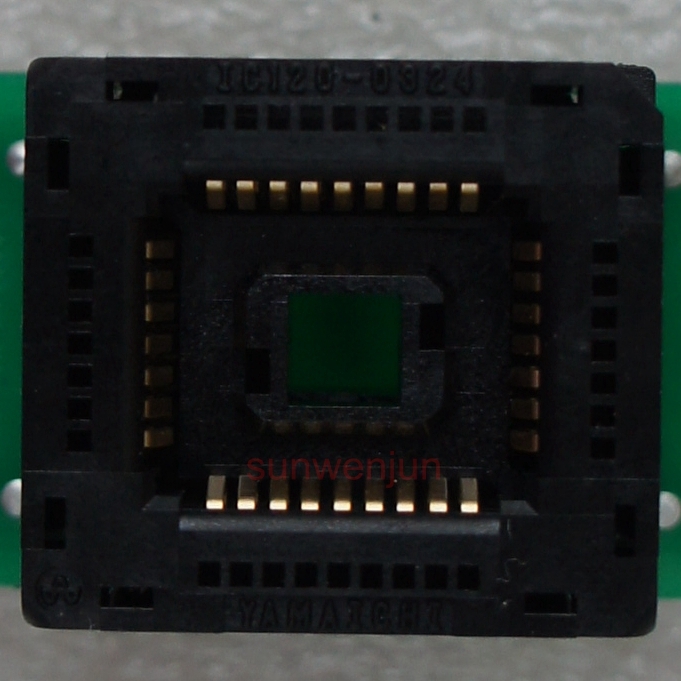

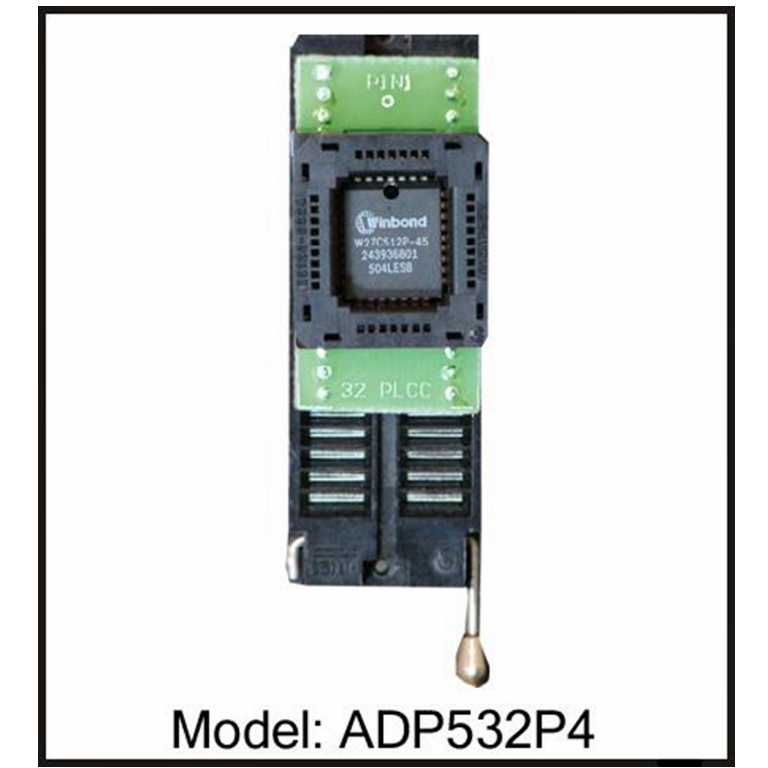

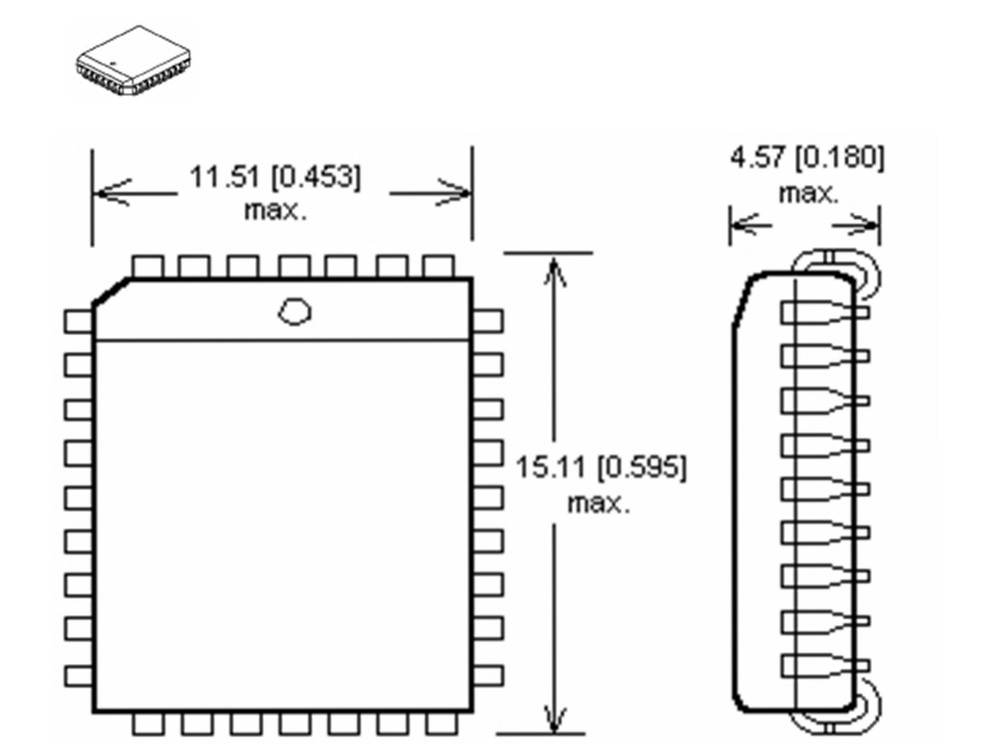

Check the listing for details. 532P4 PLCC32 adapter/adaptor IC ZIF socket for 2000/5000 programmer. Condition: New. Listed at 22.00 USD. Store category Sign Up Now ! You may also like TNM 532P4 PLCC32 adapter/adaptor IC ZIF socket for 2000/5000 programmer Product Description TNM 532P4 PLCC32 ZIF socket adapter/adaptor IC socket for 2000/5000 programmer Model: ADP532P4 Socket: ZIF PLCC32, open top type Bottom: 2 rows, 2x 16 pins, square, 0.6x0.6mm, rows spacing 600mil Accepted chip package: PLCC32 Chip Body: 14 x 11.5mm For examples: AT29C040 – AM29F010 – AT49LH002 -Put adapter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this adapter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer. -Push the top of adapter ZIF socket to open it. Insert the device into the adapter ZIF socket. The right position of the programmed device in adapter ZIF socket is show at picture near (mainly left above) the adapter ZIF socket. Then release adapter ZIF socket. -Pull a lid (the upper - moving - part of ZIF) of programming adapter a bit up to gain more reliable contact -Visually check interconnection between device and adapter ZIF socket. If everything looks OK, the device is ready for programming. -Be careful, because the incorrect insertion of adapter to the device programmer ZIF socket or device to the adapter ZIF socket can damage the programmed device. -To take out the device push the top of adapter ZIF socket and remove device from it. -When you finish work with adapter, remove it from the device programmer ZIF socket. -Do not directly touch the pins of the adapter and adapter ZIF socket, because dirt may cause errors during programming of device. -For handling with the device we recommended to use a vacuum pick up tool. Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%..80%, non condensing. -If programming yields isn't 100% when using programming adapter or if some unreliability appears, try to connect one 22nF-100nF multilayer capacitor (that meet the EIA X7R or Z5U specification) between leads of adapter connected to pins VCC and GND pins of programmed chip. Payment Delivery details feedback About us Contact us Payment We Only Accept Paypal on Ebay. For specific requirements, please feel free to contact us. Delivery details Address: Please make sure your eBay address is accurate. If you choose “expedited shipping", you need to leave your telephone number in address. It's important! Handling Time: 1-2 working days after payment is cleared.(no including weekends or holidays) Shipping way:(we will provide tracking number for each parcel) We ship to worldwide (may except some countries for part of items). For USA, Russia customers, we will send via China Post ePacket. For other customers, we will send via China Post Airmail/ePacket or other Post Airmails with a tracking number. For expedtied shipping, we will send via DHL, FedEx, Aramex, CNE and other express ways. How to track your parcel? Please click here: https://stores.ebay.com/Electronic-DIY/How-to-track-parcel.html Estimated Delivery Time: For "Economy Int'l Shipping", in most cases, it takes 10-25 business days (no including weekends or holidays) to reach you. If the Christmas holiday is coming or meet bad weather or other special situations, delivery time maybe longer than the usual. We appreciate your patience! It is difficult for us to list all countries' exact delivery time. You know, parcels of delivery time are very different from different regions, please understand. If item is urgent for you, please choose "Expedited Int'l Shipping". We will send via express shipping way, such as China Post EMS, DHL, UPS, Fedex, Aramex and so on. Normally, it takes one or two weeks to deliver. Please note: if your address is in Brazil, Argentina or other South America countries, we cannot provide faster service because of strict Customs. They need more time to release parcels and delivery time may not fast. feedback We appreciate every customer's feedback. We would be very grateful if you can give us some advice on our products. If you have any complaints, you can contact us and we will actively find a suitable solution. No communication and leaving the neutral or negative feedback may notadvisable and cannot solve any problems. We wish you a happy shopping here! About us We specialize in selling Programmer&Adapter products, as well as other Development&Repair&Test tools. We have been doing business in this field for many years and have established good cooperative relations with customers from all over the world. We can provide professional technical support about our products.- we know user better! Contact us Any questions, please don't hesitate to contact us. Your messages are warmly welcomed. We will reply to you as soon as possible. Because of the time difference, there may be a little delay in response, please understand! About return request: Please don't be easy to open "return request". Our company location is in Shanghai, China. We know international return is complex and long, so before strong packing and sending out, we test item well to avoid failures. If any problems, before opening "return request", please firstly send message to clearly explain your question in English. Maybe we can resolve your problem without "return item", this is the win-win situation. We are looking forward to serving you!
