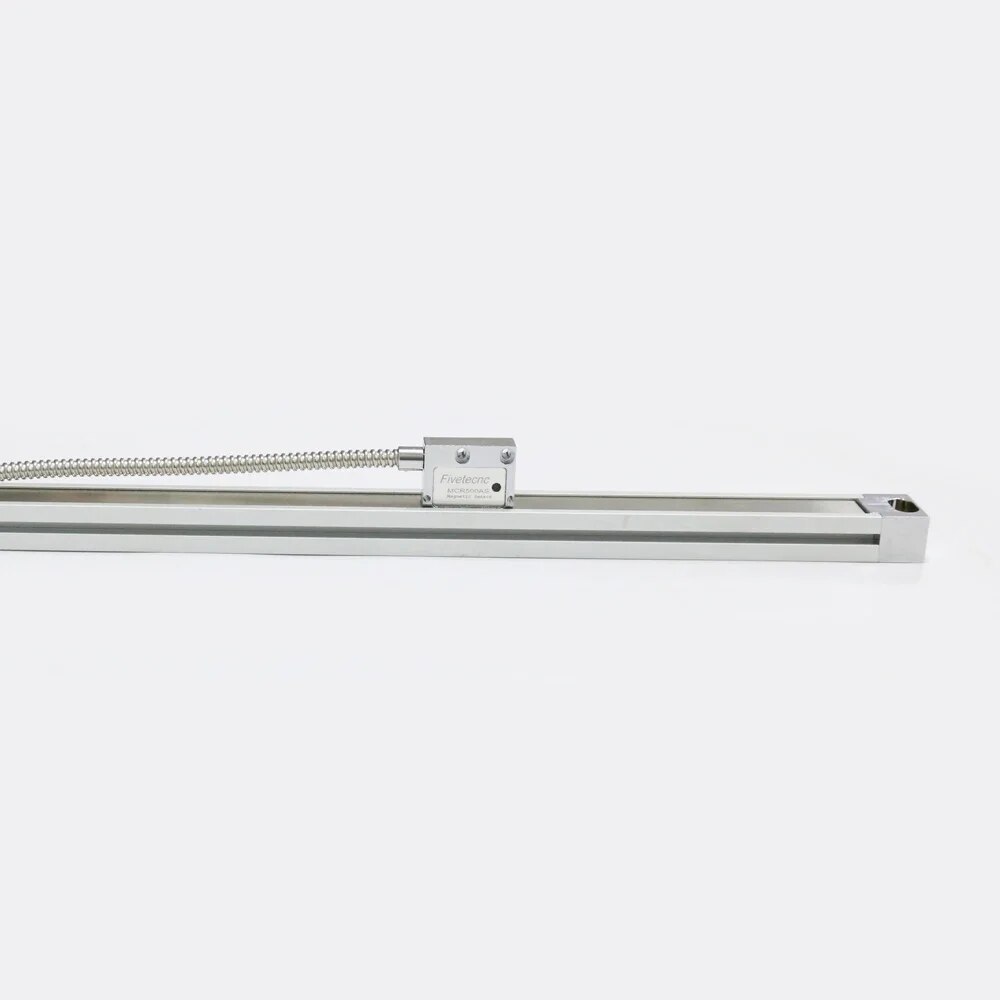

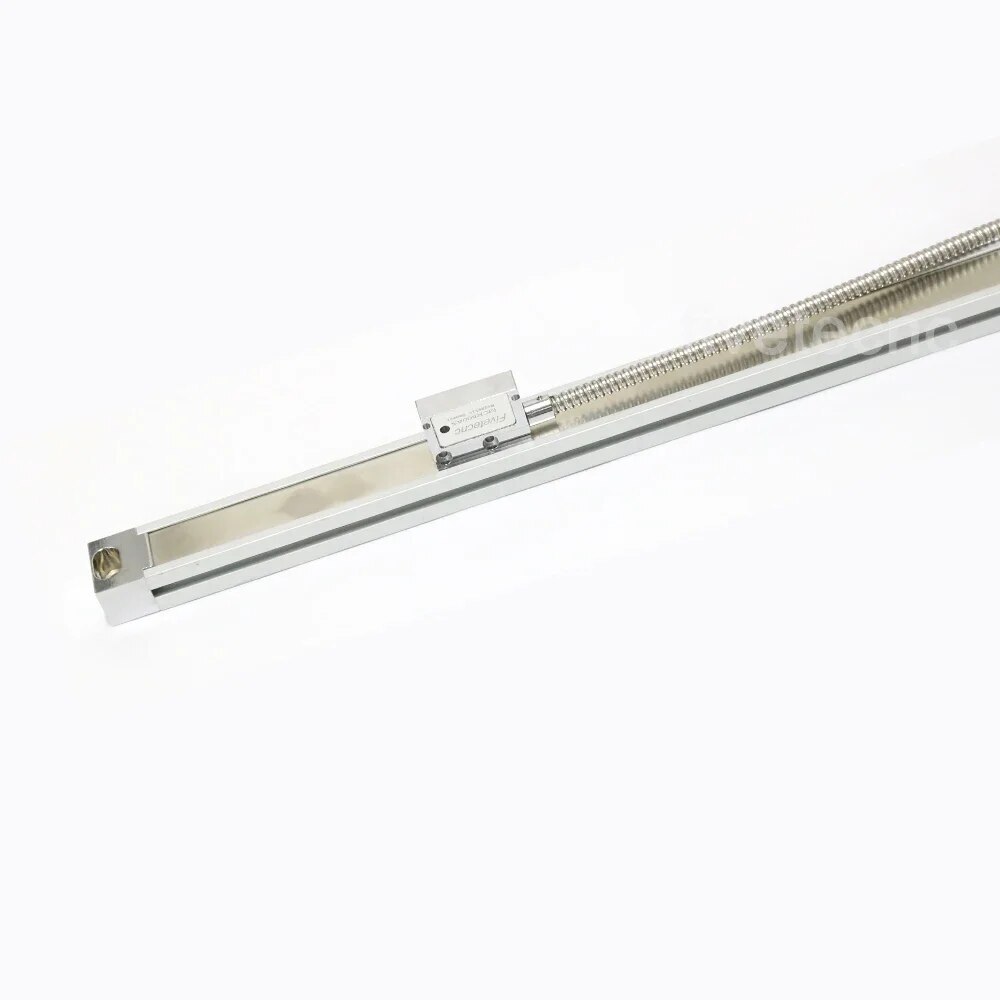

5um Magnetic Scale Magnet Linear Encoder Sensor Tape with Aluminum Profile

Name: 5um Magnetic Scale Magnet Linear Encoder Sensor Tape with Aluminum Profile
SKU: 166374537825
Price: 75.60 USD
Availability: InStock

$37.80

$75.60 -50%

Condition New

Item ID 166374537825

color

Quantity

Restocking Fee	No
Return shipping will be paid by	Buyer
All returns accepted	Returns Accepted
Item must be returned within	30 Days
Refund will be given as	Money back or replacement (buyer's choice)
Input voltage	5VDC
Resolution	0.005mm
Signal cable length	3 meter
Product name	Magnetic scale
Output signal	TTL
MPN	do not supply
Protection Degree	IP67
Brand	YHSINO
Output	LINE-DRIVER;PUSH-PULL
Certification	CE,RoHS
Model Number	Magnetic scale
Accuracy	+-30-50um/meter

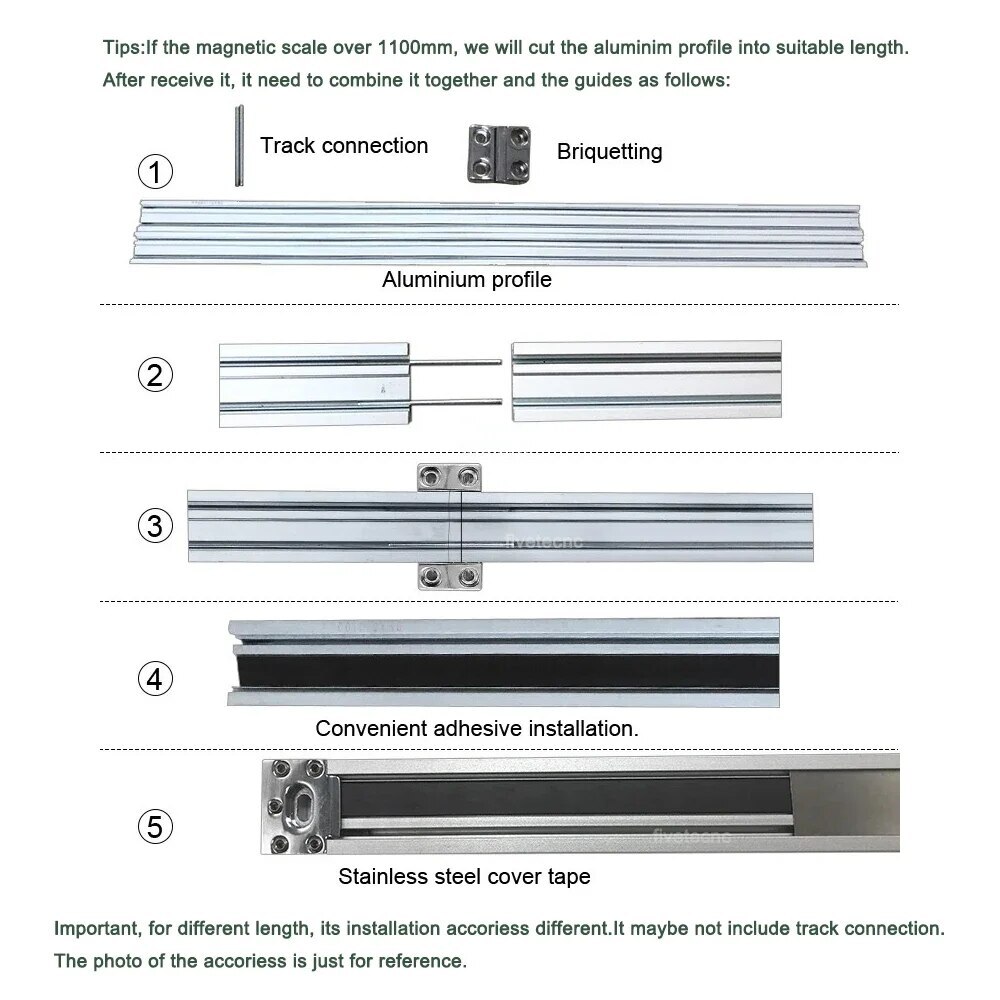

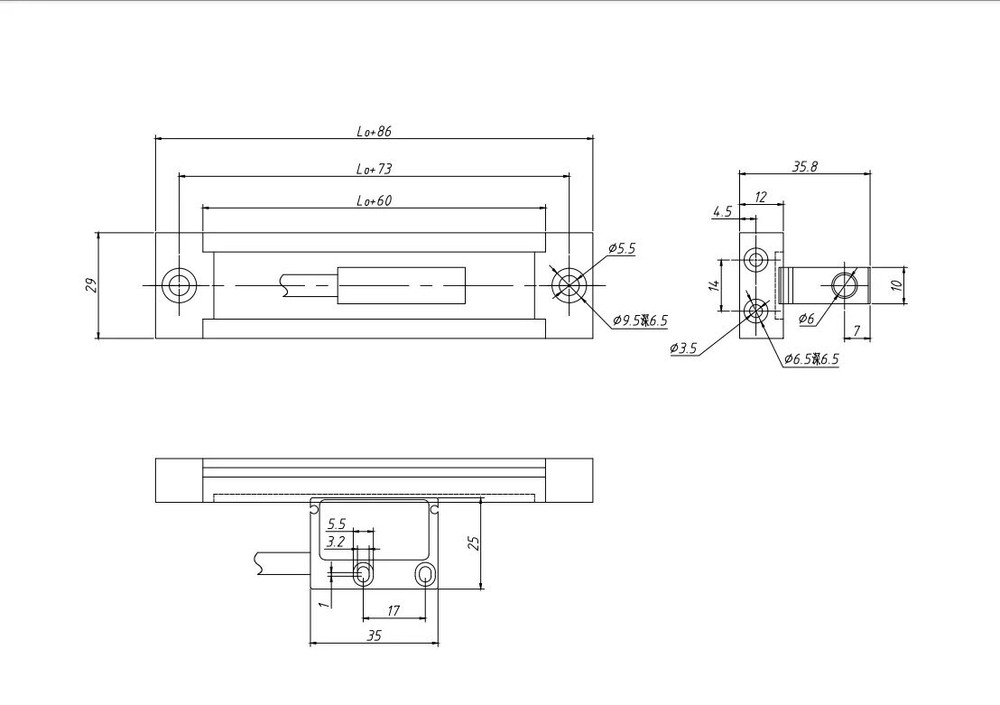

Check the listing for details. 5um Magnetic Scale Magnet Linear Encoder Sensor Tape with Aluminum Profile. Condition: New. Listed at 75.60 USD. 5um Magnetic Scale Magnet Linear Encoder Sensor Tape with Aluminum Profile for Woodworker Lathe Grinder Order include: Magnetic sensor x 1pc Aluminum profile x 1pc Install screws x 1 bag Tips: It can cut the magnetic scale to any length as your request by yourself after receive it. The drawing of the magnetic scale: 9DB Pin TTL Signal(default): Pin 1 2 3 4 5 6 7 8 9 0V A 5V B 9DB Pin RS422 Signal(option): Pin 1 2 3 4 5 6 7 8 9 A- 0V B- Z- A 5V B Z We send TTL signal by default, if need RS422 signal, please leave a note when order it, or please send a message to seller before order. thank you
