| Brand | US Ship |
|---|---|
| Part Name | BT138-600E |
| Part Type | Triac |
| Maximum Repetitive Off-State Voltage (VDRM) | 600V |
| RMS On-State Current (IT(RMS)) | 12A |
| Gate Trigger Current (IGT) | 35mA |
| Gate Trigger Voltage (VGT) | 1.5V |
| Holding Current (IH) | 15mA |
| Package Type | TO-220 |
| Max Surge Current (ITSM) | 95A |
| Off-State Leakage Current | 0.5mA |
| Rate of Rise of Off-State Voltage (dV/dt) | 10V/µs |
| Rate of Rise of On-State Current (di/dt) | 50A/µs |
| Thermal Resistance Junction to Case (RthJC) | 1.5°C/W |
| Thermal Resistance Junction to Ambient (RthJA) | 60°C/W |
| Operating Junction Temperature Range | -40°C to 125°C |
| Storage Temperature Range | -40°C to 150°C |
| Non-Repetitive Peak On-State Current | 95A |
| Typical Turn-On Time | 2µs |
| Typical Turn-Off Time | 20µs |
| Critical Rate of Rise of Commutating Voltage (dV/dt)c | 10V/µs |
| Critical Rate of Change of Commutating Current (di/dt)c | 4A/ms |
| Peak Gate Power (PG(AV)) | 5W |
| Gate Current for Min Holding (IH) | 20mA |
| Isolation Voltage | 2500V |
| Mounting Style | Through Hole |
| Number of Pins | 3 |
| Country of Manufacture | China |
| Shipping | Economy (USPS First Class Envelope unless upgraded) |
| Upgrade Shipping | Purchase $25 or more get free USPS G/A shipping Upgrade |
| Lead-Free Status | Rohs Compliant |

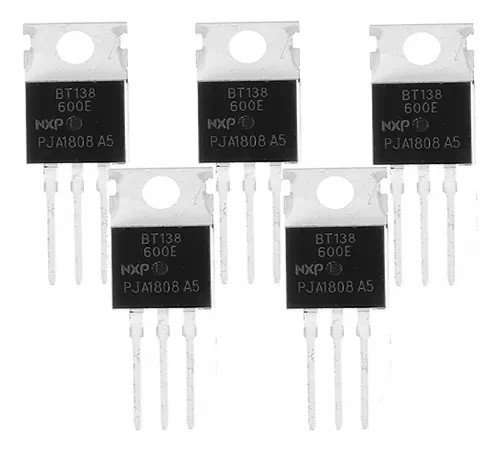

Check the listing for details. 5x BT138-600E BT138 12A 600V Triac Triode Thyristor TO-220 | US Ship. Condition: New. Listed at 9.10 USD. Optimize your electronic circuits with the robust BT138-600E Triac, a versatile 12A, 600V thyristor suitable for a variety of AC applications. ✅Type: Triac Triode Thyristor. ✅Quantity: 5 Pieces.
