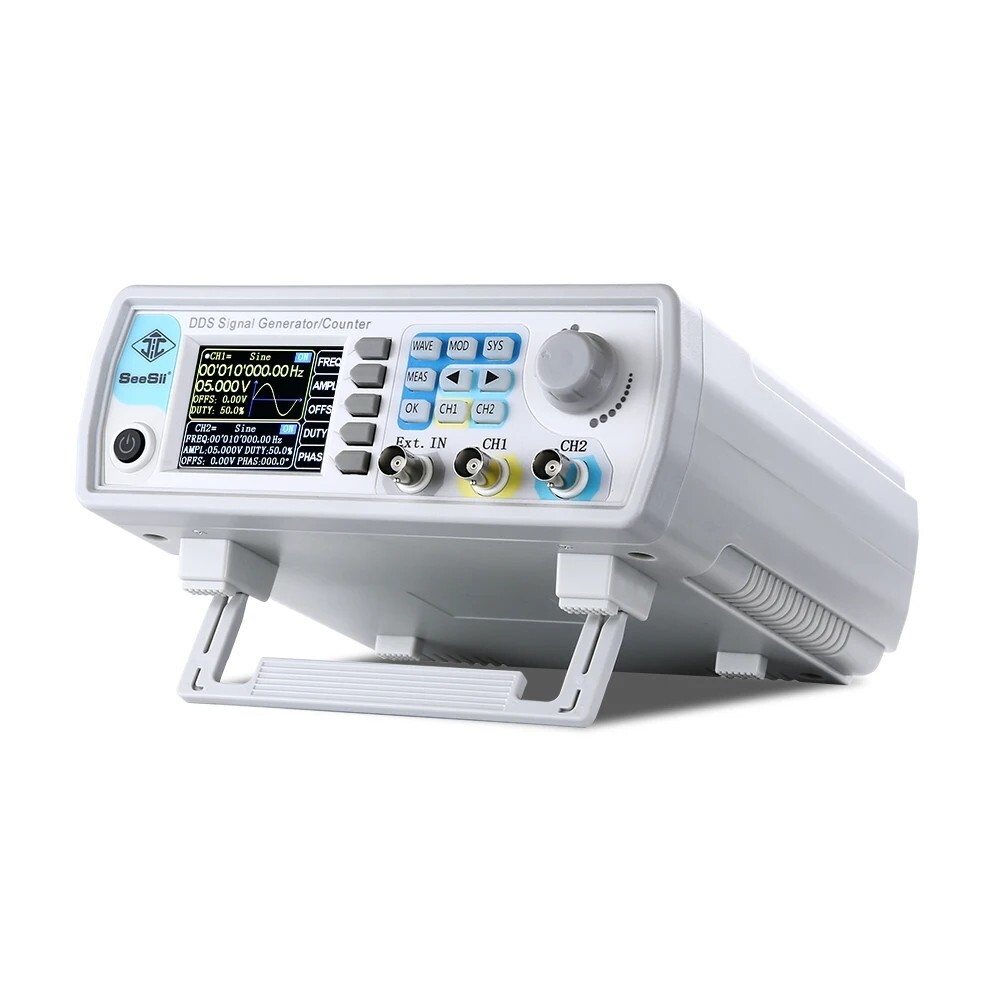

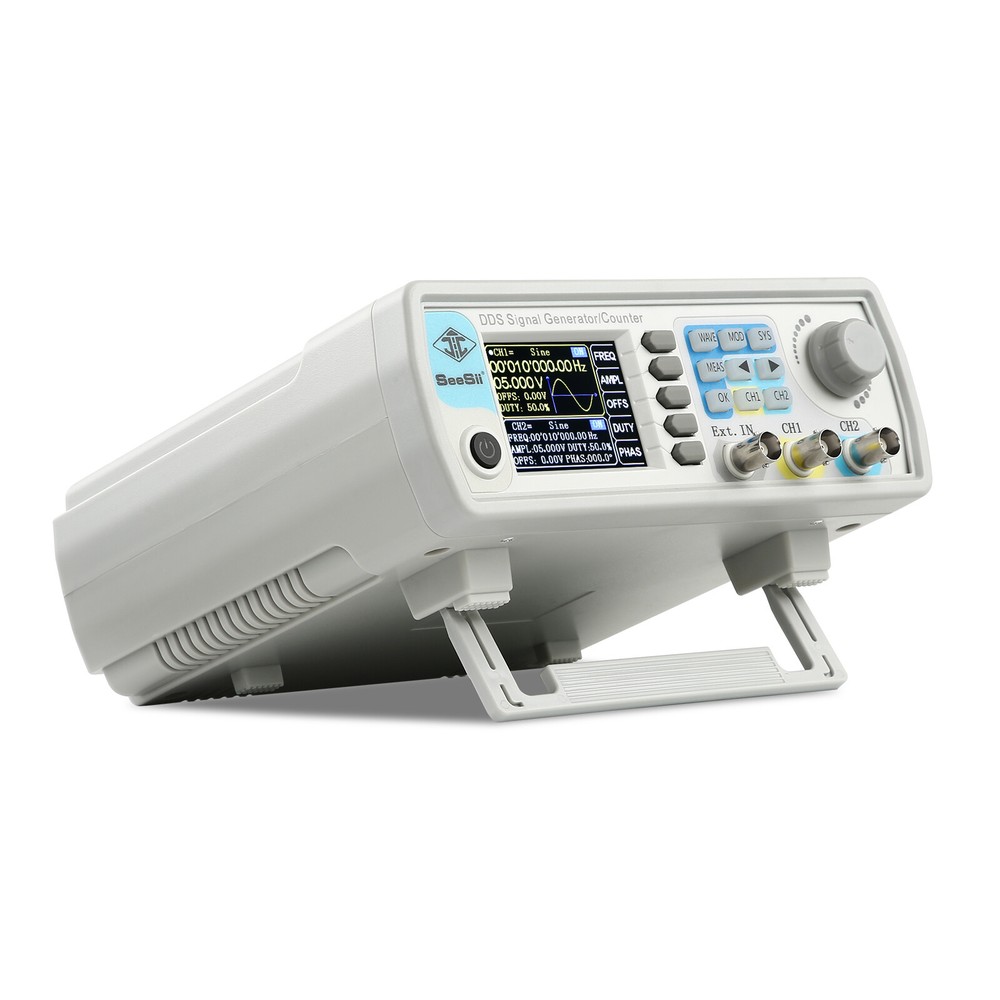

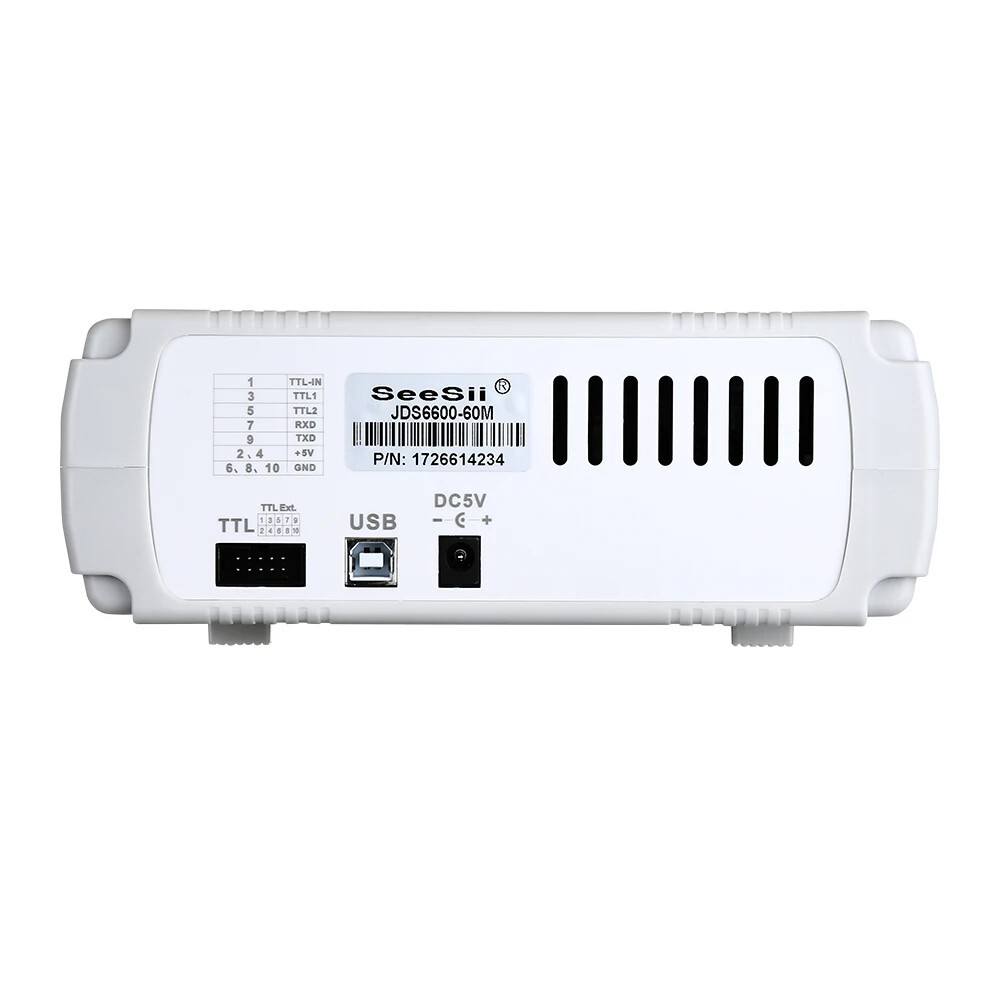

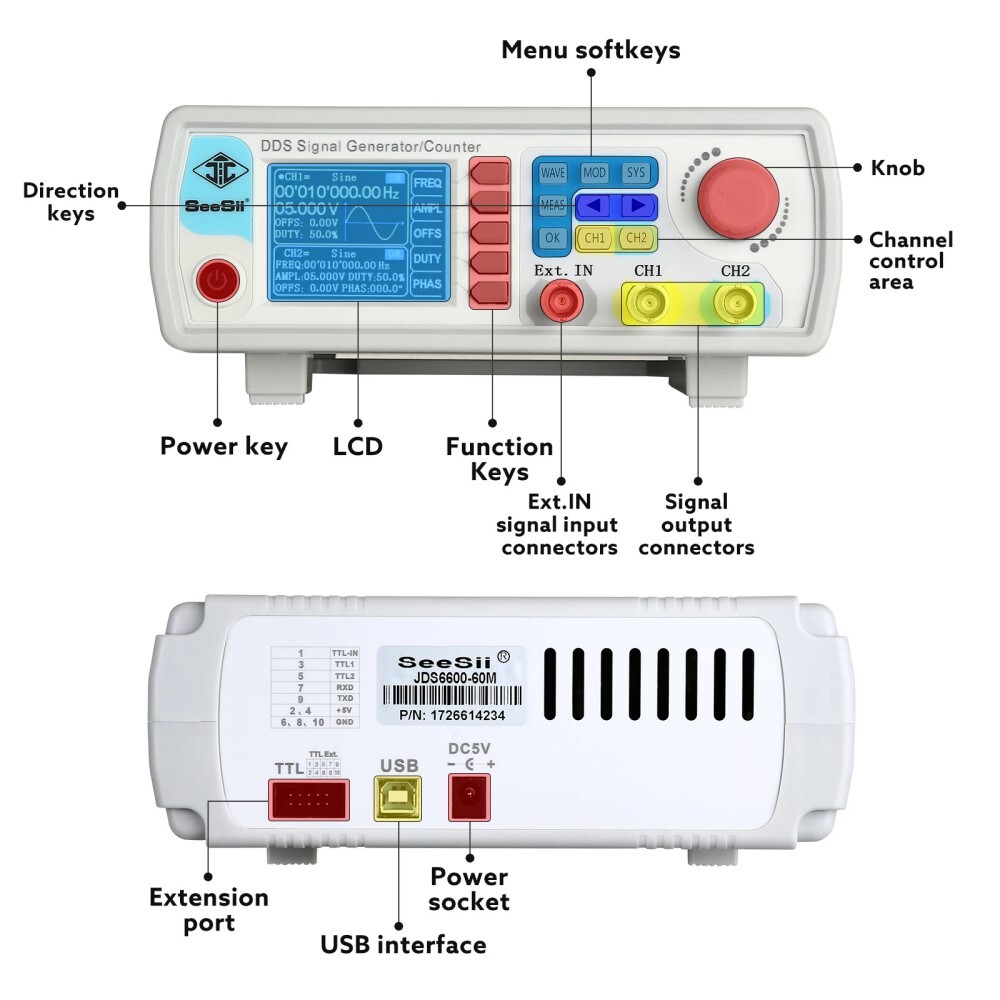

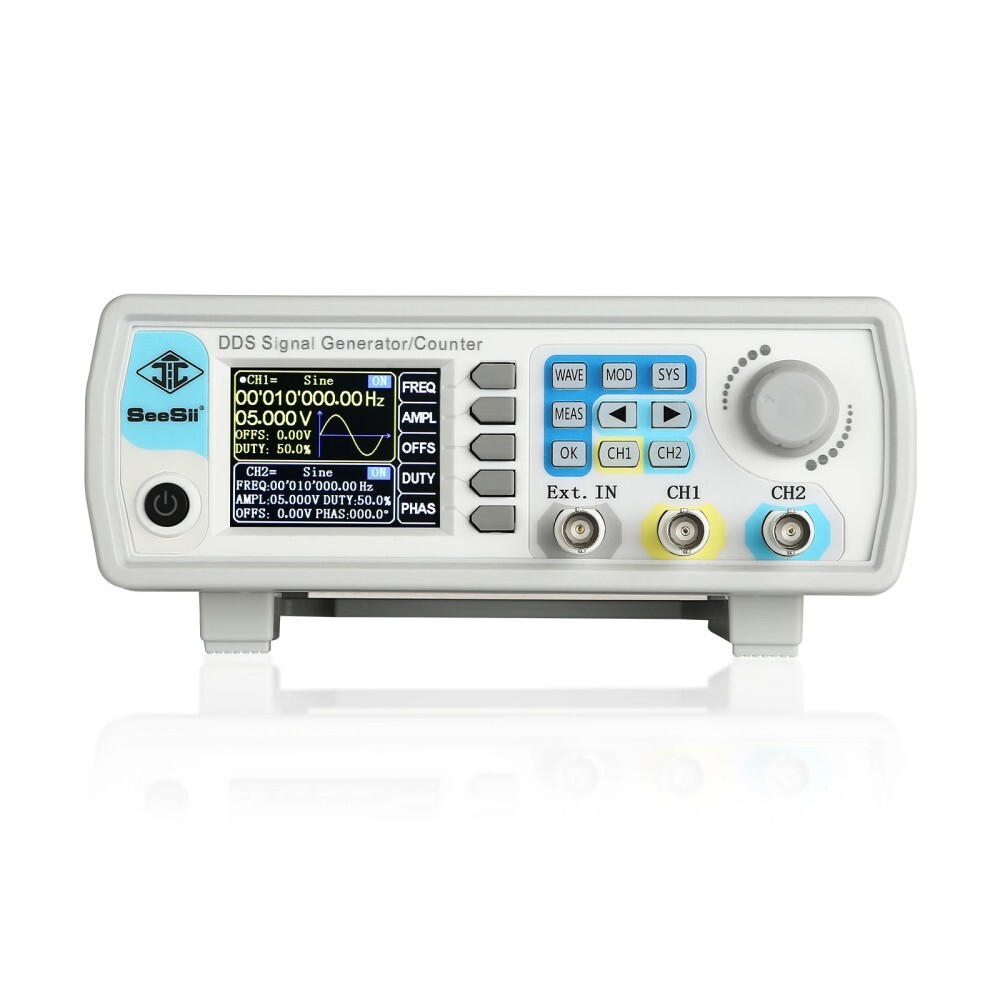

60MHz DDS 2-Channel Arbitrary Function Signal Generator Counter Frequency Meter

Name: 60MHz DDS 2-Channel Arbitrary Function Signal Generator Counter Frequency Meter
SKU: 177611381949
Price: 119.00 USD
Availability: InStock

$59.50

$119.00 -50%

Brand SeeSii

Condition New

Item ID 177611381949

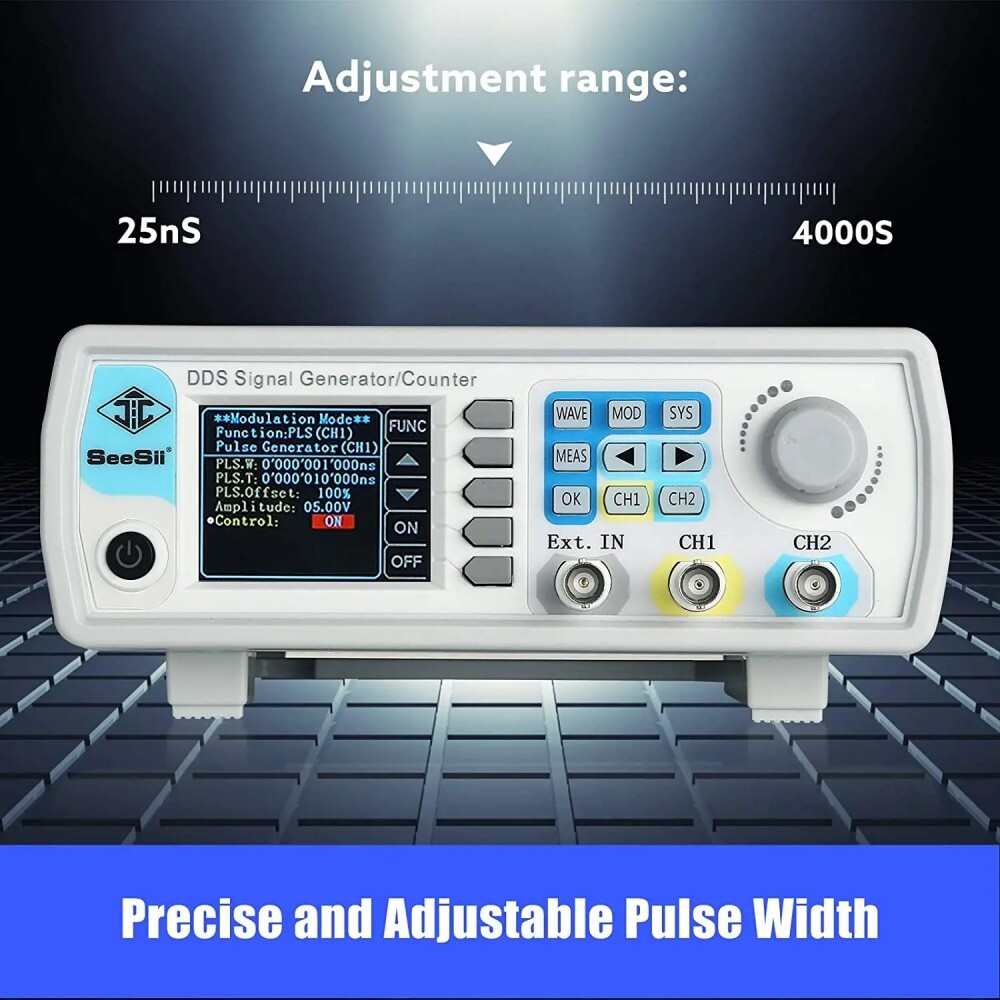

Pulse width adjustment range	30nS~4000S
Frequency measurement range	1Hz~100MHz
Frequency accuracy	±20ppm×10-6
Coupled mode	2kinds Coupling modes, DC and AC
Pulse & Arbitrary & TTL Digital Signal Wave	0~6MHz
Amplitude resolution	1mV
Amplitude stability	±0.5%/5 h
Sine frequency range	0~60MHz
Counting mode	Manual operation
Square & Triangle Wave	0~25MHz
Square rise time	≤15nS
Frequency stability	±1ppm×10-6/3h
Counting region	0-4294967295
Brand	SeeSii
Signal Generator Type	Function Generator
Frequency Range	60MHz
Sampling Rate	200MSa/s
Precision	0.1%
Linear Sweep	Max. up to 999.9s
Frequency Resolution	0.01μHz
Width Adjustment Range	30nS~4000S

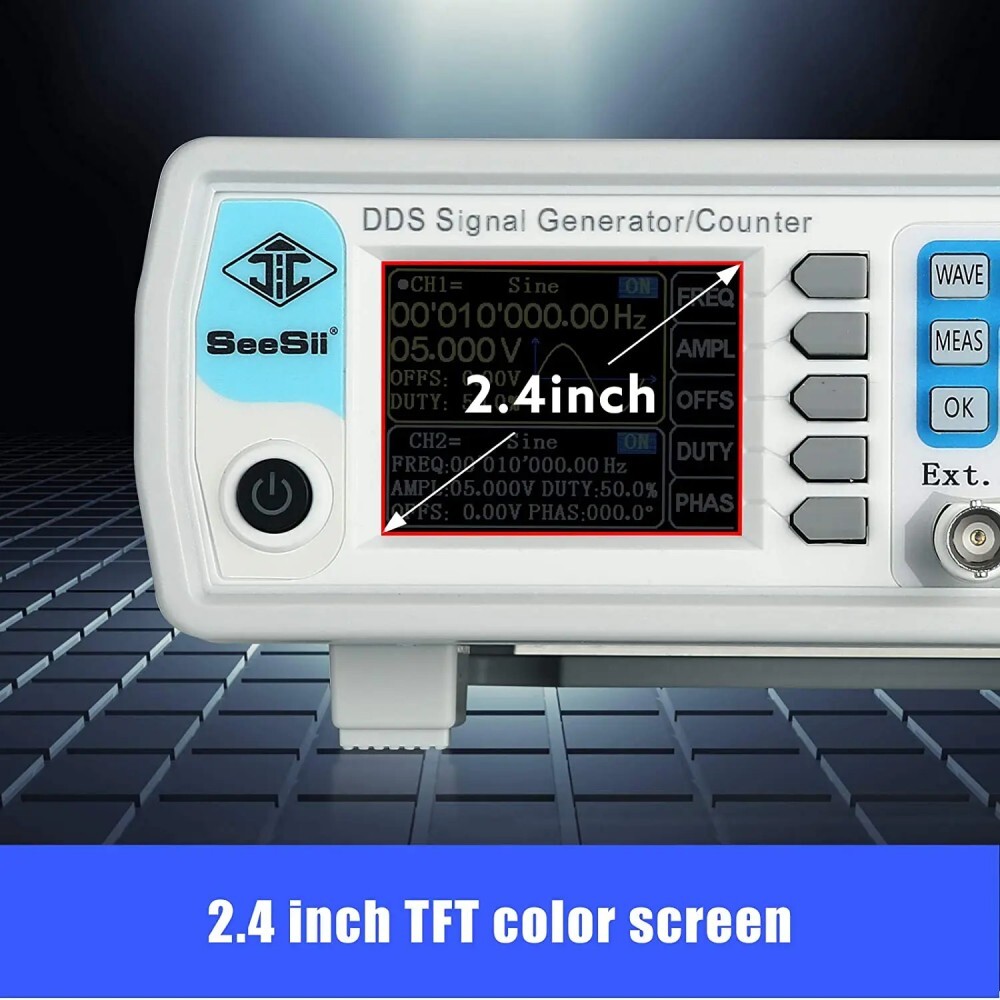

Screen	2.4'' Color Screen
Waveform	Sine, Square, Triangle, Pulse,Partia Sine, CMOS, DC level

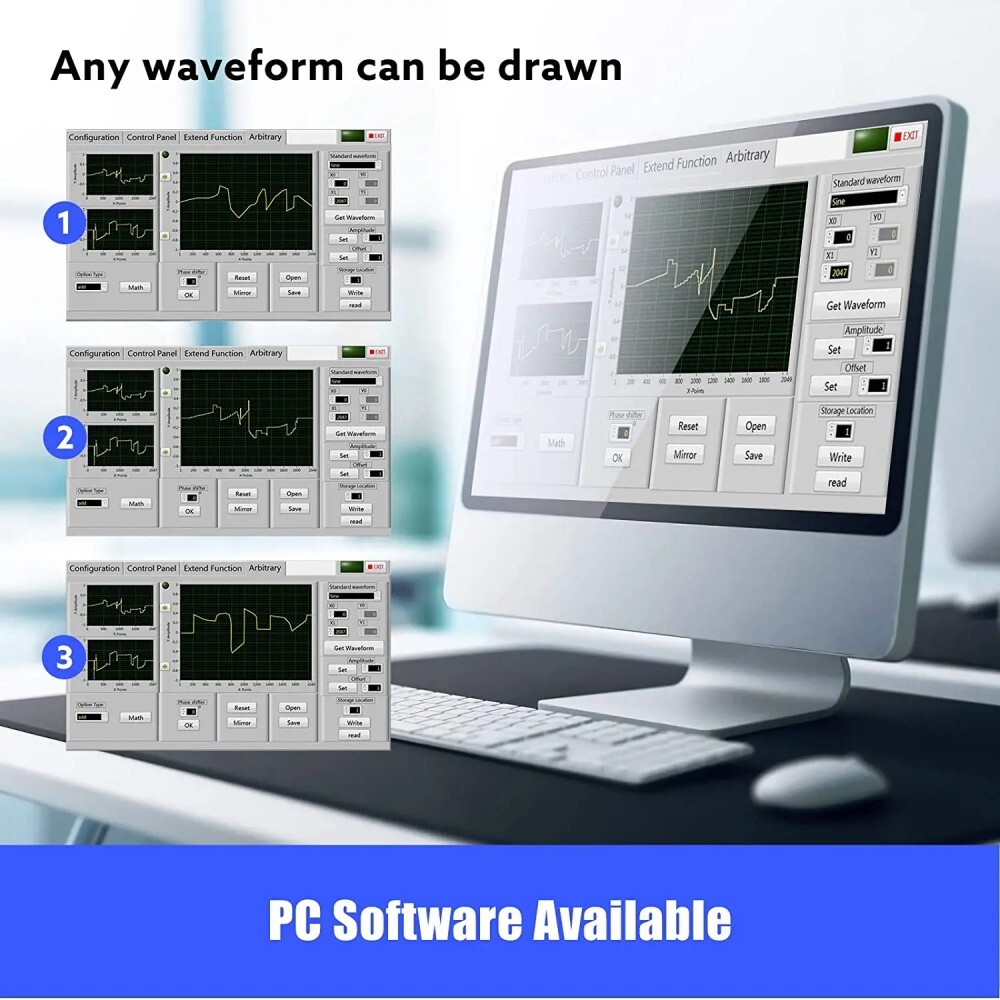

Check the listing for details. 60MHz DDS 2-Channel Arbitrary Function Signal Generator Counter Frequency Meter. Condition: New. Listed at 119.00 USD. Frequency output of Sine wave can be up to 60MHz. 200MSa/s sampling rate. It has 60 positions for saving user-defined waveform. After you save them, you can disconnect the unit from the computer and use them for any applications you wish.
