| Brand | Apex Matched |
| MPN | T-6L6GC-JJ-MQ |
| Compatible Brand | Any |
| Compatible Model | Any |
| Features | None |
| Amplifier Type | Unknown |
| Item Diameter | 38 mm |
| Item Height | 115 mm |
| Body Height | 100 mm |
| Filament Voltage (U<sub>f</sub>) | 6.3 V |
| Filament Current (I<sub>f</sub>) | 0.9 A |
| Plate Voltage, single tube (U<sub>a</sub>) | ≤ 450 V, 250 V typical |
| Plate Voltage, push-pull (U<sub>a</sub>) | ≤ 450 V, 270 V typical |
| Plate Current, single tube (I<sub>a</sub>) | 72 mA |
| Plate Current, push-pull (I<sub>a</sub>) | 134 mA |
| Grid Voltage 1, single tube (U<sub>g1</sub>) | -14 V typical |
| Grid Voltage 2, single tube (U<sub>g2</sub>) | ≤ 450 V, 250 V typical |
| Grid Voltage 1, push-pull (U<sub>g1</sub>) | -17.5 V typical |
| Grid Voltage 2, push-pull (U<sub>g2</sub>) | ≤ 450 V, 270 V typical |
| Grid Current 2, single tube (I<sub>g2</sub>) | 5 mA |
| Grid current 2, push-pull (I<sub>g2</sub>) | 11 mA |
| Plate Dissipation (W<sub>a</sub>) | ≤ 30 W |
| Grid capacitance (c<sub>g1</sub>) | 12.5 pF |
| Plate Capacitance (c<sub>a</sub>) | 10 pF |
| Grid to Plate Capacitance (c<sub>a/g</sub>) | 1.5 pF |
| Type | Vacuum Tube |

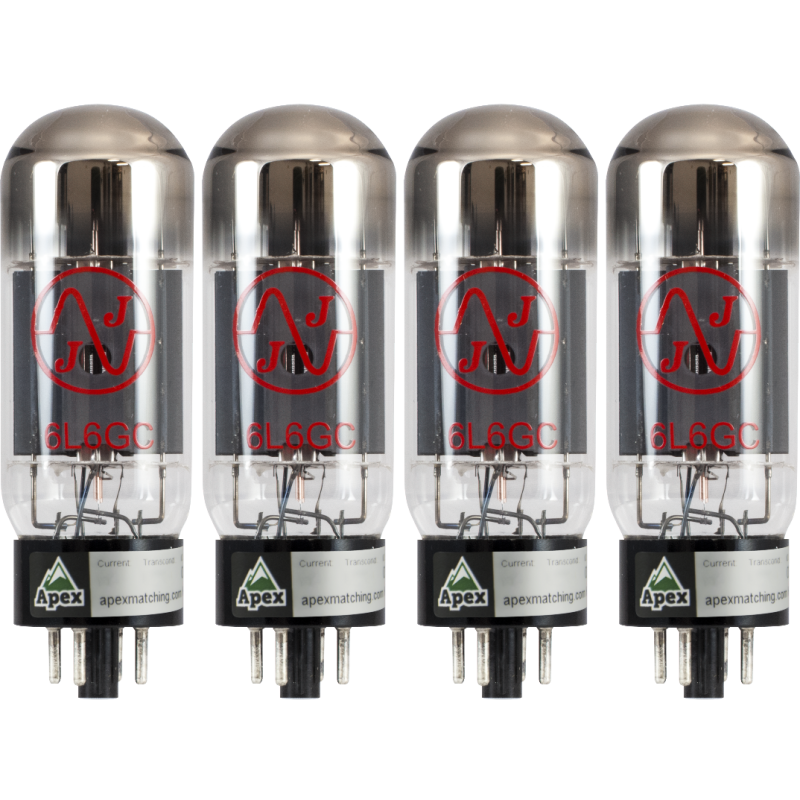

Check the listing for details. Vacuum Tube, 6L6GC, JJ Electronics, Apex Matched Quad, Power. Condition: New. Listed at 113.80 USD. Product Details Vacuum Tube, 6L6GC, JJ Electronics, Apex Matched Quad, Power, Package of 4.0000T-6L6GC-JJ-MQPackage of 4.0000 The JJ Electronic 6L6GC is the classic pentode built with the rugged construction that only JJ could deliver. At 30W, this tube delivers plenty of headroom. The highs are clear and responsive with warm mids and tight solid lows. Known for their reliability and articulation, the JJ 6L6GC is a great option for guitar amplifiers and Hi-Fi stereo equipment. These tubes are matched using Apex Matching. Not what you're looking for? Check out our other products in this category:Vacuum Tubes -> PowerClick here to visit our ebay store's homepage.MeasurementsProduct Measurements:Body Height100 mmFilament Current (If)0.9 AFilament Voltage (Uf)6.3 VGrid capacitance (cg1)12.5 pFGrid current 2, push-pull (Ig2)11 mAGrid Current 2, single tube (Ig2)5 mAGrid to Plate Capacitance (ca/g)1.5 pFGrid Voltage 1, push-pull (Ug1)-17.5 V typicalGrid Voltage 1, single tube (Ug1)-14 V typicalGrid Voltage 2, push-pull (Ug2)≤ 450 V, 270 V typicalGrid Voltage 2, single tube (Ug2)≤ 450 V, 250 V typicalItem Diameter38 mmItem Height115 mmPlate Capacitance (ca)10 pFPlate Current, push-pull (Ia)134 mAPlate Current, single tube (Ia)72 mAPlate Dissipation (Wa)≤ 30 WPlate Voltage, push-pull (Ua)≤ 450 V, 270 V typicalPlate Voltage, single tube (Ua)≤ 450 V, 250 V typicalPackaging Information:Packaging Dimensions3.3 in. x 3.3 in. x 4.6 in.Weight (Packaging)0.5644 lbs.About UsAbout Amplified Parts:Backed by over 30 years of experience serving the electronic hobbyist market, Amplified Parts® provides the parts you need to modify, repair, or build your own audio and musical instrument equipment, from transistor radios to vacuum tube amplifiers, guitar pedals, and modular synthesizers. Our mission is to provide our customers with high quality products from an inventory of over 12,000 unique items, and to share our expertise via our large library of tech articles and equipment build guides.Whether you are building cutting-edge equipment or restoring classic gear with historical accuracy, Amplified Parts® has what you need.We typically ship the same day if your order is placed before 12:00pm Arizona Time Monday through Friday excluding holidays.All packages are insured and we assume responsibility for the shipment until the carrier shows delivery.Click here to visit our ebay storefront.
