| Materials sourced from | China |
|---|---|
| wattage | 90W |
| Is the motor reversible | YES |
| Gear Ratio | 1:5（5K） |
| Torque | 3.2nm |
| geared motor size | 164MM * 90MM *74MM |
| Rated speed | 0-270 RPM |
| Reduction ratio | 1:5(5K) |
| Power Phase | single-phase |
| Power Source | AC |
| Brand | Unbranded |
| Voltage | 110 V |
| Name | geared motor |
| Current Type | AC |
| Nominal Rated Input Voltage | 110 V |
| Reversible/Non-Reversible | Reversible |
| AC Phase | Single Phase |
| Base RPM | 270 RPM |
| Rated/Full-Load Torque | 3.2nm |
| Modified Item | No |

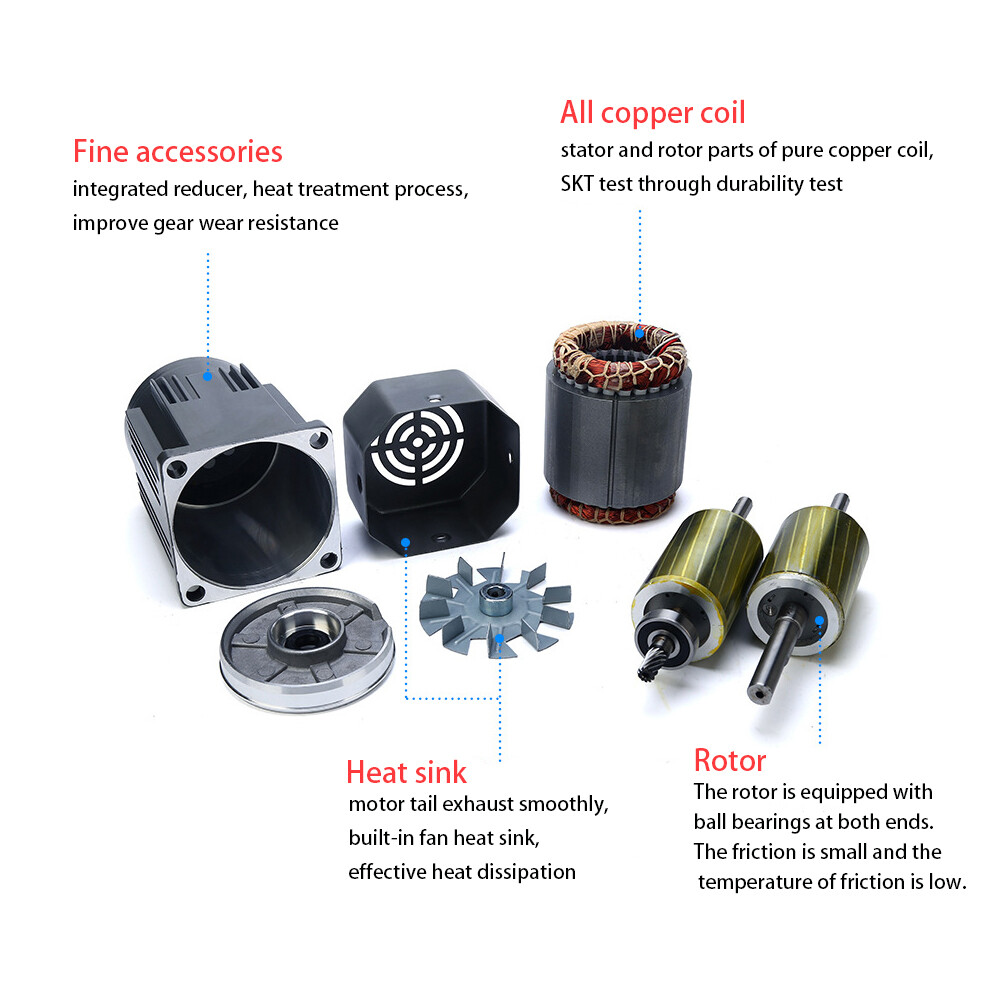

Check the listing for details. 90W 110V AC Gear Motor Electric Variable Speed Controller Torque Single-Phase 5K. Condition: New. Listed at 85.00 USD. 90W 110V gear motor electric motor 1:5 270RPM Warm note: Our products are divided into two packages. If you are short of one package for the time being, please contact our customer service to check whether another package is on the way. Specification: Name: AC gear motor Rated voltage: 110V Rated speed: 0-270 RPM Reduction ratio: 1:5（5K） Torque: 3.2nm Power Phase: single-phase Shaft diameter：12mm geared motor size：164MM * 90MM *74MM Reducer size: 41*90*74mm Features: Flexible installation Efficient works Torque large Smooth operation Long working life Packing list: 1 x motor 1 x reducer 1 x speed controller Note: Under different deceleration ratio, the output shaft speed is different. The output shaft speed is equal to the motor speed of 1350 rpm di.
