Type Flexible Transformer
Brand AccuEnergy

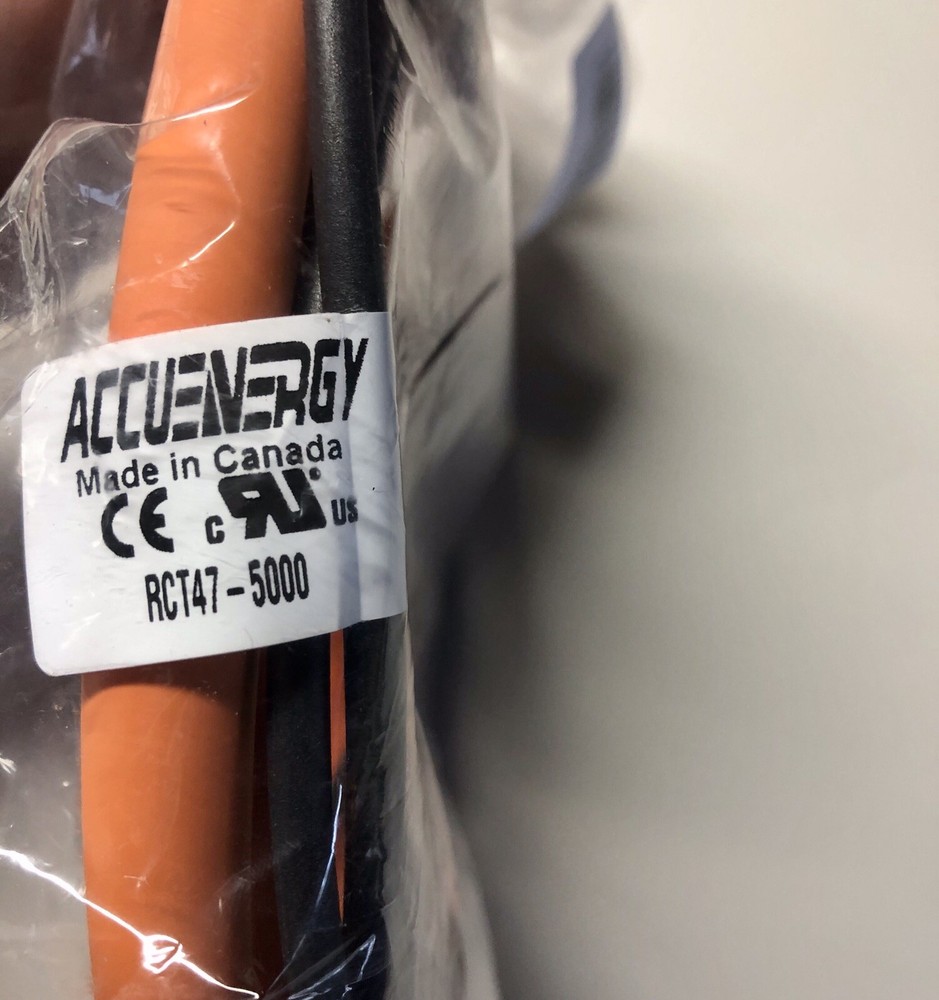

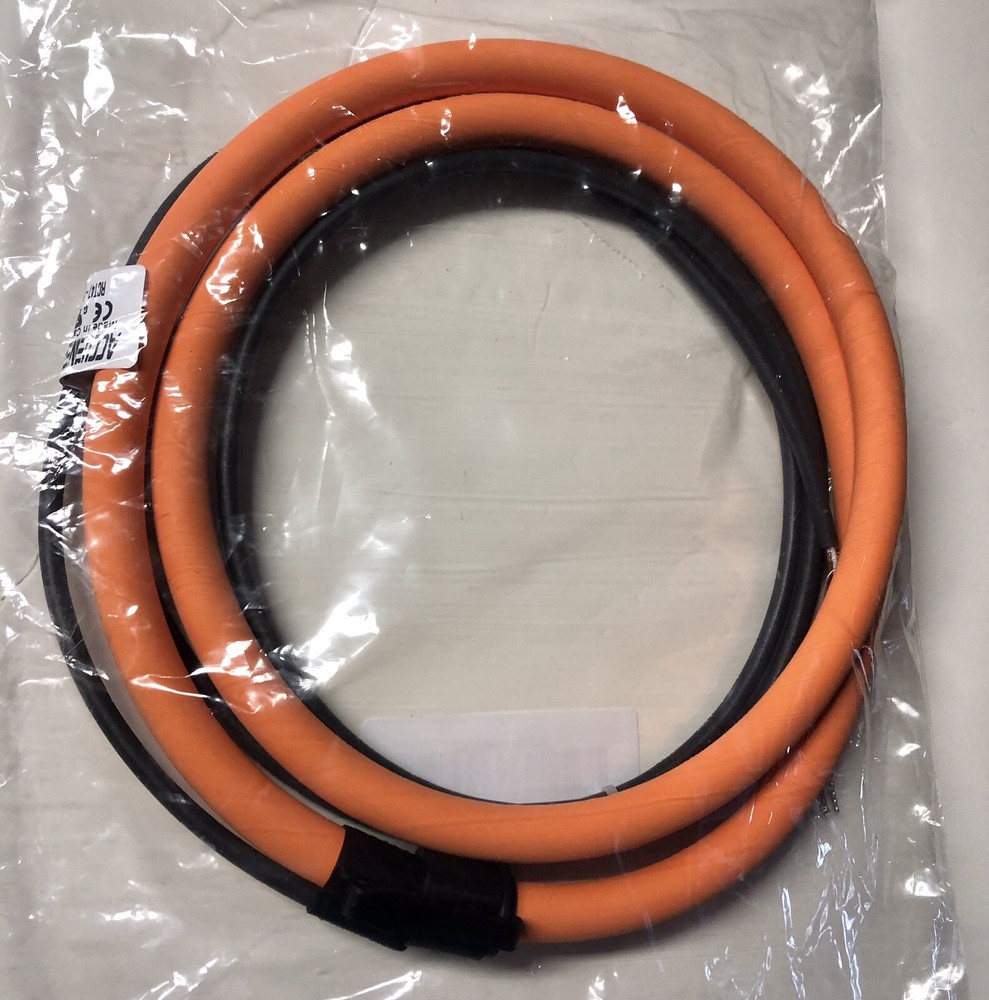

Check the listing for details. AccuEnergy RCT47-5000 (Flexible Rogowski Current Transformer). Condition: New. Listed at 300.00 USD. AccuEnergy RCT47-5000 (Flexible Rogowski Current Transformer) High specification line of flexible AC current transformers for power metering and power quality monitoring such as harmonics, where regular solid or split core current transformers cannot fit. FeaturesRope-like coil allows it to fit into any constrained spatial configuration ranging from panels, wire bundles or irregular sized busMeasure current from 5A to 50,000A on each standard coil0.5% accuracy across the entire range of measurementsWide frequency response range means excellent choice for harmonics and power quality analysisNo external integrator nor power supply needed when used with Acuvim II Series metersUL recognizedSpecifications Current Input Range: 5A to 50,000ACurrent Input Range (when connected to AccuEnergy meters): 25A to 6000A Output Signals: At 50Hz: 20mV At 60Hz: 24mVAccuracy: 0.5% at any pointWindow Diameter Size: 369mm (14.53”)Length of Coil: 1200mm (47.24”)Frequency Range: 20Hz to 5kHzWire Lead Length: 2 m (6.5 ft)Weight: 1.0 lb

$150.00
$300.00
