| Brand | Q-BAIHE |
|---|---|
| Type | weak signal amplifier |
| Model | KWKJ-AD623 |
| UPC | 6256294943040 |
| EAN | 6256294943040 |

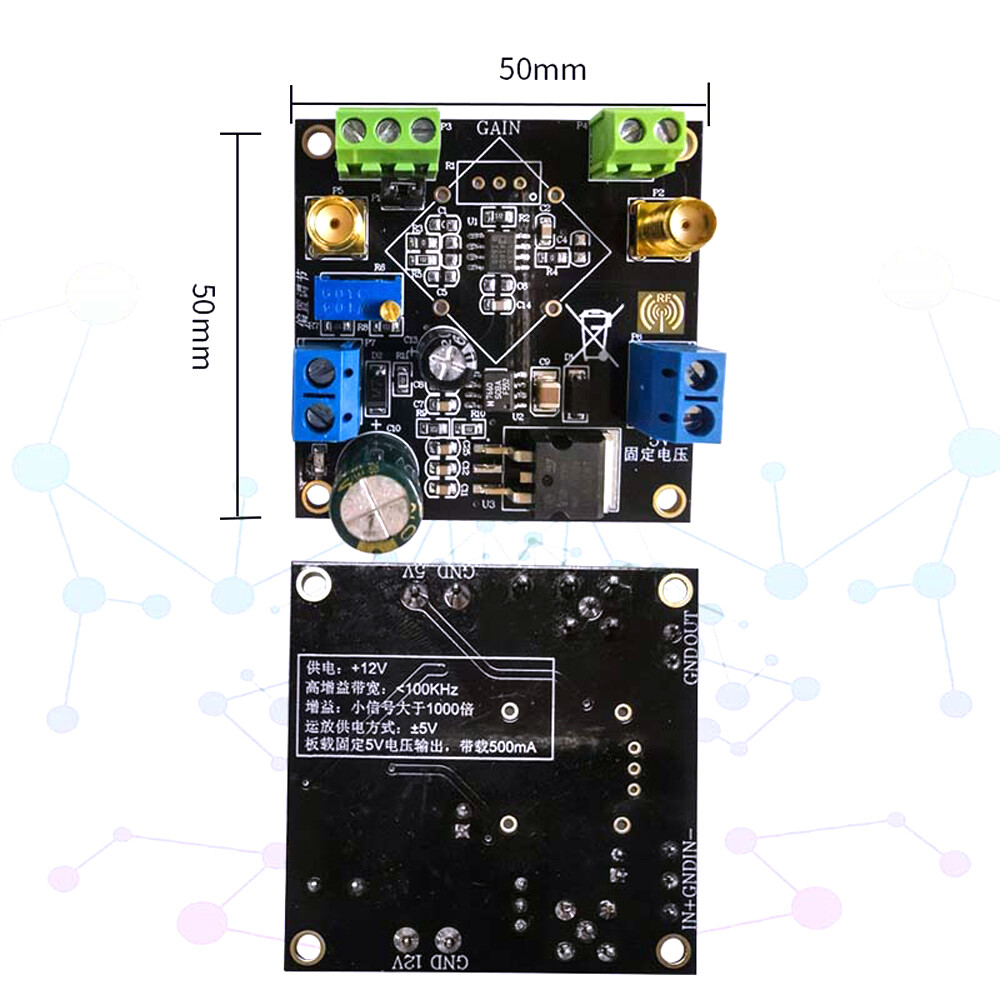

| Size | 50x50x7mm |
| Marke | Q-BAIHE |
| Produktart | KWKJ-AD623 |
| Modell | AD623 |
| Input Voltage Range | 100uV-1Vpp |
| Output Voltage Range | ±5V (MAX) |
| supply voltage | DC6.5V-26V |
| Output Current | 10mA (MAX) |
| Module power supply current | 20mA |
| Module gain range | 1-10000 times (adjustable sliding) |
| Input offset voltage | 200uV (MAX) |
| Bias voltage adjustment range | ±2V (MAX) |
| Input offset drift | 2uV/℃(MAX) |
| Input bias current | 125mA (MAX) |
| Common mode rejection ratio | 90dB (MIN, G=10) |
| Input voltage noise | 35nV √Hz |

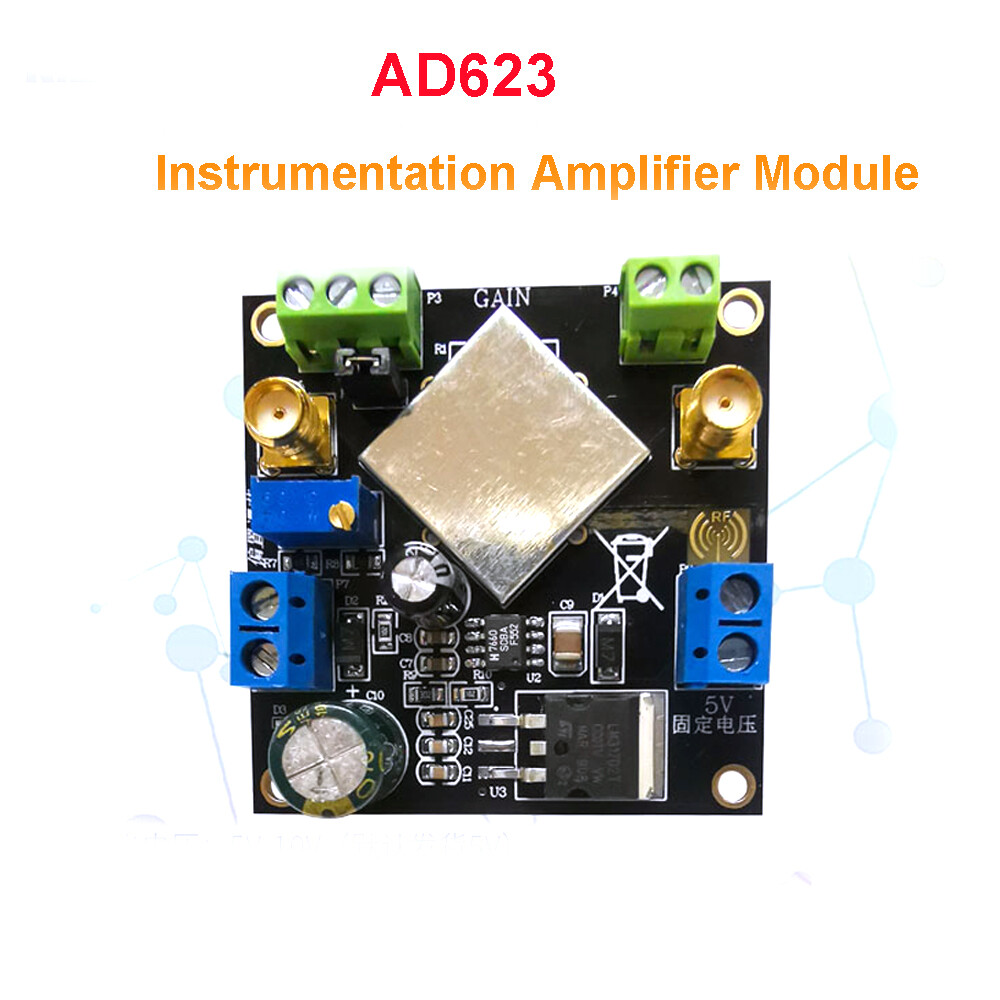

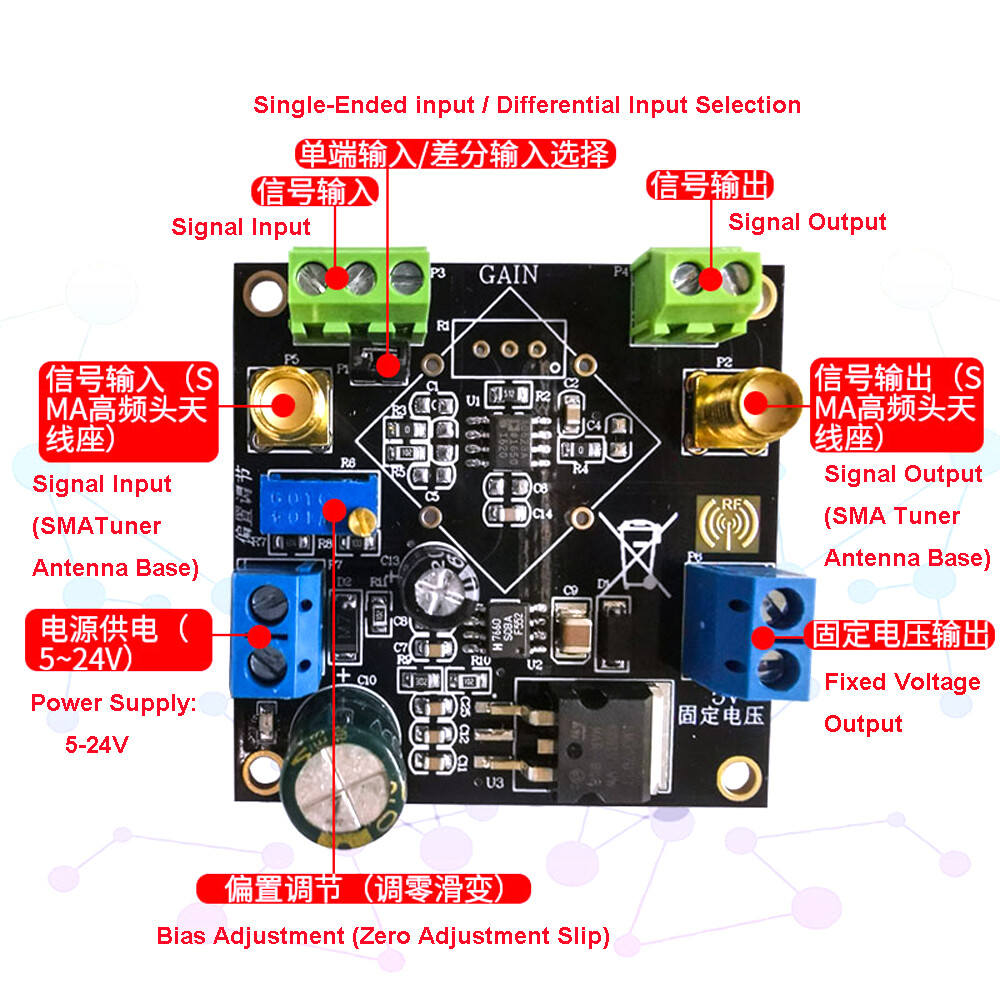

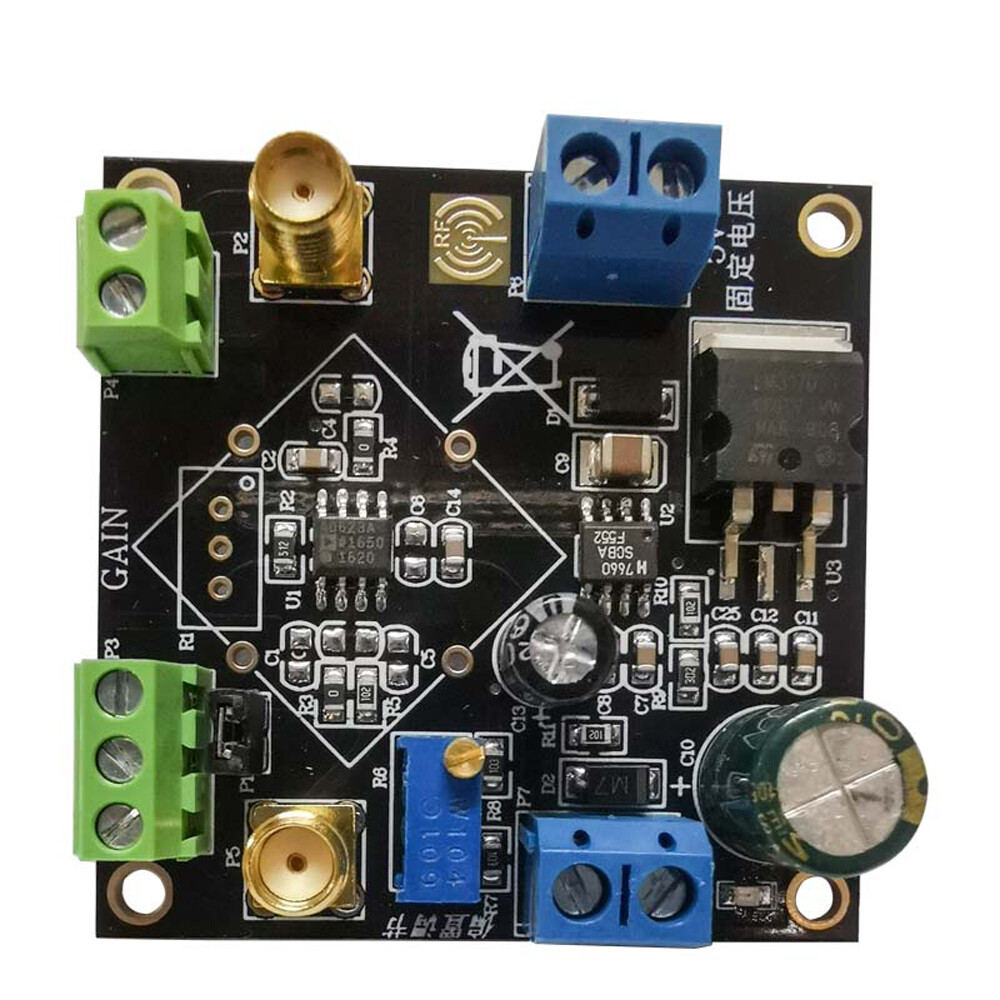

Check the listing for details. AD623 Voltage Amplifier Adjustable Single Power Supply Differential Small Signal. Condition: New. Listed at 25.12 USD. AD623 Module type: Weak signal amplifier. Q: The module is single-ended by default. What should I do if I need to input a differential signal?. Module working temperature: -40℃ - +75℃ (industrial grade) Module features: output power LED indication, output 5V linear power.
