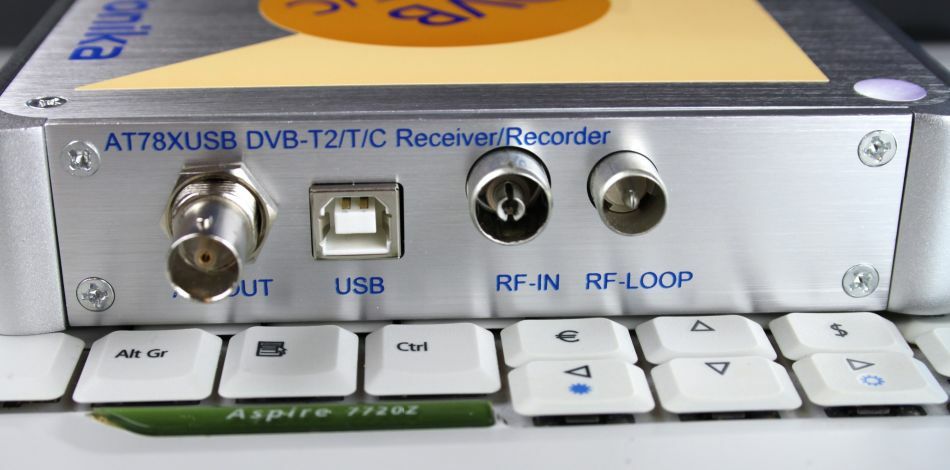

Check the listing for details. Alitronika AT78XUSB DVB-T2/T/C Receiver, Demodulator, Recorder & Converter. Condition: New. Listed at 495.00 USD. AT78XUSB Multi Standard Receiver/Recorder/Converter DVB-T2/T/C to USB & DVB-ASI Powered from USB port Free Application Software Standard Features: Multi-Standard DVB-T2/T/C Receiver, Recorder & Converter Supports 6, 7 & 8 MHz Bandwidth High Speed USB 2.0 Windows Drivers + SDK Linux Drivers Free Application Software, DVSStation3 Input DVB-T2/T/C Compliant COFDM Reception Input Frequency Range: - High Band: 434.0 MHz to 858.0 MHz. - Mid Band: 149.5 MHz to 426.0 MHz. - Low Band: 50.5 MHz to 142.5 MHz. Modulation Modes: - DVB-T/T2: QPSK, 16QAM, 64QAM - DVB-C: 64QAM, 128QAM, 256QAM Guard Interval: 1/4, 1/8, 1/16, 1/32 Supports hierarchical & non-hierarchical Supports 188, 204 Transport Packet Sizes Output RF Loop Through Output DVB-ASI Output Supports DVB According to Standard A1010 Rev1 and EN50083 Application: Targeted for Digital Video Professionals, Sophisticated End Users and OEMs the AT78XUSB is an ideal solution for a number of applications such as: Development Tools DVB to IP Gateway DVB-T2/T/C to DVB-ASI/SPI Conversion MPEG-II Transport Stream Recording,Monitoring & Processing Specification: On Board Buffer:8 Mbytes RF Tuner Connector: - 75 Ohms IEC female Type Loop Through Connector: - 75 Ohms IEC male Type Input Frequency Range: - High Band: 434.0 MHz to 858.0 MHz - Mid Band: 149.5 MHz to 426.0 MHz - Low Band: 50.5 MHz to 142.5 MHz Channel Bandwidth: 6, 7 & 8 MHz RF Sensitivity: -80dBm COFDM Spectrum: 2k and 8k carriers Standards: DVB-T2/T/C compliant Modulation Modes: - DVB-T/T2: QPSK, 16QAM, 64QAM - DVB-C: 64QAM, 128QAM, 256QAM Guard Interval Modes: 1/4, 1/8, 1/.16, 1/32 DVB-ASI Connector: 75 Ohms BNC. Output Signal level: 1.0Vp-p nominal DVB-ASI Output Bit Rate: 0 to 214 Mbit/s DVB-SPI Output Bit Rate: 0 to 108 Mbit/s DVB-ASI Output Clock: 270 MHz
