| MPN | 2466C |
|---|---|
| Item Length | 50 ft |
| Wire Gauge | 22 |
| Sheath Color | Gray |
| Brand | Alpha Wire |
| Insulation Material | Polypropylene (PP) |
| Type | Multiple Conductor Cable |
| Wire Style | Stranded |
| Voltage | 300V |
| Model | 2466C |
| Per Item Length Quantity | 50 Foot |
| Conductor Material | Stranded Tinned Copper |
| Jacket Color | Gray |
| Application | Industrial |
| Country of Origin | Mexico |
| Number of Conductors | 4 |
| UPC | NA |

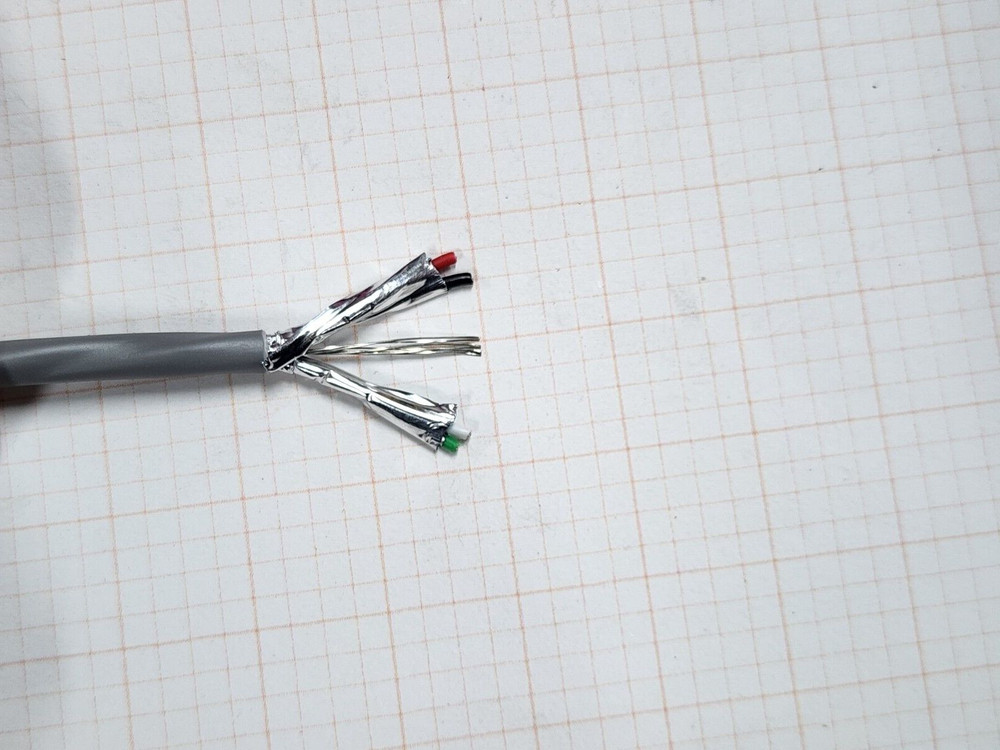

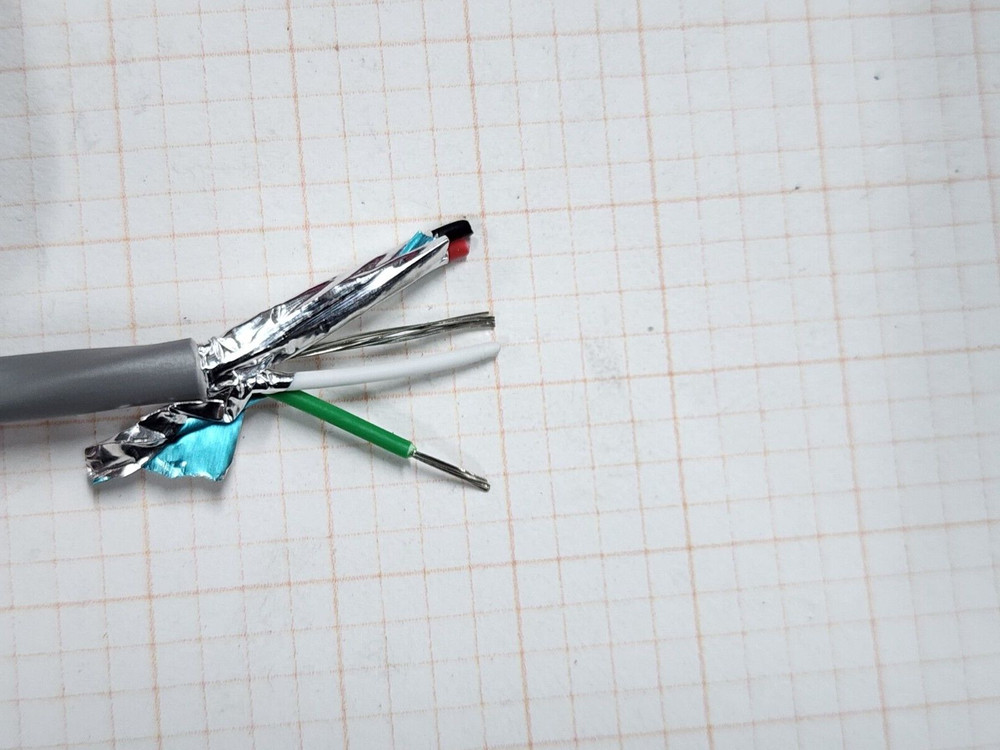

Check the listing for details. Alpha Wire 2466C 22/2P Individually Shielded Twist Pair Control Cable Gray /50ft. Condition: New, Made in Mexico. Listed at 59.99 USD. It consists of x2 twisted pairs (min 4.4 twists/ft) of color-coded PP (PolyPropylene) insulated 22awg stranded (7x30 stranding) tinned copper conductors, with each pair covered with a foil shield (125% coverage aluminum foil/mylar tape backing with foil side facing out, with both pairs then cabled/twisted together at min. ).
