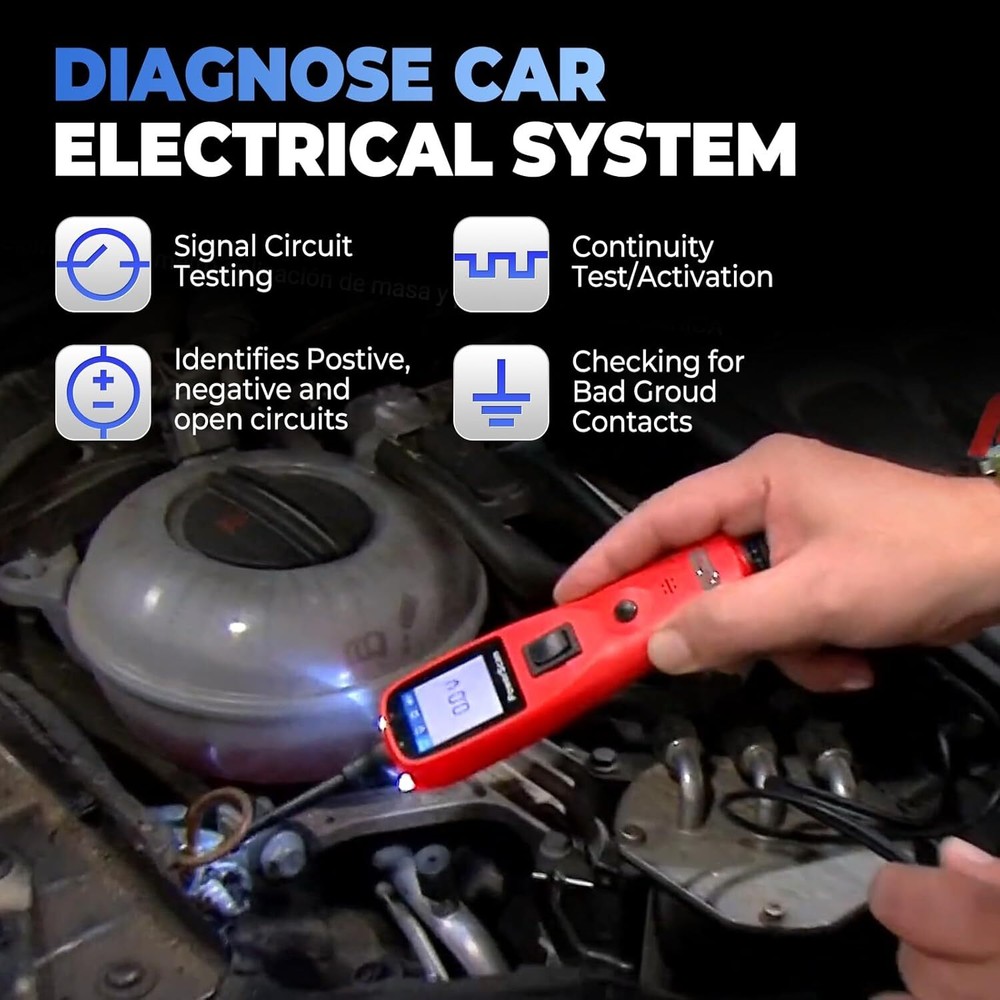

Autel PowerScan PS100 Circuit Tester Electrical Diagnostic Power Probe 12V/24V

Name: Autel PowerScan PS100 Circuit Tester Electrical Diagnostic Power Probe 12V/24V
SKU: 127140058509
Price: 89.00 USD
Availability: InStock

$44.50

$89.00 -50%

Brand Autel

Condition New

Item ID 127140058509

Volt	6- to 30-volt vehicle electrical systems
Modified Item	No
Country/Region of Manufacture	China
Custom Bundle	No

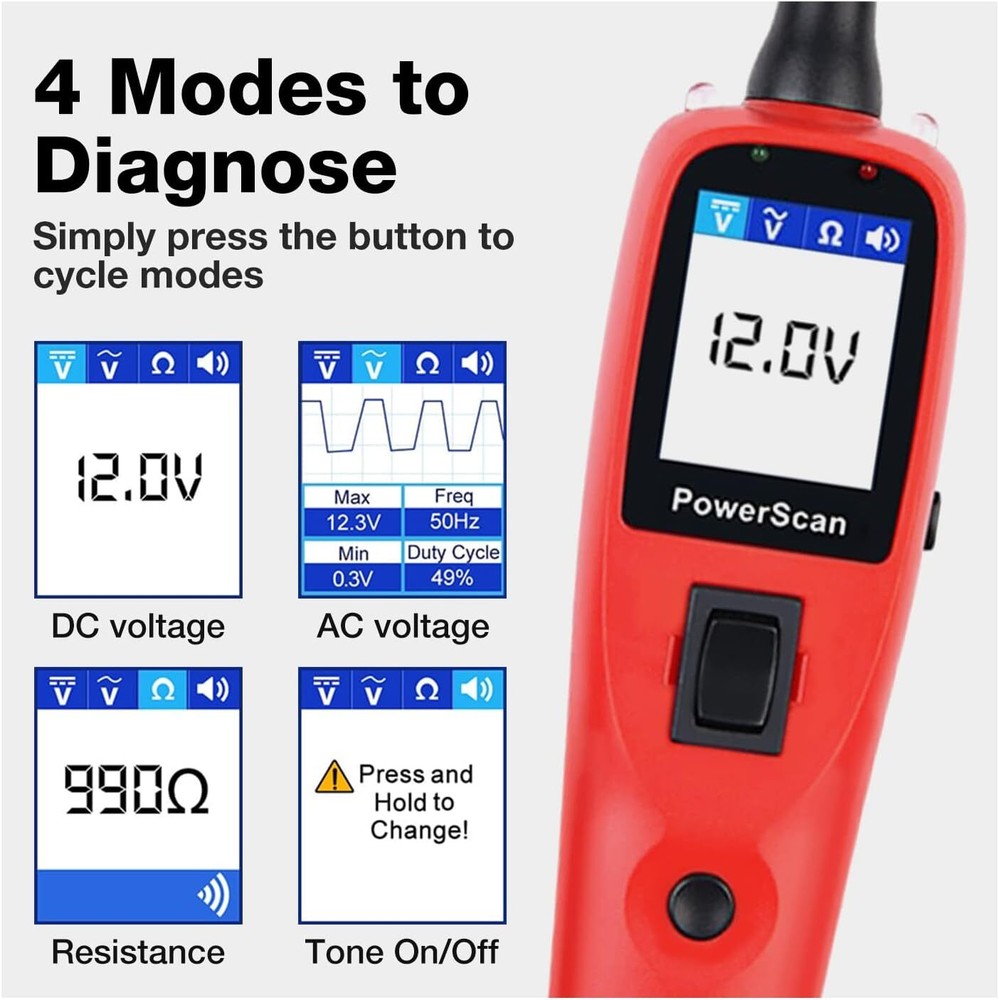

Features	Digital Display, Relay & Component Testing, Continuity Testing, AVOmeter, test light, built-in flashlight, short circuit indicator, bad ground indicator, power injection, measurement, ground testing, polarity checks, components activation, Circuit breaker protected, Audio tone indicator, VOLTAGE & POLARITY TESTING, SIGNAL CIRCUIT TESTING, TESTING TRAILER LIGHTS AND CONNECTIONS, ACTIVATING COMPONENTS IN THE VEHICLE, ACTIVATING COMPONENTS W/GROUND, FOLLOWING & LOCATING SHORT CIRCUITS, DUTY CYCLE, LONG CABLE, Voltmeter, Red/Green Polarity LED
Manufacturer Part Number	KZYEE KM10 KM50 PB100
Vehicle Type	Passenger Vehicle, Heavy Duty/Commercial
Accessories	Carrying Case, Probes, User Guide
Brand	Autel
Non-Domestic Product	No
Warranty	5 Year
Display	TFT color display (160 x 128 dpi)
Operating Temperature	0 to 60°C (32 to 140°F)
External Power	12.0 or 24.0 V power provided via vehicle battery
Length\Width\Height	126mm(4.96”)\46.5mm(1.83”)\35mm(1.38”)
NW	0.105kg (0.23lb),GW: 0.726 kg(1.6lb)
Model	Autel PowerScan PS100
similarmodels	PT101 BT705 BST500 Power Probe 3 III Circuit Tester
Storage Temperature	-40 to 70°C (-40 to 185 F°)
Dimensions	126 mm (4.96”)x46.5 mm (1.83”)x35 mm (1.38”)
DC voltage range	0-65V +1 digit
Resistance range	0 – 200 KΩ
Frequency response of tone pass through	0Hz to 10Khz
Circuit Breaker Rating current	1 – 10 Amp
About Diode Testing	poor ground contact instantly W/O performing voltage drop test

Check the listing for details. Autel PowerScan PS100 Circuit Tester Electrical Diagnostic Power Probe 12V/24V. Condition: New. Listed at 89.00 USD. It also performs continuity tests, diagnoses circuit failures, checks good and bad grounds, and reads AC/DC current. Easily test and diagnose various electrical components, including lights, motors, wipers, radiator fans, and relays.
