Autel PowerScan PS100 Circuit Tester Electrical Diagnostic Power Probe 12V / 24V

Name: Autel PowerScan PS100 Circuit Tester Electrical Diagnostic Power Probe 12V / 24V
SKU: 389350412321
Price: 89.00 USD
Availability: InStock

$44.50

$89.00 -50%

Brand Autel

Condition New

Item ID 389350412321

Country of Origin	China
Volt	6- to 30-volt vehicle electrical systems
Modified Item	No
Custom Bundle	No

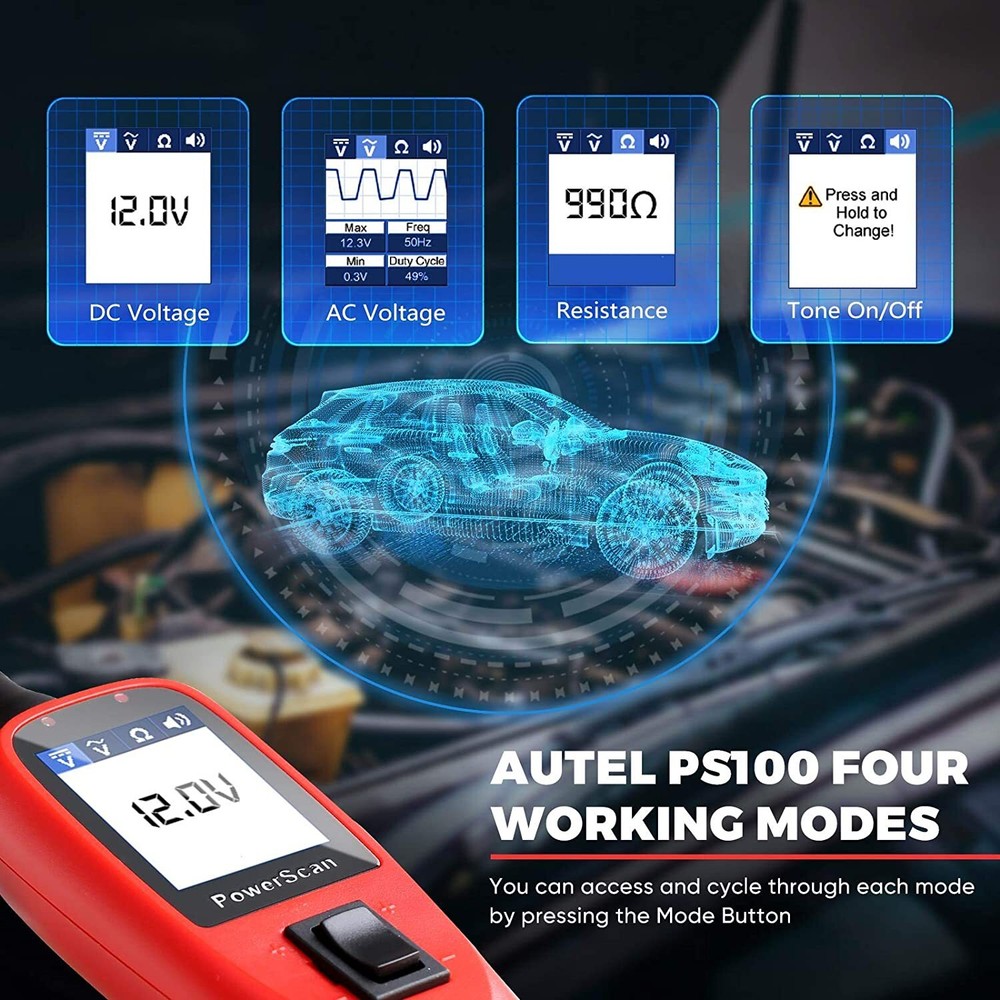

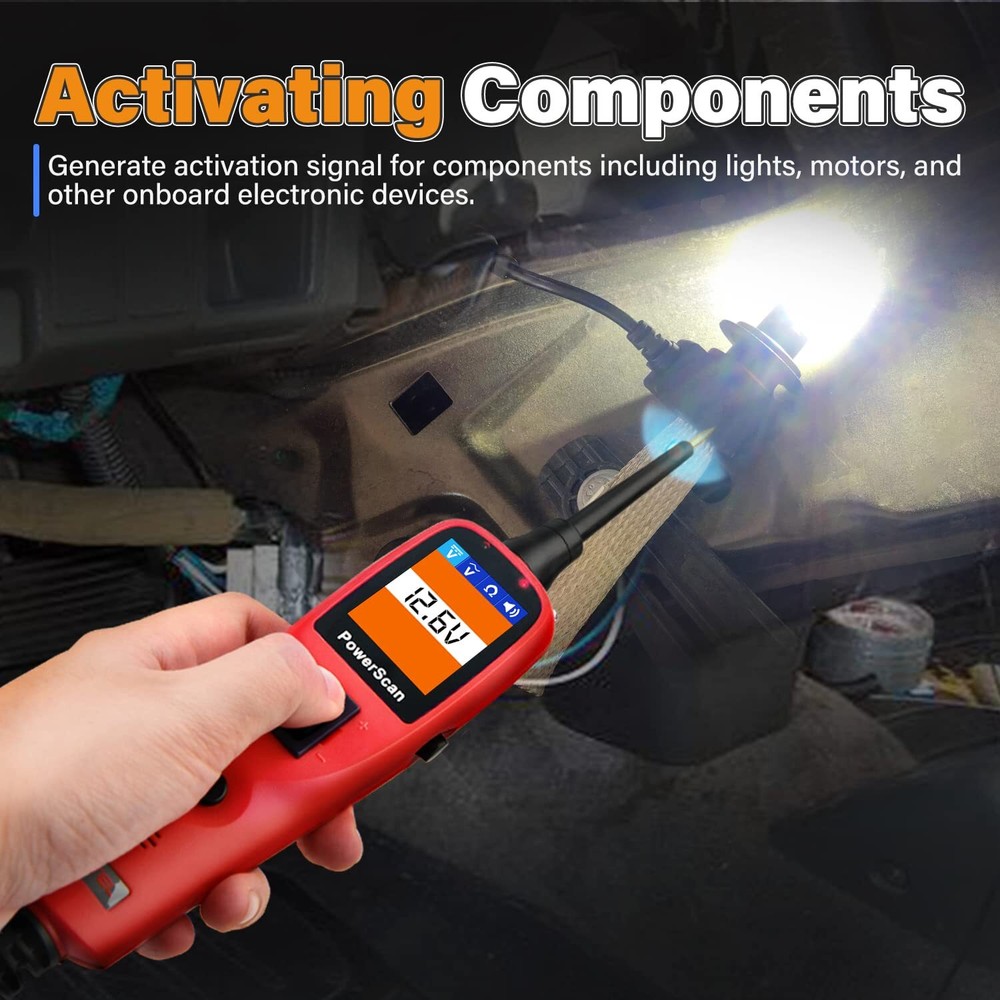

Features	Digital Display, Relay & Component Testing, Continuity Testing, AVOmeter, test light, built-in flashlight, short circuit indicator, bad ground indicator, power injection, measurement, ground testing, polarity checks, components activation, Circuit breaker protected, Audio tone indicator, VOLTAGE & POLARITY TESTING, SIGNAL CIRCUIT TESTING, TESTING TRAILER LIGHTS AND CONNECTIONS, ACTIVATING COMPONENTS IN THE VEHICLE, ACTIVATING COMPONENTS W/GROUND, FOLLOWING & LOCATING SHORT CIRCUITS, DUTY CYCLE, LONG CABLE, Voltmeter, Red/Green Polarity LED
Manufacturer Part Number	KZYEE KM10 KM50 PB100
Vehicle Type	Passenger Vehicle, Heavy Duty/Commercial

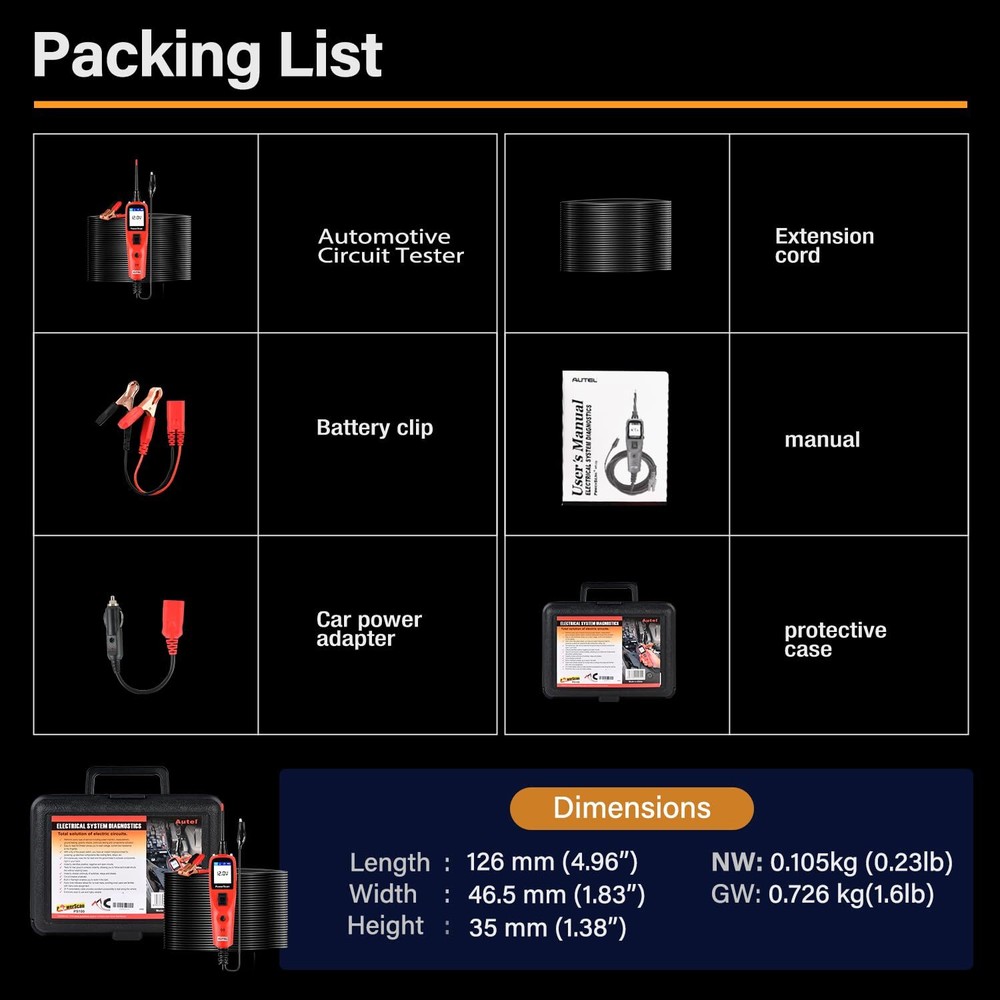

Accessories	Carrying Case, Probes, User Guide
Brand	Autel
Non-Domestic Product	No
Warranty	1 Year
Display	TFT color display (160 x 128 dpi)
Operating Temperature	0 to 60°C (32 to 140°F)
External Power	12.0 or 24.0 V power provided via vehicle battery
Length\Width\Height	126mm(4.96”)\46.5mm(1.83”)\35mm(1.38”)
NW	0.105kg (0.23lb),GW: 0.726 kg(1.6lb)
Model	Autel PowerScan PS100
similarmodels	PT101 BT705 BST500 Power Probe 3 III Circuit Tester
Storage Temperature	-40 to 70°C (-40 to 185 F°)
Dimensions	126 mm (4.96”)x46.5 mm (1.83”)x35 mm (1.38”)
DC voltage range	0-65V +1 digit
Resistance range	0 – 200 KΩ
Frequency response of tone pass through	0Hz to 10Khz
Circuit Breaker Rating current	1 – 10 Amp
About Diode Testing	poor ground contact instantly W/O performing voltage drop test

Check the listing for details. Autel PowerScan PS100 Circuit Tester Electrical Diagnostic Power Probe 12V / 24V. Condition: New, Made in China. Listed at 89.00 USD. If it is an open circuit, the LED light will not light. Besides, sharp stainless steel probe for piercing wires effortlessly, also for hard to reach tight areas. 🎄【Overload Protection & Quick Self Test】 10 Amp Circuit Breaker built-in to protect the tool from overload.
