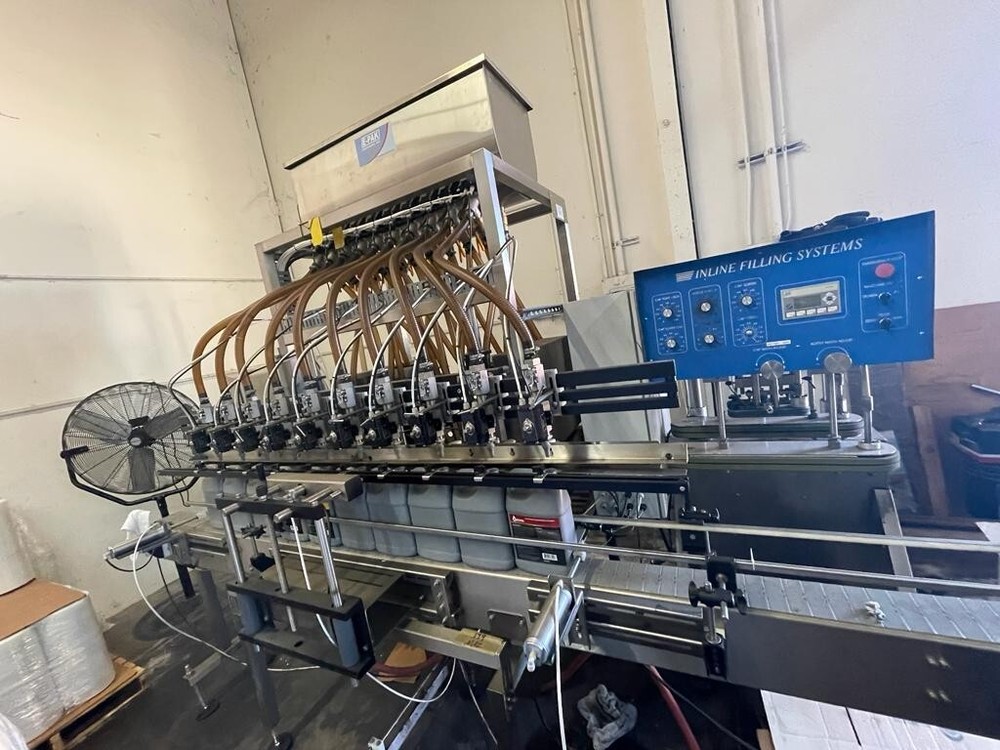

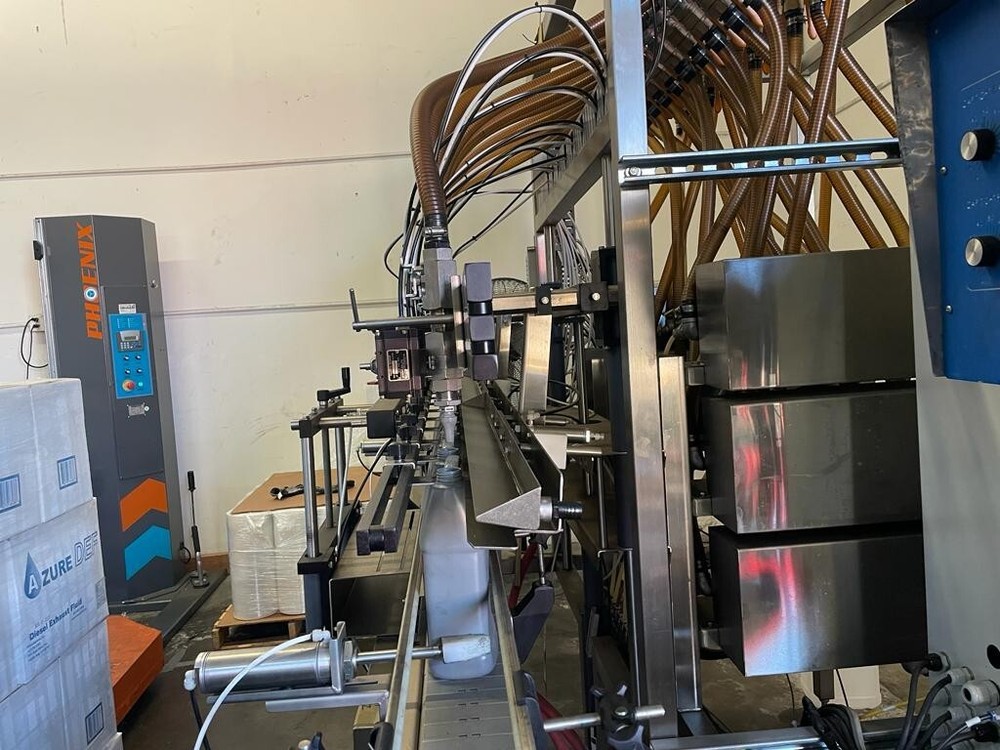

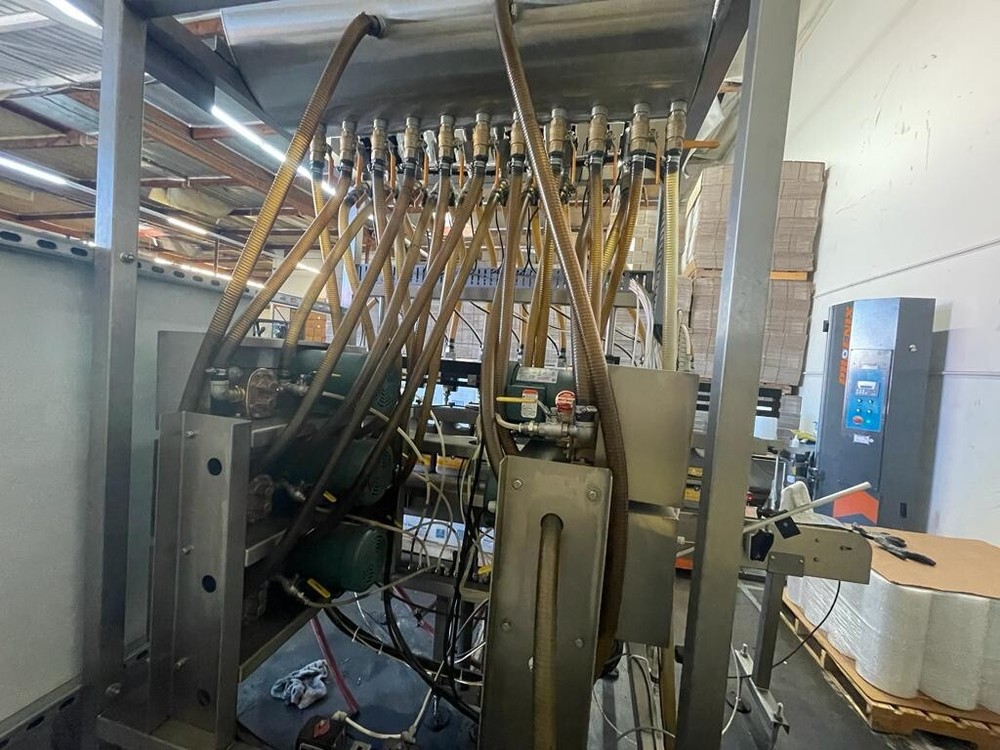

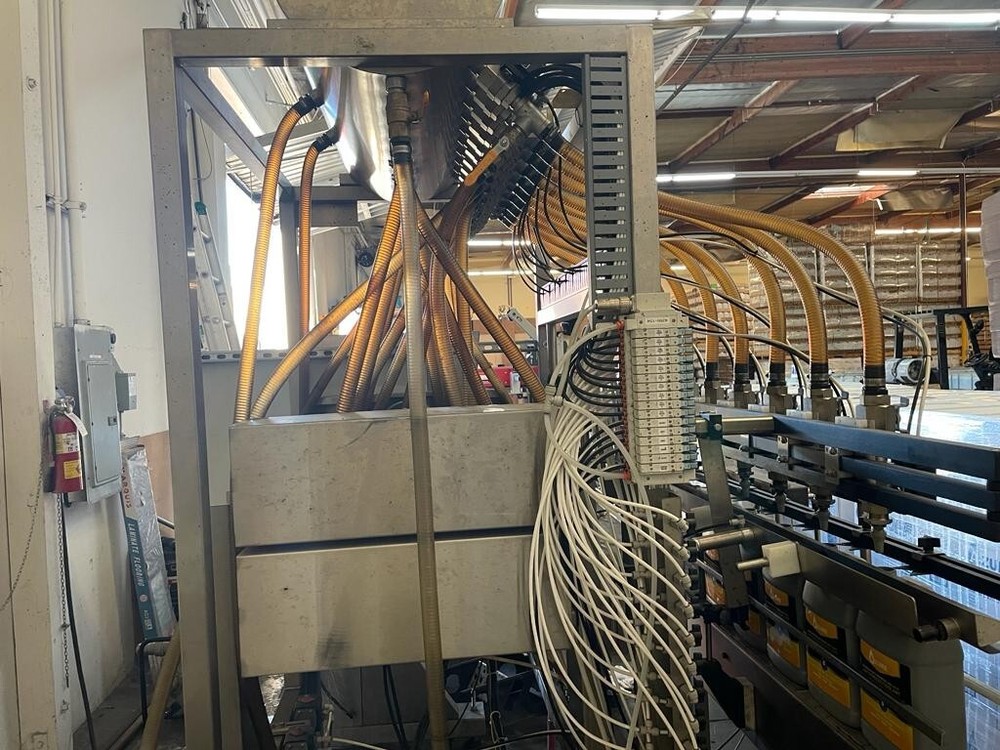

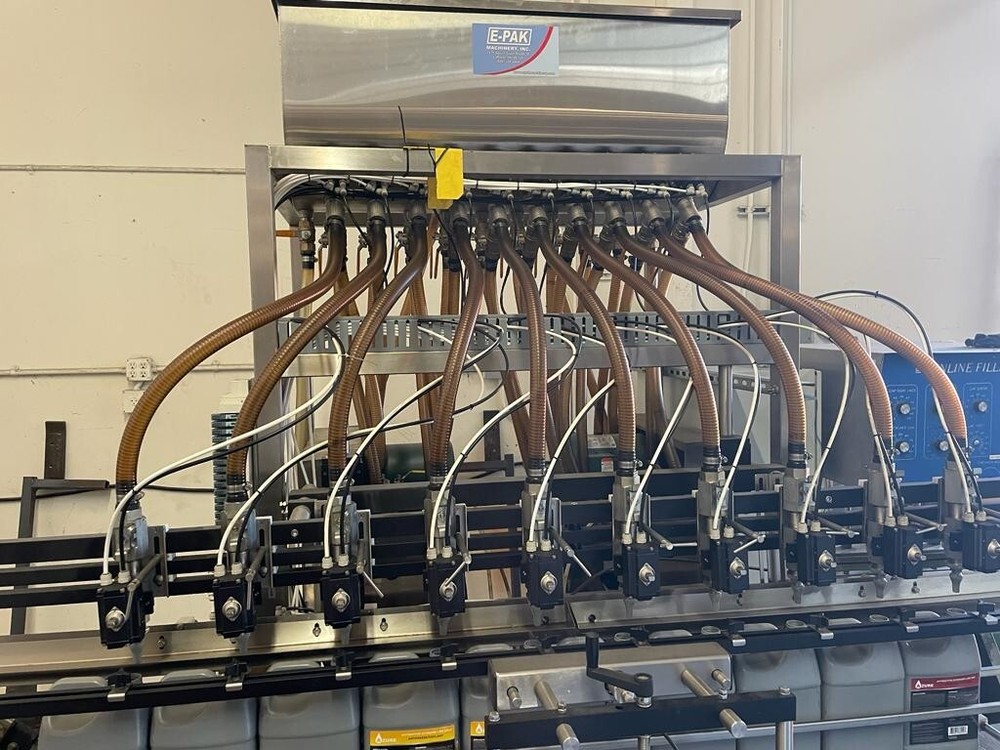

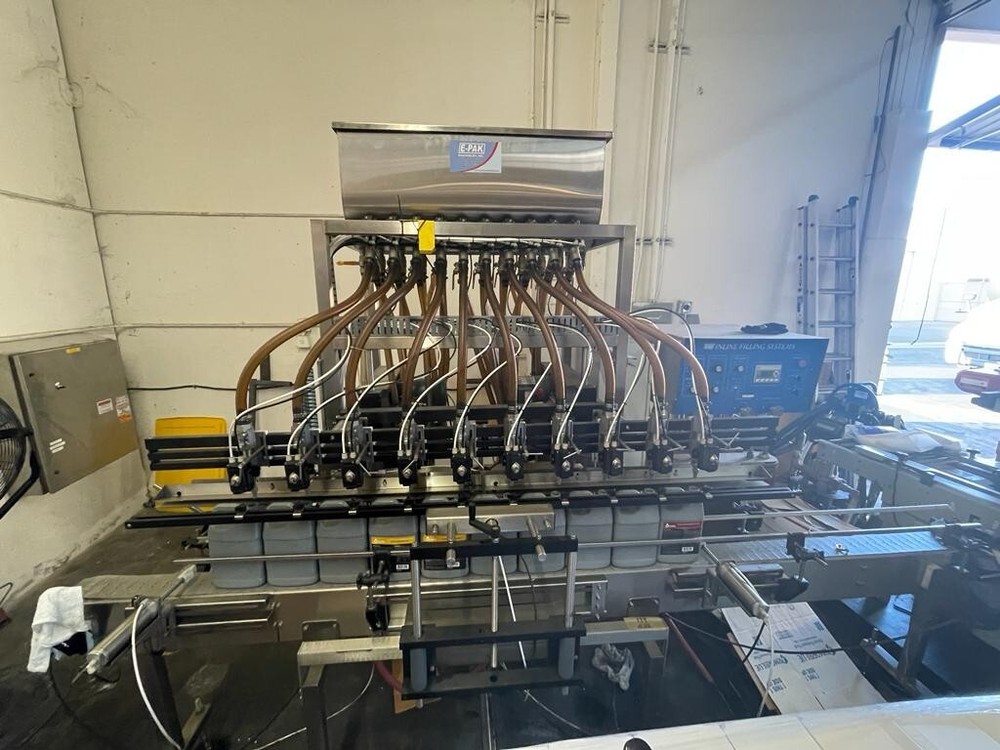

Check the listing for details. Automatic Inline Liquid Filler, 10 nozzles. Condition: Used. Listed at 18950.00 USD. Automatic Timed Pump Filler* Gravity and Pump filling methods using highly accurate volumetric filling by time* Bronze Gear pumps with Buna seals* Heavy-duty 304 stainless steel filler tube frame construction* 316 stainless steel 3/4" pneumatic actuated ball valves* Toolless fill head right-left adjustment for quicker changeover* Anti-foam and standard gooseneck nozzle kit, one for each fill head* Braided PVC tubing and threaded fittings* Threaded NPT connections on all tubing & fittings* 304 stainless steel reservoir w/ level sensing float recovery system & safety back-up* (2) 3/4" high pressure product supply ball valves, air-actuated* Allen Bradley/ Micrologix 1400 controls w/ color touch screen & automatic set-up capabilities* Automatic pin-style indexing to bring bottles in and out of fill station* Automatic stainless steel drip tray protects bottles between fill cycles* Photo sensor/counter system to ensure containers are in place prior to filling* Motor starter and supply pump not included* 80-100psi compressed clean dry air* 230V/3ph/60Hz, NEMA 12 electrical box construction standard 10’x 4.5” Conveyor * 304 stainless steel shell construction* 4.5" wide Delrin chain belt* Standard line height range 32-38"* Single stainless steel rail system with HDPE wear strip* Tool-less adjustable rail brackets* Standard 90Volt DC 1/2HP motor* Variable speed controls* 115/230Volt/1ph/50-60Hz
