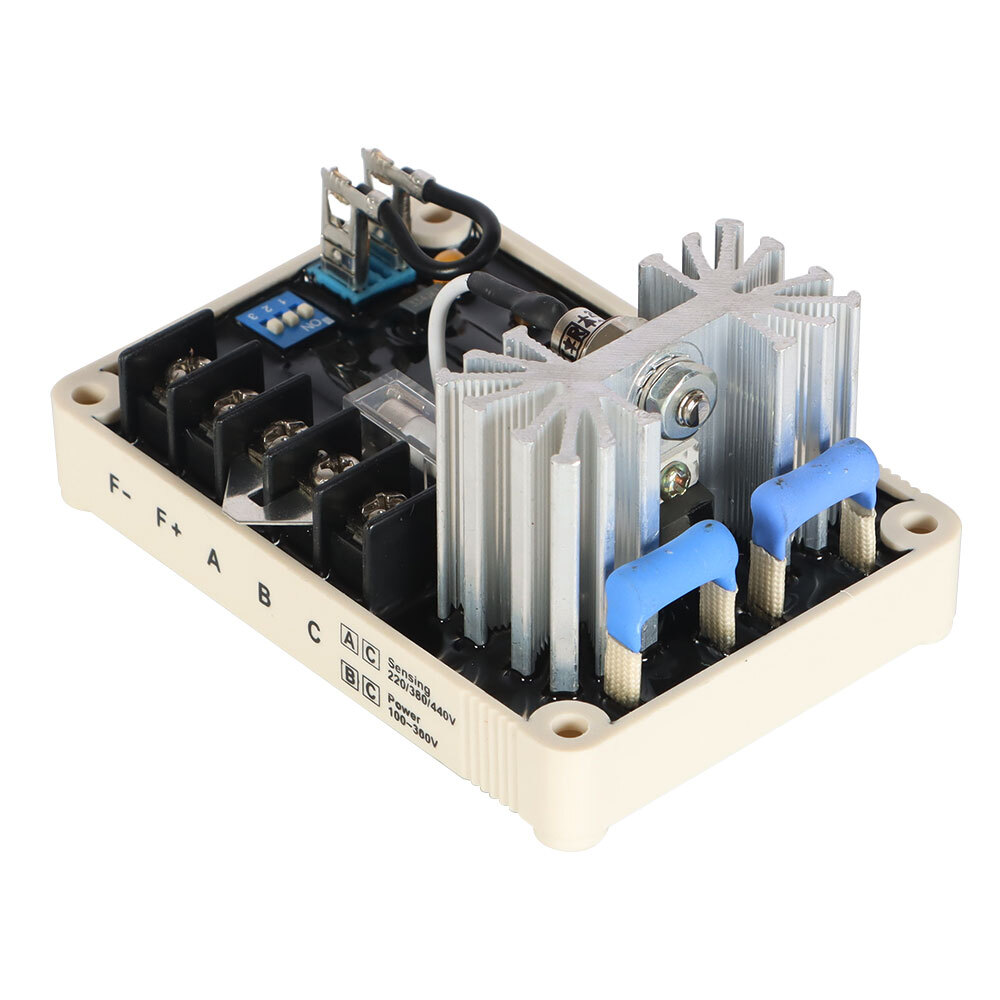

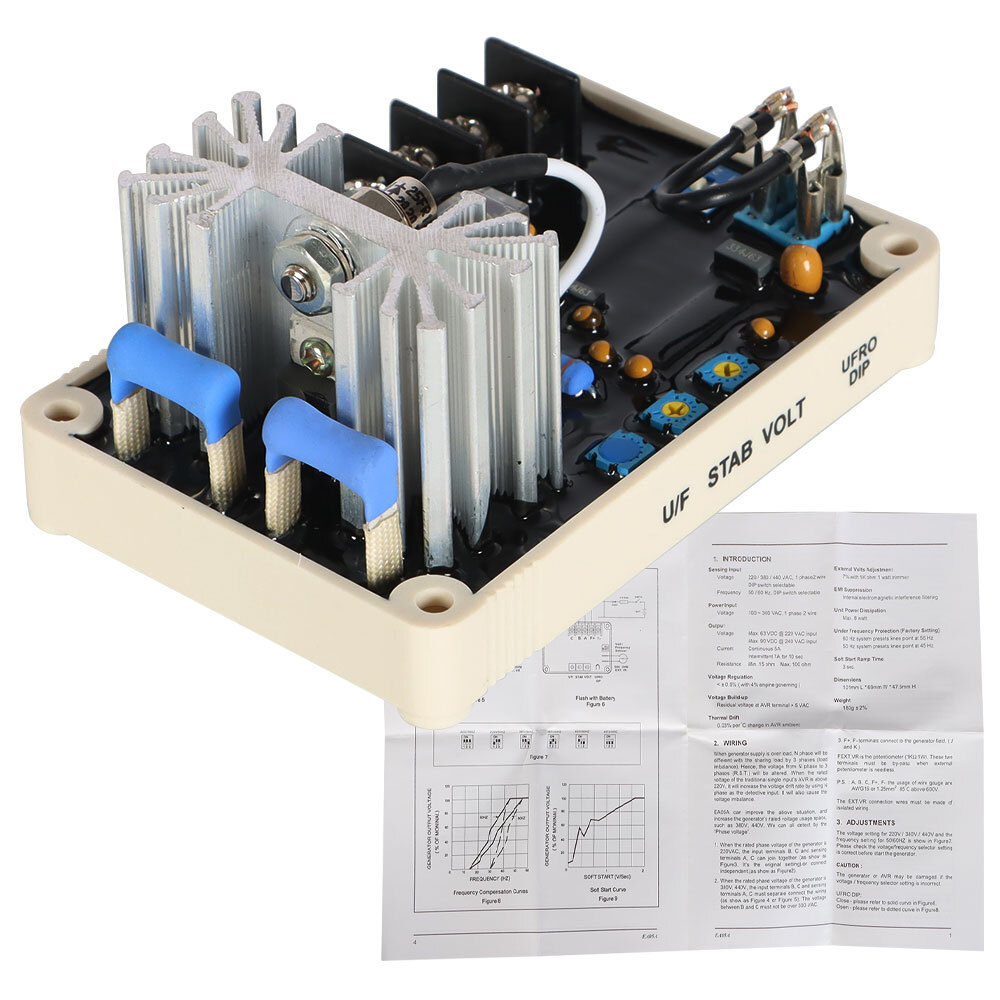

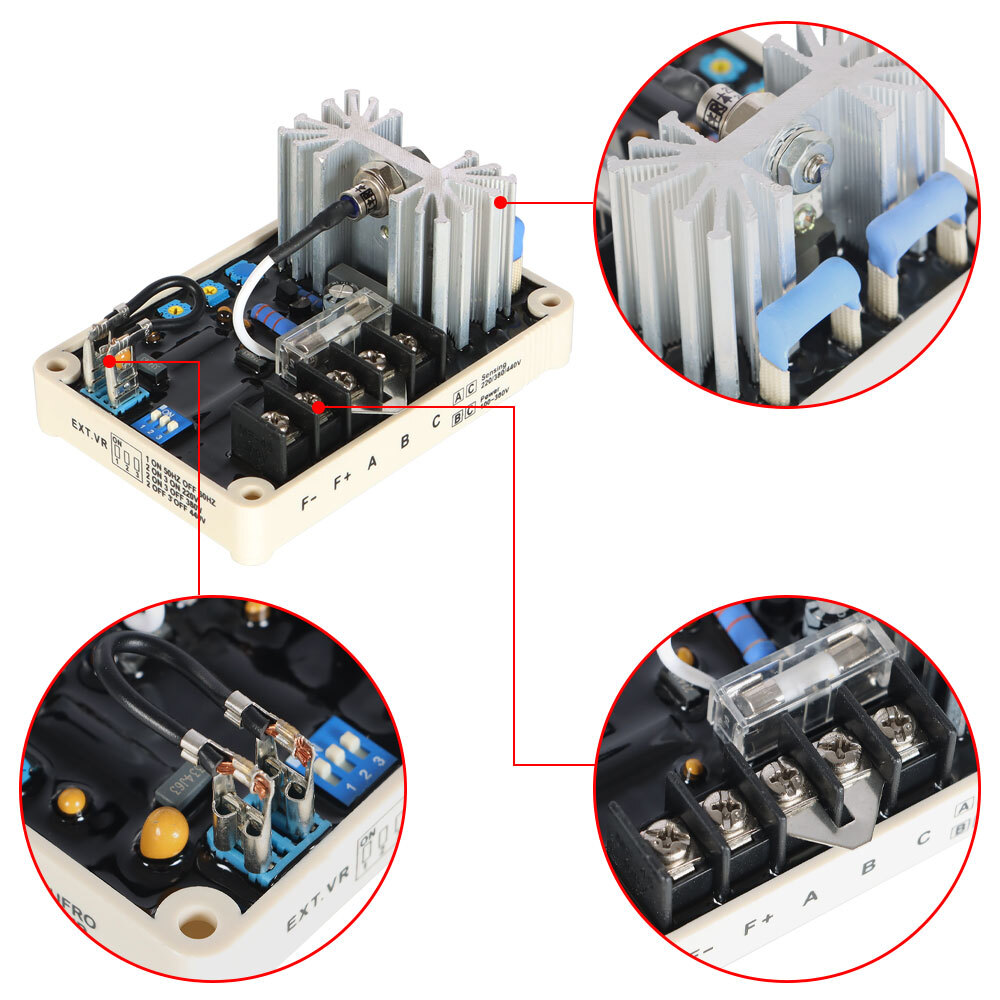

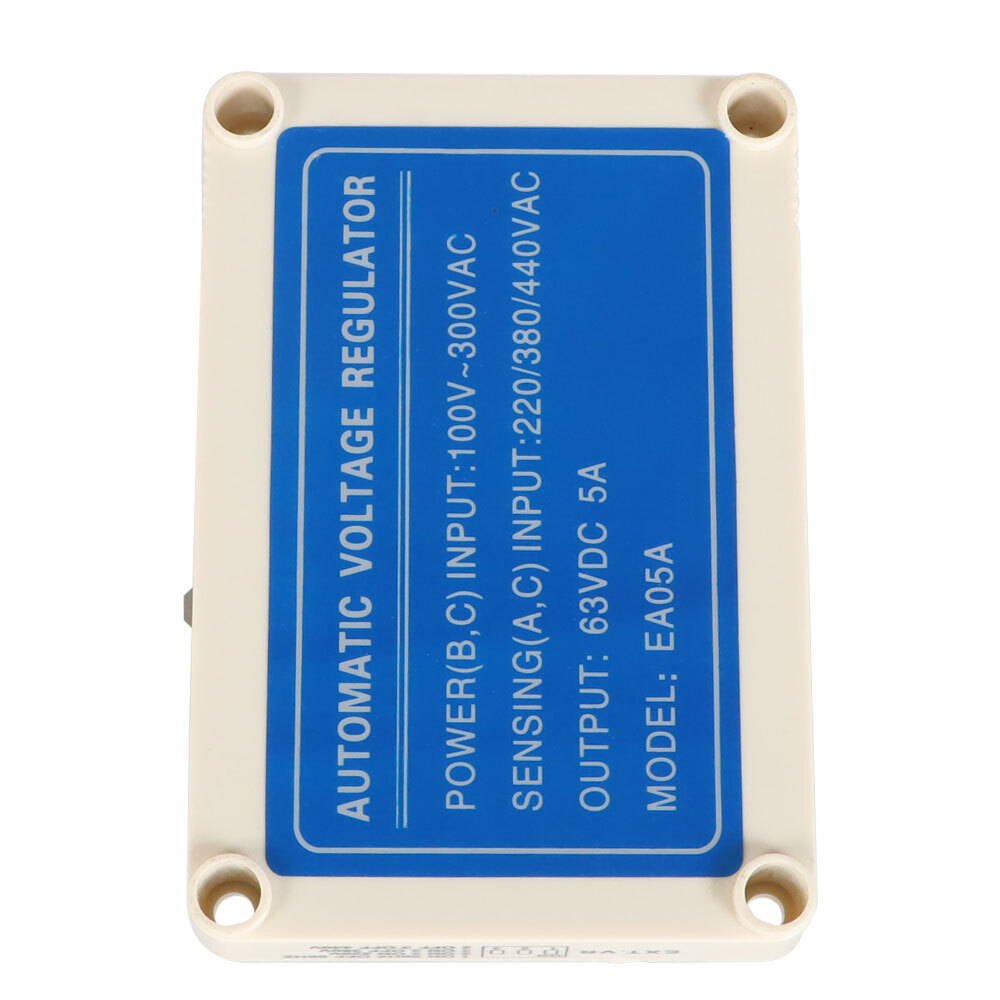

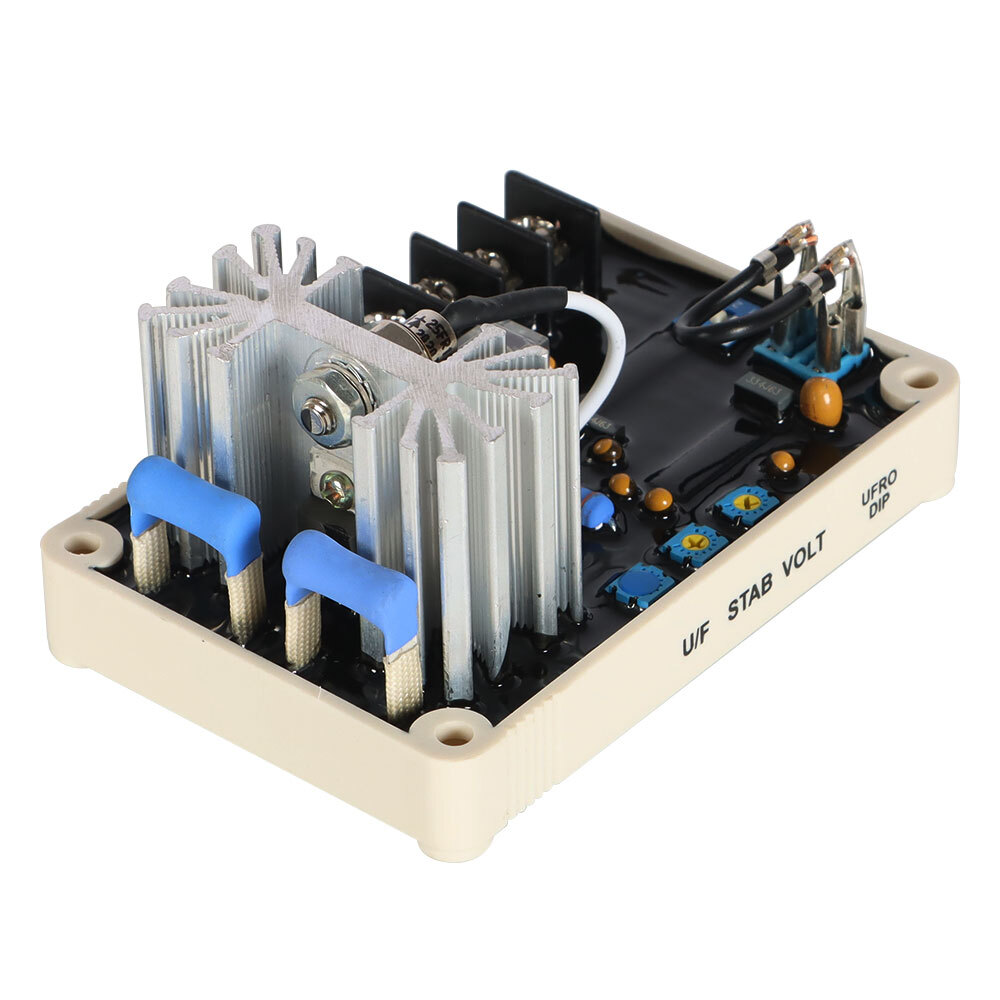

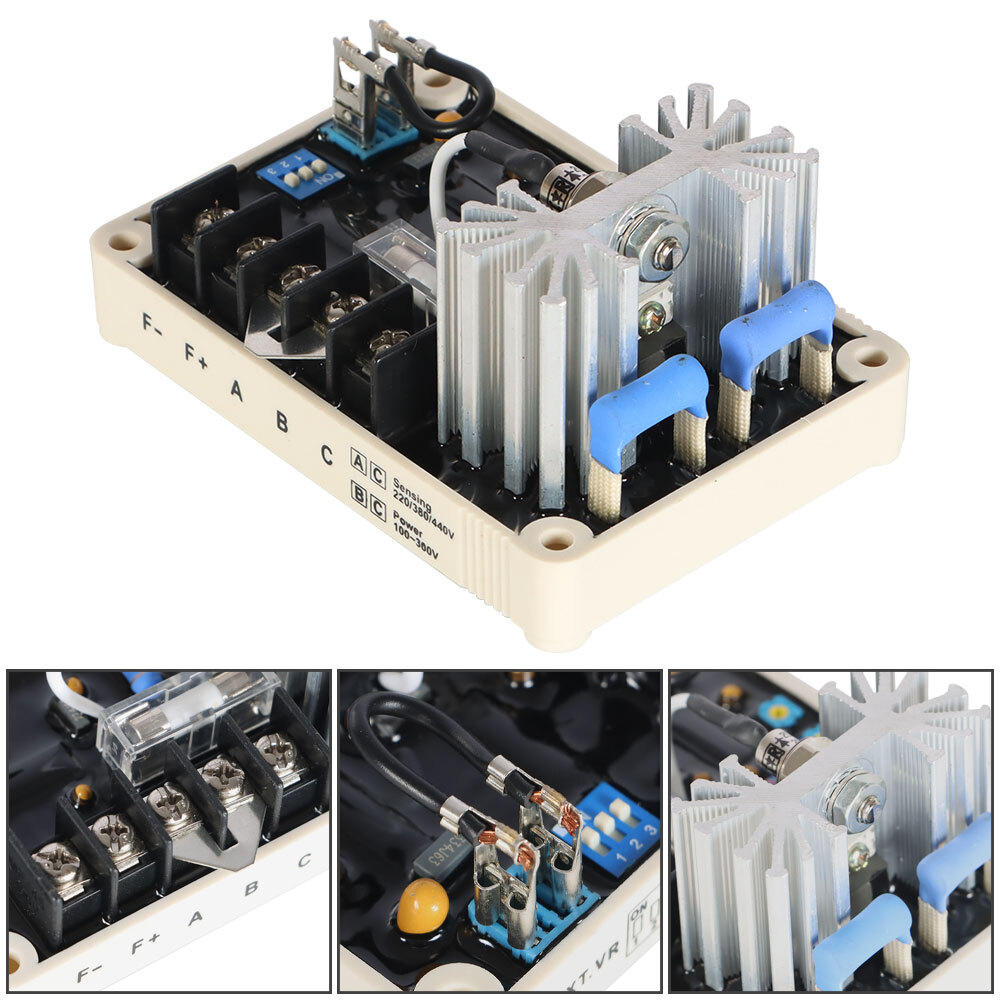

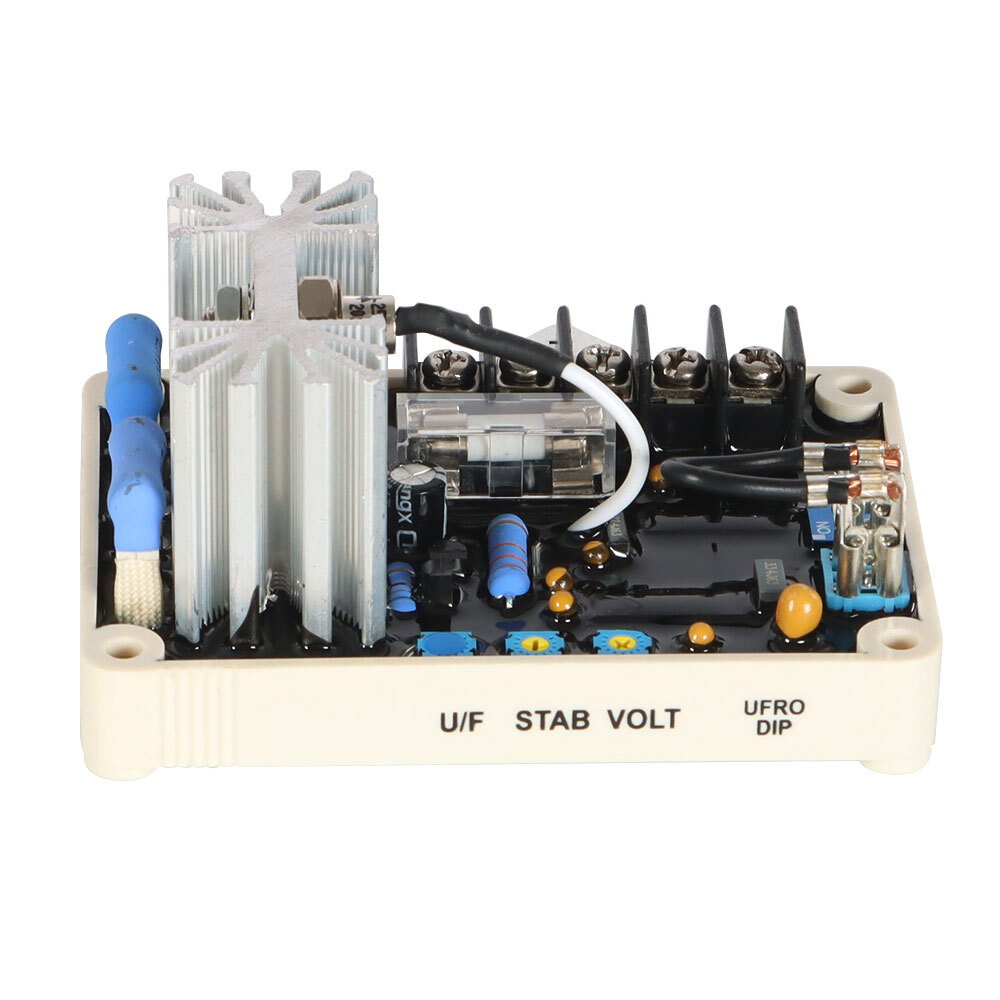

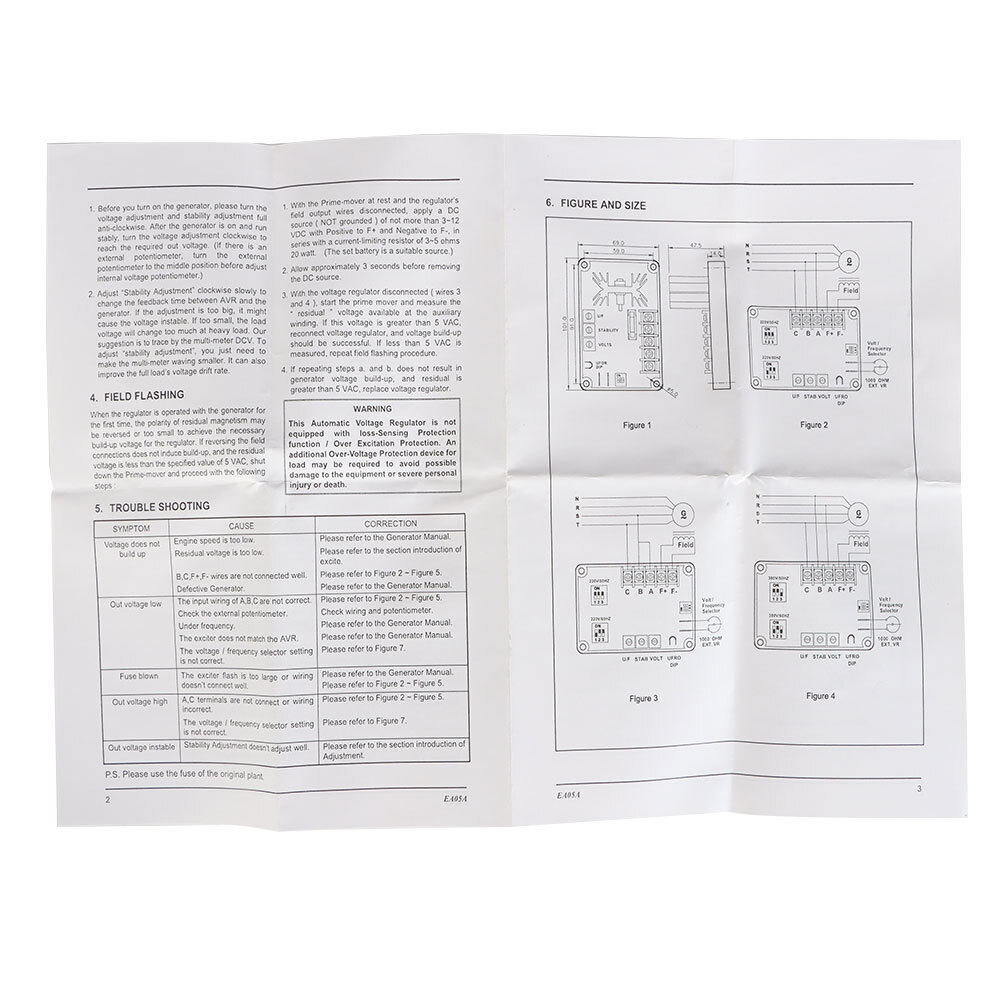

Check the listing for details. New AVR EA05A Automatic Voltage Regulator Controller For Generator Genset Parts. Condition: New. Listed at 36.85 USD. Feature：Sensing InpuuutVoltage 220 / 380 / 440 VAC, 1 phase2 wireDIP switch selectableFrequency 50 / 60 Hz, DIP switch selectablePower InputVoltage 100 ~ 300 VAC, 1 phase 2 wireOutputVoltage Max. 90 VDC @ 240 VAC inputCurrent Continuous 5AIntermittent 7A for 10 secResistance Min. 15 ohm Max. 100 ohmVoltage Regulation< ± 0.5% ( with 4% engine governing )Voltage Build-upResidual voltage at AVR terminal > 5 VACThermal Drift0.03% per °C change in AVR ambientExternal Volts Adjustmen± 7% with 1K ohm 1 watt trimmerEMI SuppressionInternal electromagnetic interference filteringUnit Power DissipationMax. 8 wattUnder Frequency Protection (Factory Setting)60 Hz system presets knee point at 55 Hz50 Hz system presets knee point at 45 HzSoft Start Ramp Time3 sec.Dimensions101mm L * 69mm W * 47.5mm HWeight183g ± 2%2. WIRINGWhen generator supply is over load, N phase will be different with the sharing load by 3 phases (load imbalance). Hence, the voltage from N phase to 3 phases (R.S.T.) will be altered. When the rated voltage of the traditional single input’s AVR is above 220V, it will increase the voltage drift rate by using N phase as the detective input. It will also cause the voltage imbalance.EA05A can improve the above situation, and increase the generator’s rated voltage usage space,such as 380V, 440V. We can all detect by the “phase voltage”.1. When the rated phase voltage of the generator is 220VAC, the input terminals B, C and sensing terminals A, C can join together (as show as figure3. It’s the original setting).or connect independent.(as show as figure2).2. When the rated phase voltage of the generator is 380V, 440V, the input terminals B, C and sensing terminals A, C must separate connect the wiring (as show as Figure 4 or figure 5). The voltage between B and C must not be over 300 VAC.3. F+ F- terminals connect to the generator field. (J and K) FEXT.VR is the potentiometer (1KΩ 1W). These two terminals must be by-pass when external potentiometer is needless.P.S. : A, B, C, F+ F- the usage of wire gauge are AWG16 or 1.25 mm2 85。C above 600V.The EXT.VR connection wires must be made of isolated wiring.3. ADJUSTMENTSThe voltage setting for 220V/380V/440V and thefrequency setting for 50/60HZ is show in figure7.Please check the voltage/frequency selector settingis correct before start the generator. CAUTION :THE GENERATOR OR AVR MAY BE DAMAGEDIF THE VOLTAGE / FREQUENCY SELECTORSETTING IS INCORRECT.UFRO DIP:1. Before you turn on the generator, please turn thevoltage adjustment and stability adjustment full anti-clockwise. After the generator is on and run stably, turn the voltage adjustment clockwise to reach the required out voltage. (If there is an external potentiometer, turn the external potentiometer to the middle position before adjust internal voltage potentiometer.)2. Adjust “Stability Adjustment” clockwise slowly tochange the feedback time between AVR and the generator. If the adjustment is too big, it might cause the voltage instable. If too small, the load voltage will change too much at heavy load. Our suggestion is to trace by the multi-meter DCV. To adjust “stability adjustment”, youjust need to make the multi-meter waving smaller. It can also improve the full load’s voltage drift rate.4. FIELD FLASHINGWhen the regulator is operated with the generator forthe first time, the polarity of residual magnetism may be reversed or too small to achieve the necessary build-up voltage for the regulator. If reversing the field connections does not induce build-up, and the residual voltage is less than the specified value of 5 Vac, shut down the Prime-mover and proceed with the following steps :1. With the Prime-mover at rest and the regulator’sfield output wires disconnected, apply a DC source ( NOT grounded ) of not more than 3~12 Vdc with Positive to F+ and Negative to F-, in series with a current-limiting resistor of 3~5 ohms 20 watt. (The set battery is a suitable source.)2. Allow approximately 3 seconds before removingthe DC source.3. With the voltage regulator disconnected ( wires 3 and 4 ), start the prime mover and measure the “ residual ” voltage available at the auxiliary winding. If this voltage is greater than 5 Vac, reconnect voltage regulator, and voltage build-up should be successful. If less than 5 Vac is measured, repeat field flashing procedure.4. If repeating steps a. and b. does not result ingenerator voltage build-up, and residual is greater than 5 Vac, replace voltage regulator. Package List:1 x Automatic Voltage Regulator Controller AVR EA05A Genset Parts1 x product Instructions Introduction of Promotion Fold over fold Payment Shipping handling time: 1~3 day Returns Refund is valid within 30 days after the payment date Item must be returned in original packing same as reached Contact Us If you are satisfied with the product you received,please leave us positive feedback and 5 scores . Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have, and will try our best to resolve the issues. We care about our valued customers, and will always try to help you. So if you have any problems, please e-mail us immediately. All rights reserved. Hot Item 6 Pack E7018 1/8 Inch 10-lbs Premium Arc Welding Rods Carbon Steel Electrode Rod USD 104.45 3 HP 3450RPM Electric Motor Compressor Duty 56 Frame 1Phase 115-230V New USD 116.19 ER11/ER16/ER20/ER25/ER32/ER40 Spring Collet Set For CNC Milling Lathe Machine USD 11.72 100Pack 4-1/2"×7/8'' 40 Grit T29 Premium Zirconia Flap Disc Sanding Grinding US USD 77.97 #40SS Stainless Steel Roller Chain x 10 feet+Free Connecting Links 1 connector USD 38.50 New List Item 5HP 3 Phase Electric Motor 1800 RPM 184T Frame TEFC 230/460V Severe Duty USD 421.55 1 Roll 0.030 Inch ER70S-6 0.8 mm 11-lbs Roll Mild Steel MIG Welding Wire USD 27.29 E7018 5/32" x 12" Stick Electrodes Welding Rod 50 Lbs(10Lbx5Pcs) With Box 5 Pack USD 107.25 5 Pack E7018 5/32" x 12" Stick Electrodes Welding Rod 50 Lbs(10Lbx5Pcs) With Box USD 105.60 Compressor Duty Electric Motor 1 Phase 3450 RPM Frame 7/8 in Shaft 5HP 230V USD 182.00
