| Brand | Thomletha |
|---|---|
| MPN | GM49480 |
| Type | AVR SX460 |
| Weight | 0.35KG |
| Volume | 155×105×55mm |
| Input Voltage | Jumper selectable 95-132V ac or 190-264V ac |
| Frequency | 50-60 Hz nominal |
| Current | Continuous 4 A dc |
| Model | Generator |
| Custom Bundle | No |
| Bundle Description | No |
| Modified Item | No |
| Equipment Type | Voltage Regulator |

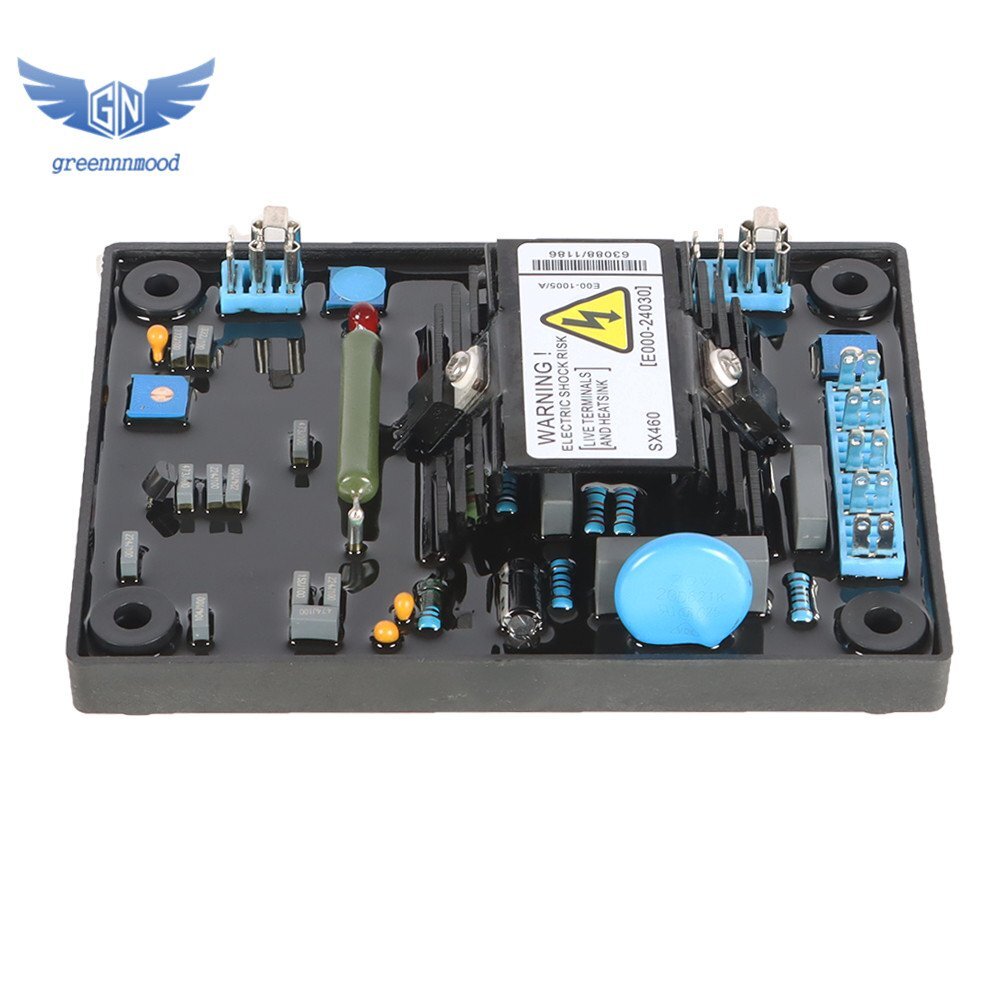

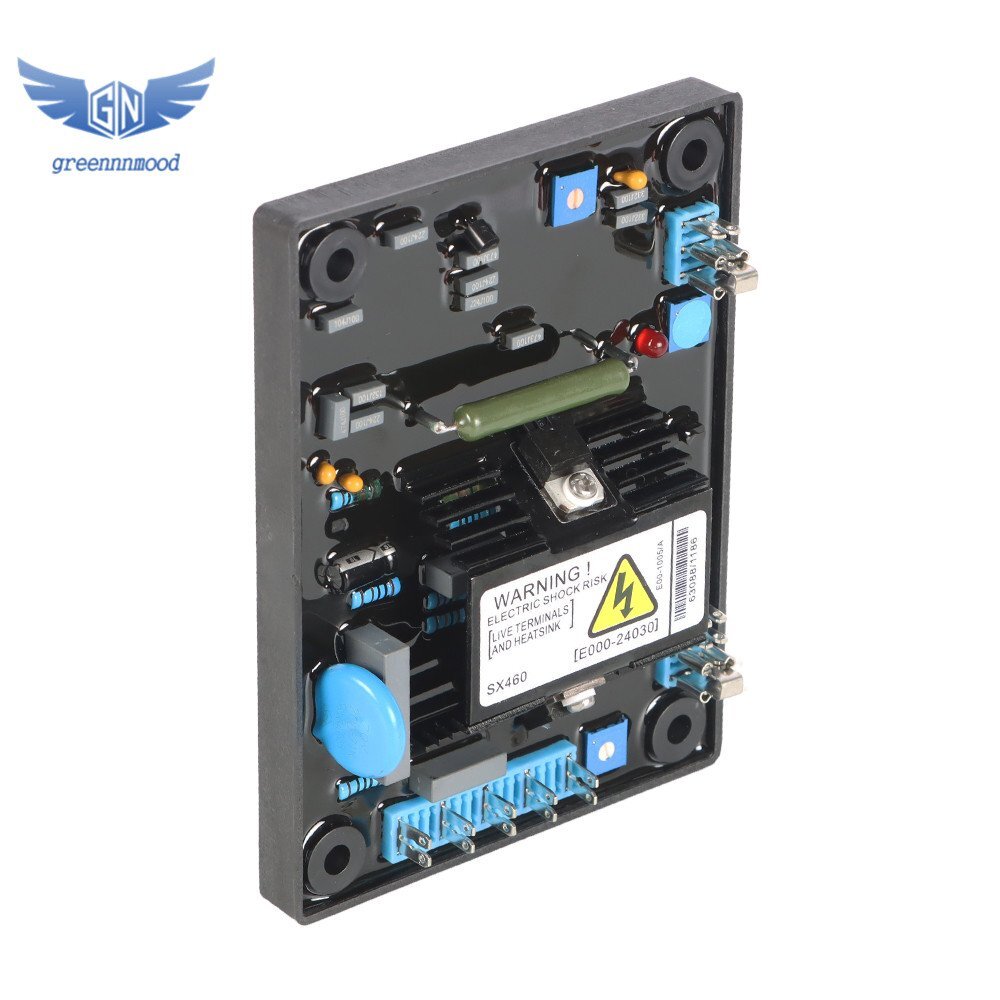

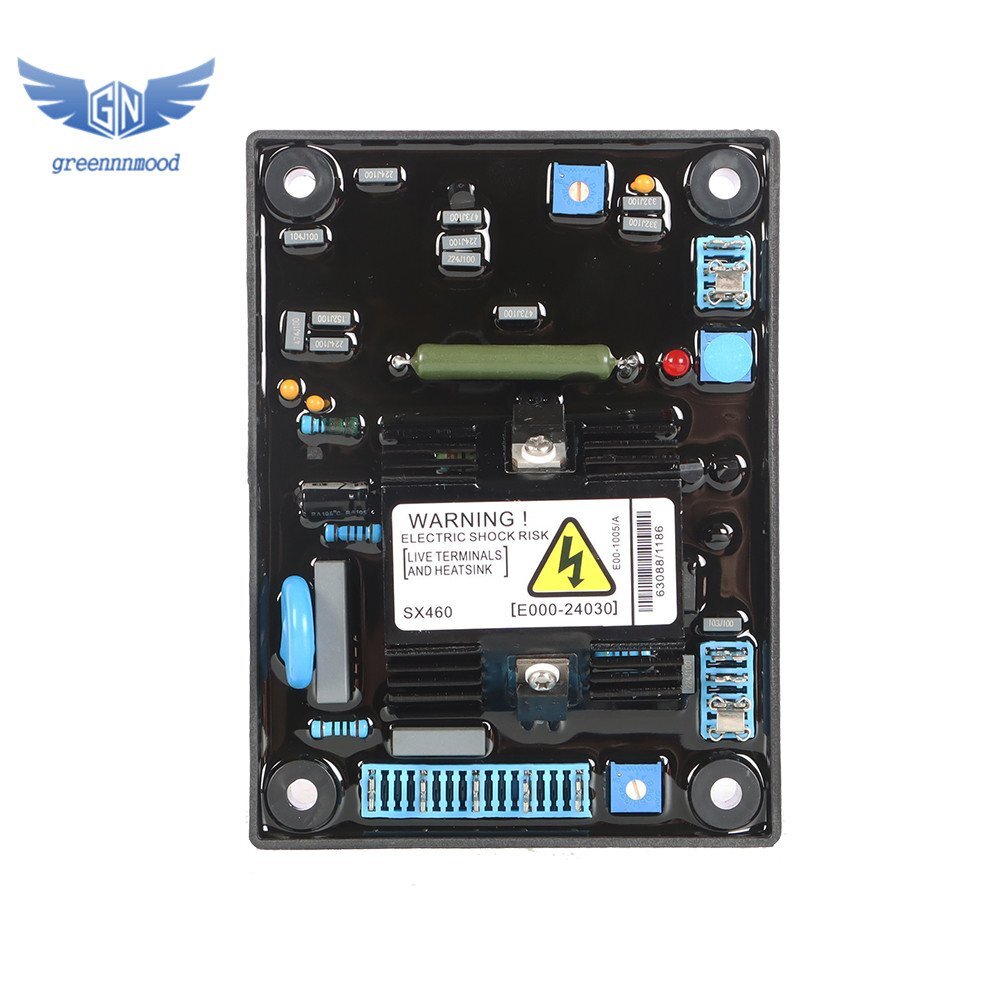

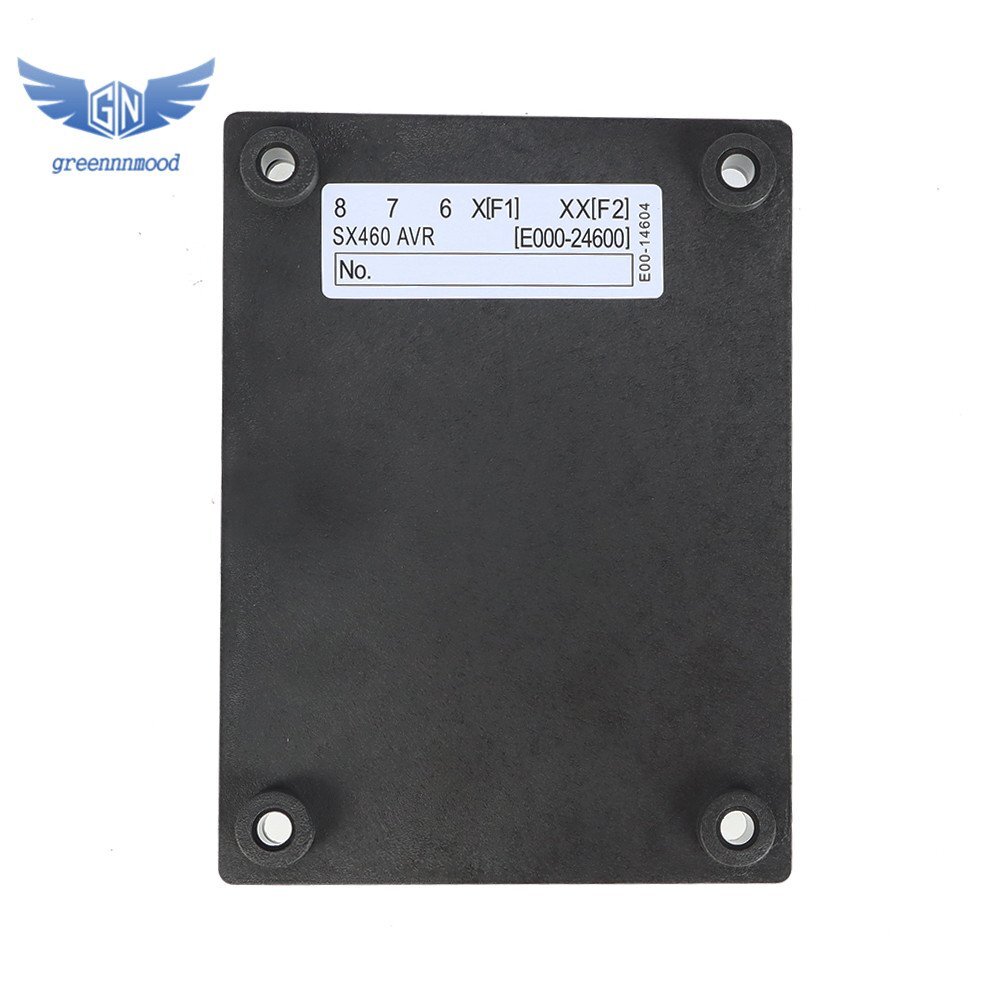

Check the listing for details. Automatic Voltage Volt Regulator Replacement For Stamford Generator SX460. Condition: New. Listed at 14.51 USD. Specifications： Input Voltage: Jumper selectable 95-132V ac or 190-264V ac Frequency: 50-60 Hz nominal Phase: 1 Output Voltage: Max 90V dc at 207V ac input Current: Continuous 4 A dc Intermittent 6 A for 10 secs Resistance: 15 ohms minimum Regulation +/-1.0% THERMAL DRIFT 0.05% per deg. C change in AVR ambient TYPICAL SYSTEM RESPONSE AVR response: 20 ms Filed current to 90%: 80 ms Machine Volts to 97%: 300 ms EXTERNAL VOLTAGE ADJUSTMENT +/-10% with 1 k ohm 1 watt trimmer UNDER FREQUENCY PROTECTION Set point: 95% Hz Slope: 170% down to 30 Hz UNIT POWER DISSIPATION 10 watts maximum .
You may also like
$76.9
HONDA Cooling Fan EB2800I EG2800I 19511-Z43-B30 Genuine OEM
$23.98
EARTHQUAKE 196CC VIPER ENGINE LOG SPLITTER CHIPPER SHREDDER CARB
$19.88
Carburetor for Raven 4000 W Generator
$16.88
Carburetor for Bluberry 3600psi Pressure Washer
$19.39

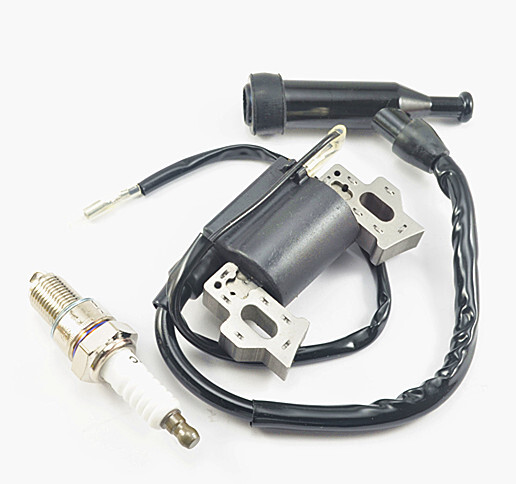

NEW LCT CMXX StormForce 179cc 5.5hp Generator Engine Ignition Coil & Spark Plug
$343.25

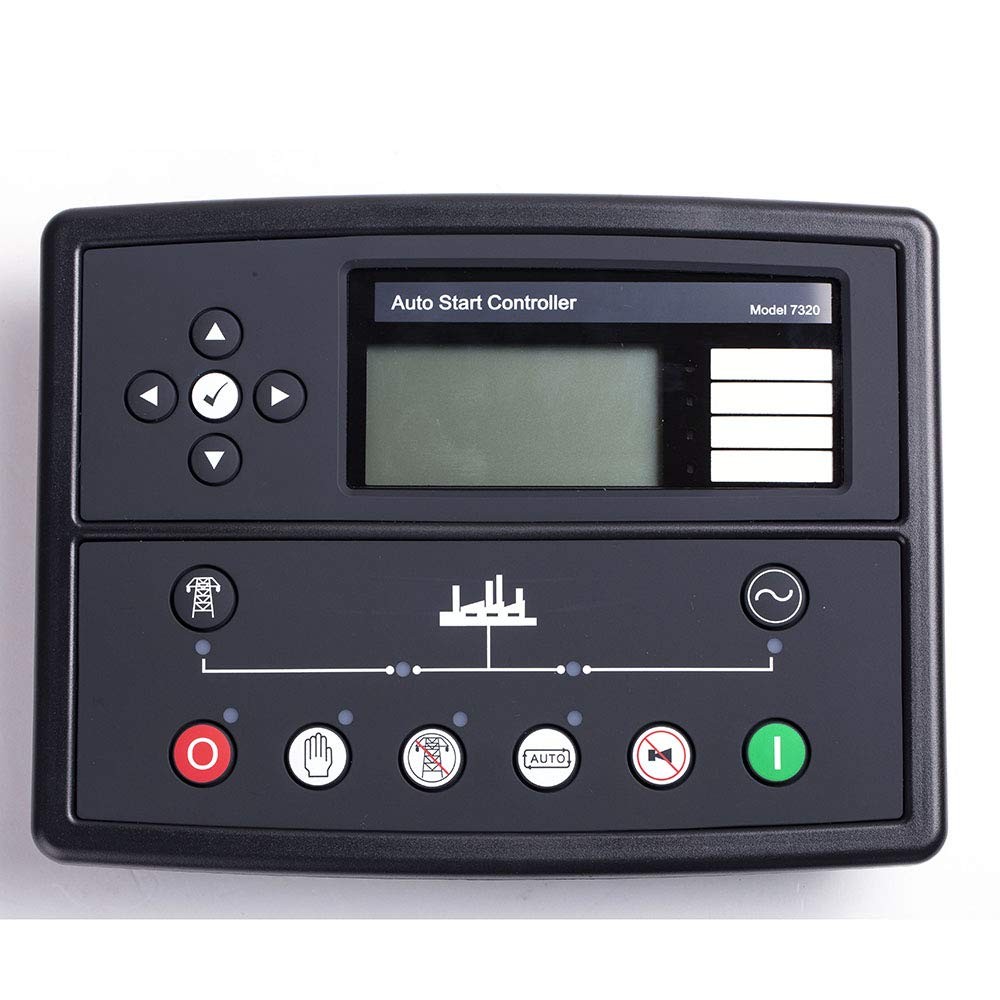

NEW DEEP ELECTRONICS DSE7320 Electronics Control Module
$29.99
CBB61 20uF 250V-450VAC 50/60Hz 40/85/21 SH Generator Capacitor AVR UL Listed
$18.89
Ignition Coil for 168F 168F1 168F2 168FD 168FA 168FB 5.5hp 6.5hp Gas Generator
$24.88

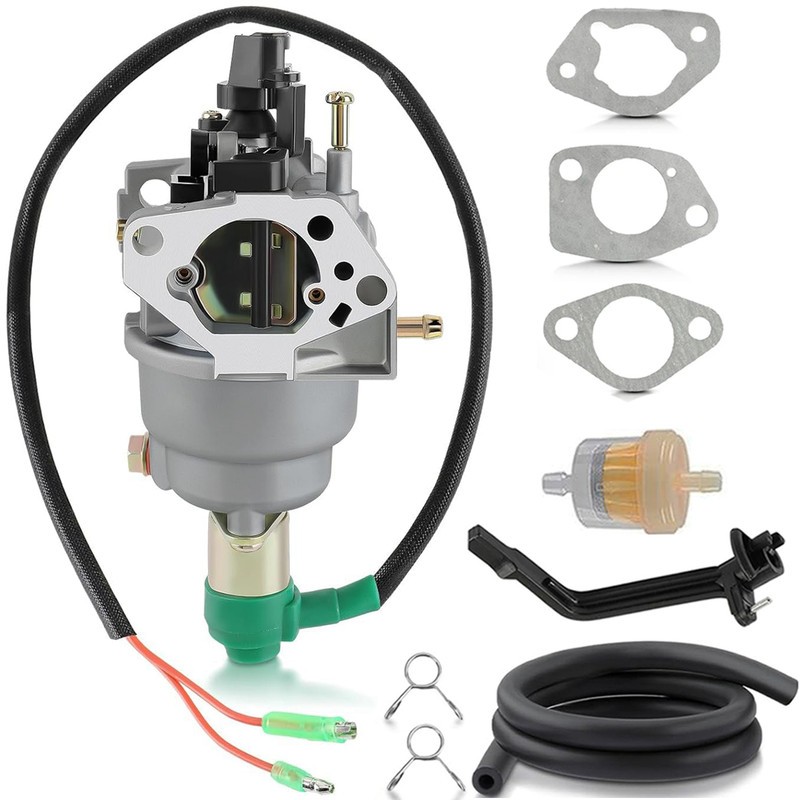

Blue Max 6836 5500 / 8000 watt 13hp Generator Carburetor Carb
