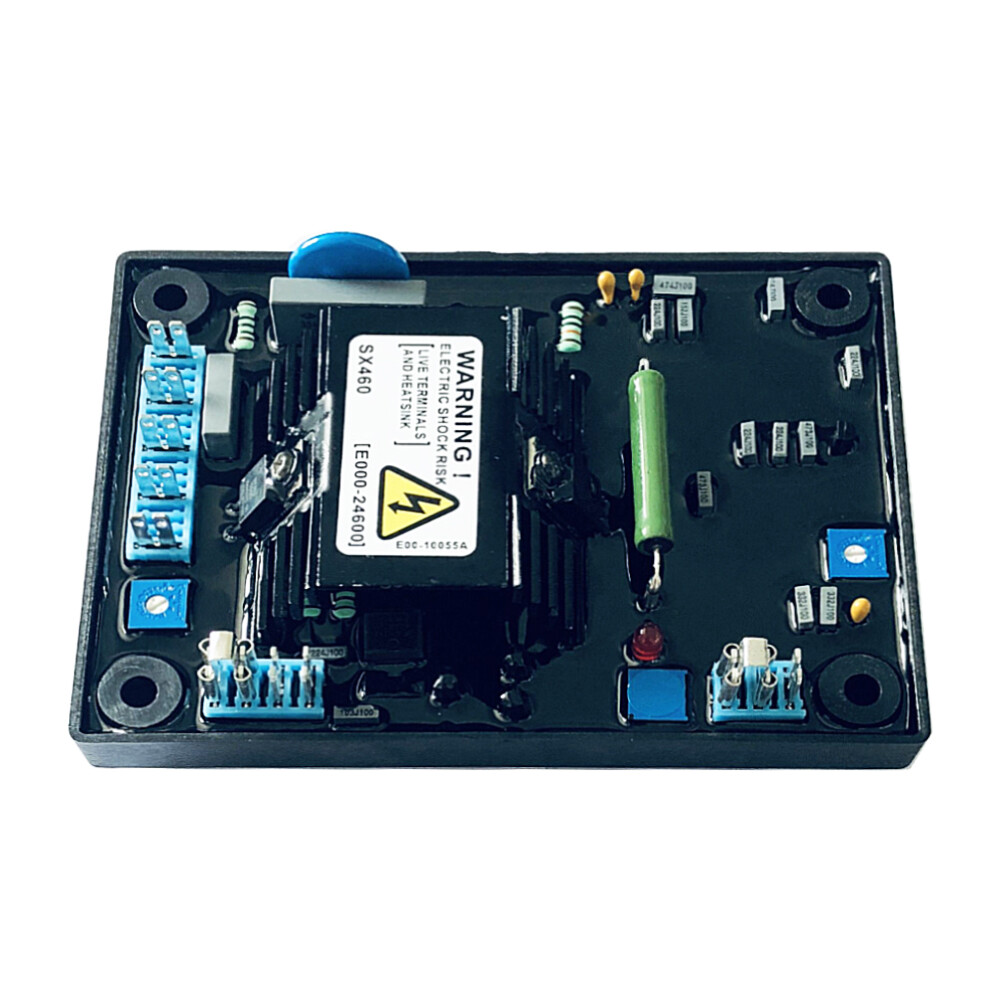

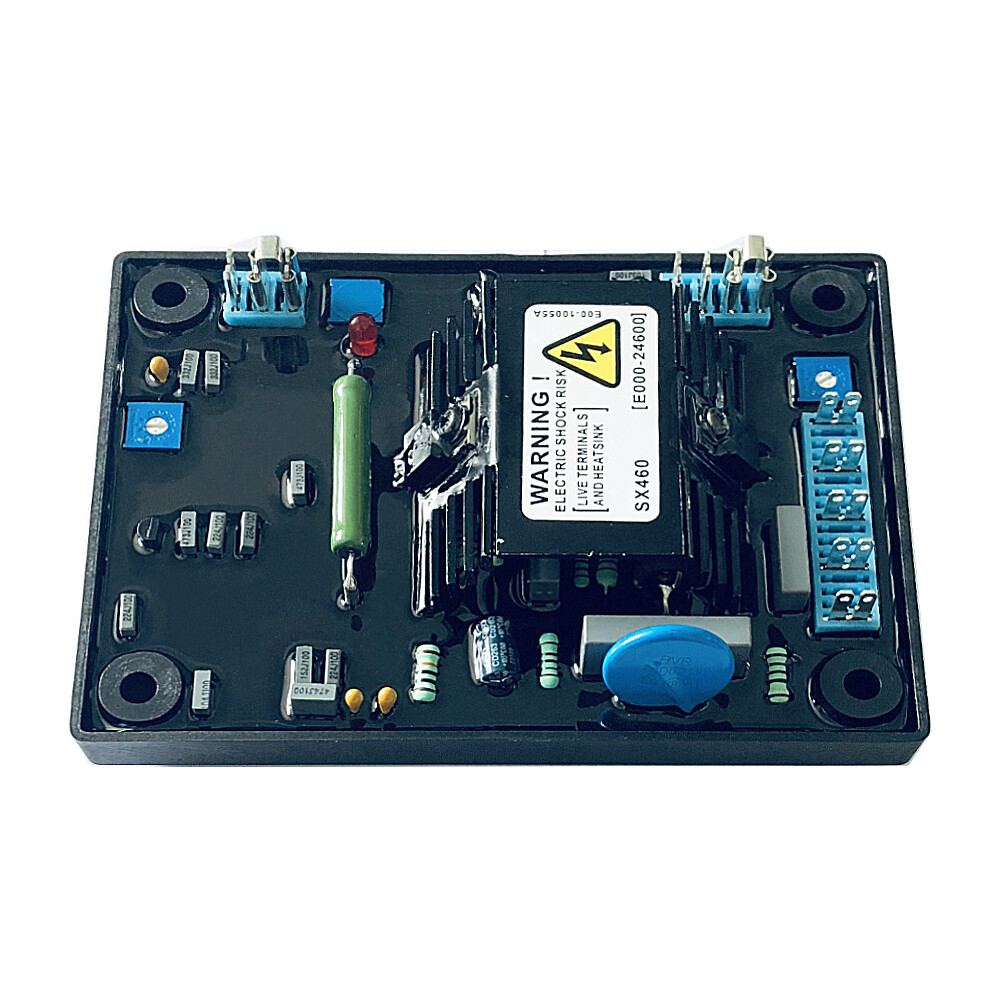

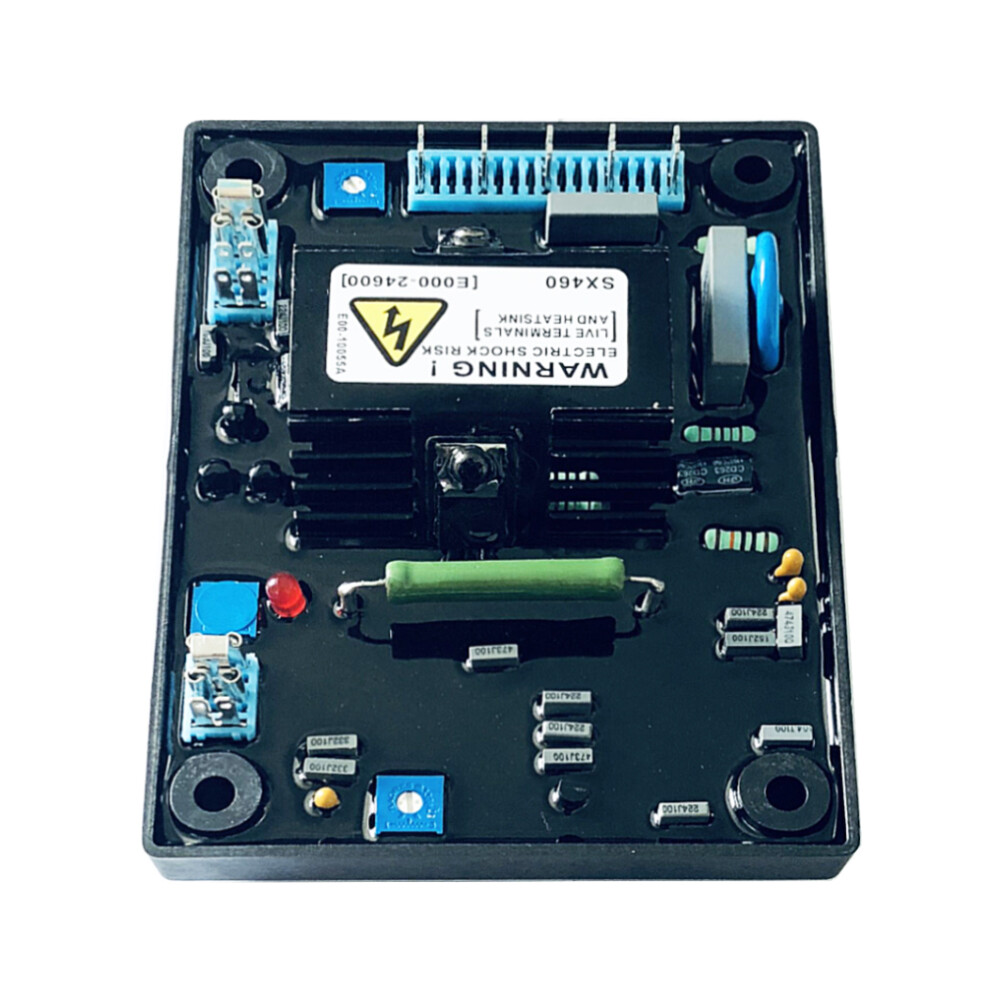

Check the listing for details. AVR SX460 Automatic Voltage Volt Regulator Replacement For Generator. Condition: New. Listed at 19.19 USD. Item number:3579Product description:Color:As Pictures ShowModel: GeneratorType: AVR SX460Weight : Approx 243gVolume: Approx 135x100x49mmPART No.:E000-24600Input Voltage: Jumper selectable 95-132V ac or 190-264V acFrequency: 50-60 Hz nominalFeatures:SX460 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator(AVR) and forms part of the exciation system for a brush-less generator.In addition to regulating the generator voltage,the AVR circuitry includes under-speed and sensing loss protection features.Excitation power is derived directly from the generator termainals.Positive voltage build up from residual levels is ensured by the use of effcient semiconductors in the power circuitry of the AVR.Provision is made for the connection of a remote voltage trimmer,allowing the user fine control of the generator’s output.Phase: 1Output Voltage: Max 90V dc at 207V ac inputCurrent: Continuous 4 A dc.Intermittent 6 A for 10 secsResistance: 15 ohms minimumREGULATION +/-1% THERMAL DRIFT 0.05% per deg.C change in AVR ambientTYPICAL SYSTEM RESPONSE AVR respone 20ms Filed current to 90% 80ms Machine Volts to 97% 300msEXTERNAL VOLTAGE ADJUSTMENT +/-10% with 1k ohm 1 watt trimmerUNDER FREQUENCY PROTECTION Set point 95%HZ Slope 170% down to 30HZUNIT POWER DISSIPATION 10 watts maximumBUILD UP VOLTAGE 4 Volts @ AVR terminalsEnvironmental Vibration 20-100HZ 50mm/sec 100Hz 2kHz 3.3g Operating temperature -40 to +70 C Relative Humidity 0-70C 95% Storage temperature -55 to +80 CNOTE :Due to the difference between different monitors, the picture may not reflect the actual color of the item. Package included:1 x SX460 Automatic Voltage Regulator 1 x product Instructions
