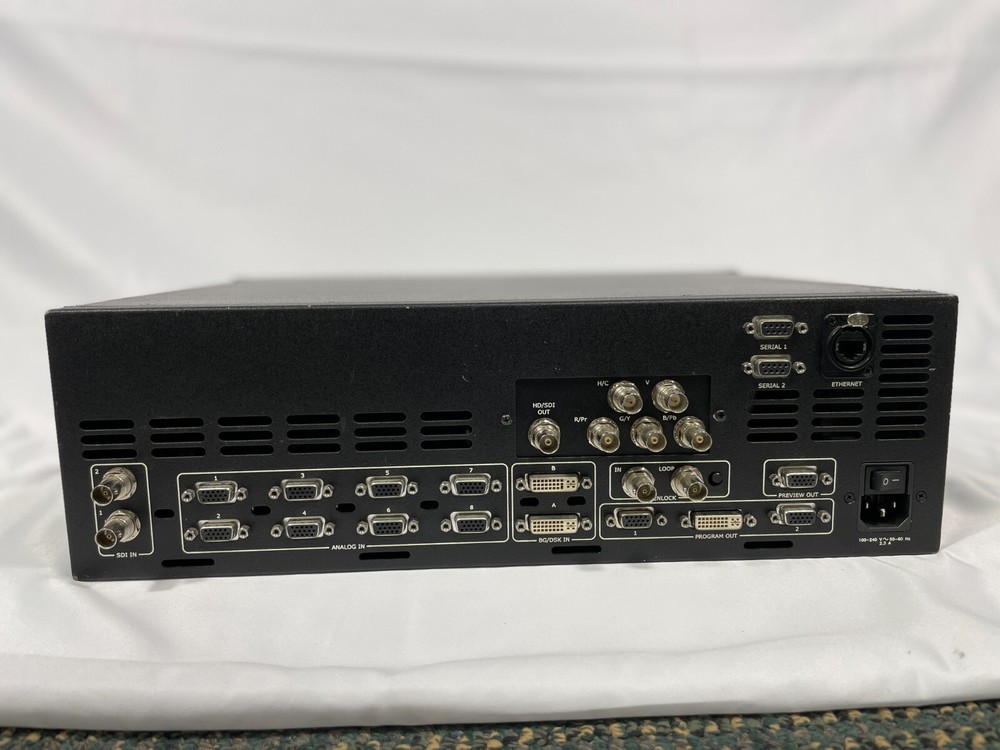

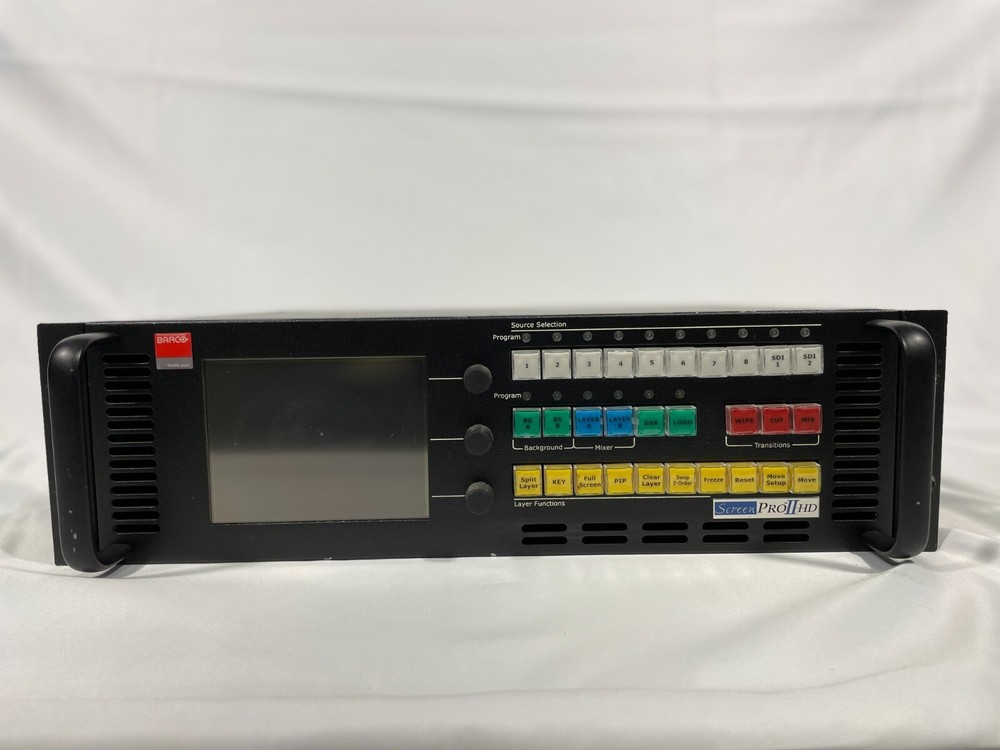

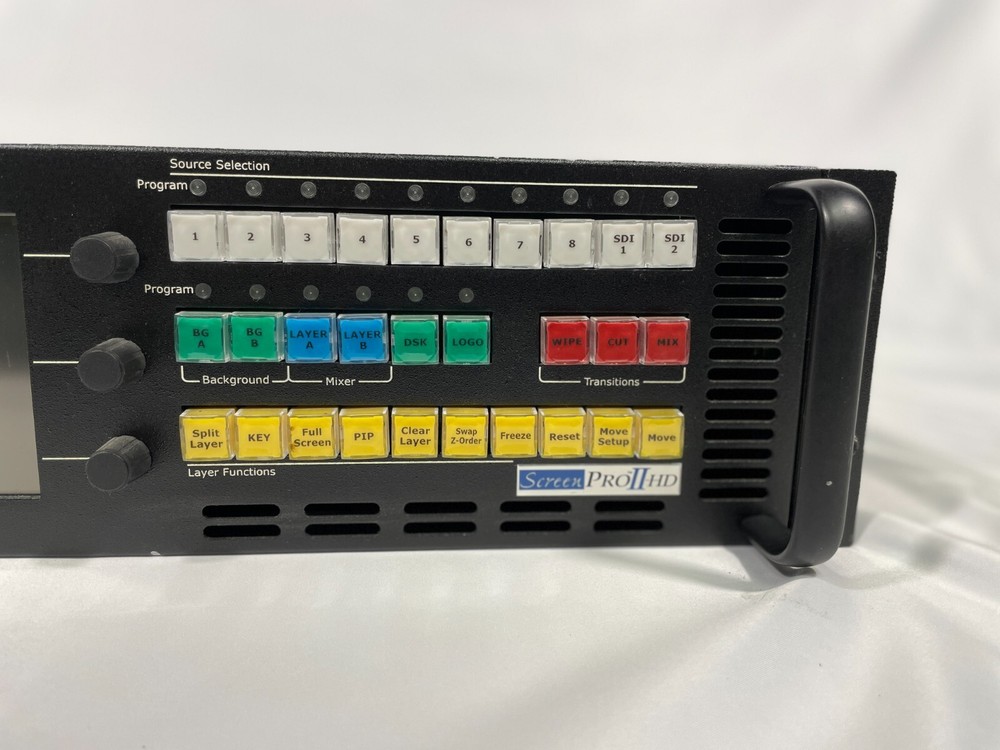

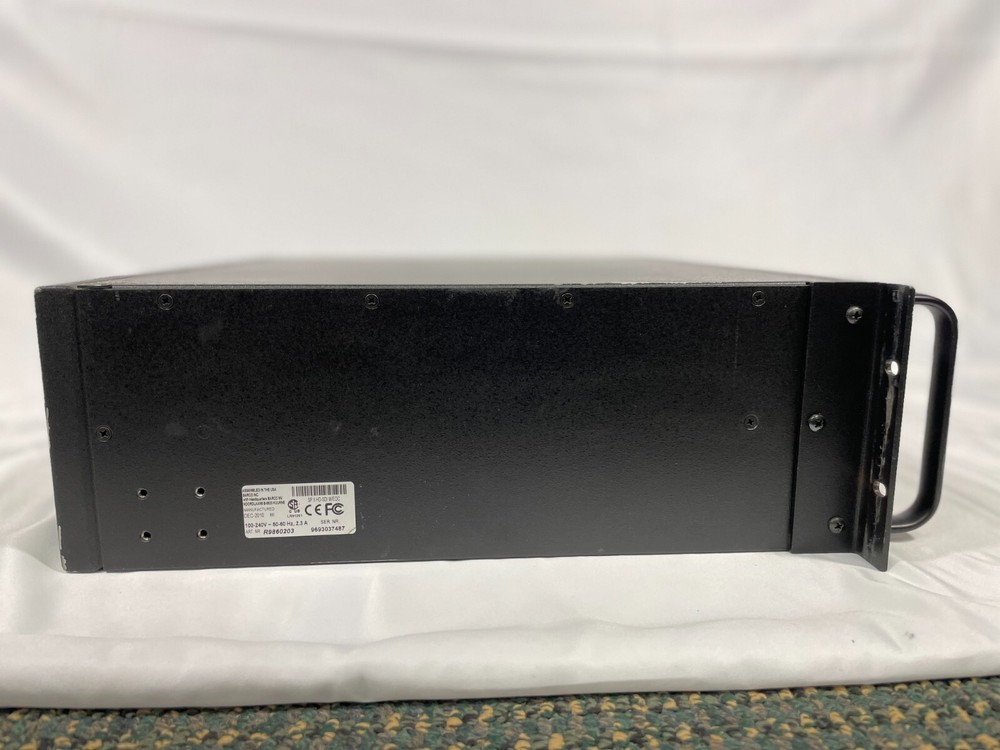

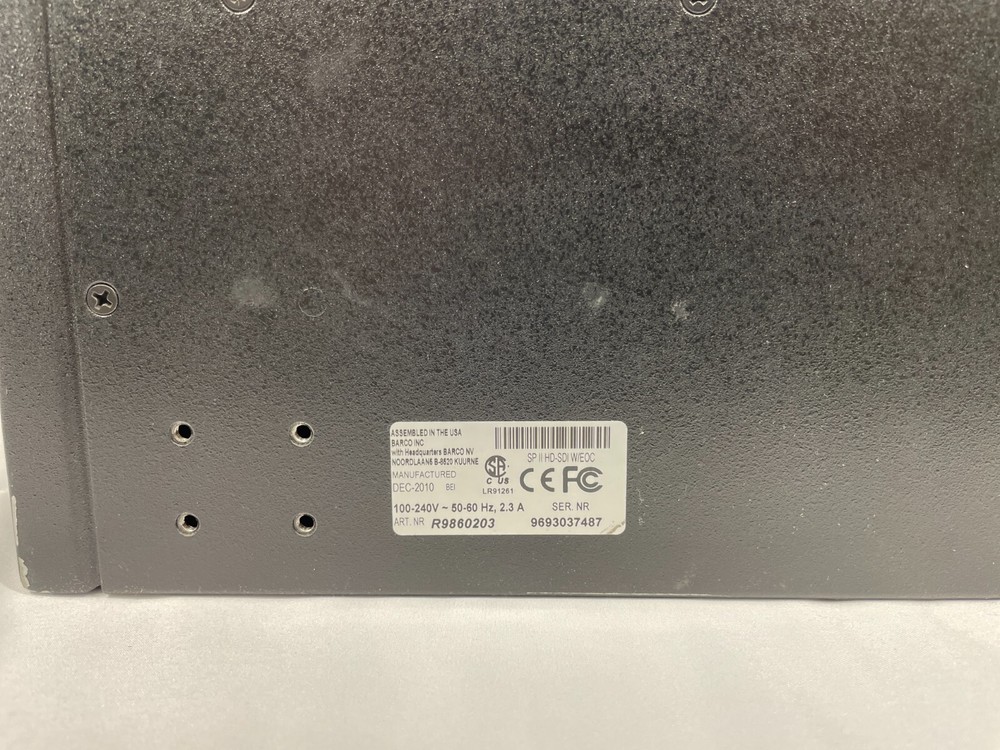

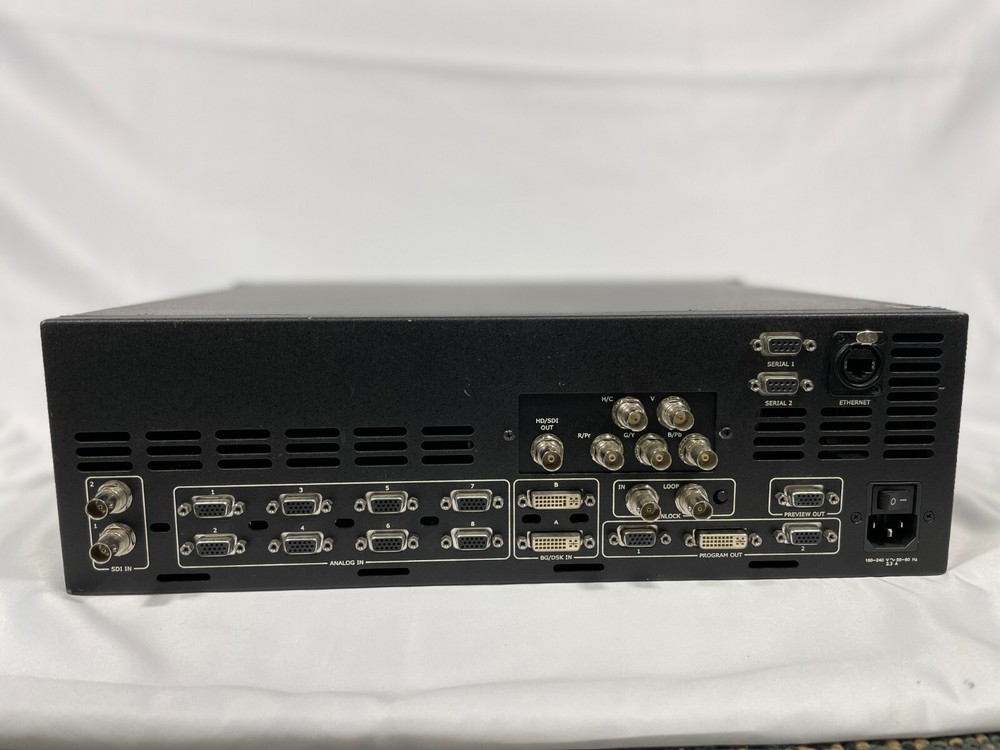

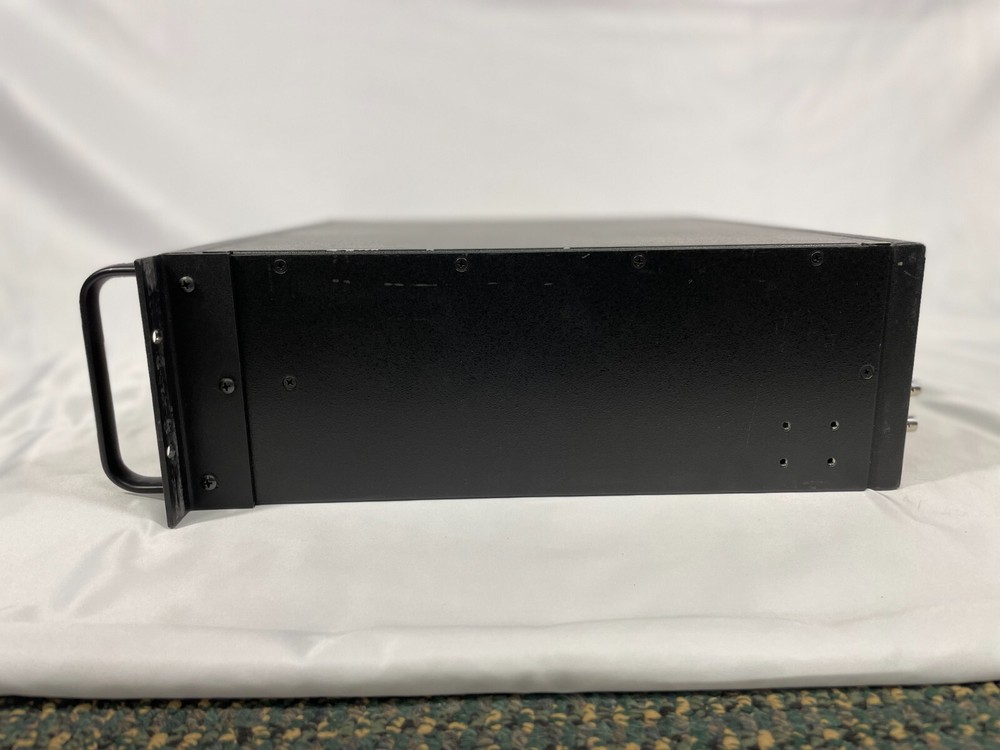

Check the listing for details. Barco ScreenPRO-II HD Switcher with 3G EOC. Condition: Used. Listed at 349.00 USD. Barco ScreenPRO-II OverviewThe Barco ScreenPRO-II HD Switcher with 3G EOC features an EOC (expanded output card) attached to the back of the switcher, adding more memory and the ability to mirror program or preview outs. Where normally the switcher can store only 3 logos, with the EOC up to 100 images can be pre-stored. The added outputs consist of a 3G/HD/SD-SDI and YUV on five BNCs (two of them for H/V sync).The switcher runs on a 10-bit Athena processor and uses four image layers to produce sophisticated transitioning backgrounds, transitioning picture-in-picture windows, wipes, dissolves and keys. Transition times can be set to as quick as zero. That, a low processing delay of a max of three input fields, and two scalers allow for clean switching.The switcher features twelve inputs, two scalers, and three program outs that all show one image at one resolution. Ten of the twelve inputs can be scaled, and the other two can run at full screen. Of the ten scalable, two are SD/HD-SDI inputs and eight are 15-pin analog inputs that accept HD inputs via optional adapters from Barco's Switcher Cable Kit. Scaler 1 begins to function as soon as an input is selected, and Scaler 2 begins as soon as a second input is selected, affording cleaner switching from one source to another. All the inputs support resolutions up to 2048 x 1080p. The non-scalable inputs are DVI. The program outs are a DVI and two 15-pin inputs that are also HD-convertible by adapters. Three linked program outs allow the convenience of connecting to additional projectors without using a splitter. Using the switcher's menu, different backgrounds can be selected, including full screen color background or full screen logos.The EOC operates in two different modes -- primary and auxiliary. In primary output mode, the card provides interlaced or serial digital formats at the same resolution as the main program and preview outputs of the switcher, and with no delay. In auxiliary output mode, the card supplies interlaced or serial digital formats but at different resolutions from the program and preview outputs. Auxiliary mode has a frame delay from the program and preview outputs. In both modes, outputs from the card can be used for recording or to display on a monitor.ScreenPRO-II HDKey FeaturesTransitioning PiP or key on a transitioning backgroundNative high resolution background channels independent of the PiP/key processing channelLow video delay -- less than 3 input fieldsProgrammable matteZ-order control (priority layers) for overlapping PiPs or keysMixer is re-assignable as a mixing (transitioning) PiP or as two (split) non-transitioning PiPs or keysCapture and storage of two LOGOs for use as full-screen image or downstream key sourceLook-ahead previewOutput sync: free-run or vertically locked to NTSC/PAL blackburst, CSync or HD tri-level syncSupports upgrades to additional modules, such as a recordable output)User ControlsLCD touch screen displayKeyboard circuitryRotary encoders and LED lighted push buttonsComputer or LAN / RS-232 remote controlControl FunctionsSource input configurationOutput format selectionTest pattern selectionVideo source selection for PIPs or keysTransition effect selection and controlPiP EffectsPiP size from 1/8 to 8X source resolutionAdjustable PiP aspect ratioPiP borders, including drop shadows and soft edgeKeyingLuminance keySplit key (key alpha and fill)Reverse key (key on background)EOC (Expanded Output Card)Video processing10-bit processing1:1 pixel samplingMotion adaptive de-interlacing (SD & HD)3:2 and 2:2 pull down detectImage croppingAspect ratio correction
