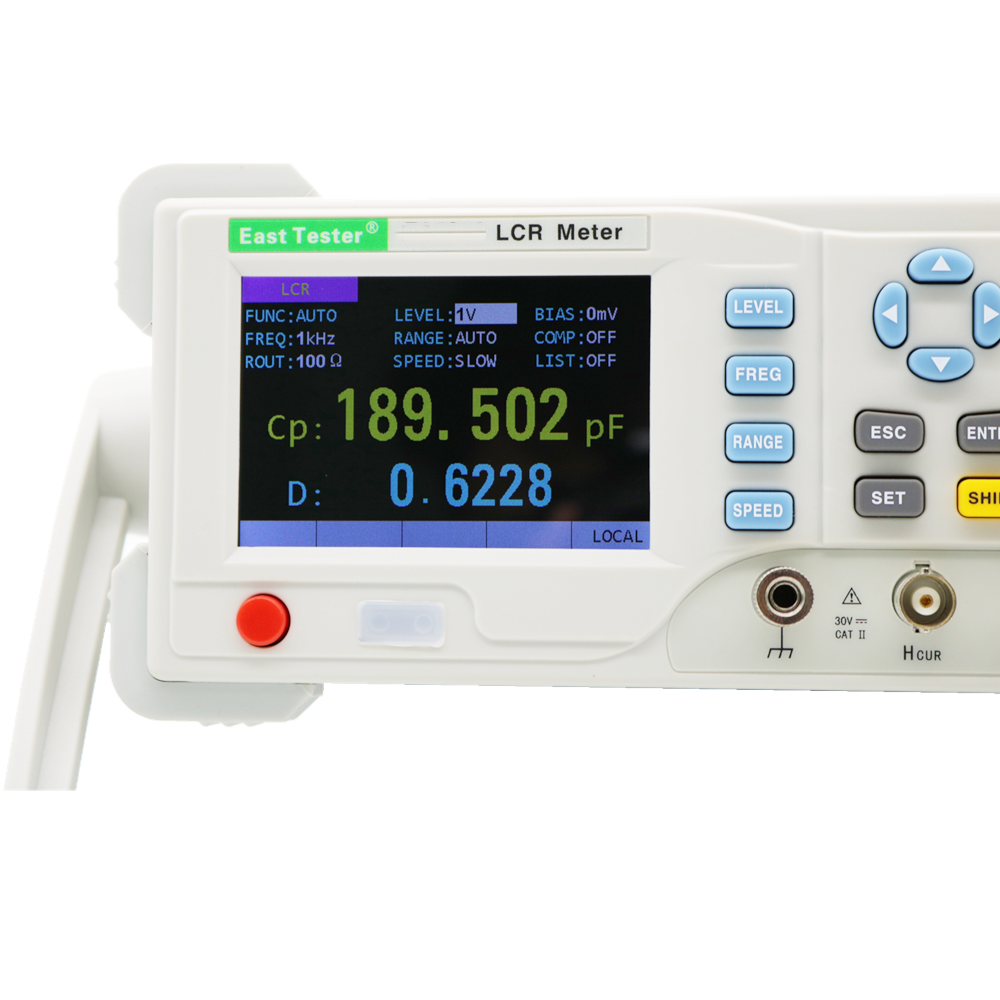

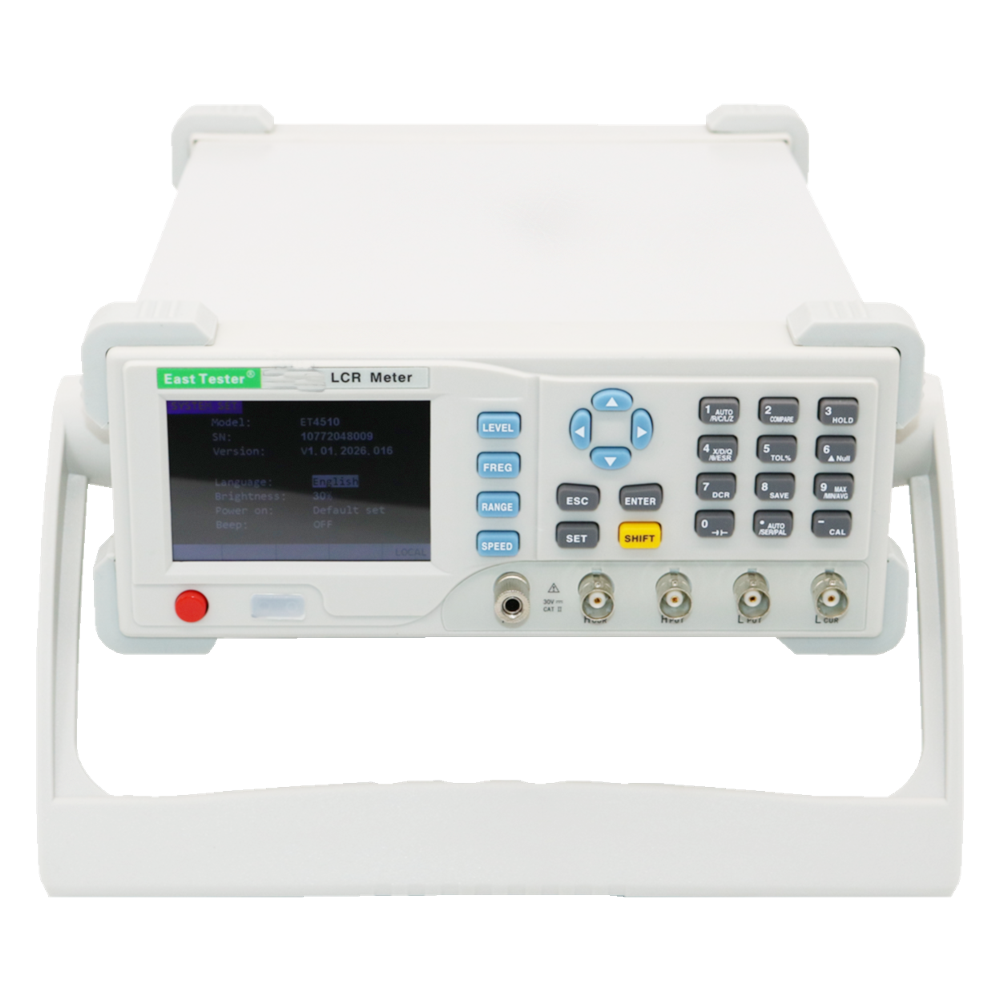

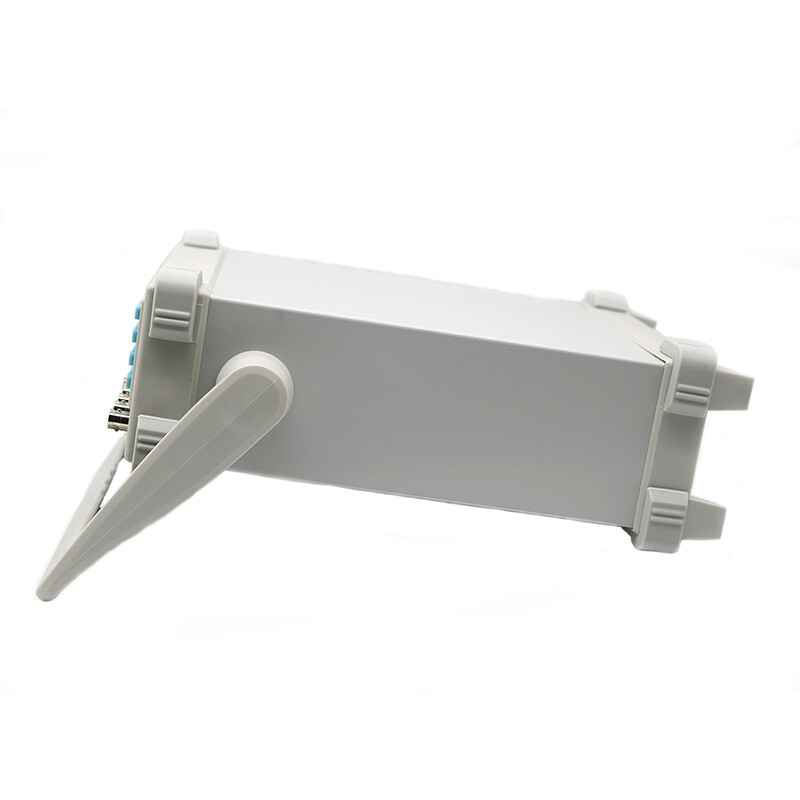

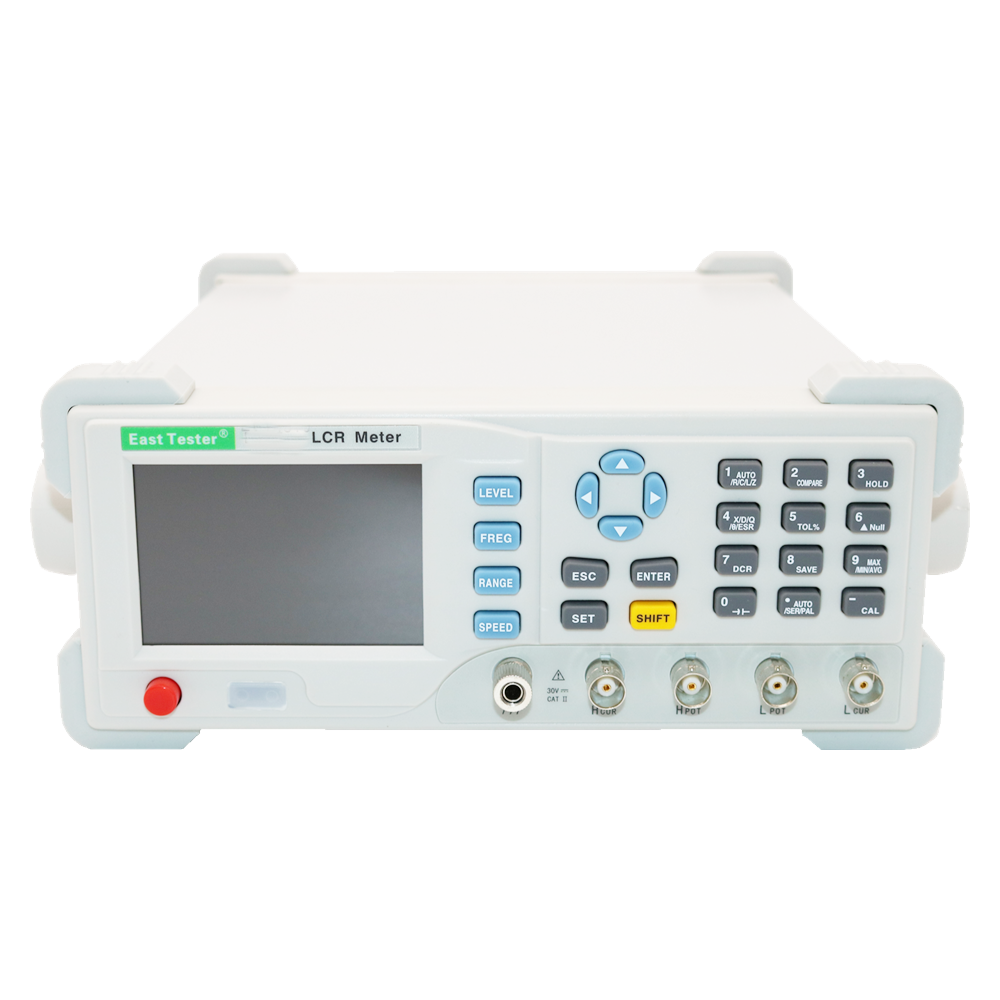

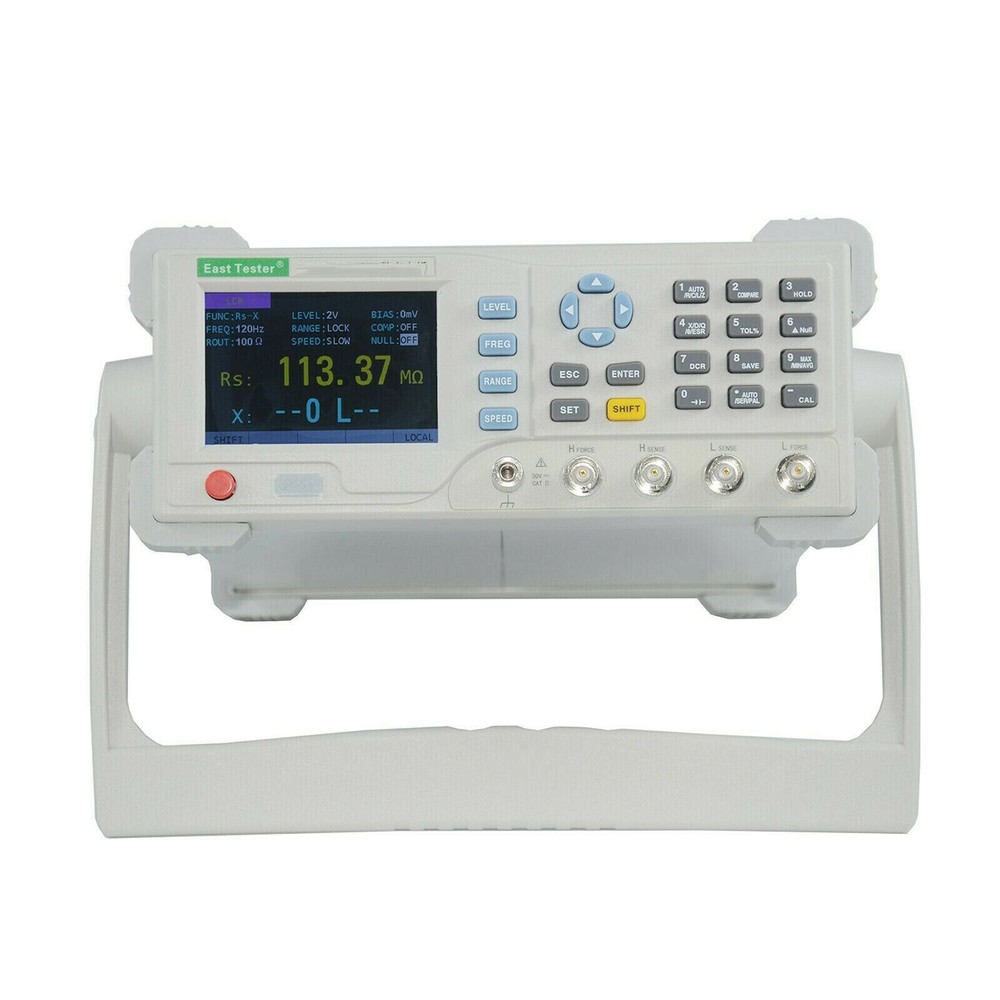

Check the listing for details. Benchtop LCR Meter 10-10KHz Component Measurement Data Recording Function. Condition: New. Listed at 477.49 USD. Benchtop LCR Meter 10-10KHz Component Measurement Data Recording Function Product characteristics ¤ The highest measuring frequency is 10kHz, and the stepping; frequency is continuously adjustable at 1Hz; ¤ Test level 10~2000 mV, 1 mV step continuously adjustable; ¤ Supporting DC Resistance (DCR) and Electrolytic Capacitance Measurement; ¤ Internal bias voltage output 0mV~1500mV; ¤ 3.5-inch TFT display, 5-bit display; ¤ Data recording function (maximum, minimum, average); ¤ Supporting SCPI Communication Protocol; ¤ Provide system settings to configure Chinese or English, buzzer, screen brightness, etc; ¤ The basic measurement accuracy is 0.1%; ¤ Manual and automatic range; ¤ With open circuit and short circuit calibration function; ¤ Comparator sorting (5 gears), alarm function. Main technical indicators Model ET4501 ET4502 ET4510 Testing frequency 10-10KHz continuous adjustable, 1Hz step[1]by-step 10-20KHz continuous adjustable, 1Hz step[1]by-step 10-100KHz continuous adjustable, 1Hz step by-step Display screen Display screen 3.5 inch TFT LCD Number of display digits Principal parameter: 5 digit，Secondary parameter: 5 digit Measured parameter Principal parameter: L/C/R/Z，Secondary parameter: X/D/Q/θ/ESR Measurement Range L：0.001μH～9999H C：0.001pF～99.999mF R：0.0001Ω～99.99MΩ Basic accuracy 0.1% Measuring display speed 2 time/s (slow), 4 times/s (medium), 8 time/s (fast) Internal bias 0-1500mV adjustable, at a step of 1mV. Testing level 0.01~2V adjustable, at a step of 1mV. Signal source output impedance 30Ω、100Ω Calibration function Open circuit calibration, short circuit calibration Screening function The limit range of screening can be set to -50%～＋50%, and the fixed points are 1%, 5%, 10% and 20%. Comparator 5 groups sorting,3 groups of qualified setting, one group of unqualified setting, one group of auxiliary setting Interfaces standard: RS232（or 485）, USB Device, Handler ; Others Support dc resistance (DCR), electrolytic capacitor measurement model,Adjustment of backlight brightness, Chinese and English are optional General technical specifications ¤ Power supply voltage: 220V.AC±10%, or 110V.AC±10%, 45~65Hz; ¤ Power consumption:
