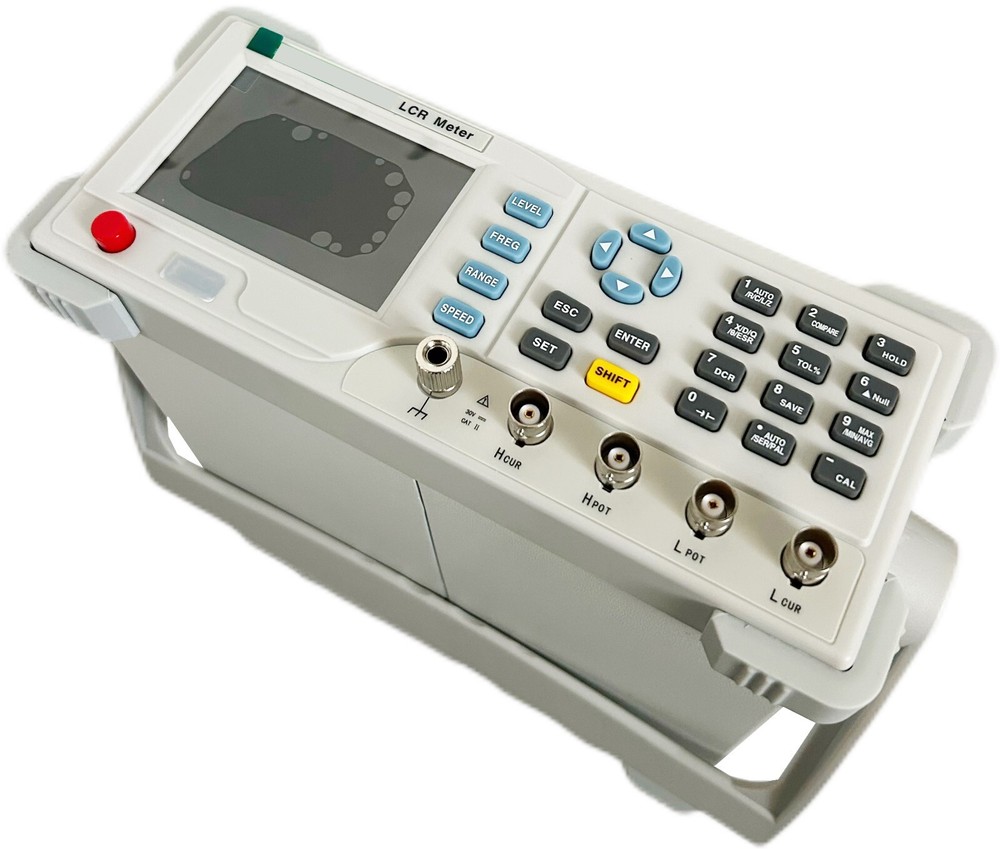

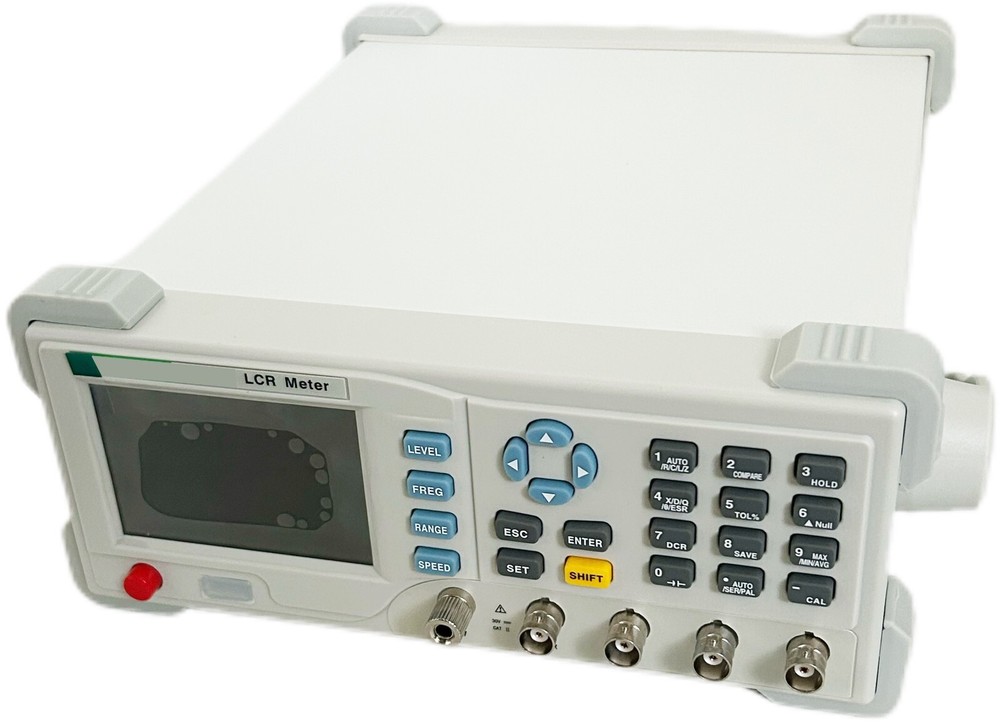

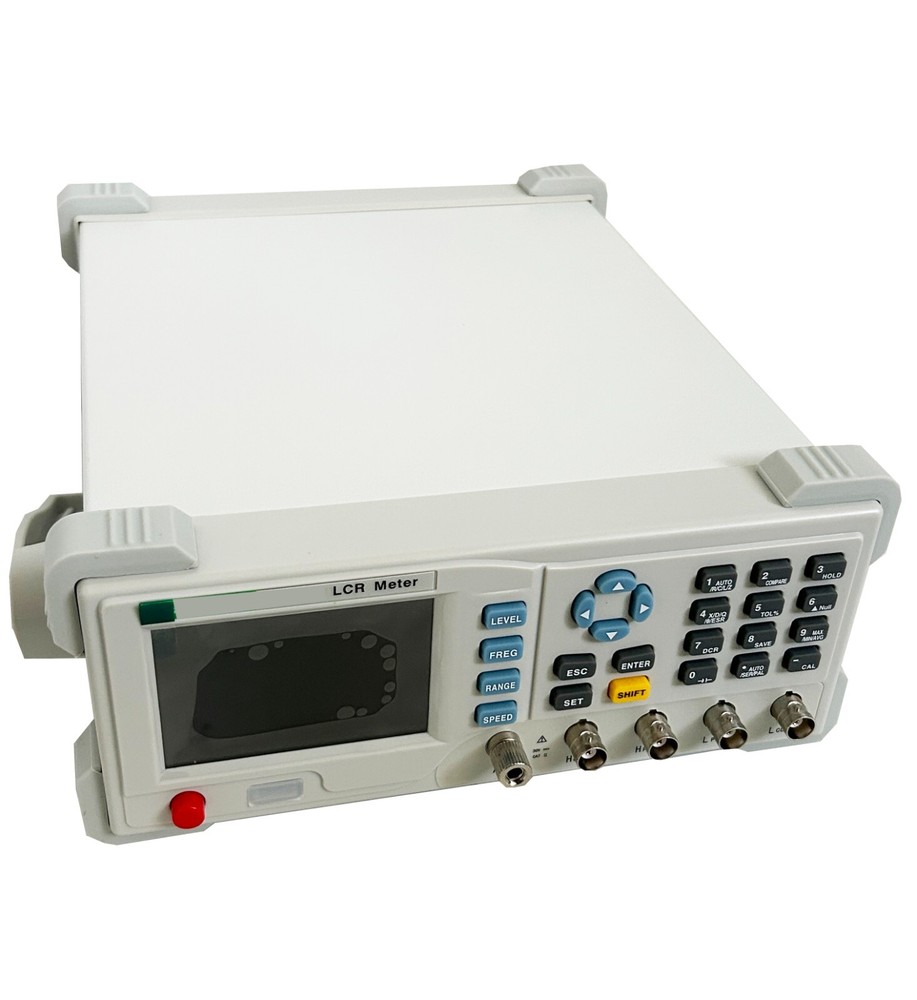

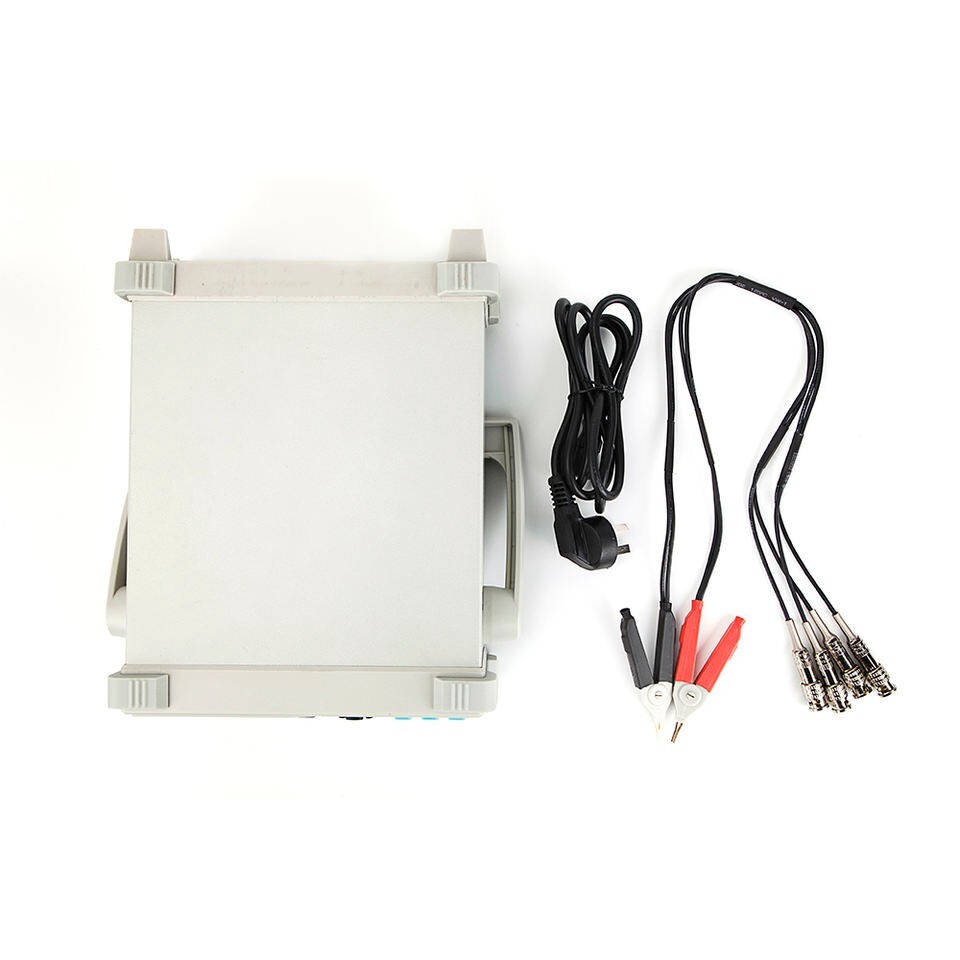

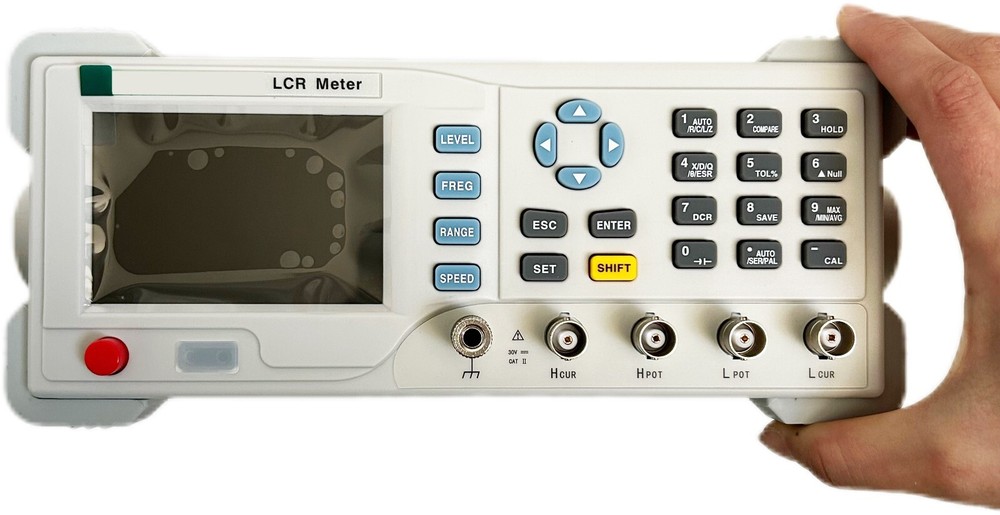

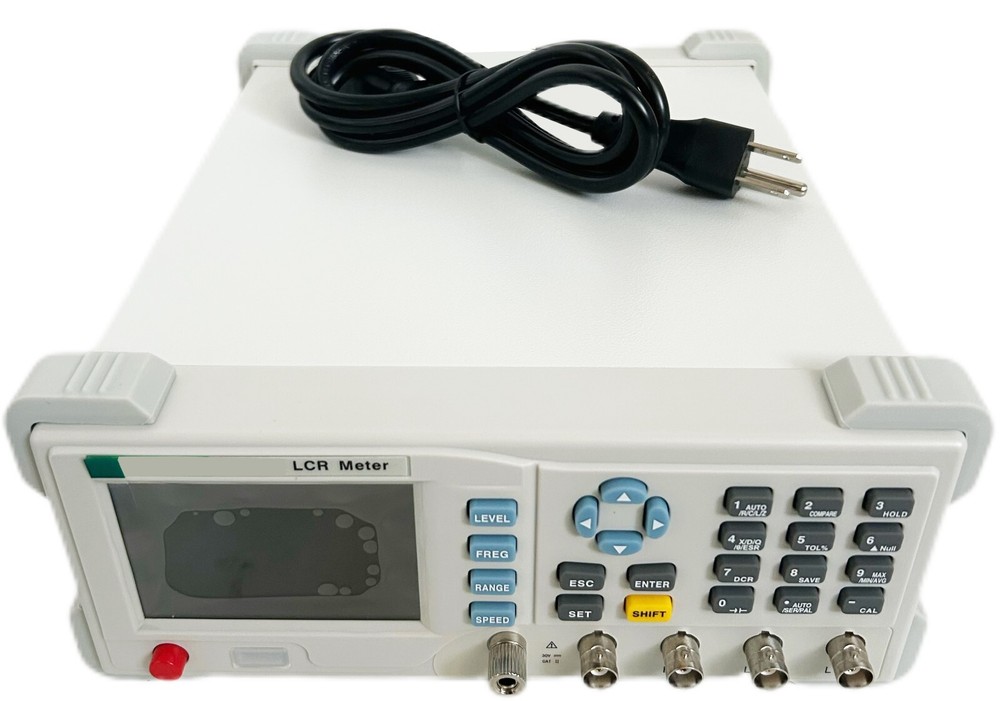

Benchtop LCR Meter Digital Bridge Communication USB Device RS232 Handle 100kHz

Name: Benchtop LCR Meter Digital Bridge Communication USB Device RS232 Handle 100kHz
SKU: 256723494979
Price: 550.00 USD
Availability: InStock

$275.00

$550.00 -50%

Brand CNYST

Condition New

Item ID 256723494979

Measured parameter	Principal parameter: L/C/R/Z，Secondary parameter: X/D/Q/θ/ESR
Basic Accuracy	0.1%
Product	LCR Meter
Testing frequency:	10-100KHz continuous adjustable, 1Hz step[1]by-step
MPN	2024
Calibration function:	Open circuit calibration, short circuit calibration
Display screen	Display screen 3.5 inch TFT LCD
Brand	CNYST
Interfaces	standard: RS232（or 485）, USB Device, Handler ;
Form Factor	Benchtop
Measuring display speed	2 time/s (slow), 4 times/s (medium), 8 time/s (fast)
Number of display digits	Principal parameter: 5 digit，Secondary parameter: 5 digit
Model	Digital LCR Meter
Signal source output impedance	30Ω、100Ω
Country/Region of Manufacture	China
Internal bias	0-1500mV adjustable, at a step of 1mV.
Testing level	0.01~2V adjustable, at a step of 1mV.
Measurement Range	L：0.001μH～9999H C：0.001pF～99.999mF R：0.0001Ω～99.99MΩ
UPC	635408811851

Check the listing for details. Benchtop LCR Meter Digital Bridge Communication USB Device RS232 Handle 100kHz. Condition: New. Listed at 550.00 USD. Standard: RS232 （ or 485 ）, USB Device, Handler ;. Interface: RS232 (or 485), USB Device, Handle. 10-100KHz continuous adjustable, 1Hz step[1]by-step. Signal source output impedance. 0-1500mV adjustable, at a step of 1mV.
