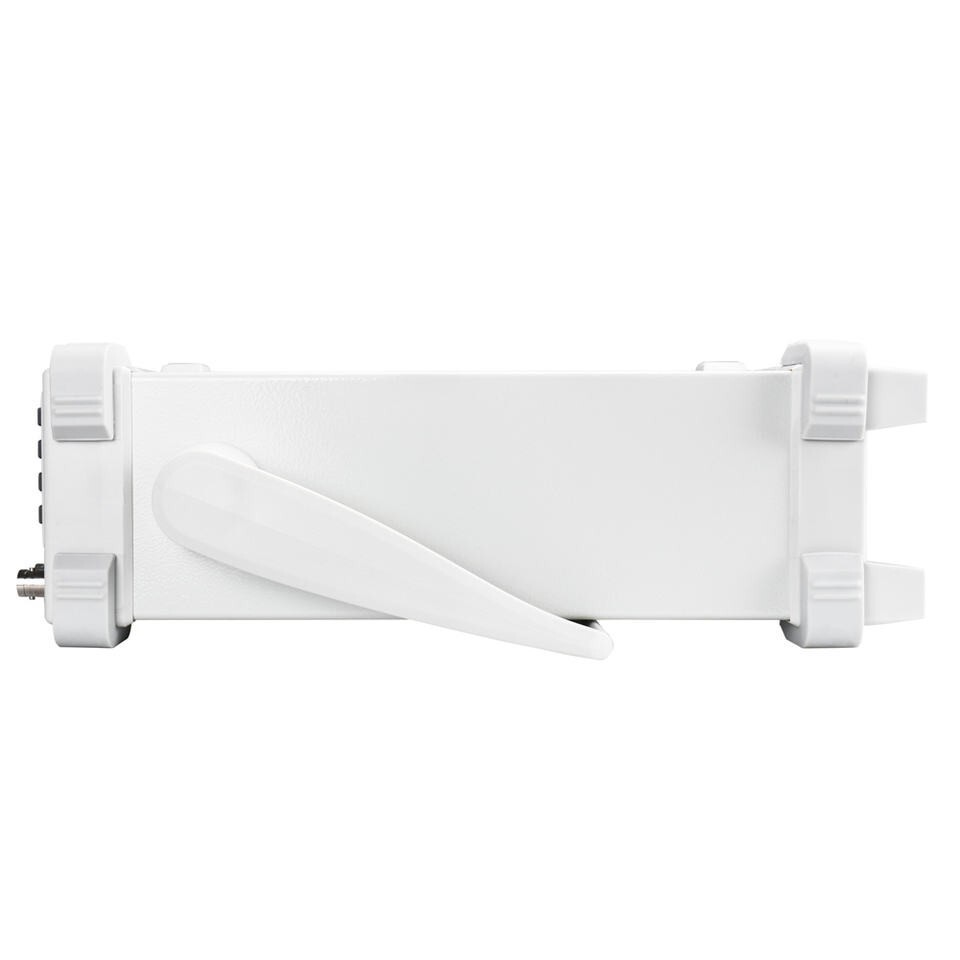

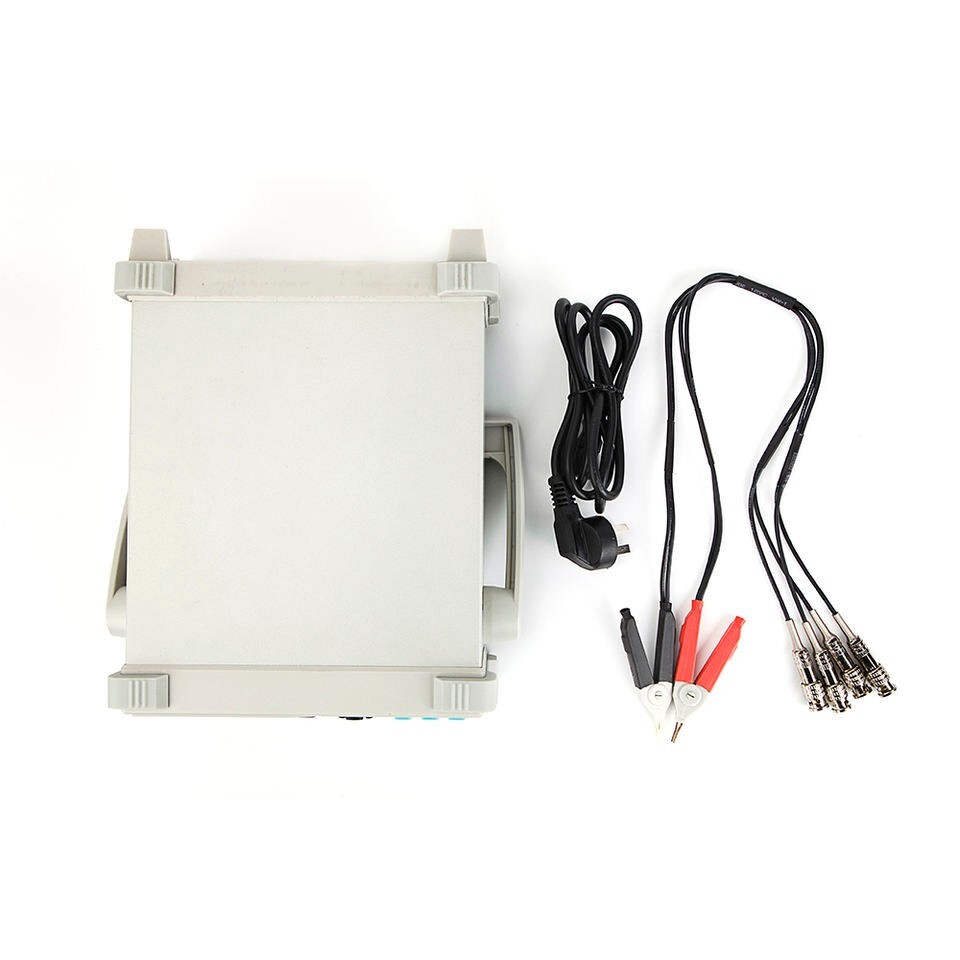

Benchtop LCR Meter Measurement Frequency up to 10kHz with 0.1% Basic Accuracy

Name: Benchtop LCR Meter Measurement Frequency up to 10kHz with 0.1% Basic Accuracy
SKU: 286750856861
Price: 348.89 USD
Availability: InStock

$174.45

$348.89 -50%

Brand CNYST

Condition New

Item ID 286750856861

Country of Origin	China
Measured parameter	Principal parameter: L/C/R/Z，Secondary parameter: X/D/Q/θ/ESR
Basic Accuracy	0.1%
Calibration function	:Open circuit calibration,short circuit calibration
Product	LCR Meter
UPC	635408811875
MPN	2024
Display screen	Display screen 3.5 inch TFT LCD
Brand	CNYST
Interfaces	standard: RS232（or 485）,USB Device,Handler ;
Form Factor	Benchtop
Measuring display speed	2 time/s (slow),4 times/s (medium),8 time/s (fast)
Number of display digits	Principal parameter: 5 digit，Secondary parameter: 5 digit
Model	Digital LCR Meter
Signal source output impedance	30Ω、100Ω
Internal bias	0-1500mV adjustable,at a step of 1mV.
Testing frequency	10 points (100,120,200,400,800,1K,2K,4K,8K,10K)
Testing level	Six fixed level(0.1V、0.3V、0.6V、1V、1.5V、2V)
Measurement Range	L：0.001μH～9999H C：0.001pF～99.999mF R：0.0001Ω～99.99MΩ

Check the listing for details. Benchtop LCR Meter Measurement Frequency up to 10kHz with 0.1% Basic Accuracy. Condition: New, Made in China. Listed at 348.89 USD. Testing frequency. Basic accuracy. Six fixed level(0.1V 、 0.3V 、 0.6V 、 1V 、 1.5V 、 2V). 0-1500mV adjustable, at a step of 1mV. Product Features AC±10%, or 110V. AC±10%, 45~65Hz;. Three core power cord(30A51).
